Input Shaft Bearing Retainer

WARNING: This page is about a different variant/trim than selected.

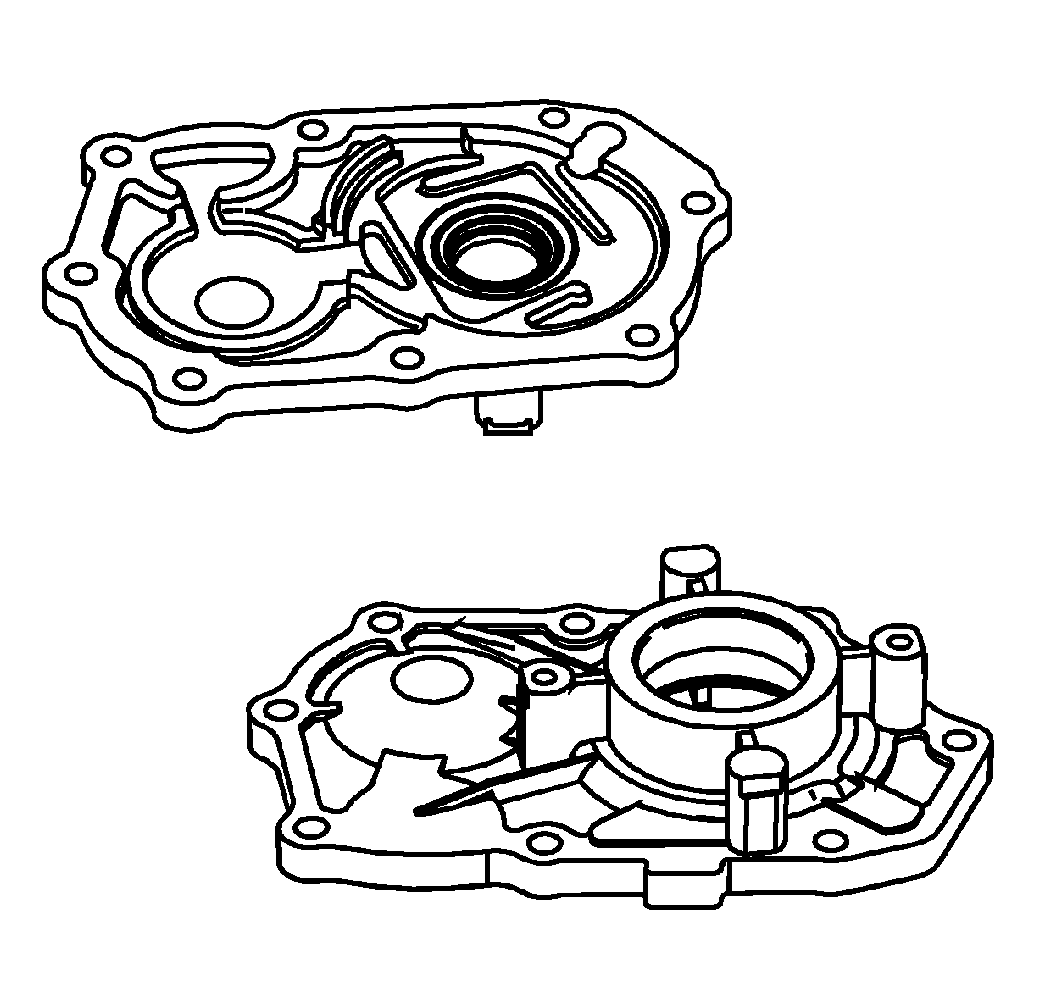

    Fig 1: Input Shaft Bearing Retainer
    GM873005Courtesy of GENERAL MOTORS CORP.
  1. Clean the input shaft bearing retainer in a suitable cleaning solvent and air dry.
    2. NOTE: Refer to Machined Surface Damage Notice .
  2. Remove the sealer from the retainer sealing surfaces.
  3. Inspect the bearing retainer for being broken or cracked.
  4. Replace the bearing retainer if any of the above conditions are found.
  5. Inspect the sealing surfaces for damage.
  6. Repair small scratches or nicks with a soft stone.
