Clutch Housing

WARNING: This page is about a different variant/trim than selected.

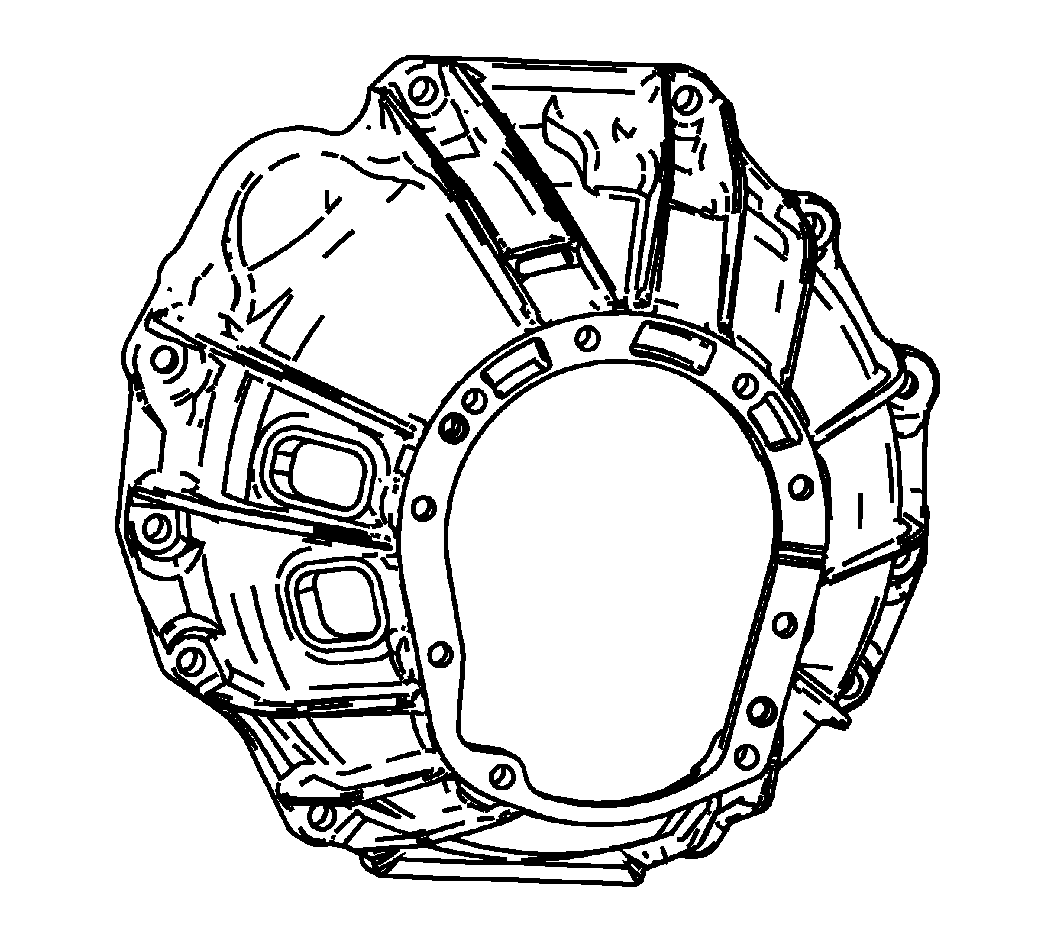

    Fig 1: Locating Inspection Areas On Clutch Housing
    GM872999Courtesy of GENERAL MOTORS CORP.
  1. Clean the clutch housing in a suitable solvent and air dry.
  2. Inspect the clutch housing for the following conditions:
    • Cracks
    • Damaged mounting flanges
    • Damaged bolt holes
