Removal Procedure

WARNING: This page is about a different variant/trim than selected.

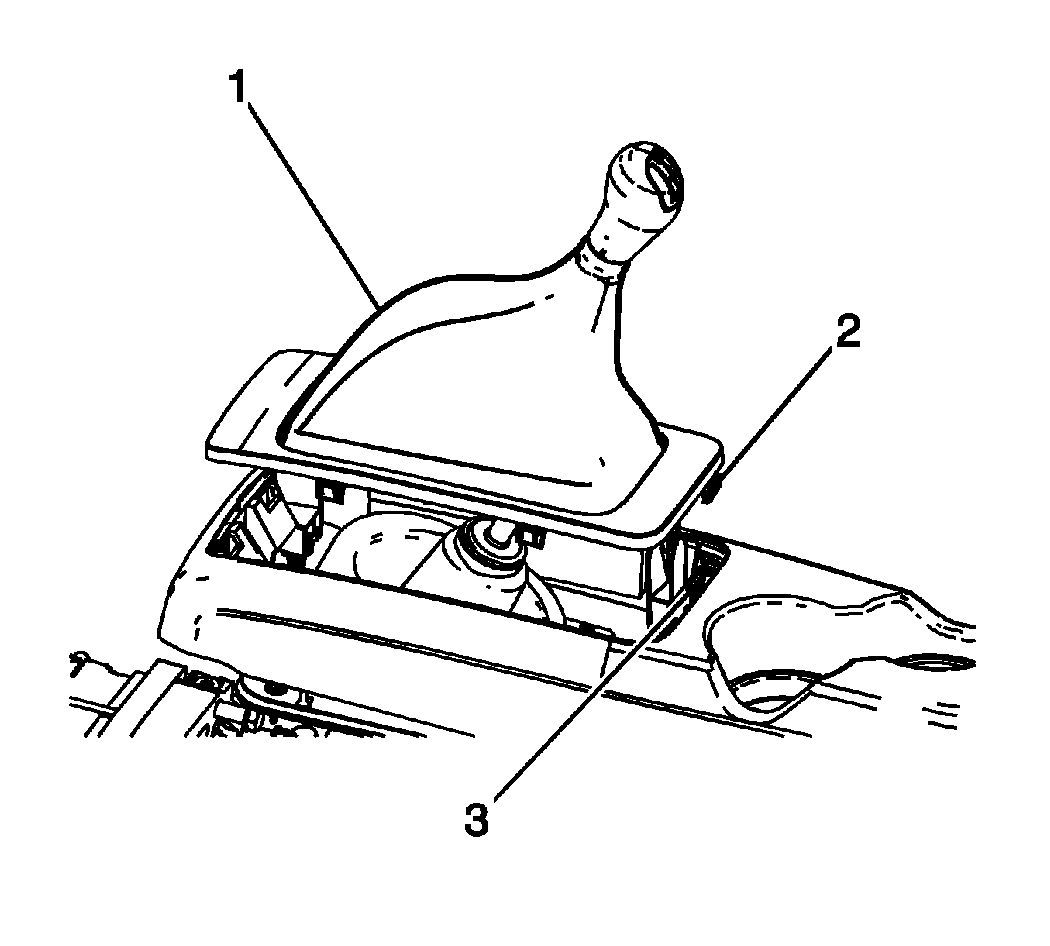

    Fig 1: View Of Boot & Retainers (D06)
    GM1397261Courtesy of GENERAL MOTORS CORP.
  1. Pull upward on the boot (1) in order to disengage the bezel retainers (2) from the console (3).
    2. Fig 2: View Of Shift Lever & Set Screw
    GM1397260Courtesy of GENERAL MOTORS CORP.
  2. Remove the set screw (1) from the shift lever (2).
  3. Remove the shift lever assembly from the control lever.
