Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the shift lever assembly. Refer to Shift Lever Assembly Replacement (D06)  or Shift Lever Assembly Replacement (W/O D06) .
  2. Remove the console (w/o D06 only). Refer to Console Replacement (Small W/Manual Transmission) .

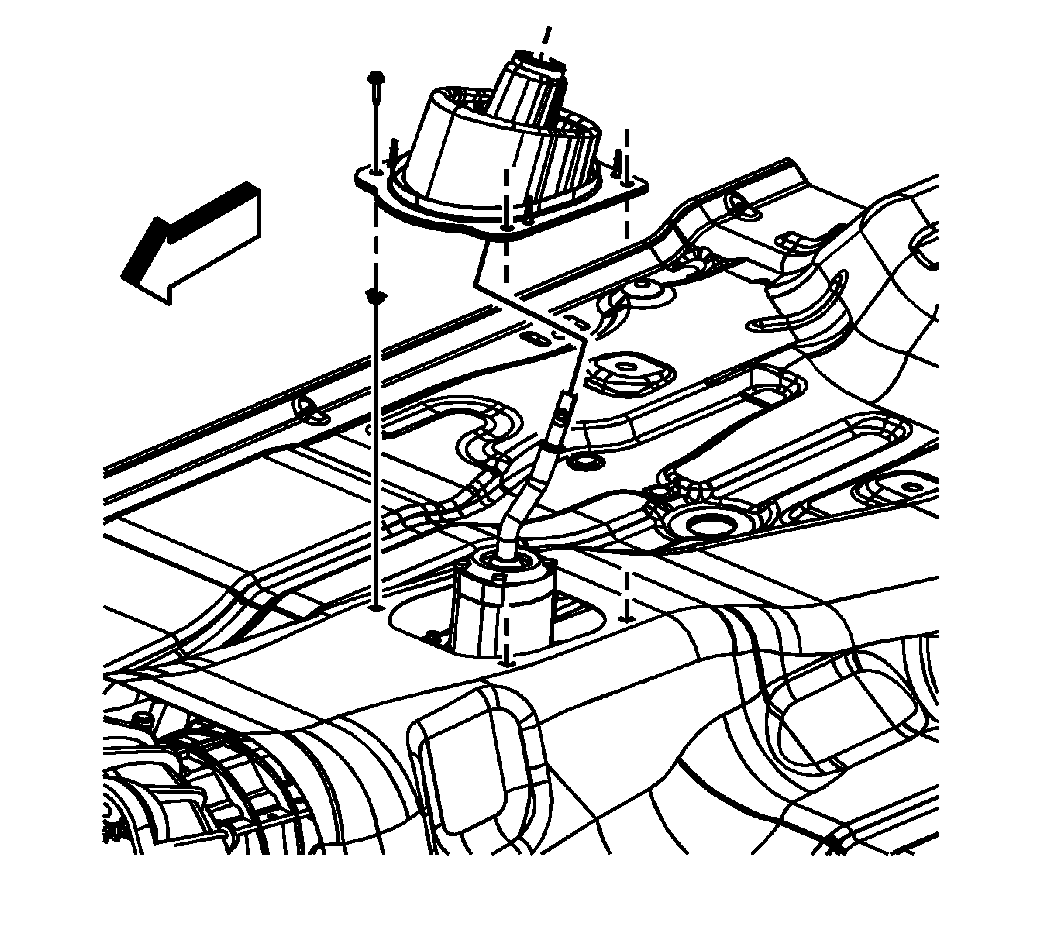

    3. Fig 1: View Of Control Lever Boot
    GM1388967Courtesy of GENERAL MOTORS CORP.
  3. Remove the control lever boot screws.
  4. Tilt and remove the control lever boot from the control lever.
  5. Shift the transmission into NEUTRAL.
    6. Fig 2: Locating Shift Control Housing & Gasket
    GM880655Courtesy of GENERAL MOTORS CORP.
  6. Remove the control lever housing assembly bolts.
  7. Remove the control lever housing assembly and gasket.
  8. Mask off the control lever housing opening, in order to prevent foreign objects from entering the transmission.
  9. Disassemble the control lever housing if necessary. Refer to Shift Control Housing Disassemble .
