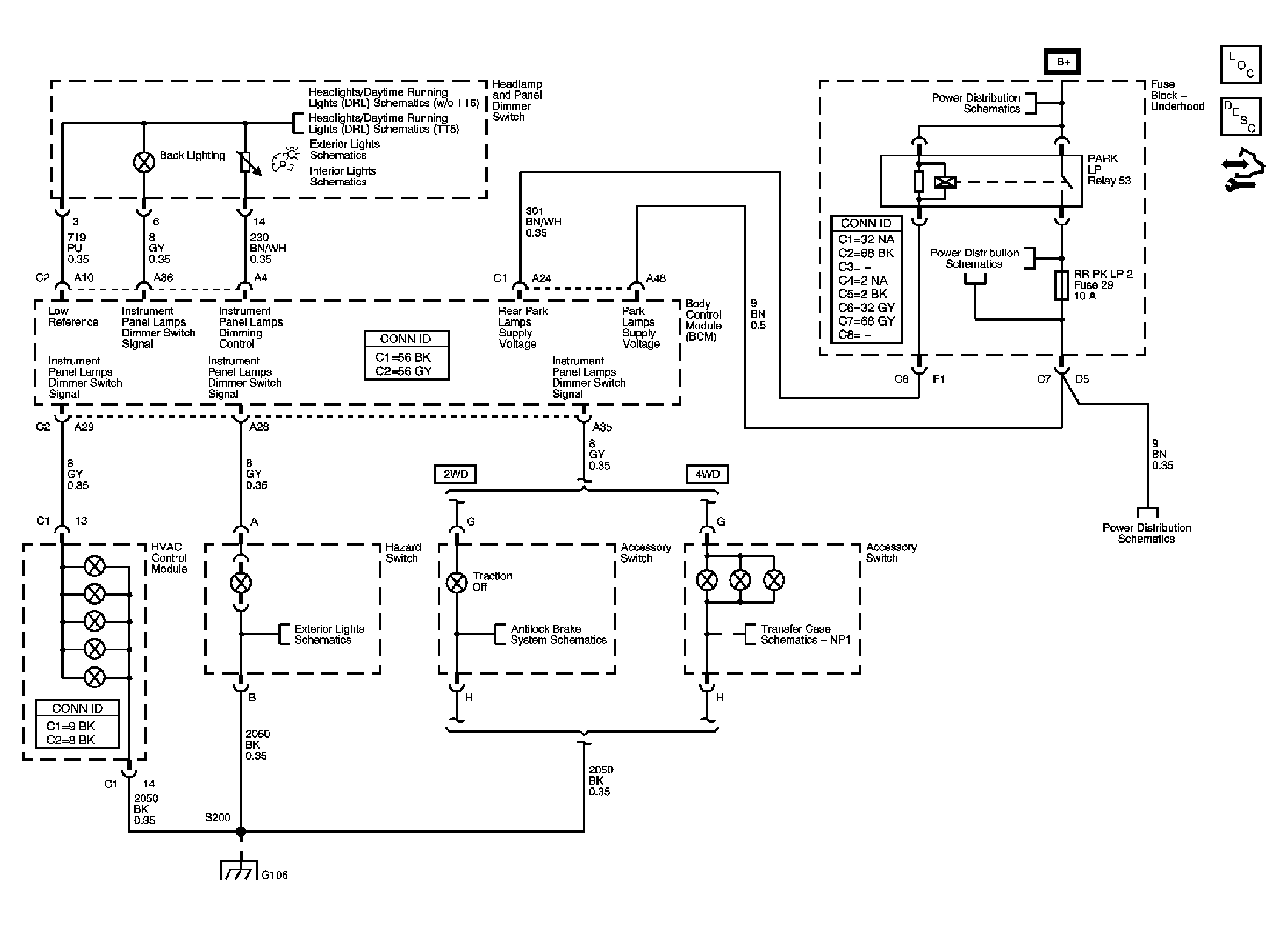

Home >> Isuzu >> 2007 >> i-290 LS, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Schematic and Routing Diagrams >> Interior Lights Dimming Schematics
