Clutch Pedal Cruise Control Release Switch Adjustment

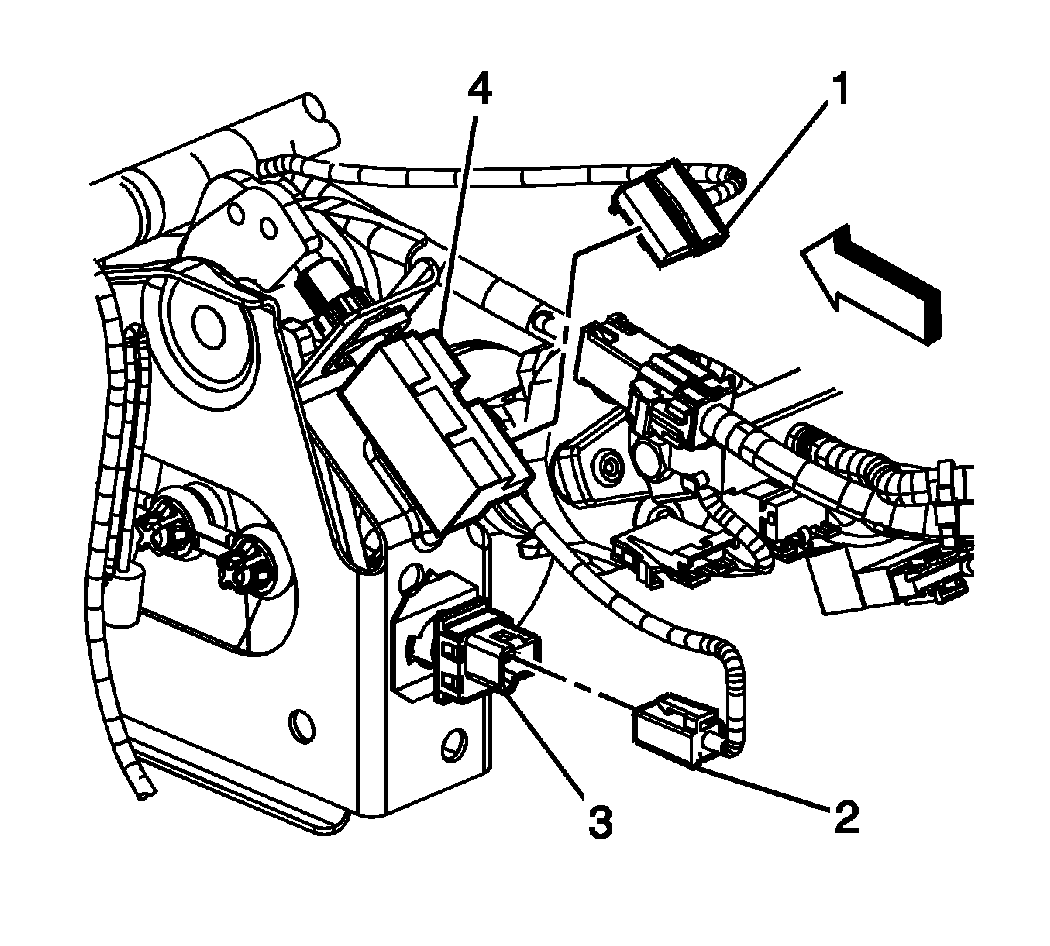

    Fig 1: Identifying Clutch Pedal Cruise Control Release Switch
    GM1560130Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the clutch release switch electrical connector (2).
    2. Fig 2: Exploded View Of Clutch Release Switch
    GM1302120Courtesy of GENERAL MOTORS CORP.
  2. Rotate the clutch release switch (4) counterclockwise, allowing the retainer (5) to release.
  3. Pull the clutch pedal to full stop.
  4. While holding the clutch pedal at full stop, push the switch (4) inward fully until the switch body contacts the clutch pedal arm.

    At this point the plunger in the switch (4) should be pushed in.

  5. Rotate the switch (4) clockwise until a "click" is heard.
    6. Fig 3: Identifying Clutch Pedal Cruise Control Release Switch
    GM1560130Courtesy of GENERAL MOTORS CORP.
  6. Connect the clutch release switch electrical connector (2).
