Automatic Transmission Controls Schematics (5.3L/6.0L)

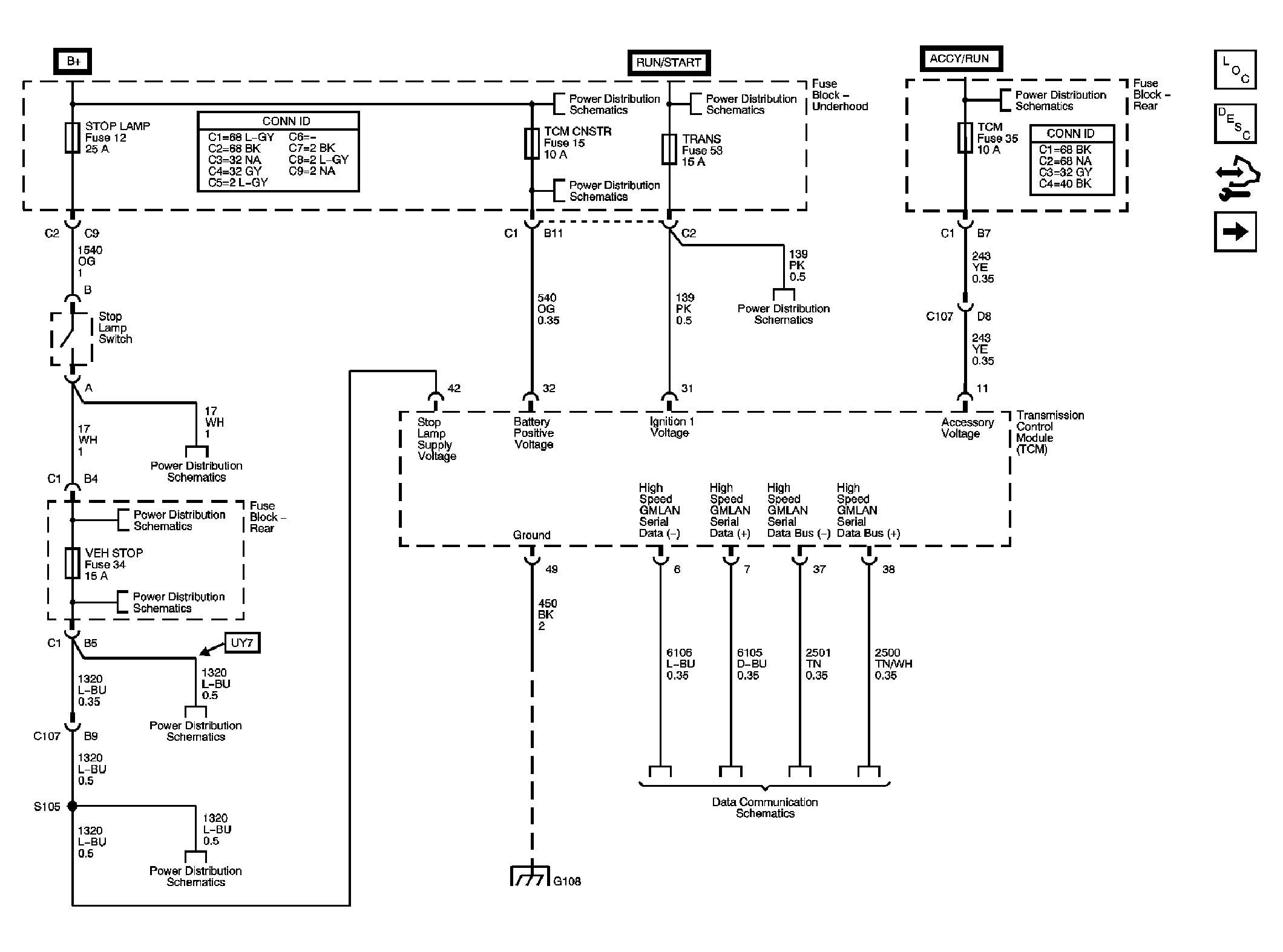

Fig 1: Module Power, Ground, Serial Data & Stop Lamp Switch Schematic

Courtesy of GENERAL MOTORS CORP.

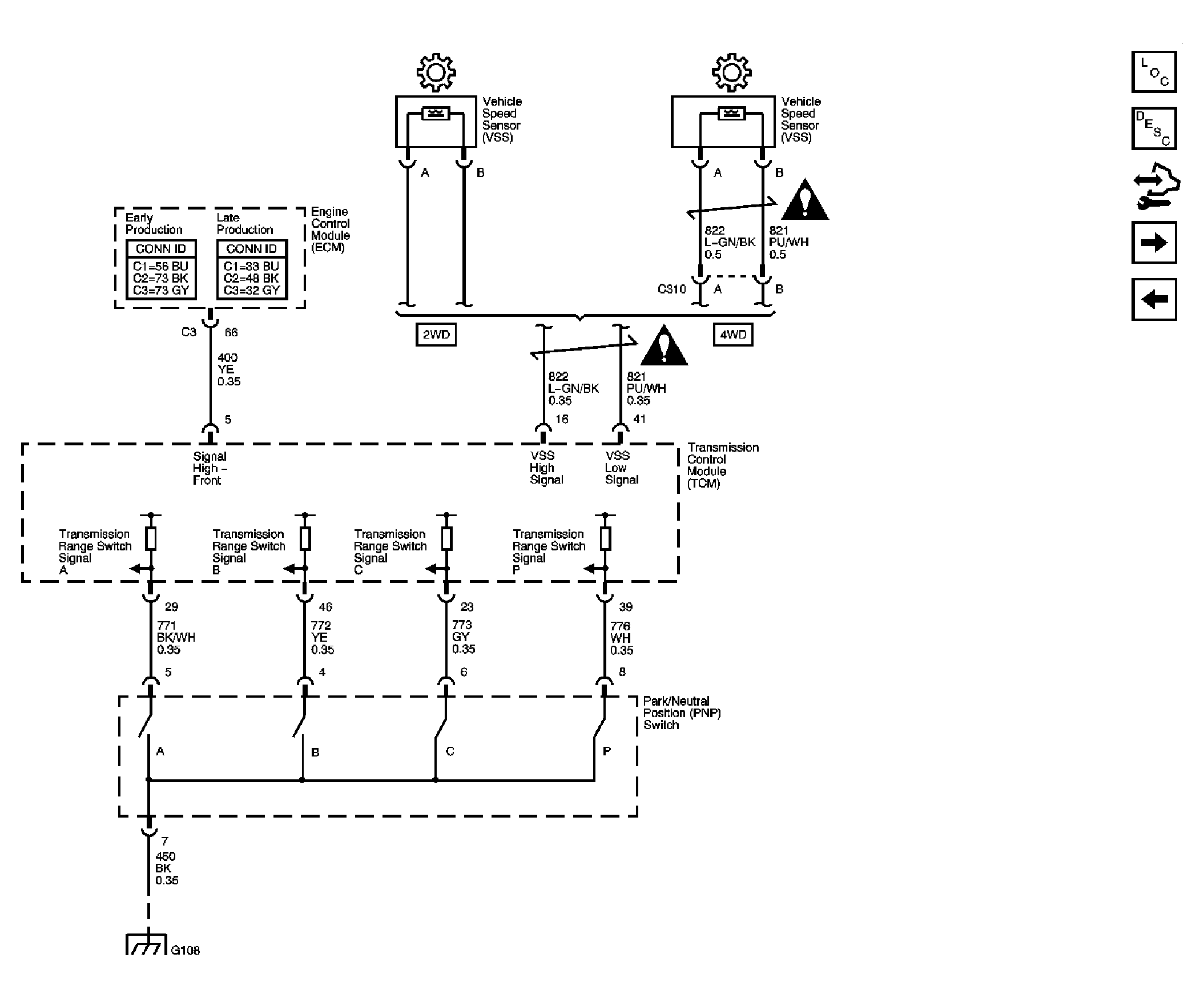

Fig 2: PNP Switch & VSS Schematic

Courtesy of GENERAL MOTORS CORP.

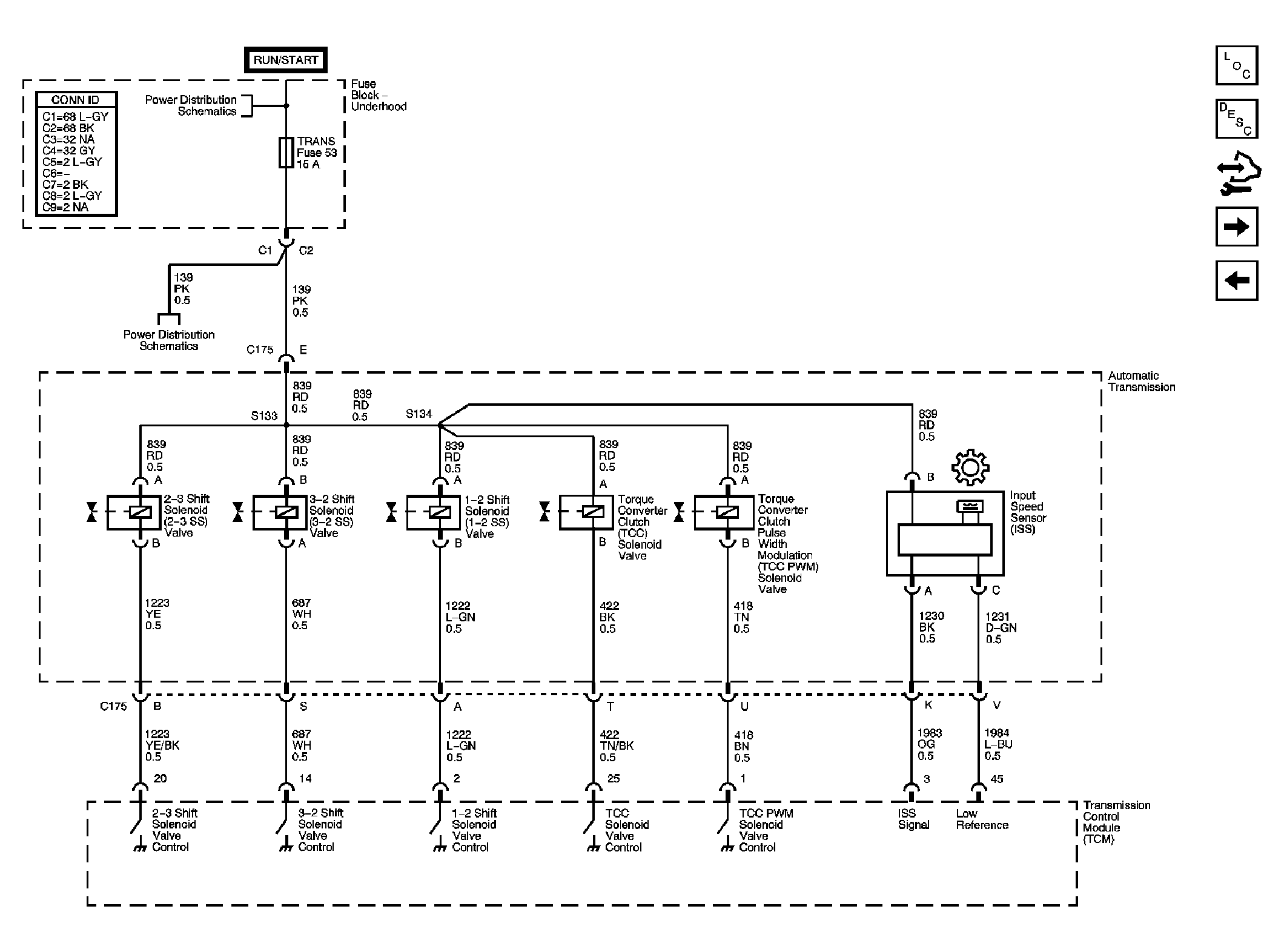

Fig 3: Shift Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Temperature & Pressure Controls Schematic

Courtesy of GENERAL MOTORS CORP.
