SIR Schematics

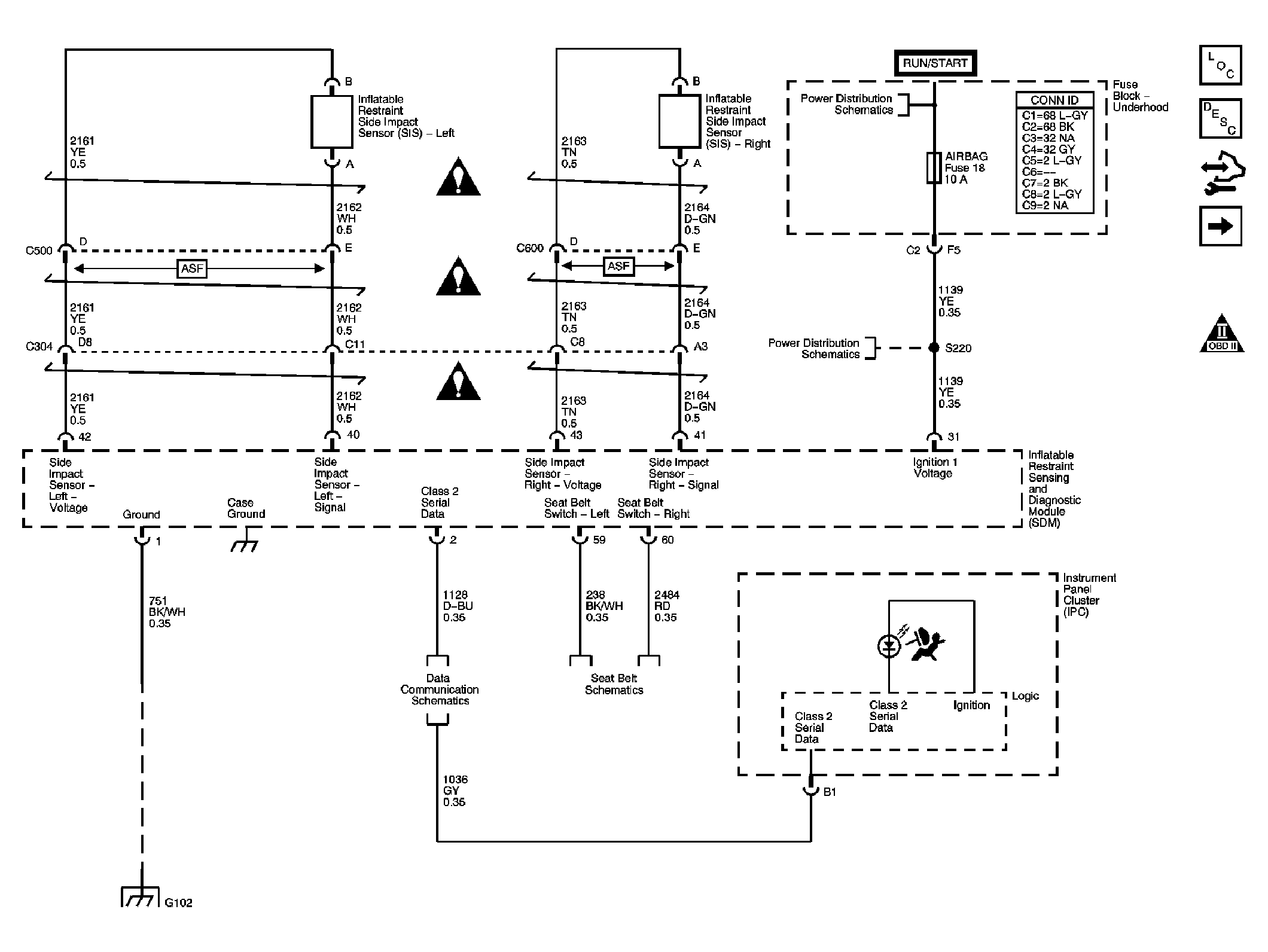

Fig 1: Power, Ground, Serial Data, Indicator & Side Impact Sensor Schematic
GM1748153Courtesy of GENERAL MOTORS CORP.

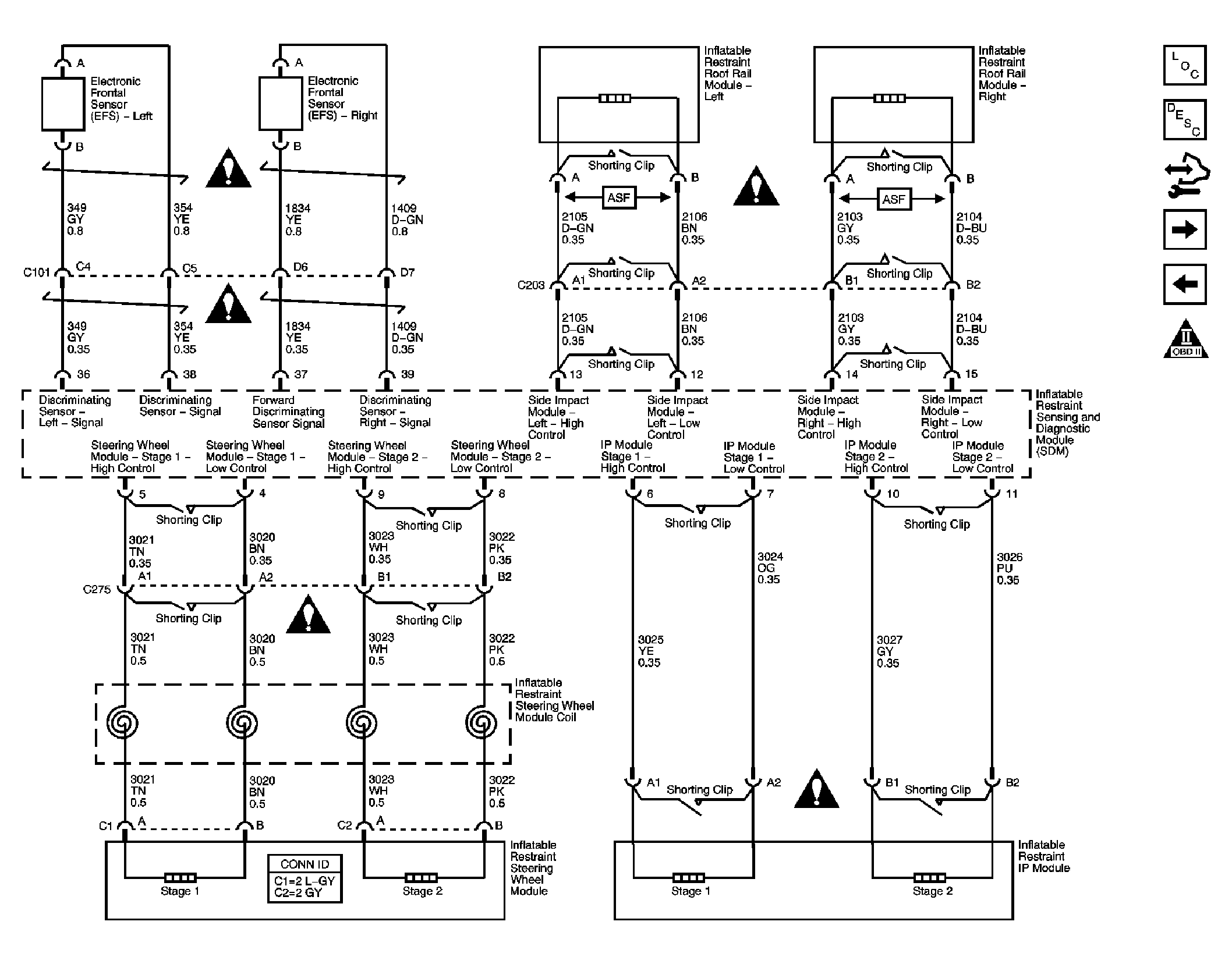

Fig 2: Front Sensors & Modules Schematic
GM1748154Courtesy of GENERAL MOTORS CORP.

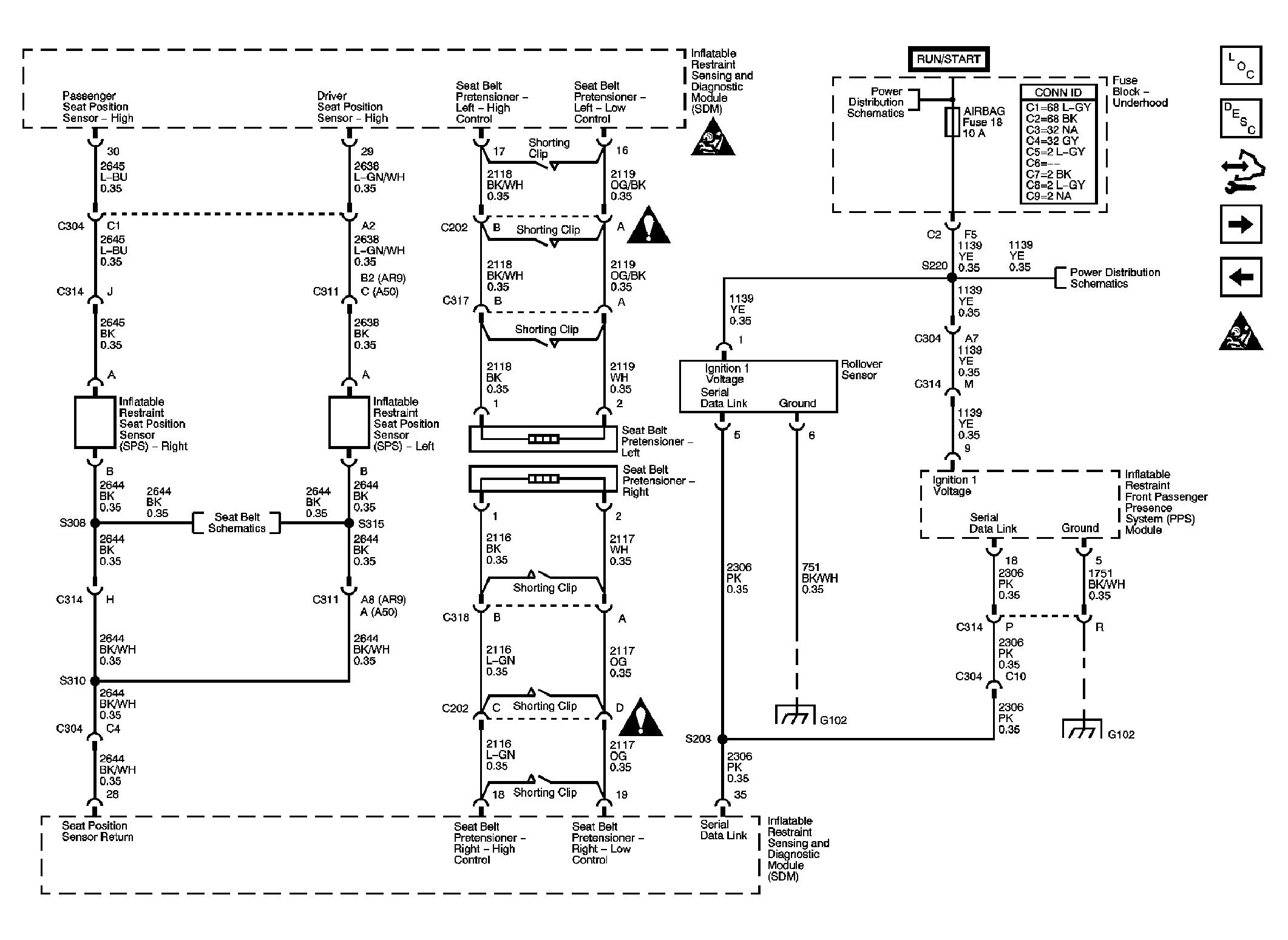

Fig 3: Seat Position Sensors, Rollover Sensor & PPS Module Schematic
GM1748155Courtesy of GENERAL MOTORS CORP.

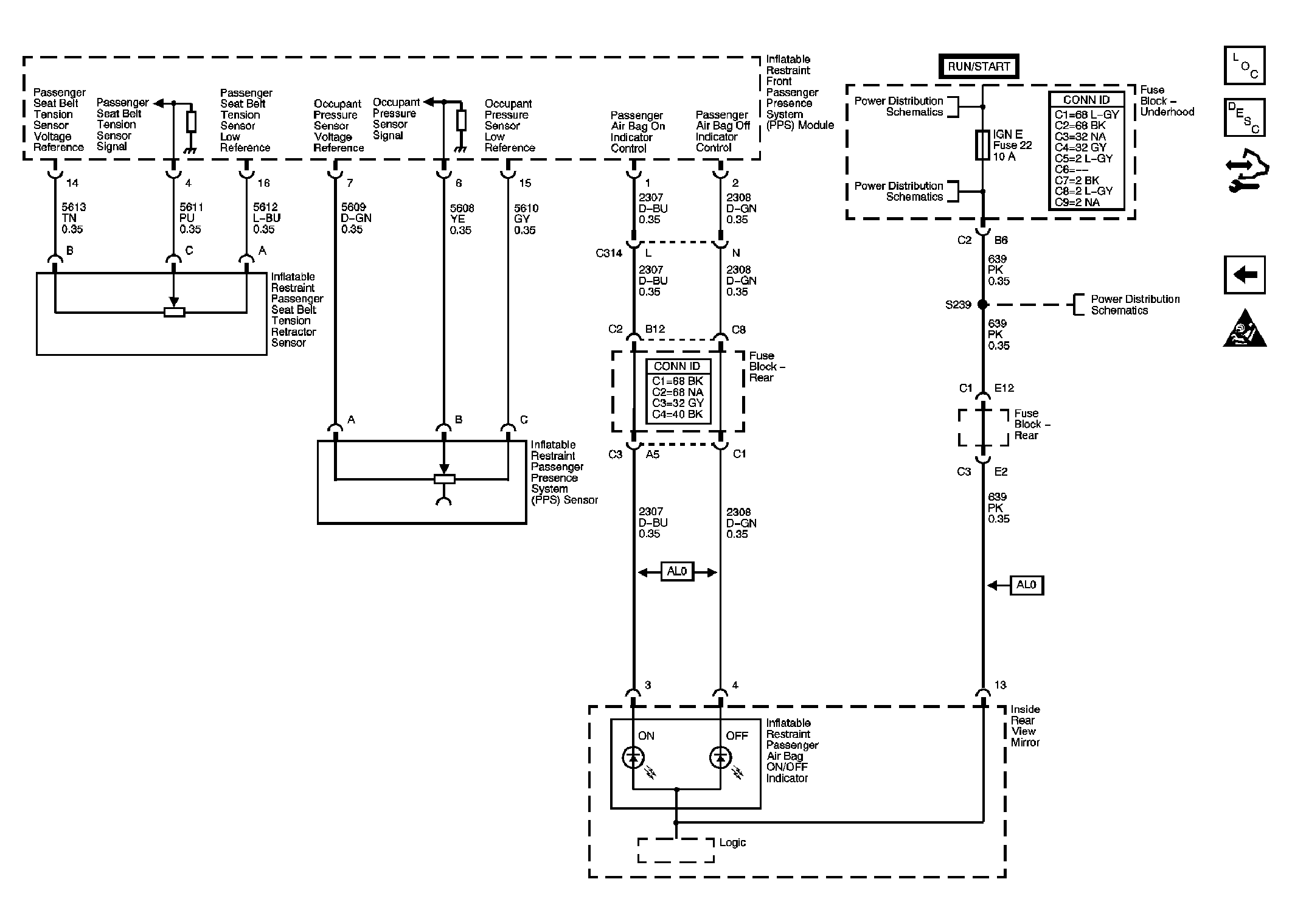

Fig 4: PPS Sensors & Indicators Schematic
GM1748156Courtesy of GENERAL MOTORS CORP.
