HVAC Schematics

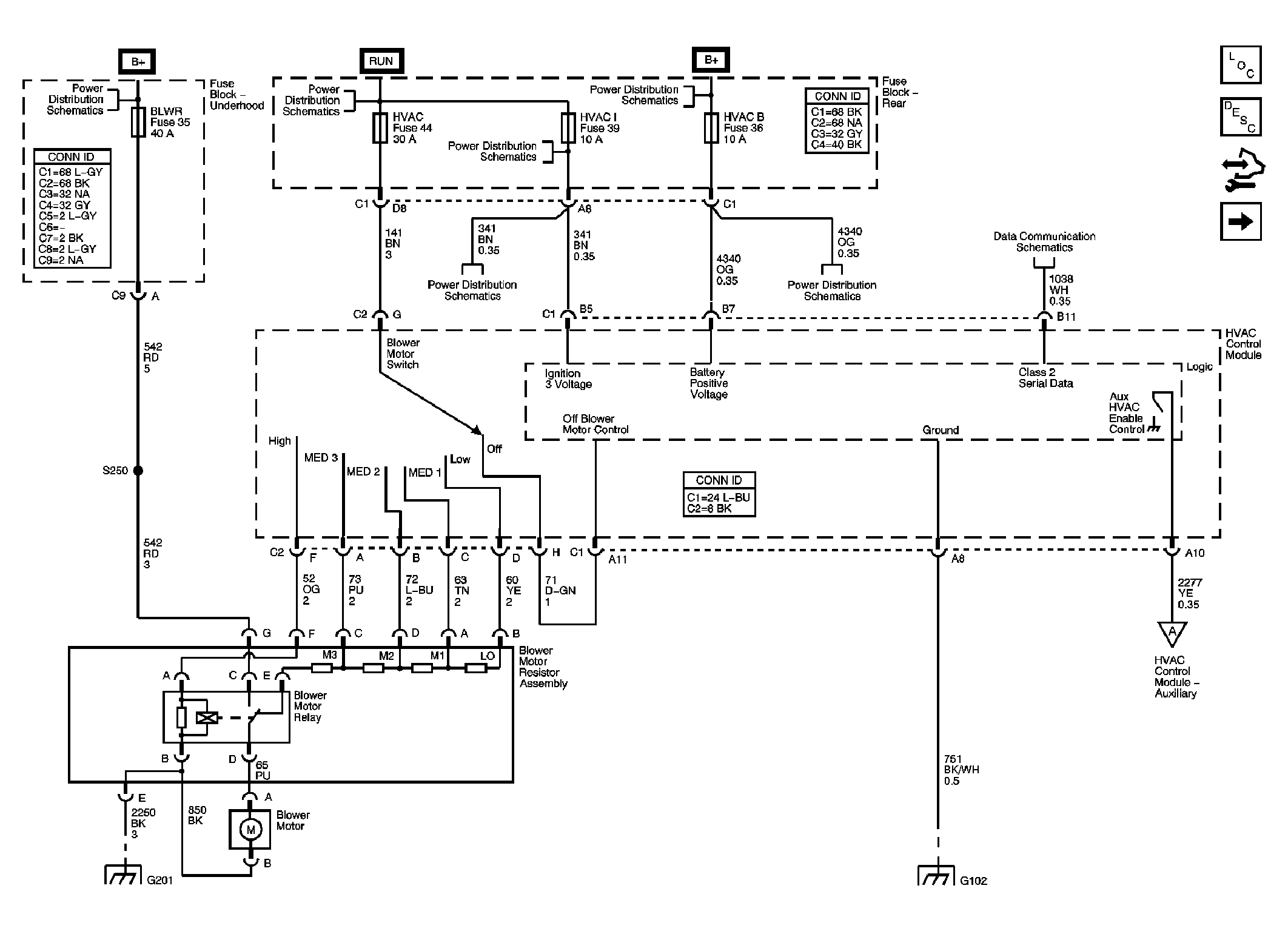

Fig 1: Module Power, Ground, Serial Data & Blower Motor Schematic
GM1748015Courtesy of GENERAL MOTORS CORP.

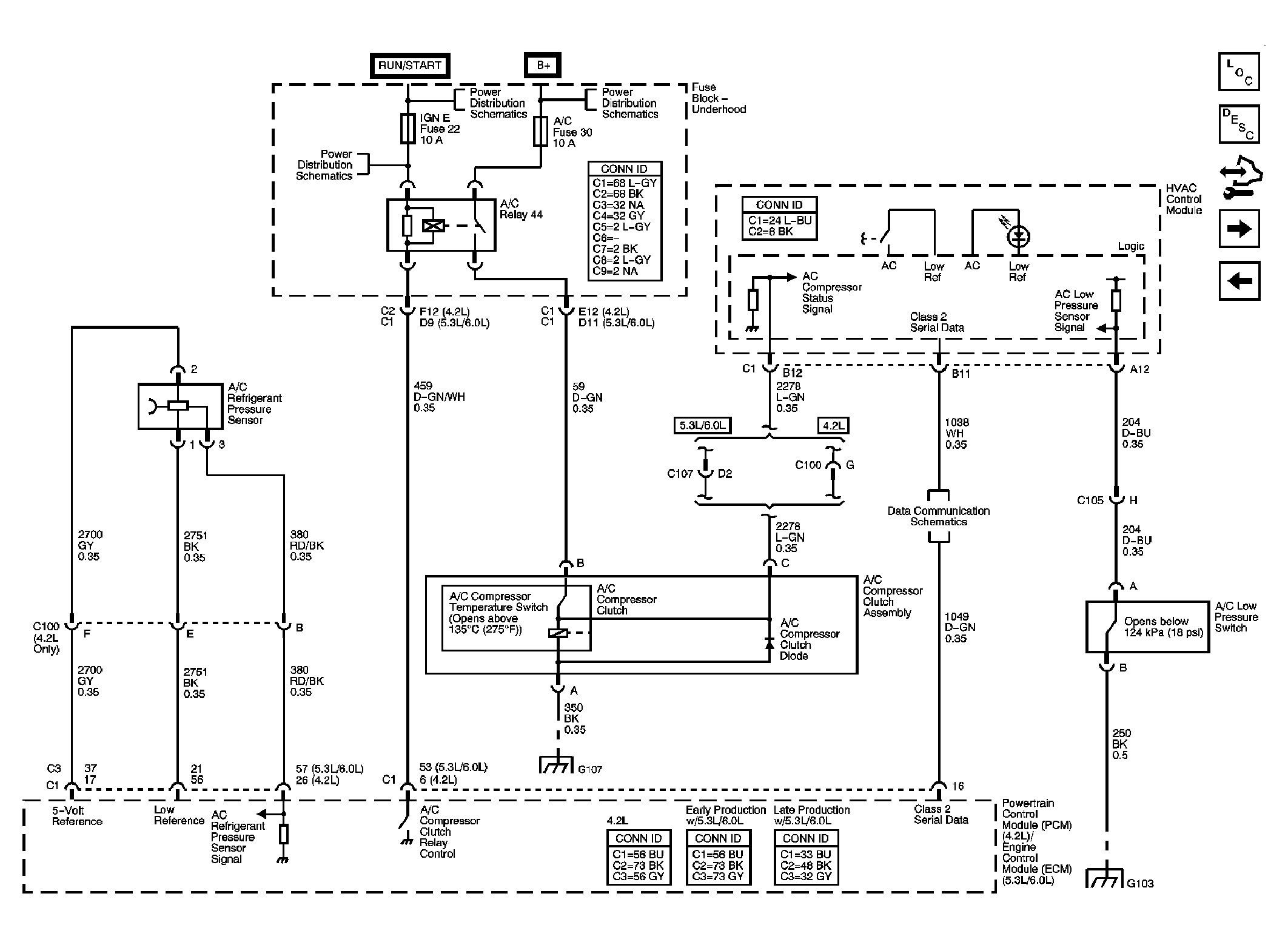

Fig 2: Compressor Controls
GM1748019Courtesy of GENERAL MOTORS CORP.

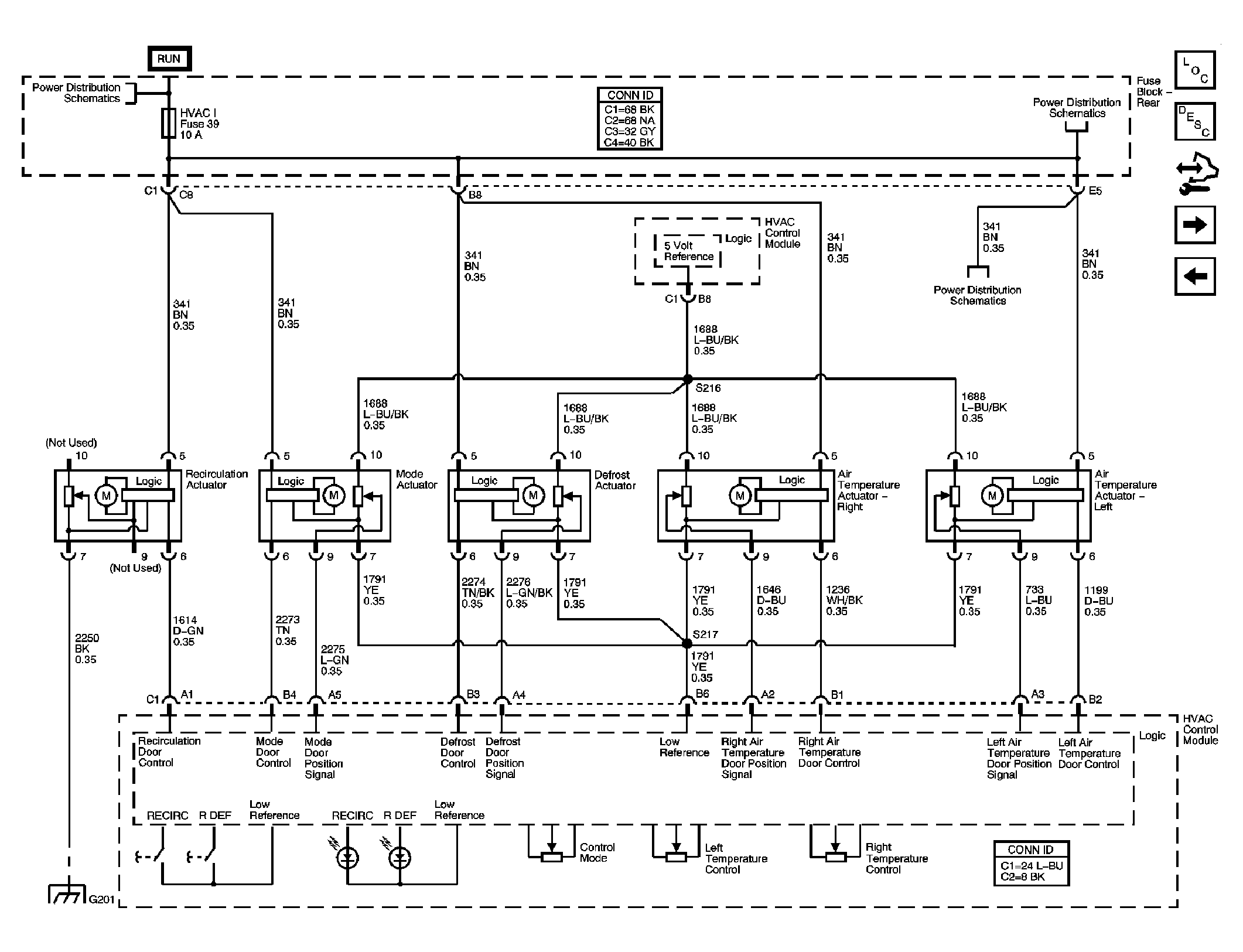

Fig 3: Air Delivery/Temperature Actuators Schematic
GM1748021Courtesy of GENERAL MOTORS CORP.

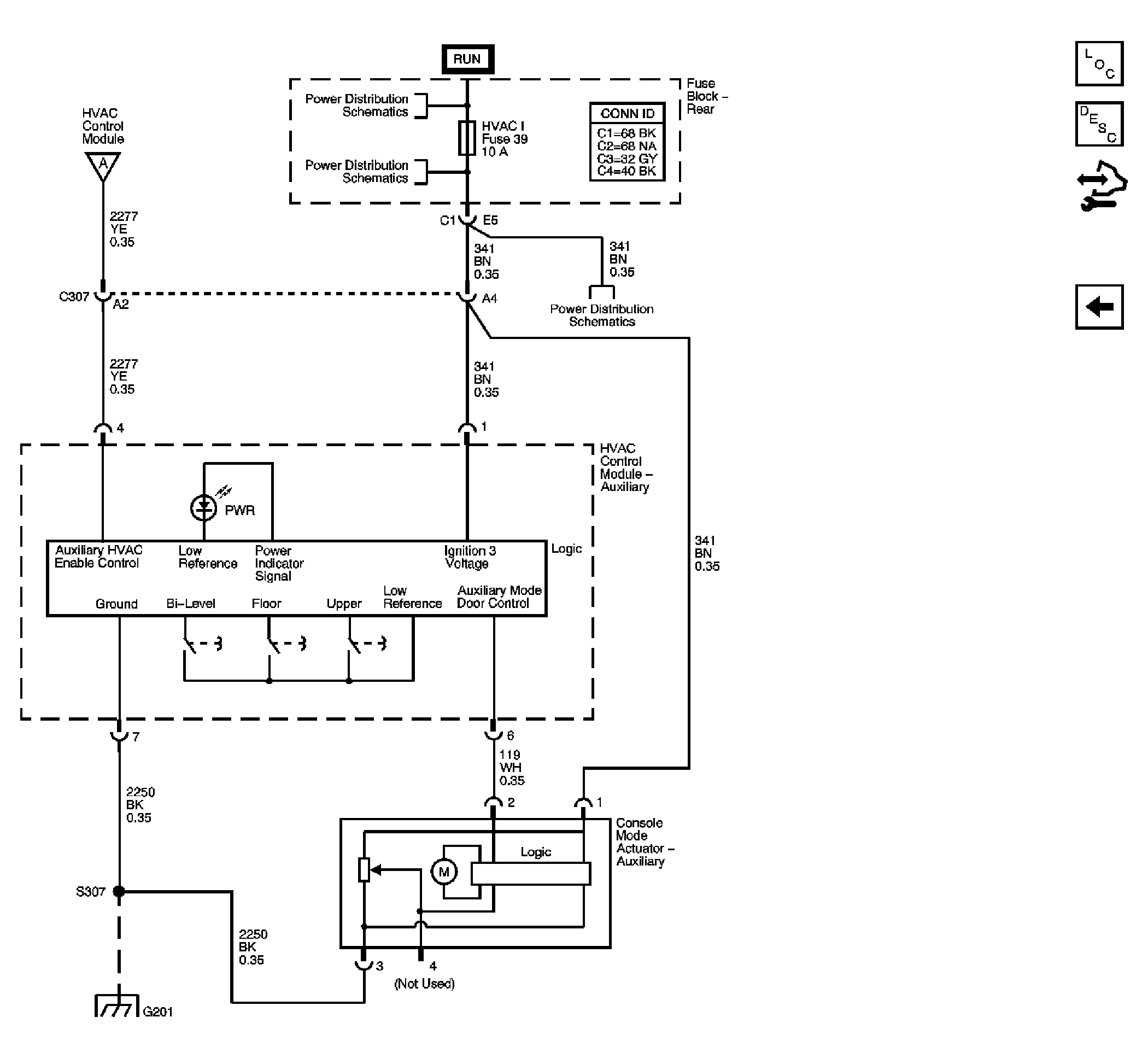

Fig 4: Rear Mode Controls Schematic
GM1748024Courtesy of GENERAL MOTORS CORP.
