HVAC Schematics

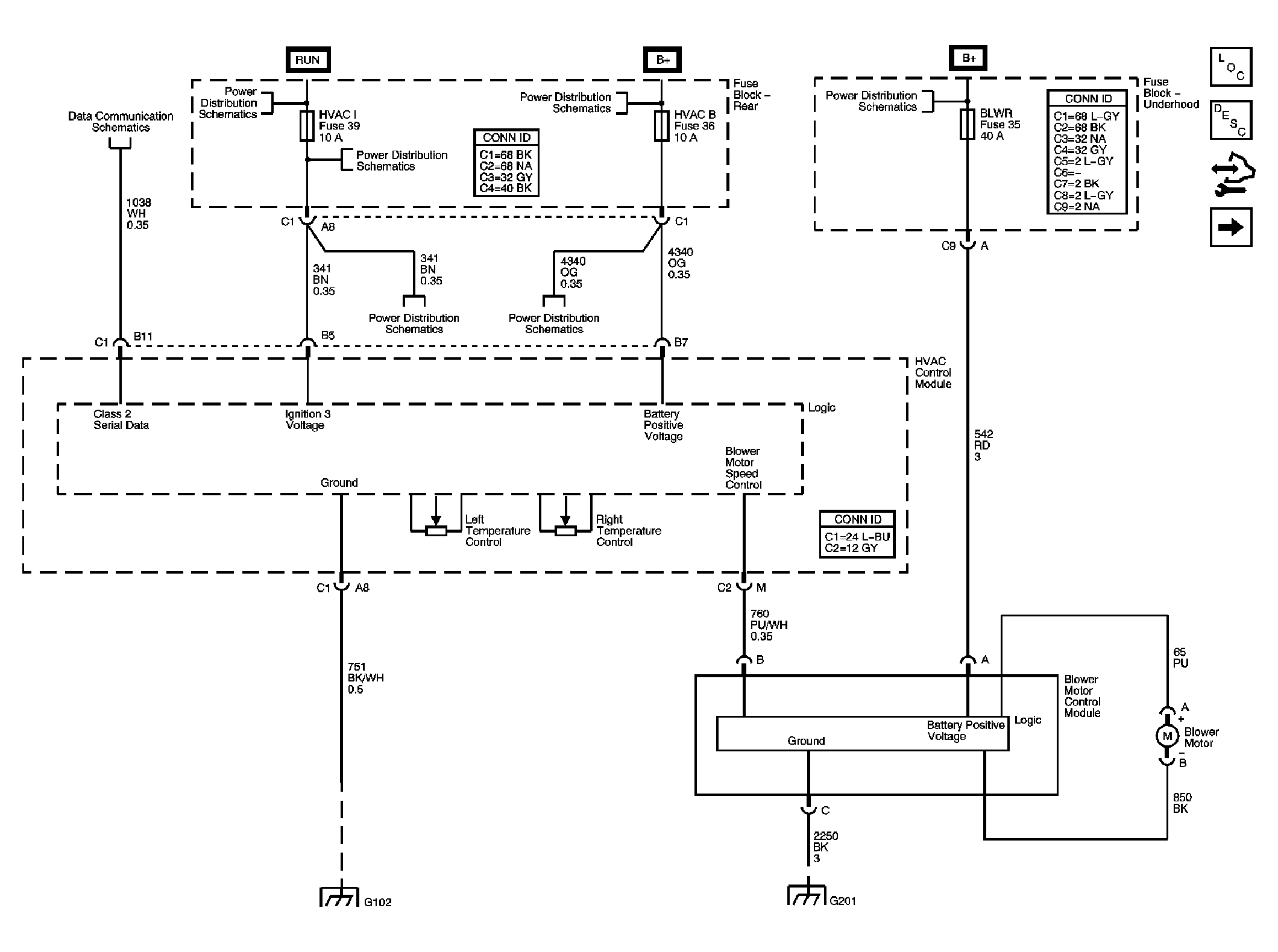

Fig 1: Module Power, Ground, Serial Data & Blower Motor Schematic
GM1747998Courtesy of GENERAL MOTORS CORP.

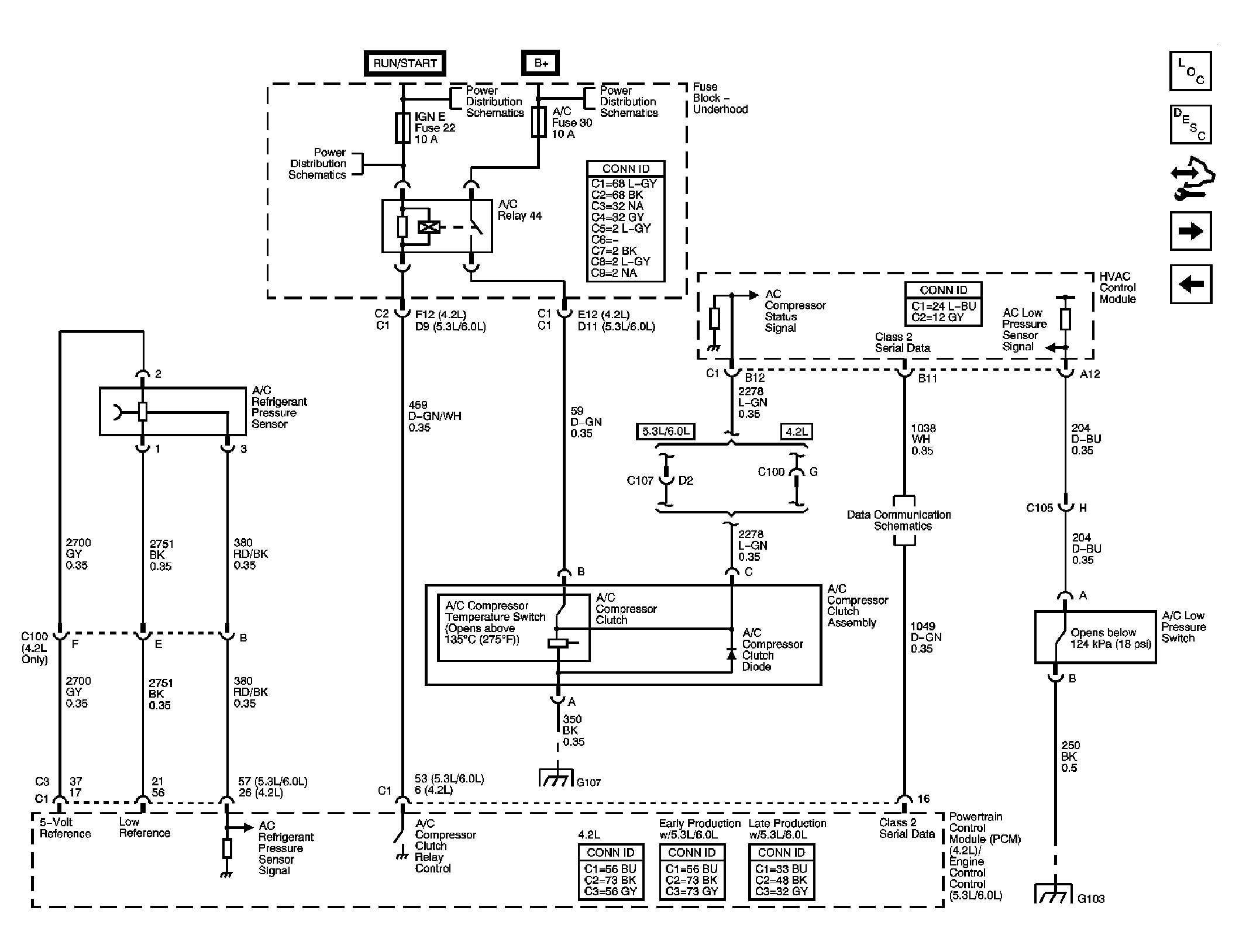

Fig 2: Compressor Controls Schematic
GM1748002Courtesy of GENERAL MOTORS CORP.

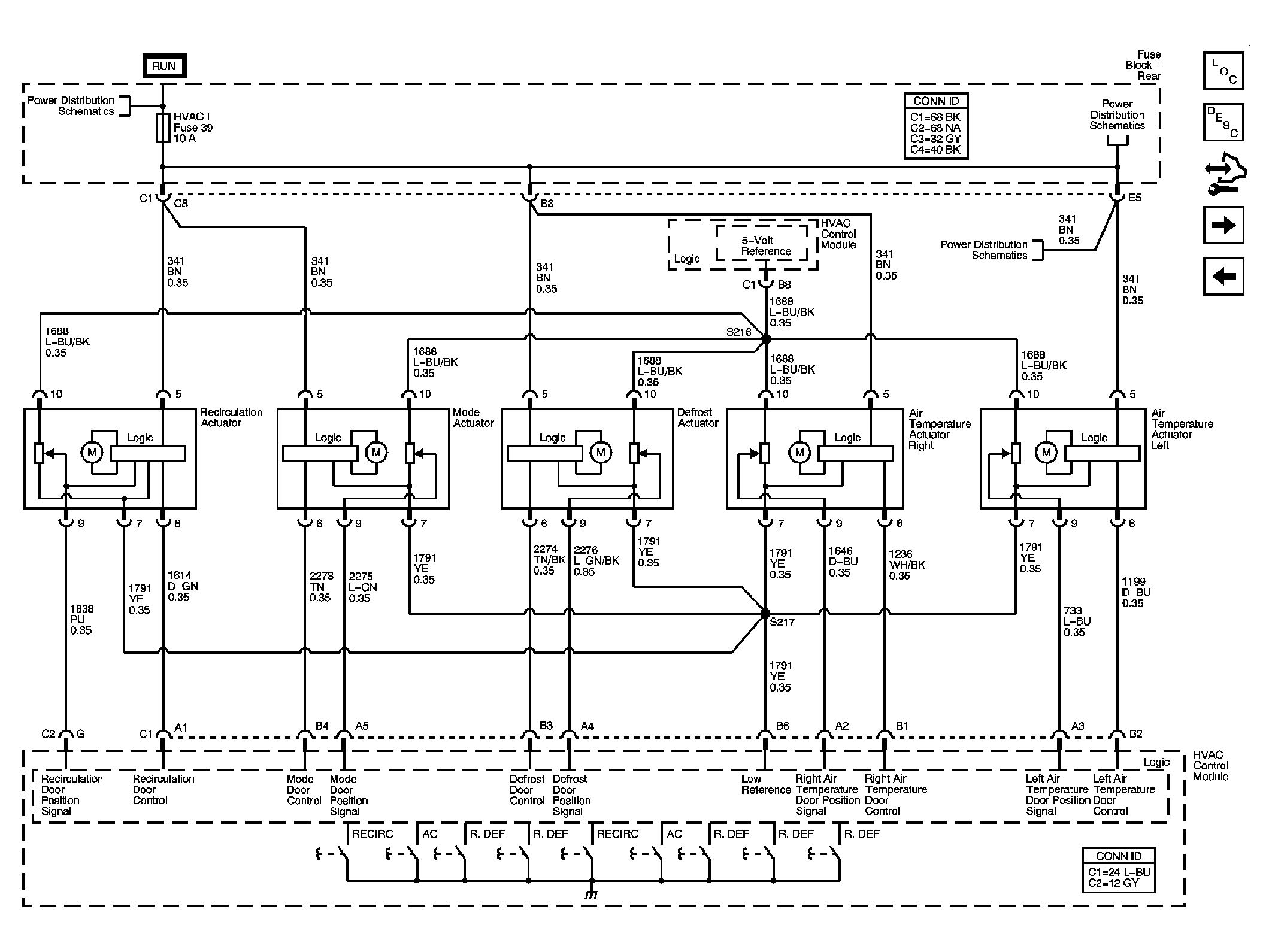

Fig 3: Air Delivery/Temperature Actuators Schematic
GM1748005Courtesy of GENERAL MOTORS CORP.

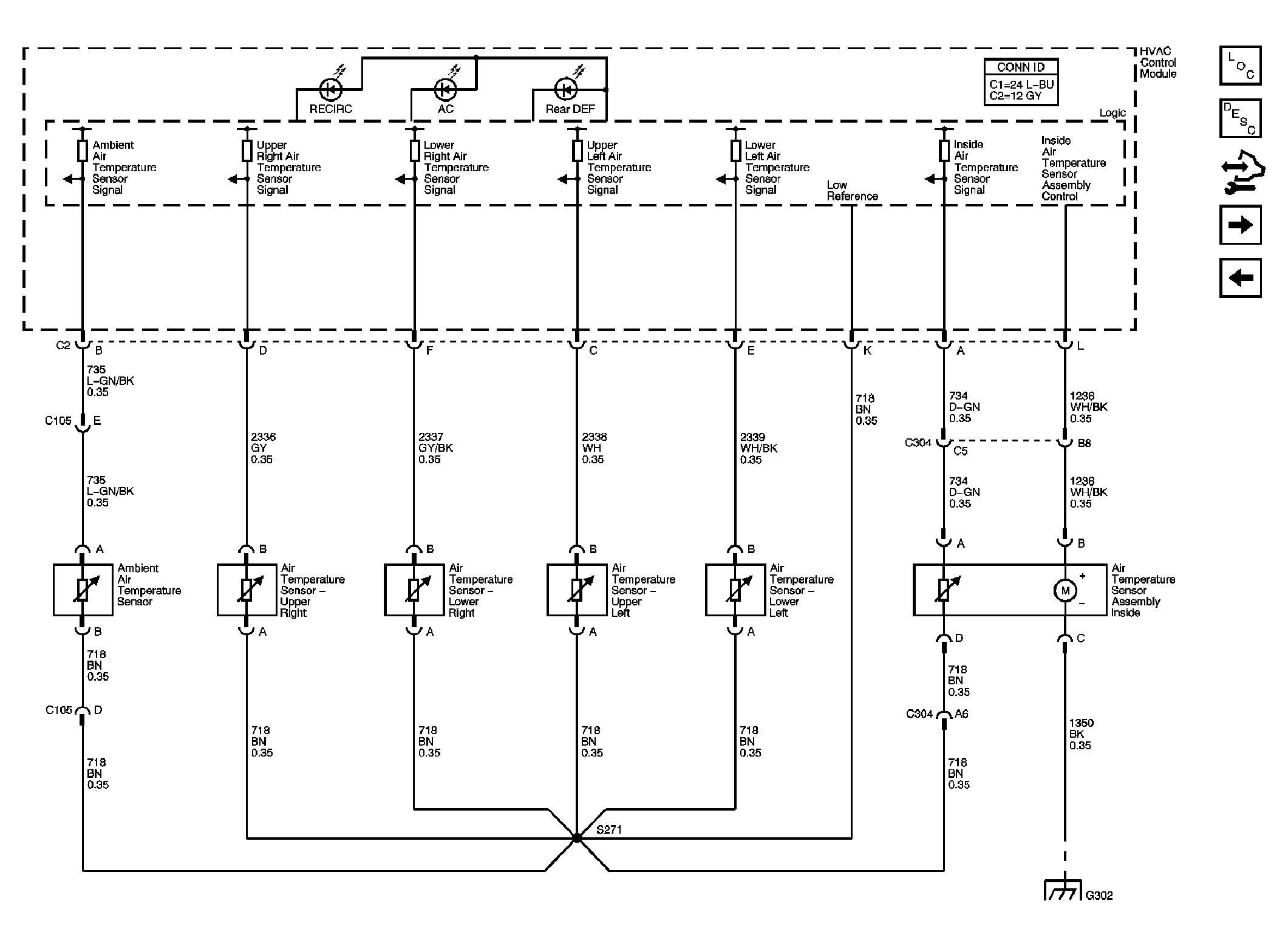

Fig 4: Air Temperature Sensors Schematic
GM1748008Courtesy of GENERAL MOTORS CORP.
Fig 5: Ambient Light/Sunload Sensors Schematic
GM1748010Courtesy of GENERAL MOTORS CORP.

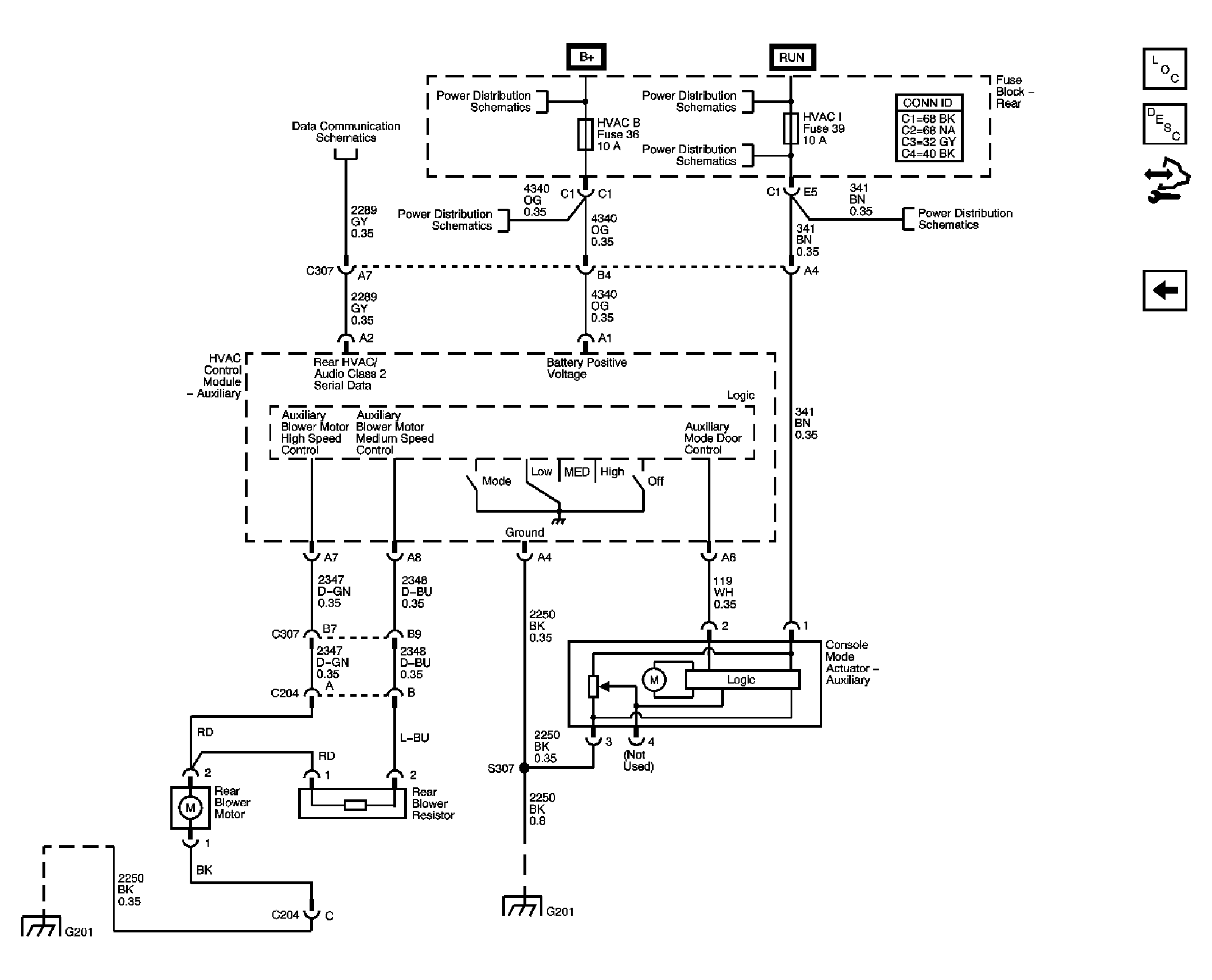

Fig 6: Rear Auxiliary Controls Schematic
GM1748012Courtesy of GENERAL MOTORS CORP.
