Transfer Case Control Schematics

WARNING: This page is about a different variant/trim than selected.

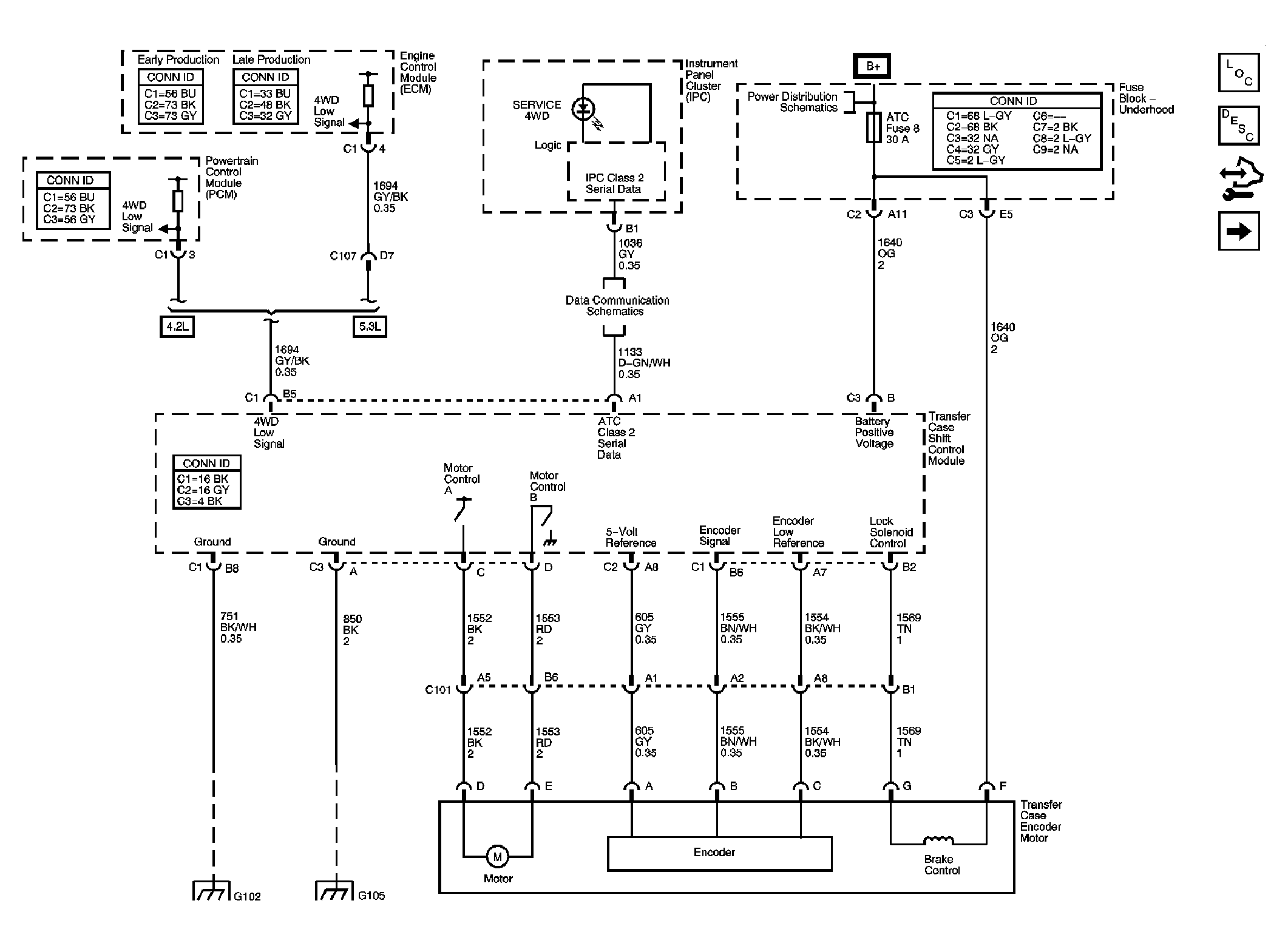

Fig 1: Power, Ground, Serial Data & Transfer Case Encoder Motor Schematic
GM1748183Courtesy of GENERAL MOTORS CORP.

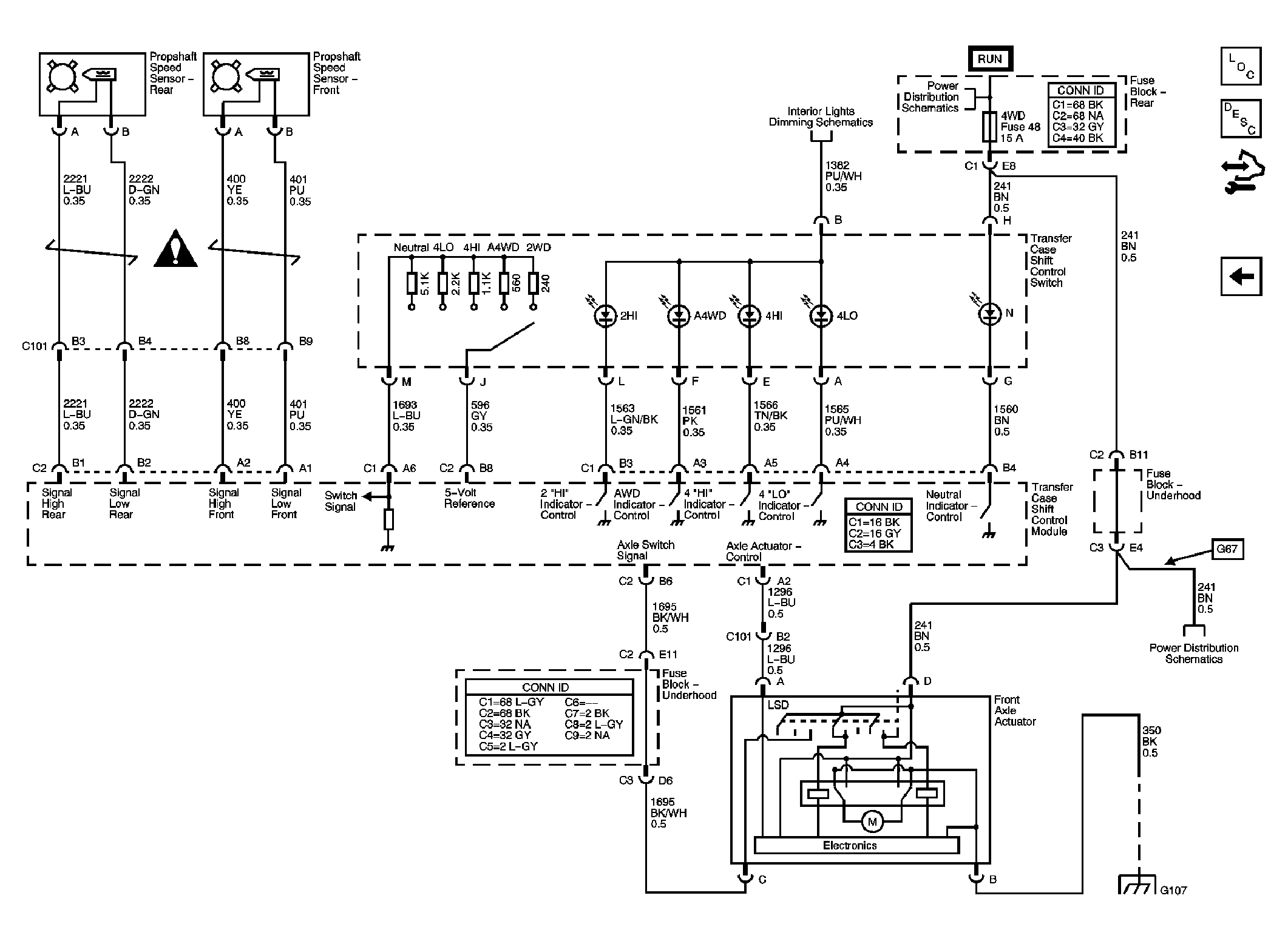

Fig 2: Speed Signal, Front Axle Actuator & Indicators Schematic
GM1748184Courtesy of GENERAL MOTORS CORP.
