Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu Ascender, 2008 GMC Envoy, and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Cable Grommet At Floor Panel
    GM744168Courtesy of GENERAL MOTORS CORP.
  1. Push the cable down through the floor panel and install the grommet (2).

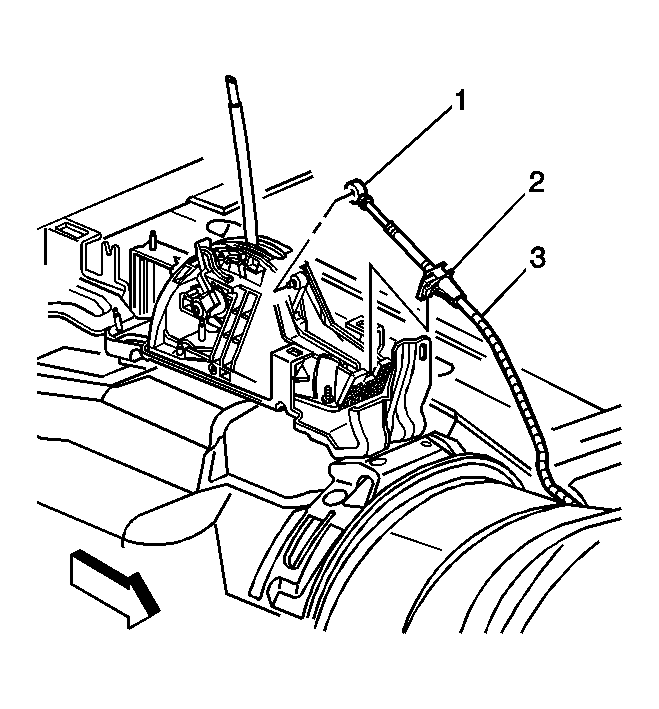

    2. Fig 2: View Of Shift Control Cable & Shifter
    GM744173Courtesy of GENERAL MOTORS CORP.
  2. Install the range selector cable (2) to the floor shift control assembly.
  3. Install the end of the range selector cable (1) to floor control ball stud.
  4. Install the drivers side front mat and carpet. Refer to Front Floor Panel Carpet Replacement .

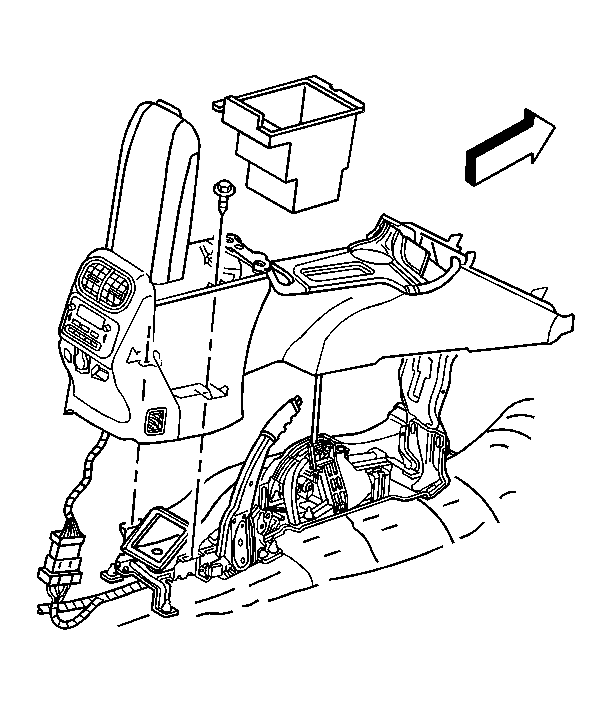

    5. Fig 3: View Of Center Console Assembly
    GM1234306Courtesy of GENERAL MOTORS CORP.
  5. Install the console. Refer to Console Replacement .
  6. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .

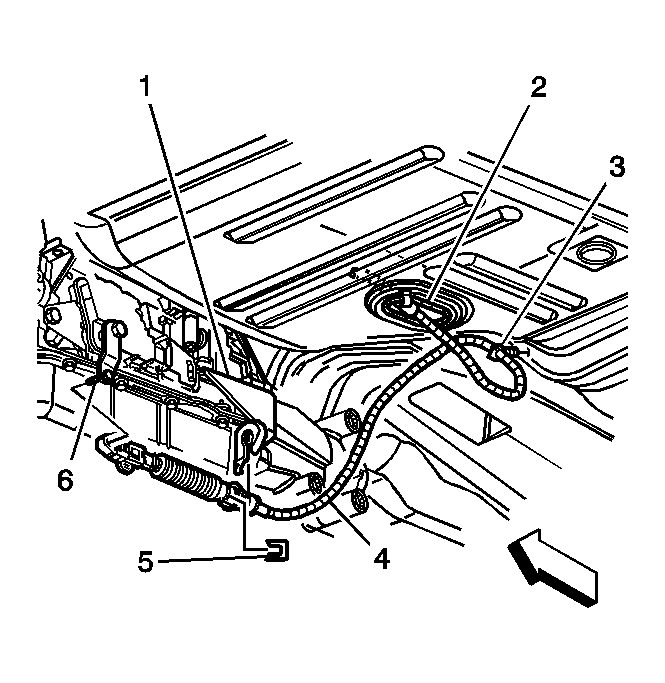

    7. Fig 4: Identifying Range Selector Cable & Components
    GM744174Courtesy of GENERAL MOTORS CORP.
  7. Install the cable to the retainer (3) on the floor panel. If the vehicle is equipped with 4WD, install the cable to the retainers located on the transfer case.
  8. Install the range selector cable (4) to the bracket (1).
  9. Install the retainer (5) to the range selector cable.
  10. Install the end of the range selector cable to the transmission range selector lever ball stud (6).
  11. Adjust the range selector cable. Refer to Range Selector Lever Cable Adjustment .
  12. Lower the vehicle and check for proper operation.
