Transfer Case Control Schematics

WARNING: This page is about a different car, the 2007 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.

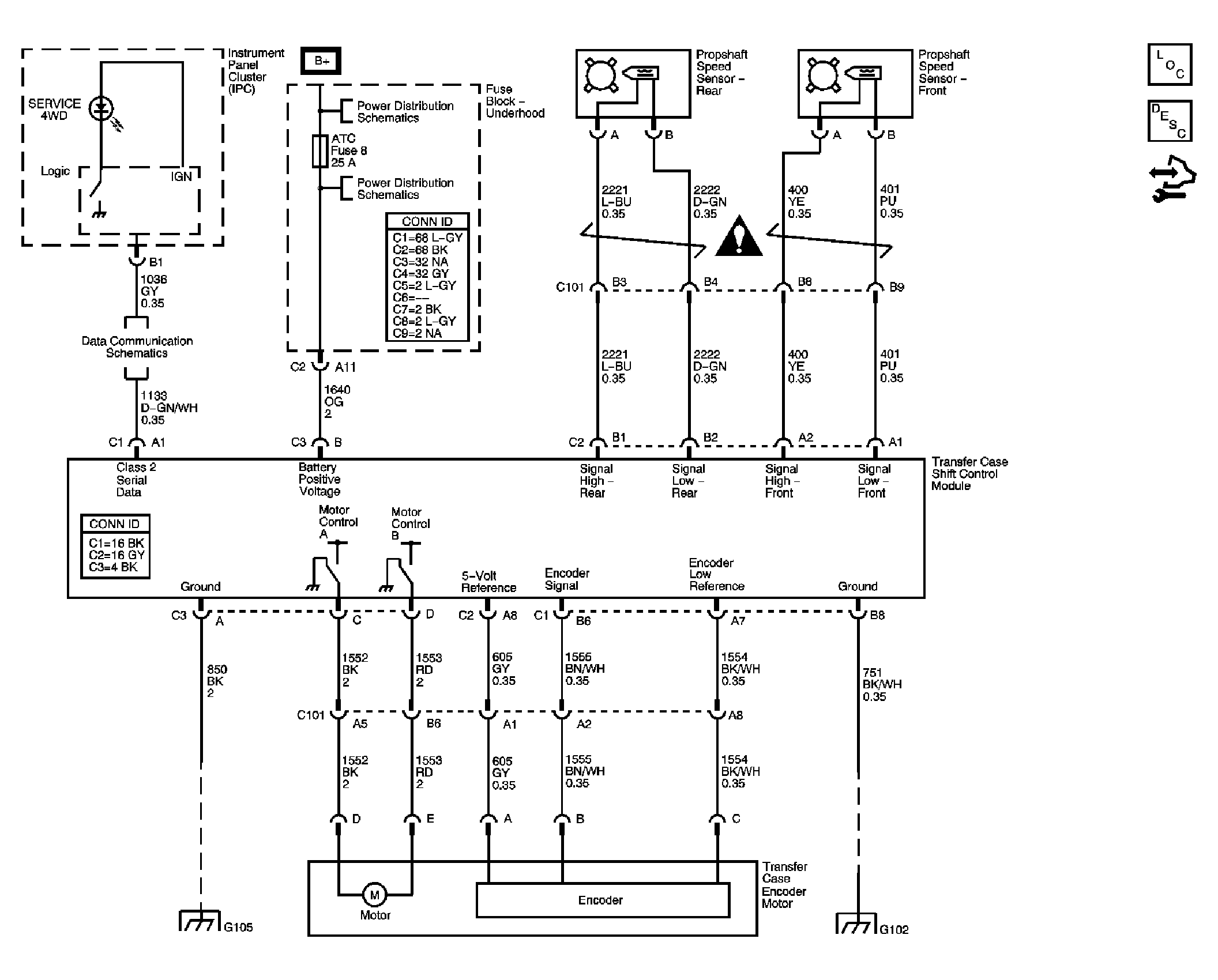

Fig 1: Transfer Case Control Schematic
GM1748182Courtesy of GENERAL MOTORS CORP.
