Power and Grounding Component Views

Fig 1: Fuse Block-Underhood Component View
GM750749Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block-Underhood
Fig 2: Battery, G101 & G106 View
GM1533058Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G101
2 Battery
3 G106 (5.3L/6.0L)
Fig 3: Underhood Grounds-Left, G102, G104, G105 Component View
GM750751Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G104
2 G105
3 G102
Fig 4: Underhood Ground-Right, G103 Component View
GM750753Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G103
Fig 5: Engine Block Grounds G107, G108, G109, G110 Component View (Six Cylinder Engine, 4.2L)
GM750754Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G108
2 G109
3 G110
4 G107
Fig 6: Engine Grounds G109, G107, Left Side Component View (V8 Engine, 5.3L)
GM853162Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G107
2 Engine Harness
3 G108

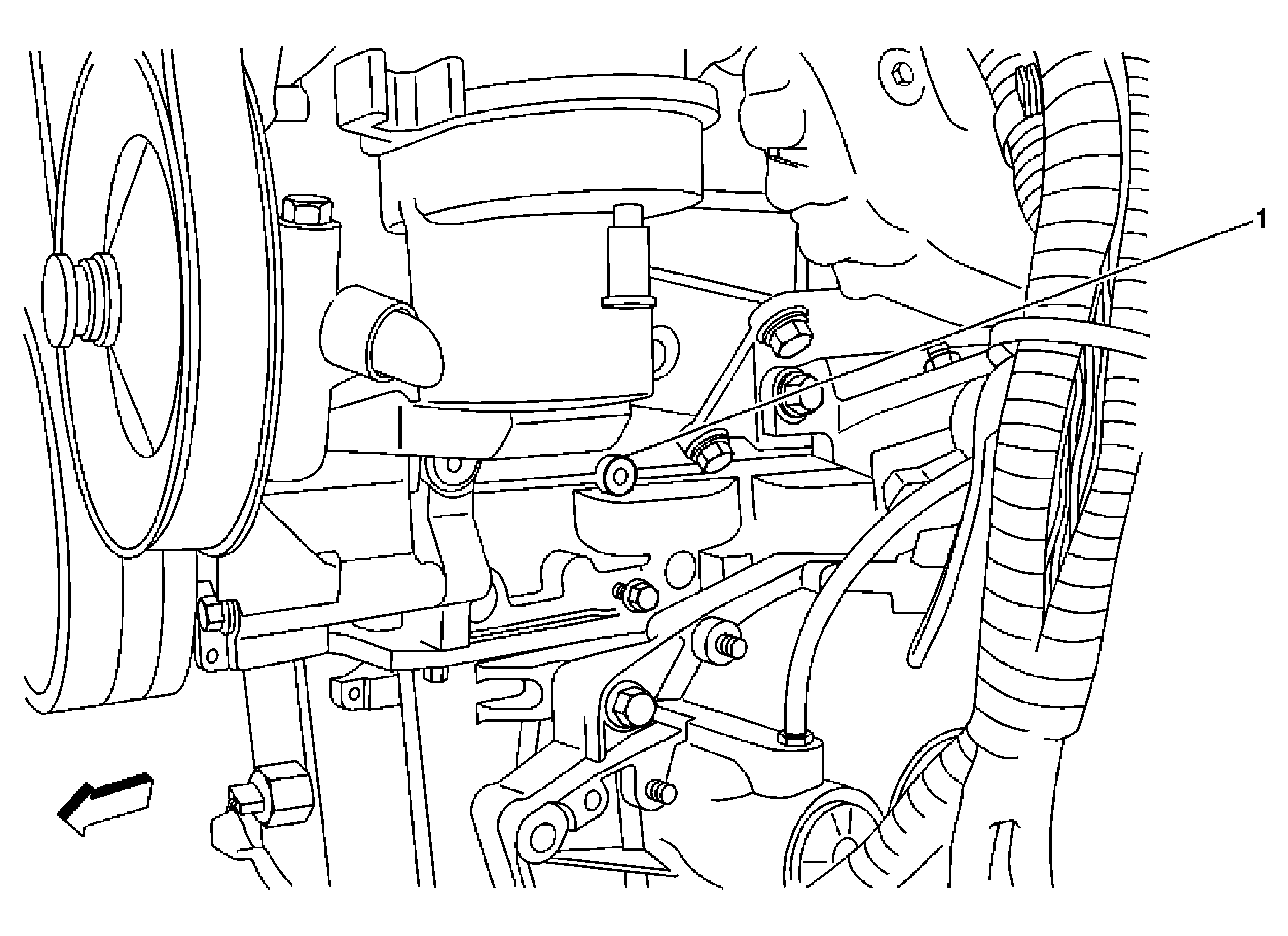

Fig 7: View Of Left Side of Engine (5.3L/6.0L)
GM1701712Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G110

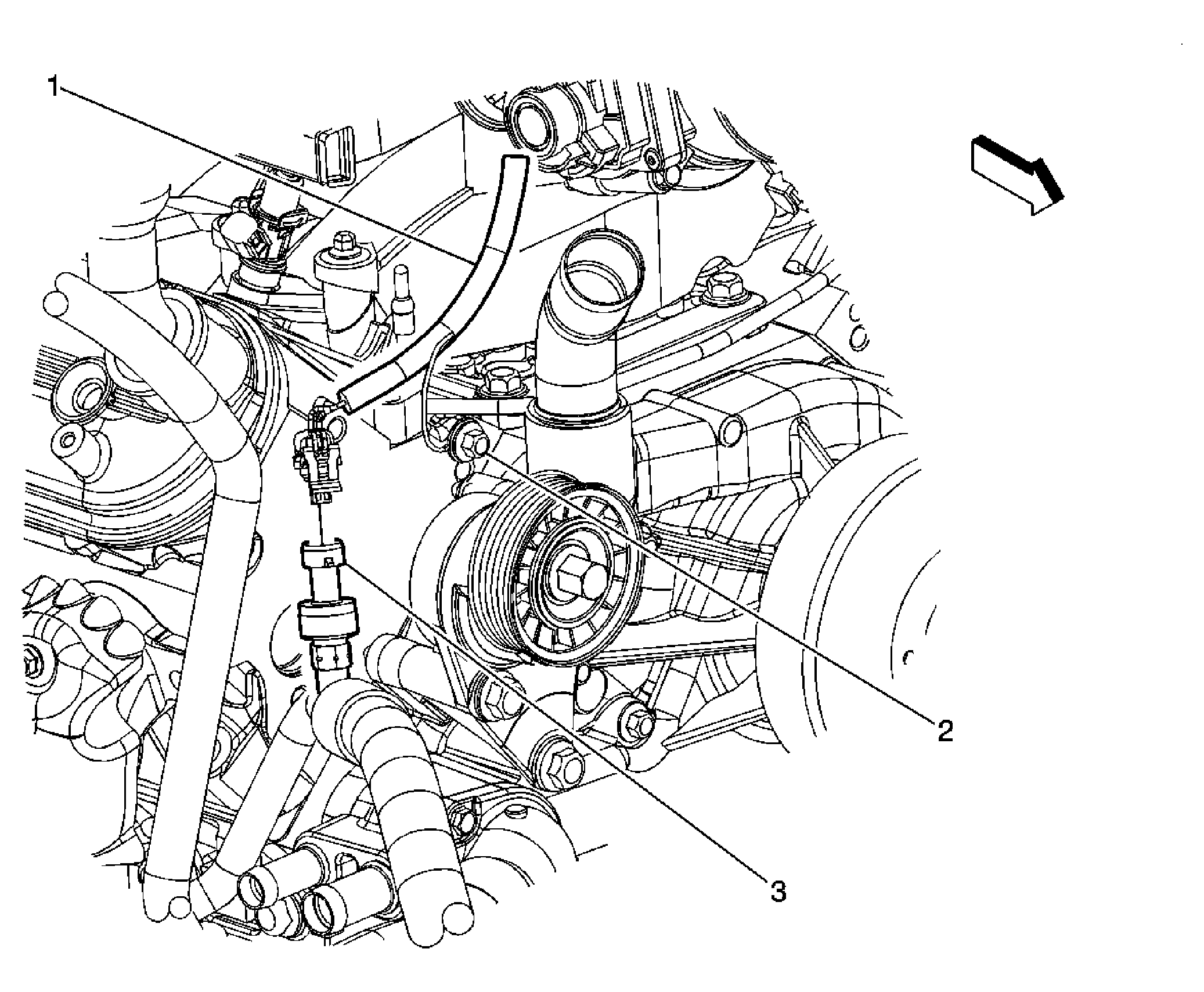

Fig 8: View Of Upper Right Side of Engine - Front (5.3L/6.0L)
GM1686886Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Harness
2 G109
3 A/C Refrigerant Pressure Sensor
Fig 9: Steering Wheel and Column Sub-System Component Views
GM856748Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel Control Switch Assembly - Upper Left (STW)
2 Passlock Sensor Connector (w/o BAE)
3 Ignition Key Alarm Switch
4 Ignition Lock Cylinder Control Actuator
5 Ignition Lock Cylinder Control Actuator Connector
6 Ignition Switch
7 Ignition Key Cylinder
8 Steering Wheel Control Switch Assembly - Upper Right (STW)
9 Horn Switch
10 Steering Wheel Control Switch Assembly - Lower Right (STW)
11 C277
12 Steering Wheel Control Switch Assembly - Lower Left (STW)
13 Turn Signal/Multifunction Switch
Fig 10: B-Pillar, Left-G302 Component View
GM750756Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 G302
Fig 11: Fuse Block-Rear Component View
GM750757Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block-Rear
Fig 12: G304 Component View
GM750760Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G304
Fig 13: Frame, Left-G305 Component View
GM750762Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G305
Fig 14: G401, G402 Routing View
GM826159Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Side Lower Reinforcement
2 Body Harness
3 G401
Fig 15: Frame, Rear - G403 - Short Wheelbase, Body Type VIN 3 Component View
GM750763Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G403
Fig 16: Body Left Side G306 Component View
GM825646Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G306
2 Body Side Panel - Left
