Ground Distribution Schematics

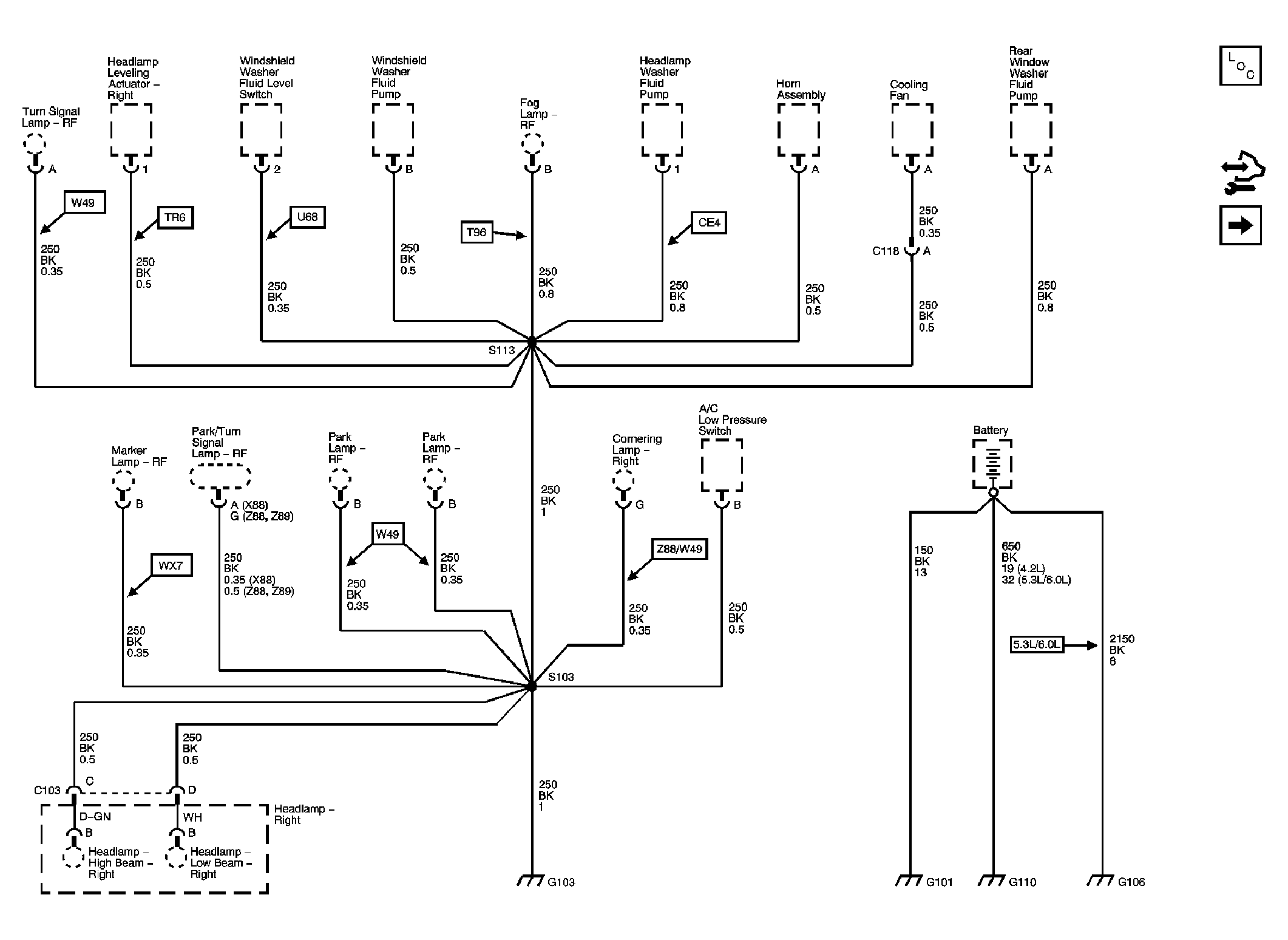

Fig 1: G101, G103, G106 & G110 Schematic

GM1748133

Courtesy of GENERAL MOTORS CORP.

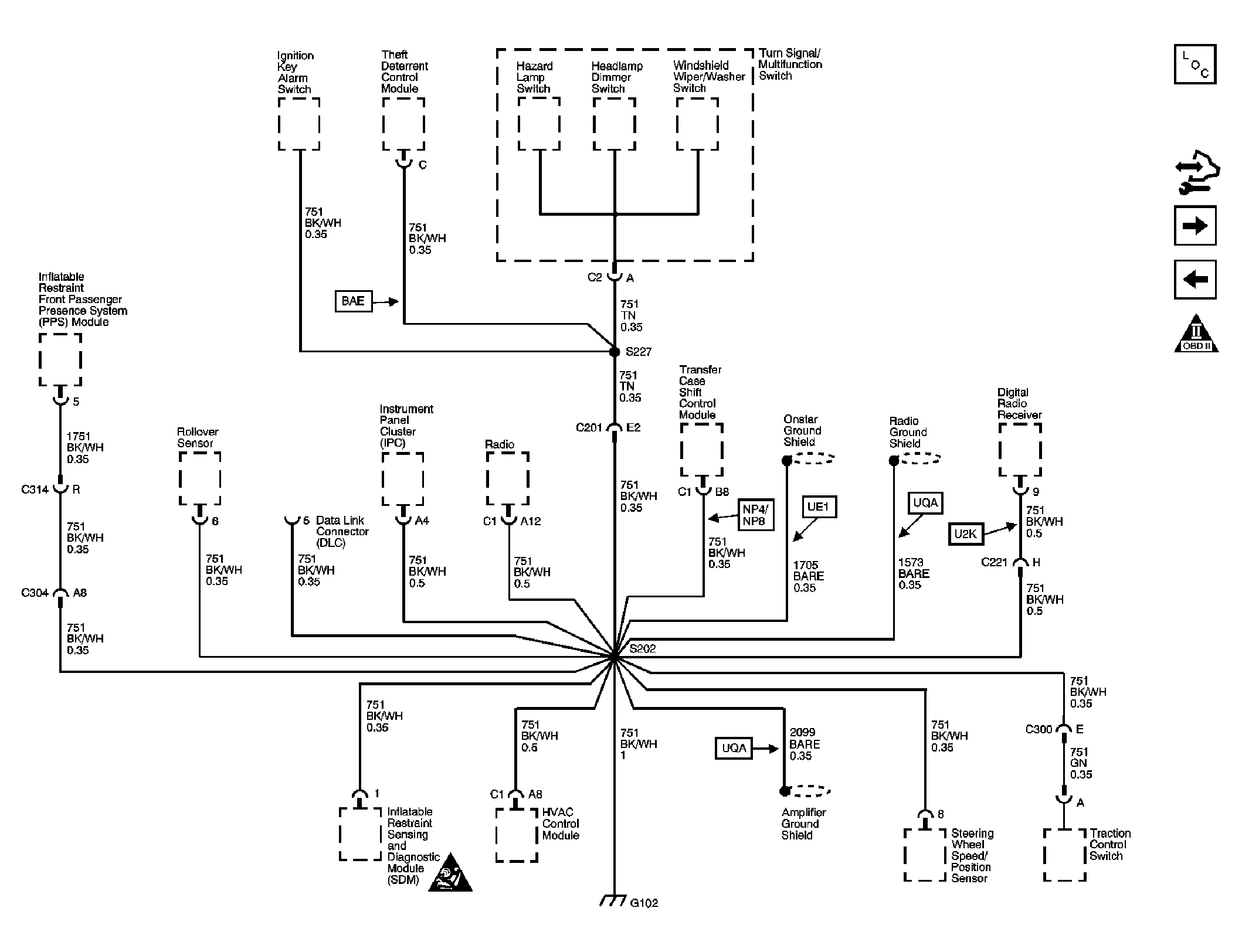

Fig 2: G102 Schematic

GM1748136

Courtesy of GENERAL MOTORS CORP.

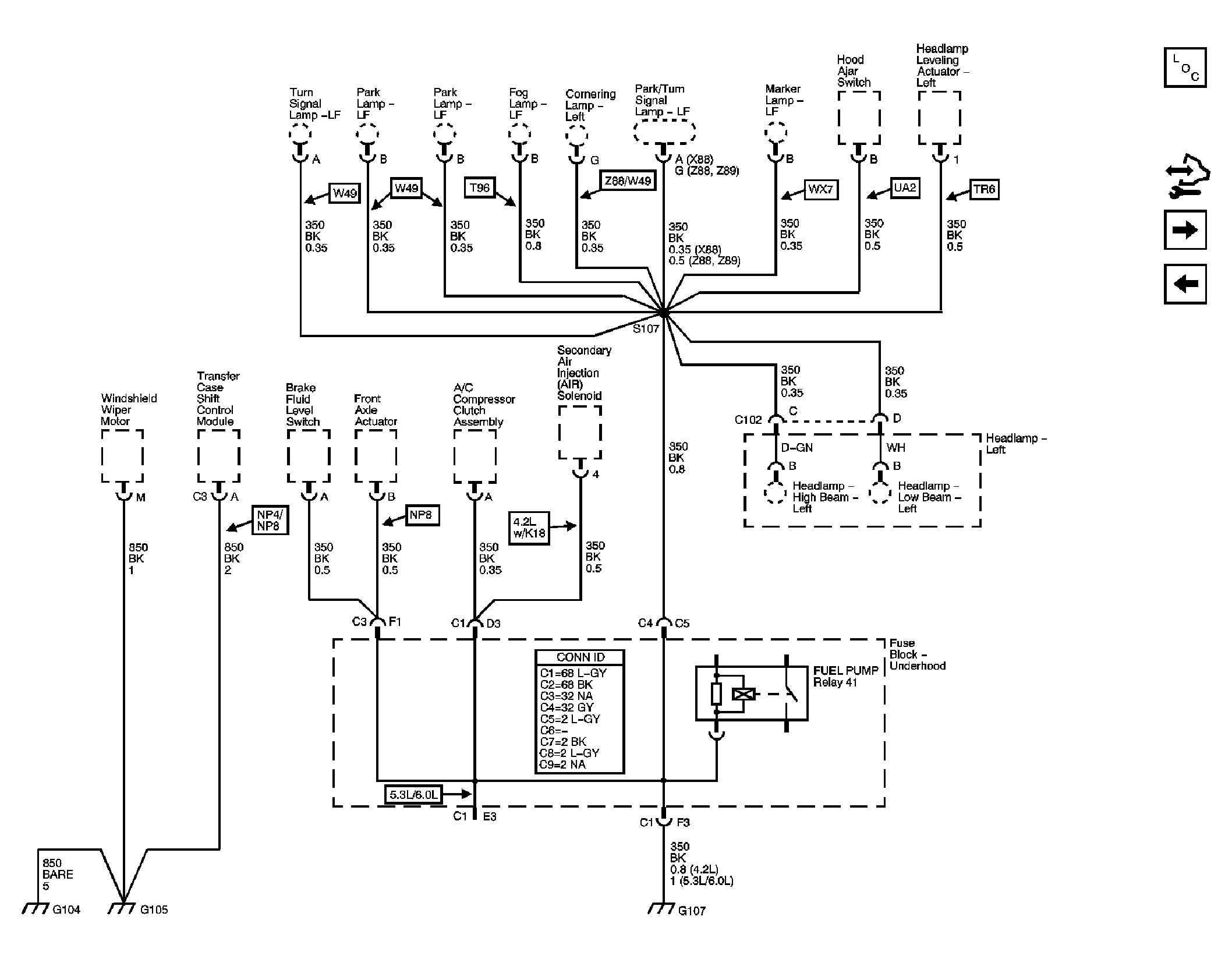

Fig 3: G104, G105 & G107 Schematic

GM1748137

Courtesy of GENERAL MOTORS CORP.

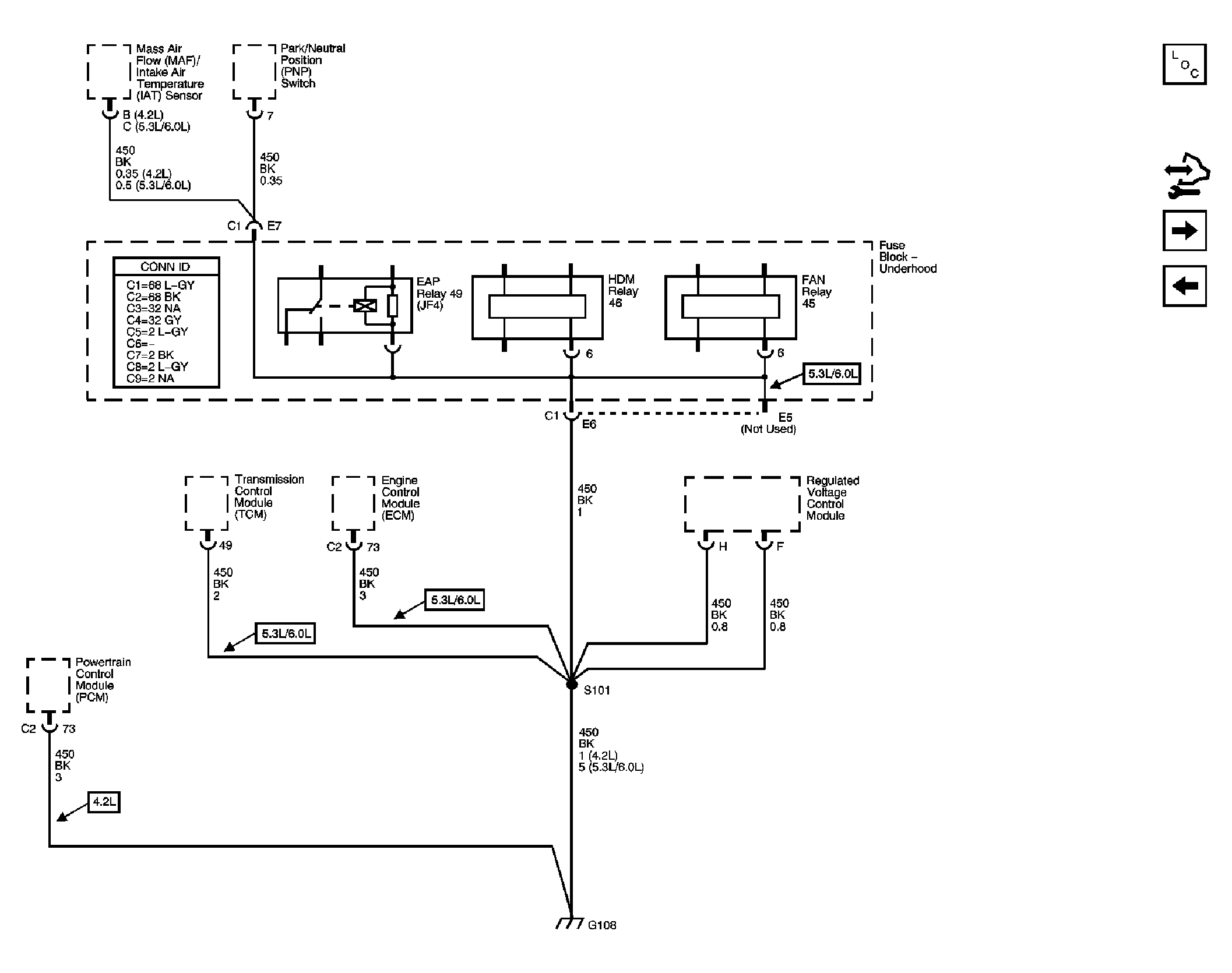

Fig 4: G108 Schematic

GM1748138

Courtesy of GENERAL MOTORS CORP.

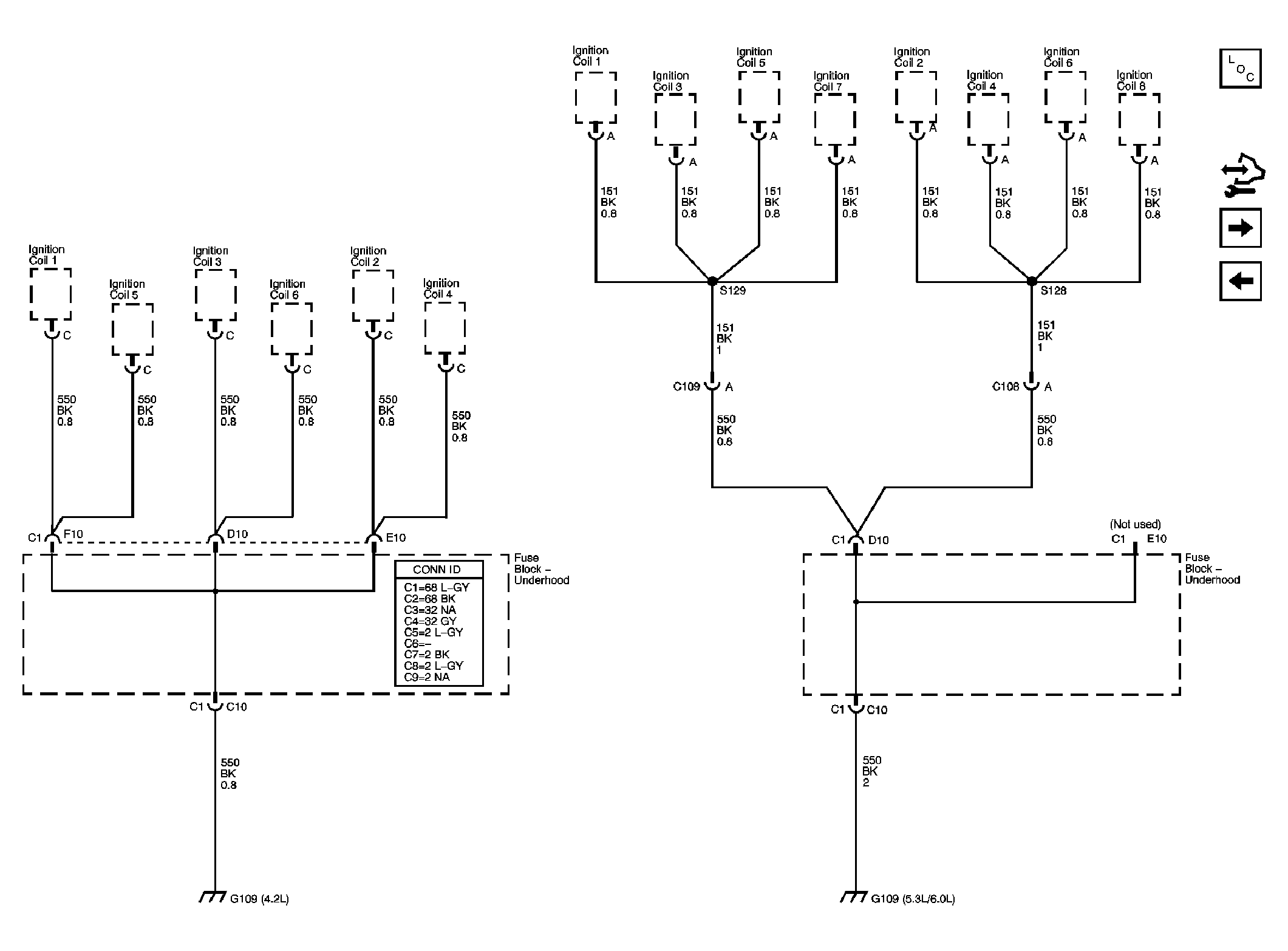

Fig 5: G109 Schematic

GM1748139

Courtesy of GENERAL MOTORS CORP.

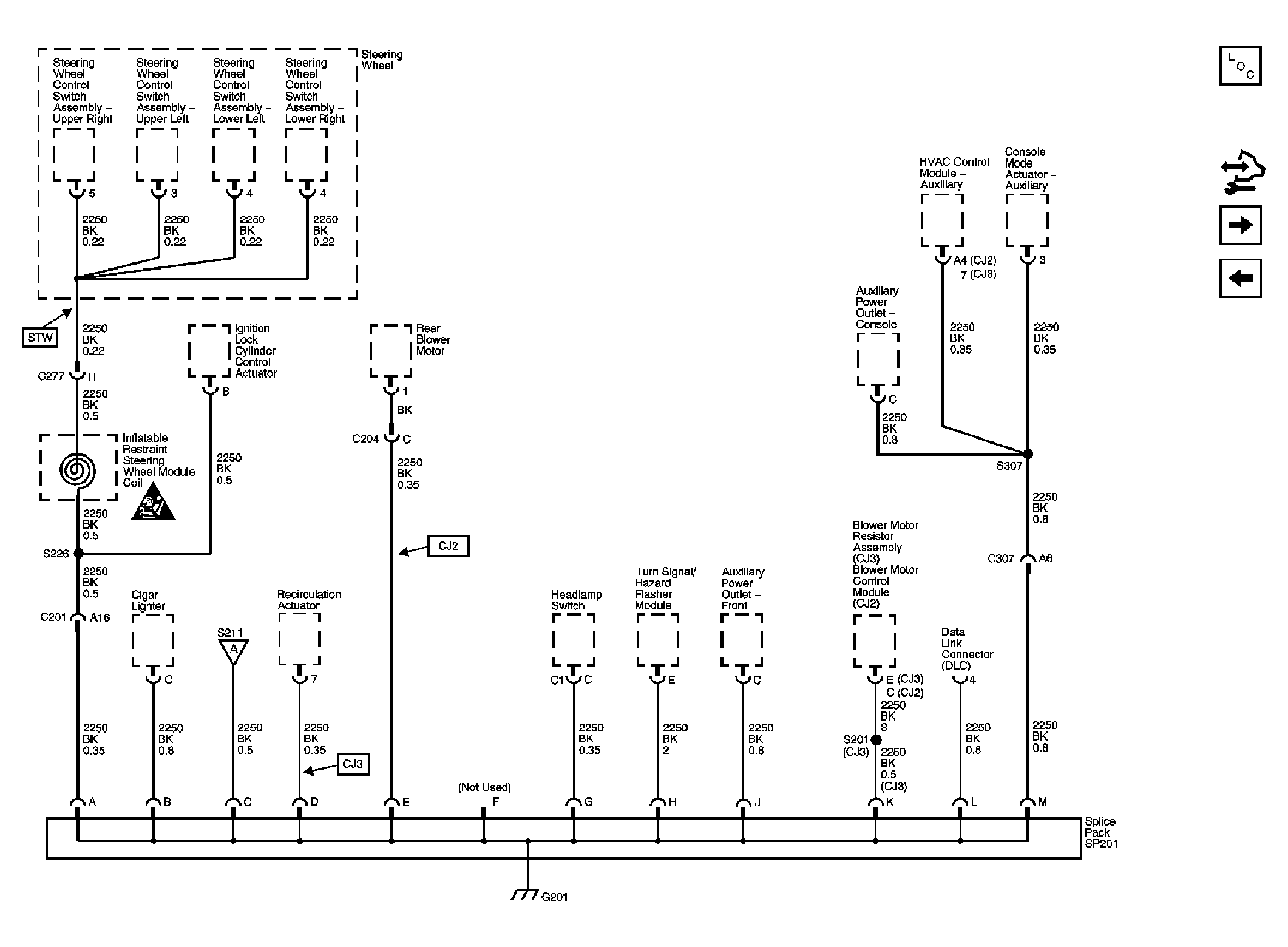

Fig 6: G201 Schematic - 1 of 2

GM1748140

Courtesy of GENERAL MOTORS CORP.

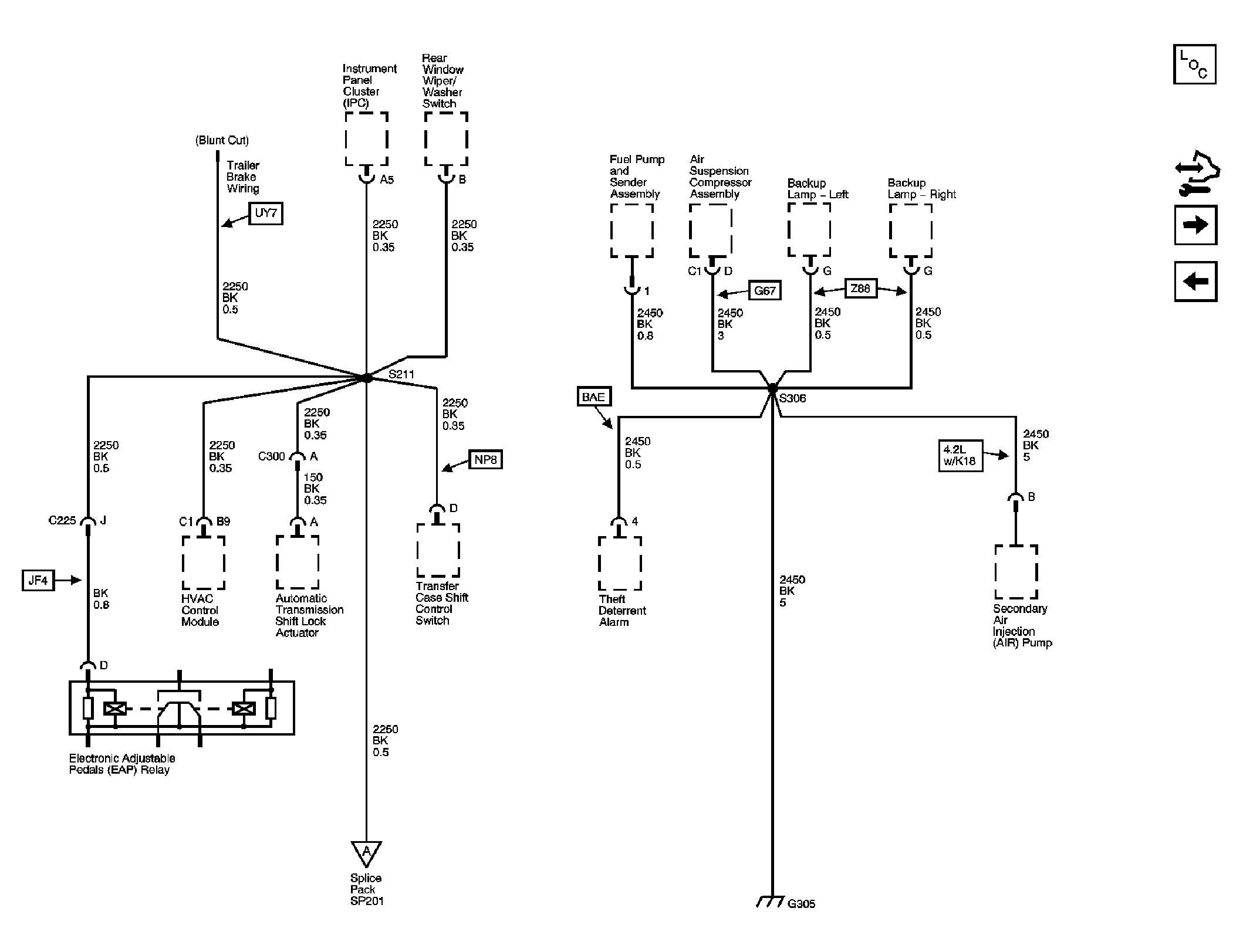

Fig 7: G201 Schematic - 2 of 2 & G305

GM1748141

Courtesy of GENERAL MOTORS CORP.

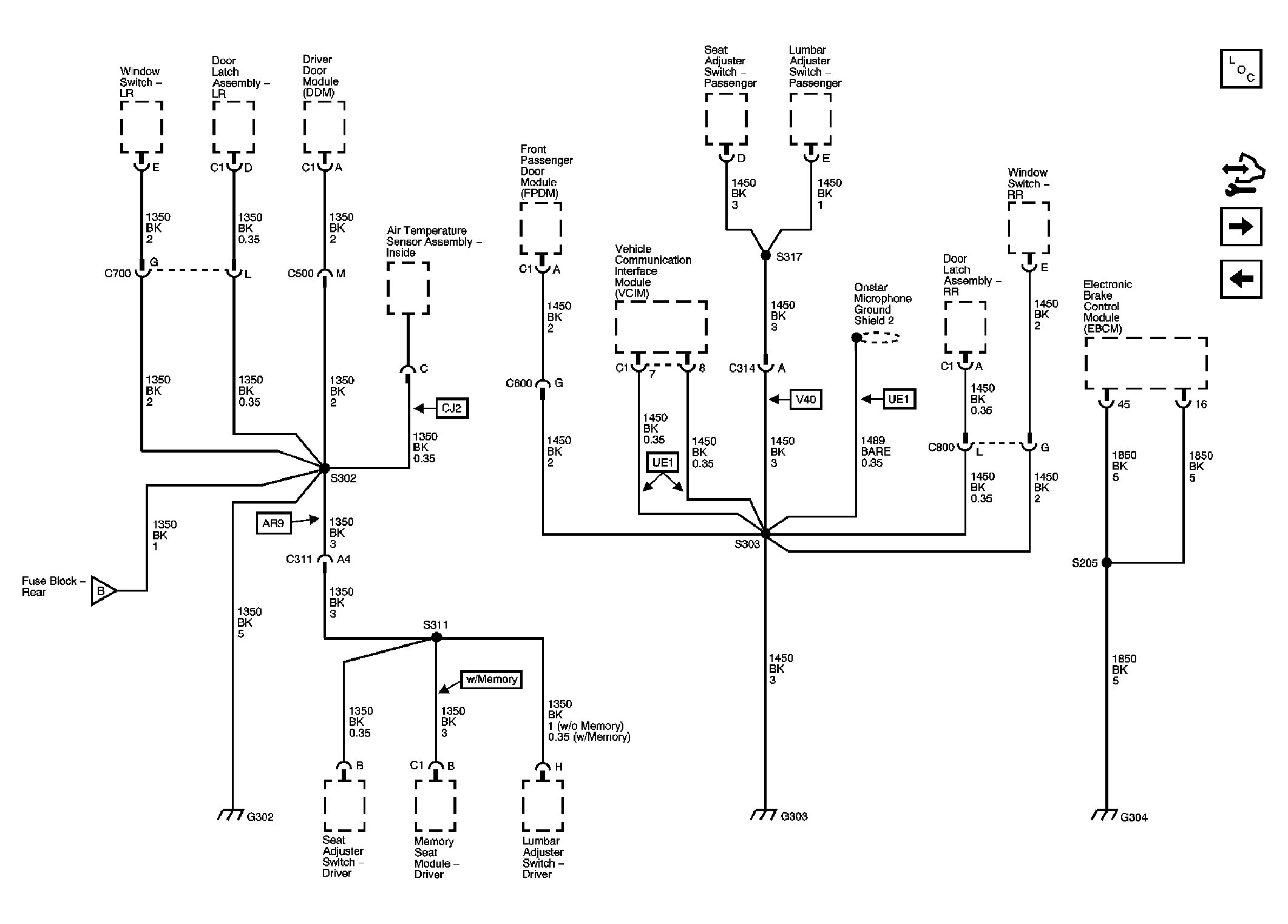

Fig 8: G302 Schematic - 1 of 2, G303 & G304

GM1748143

Courtesy of GENERAL MOTORS CORP.

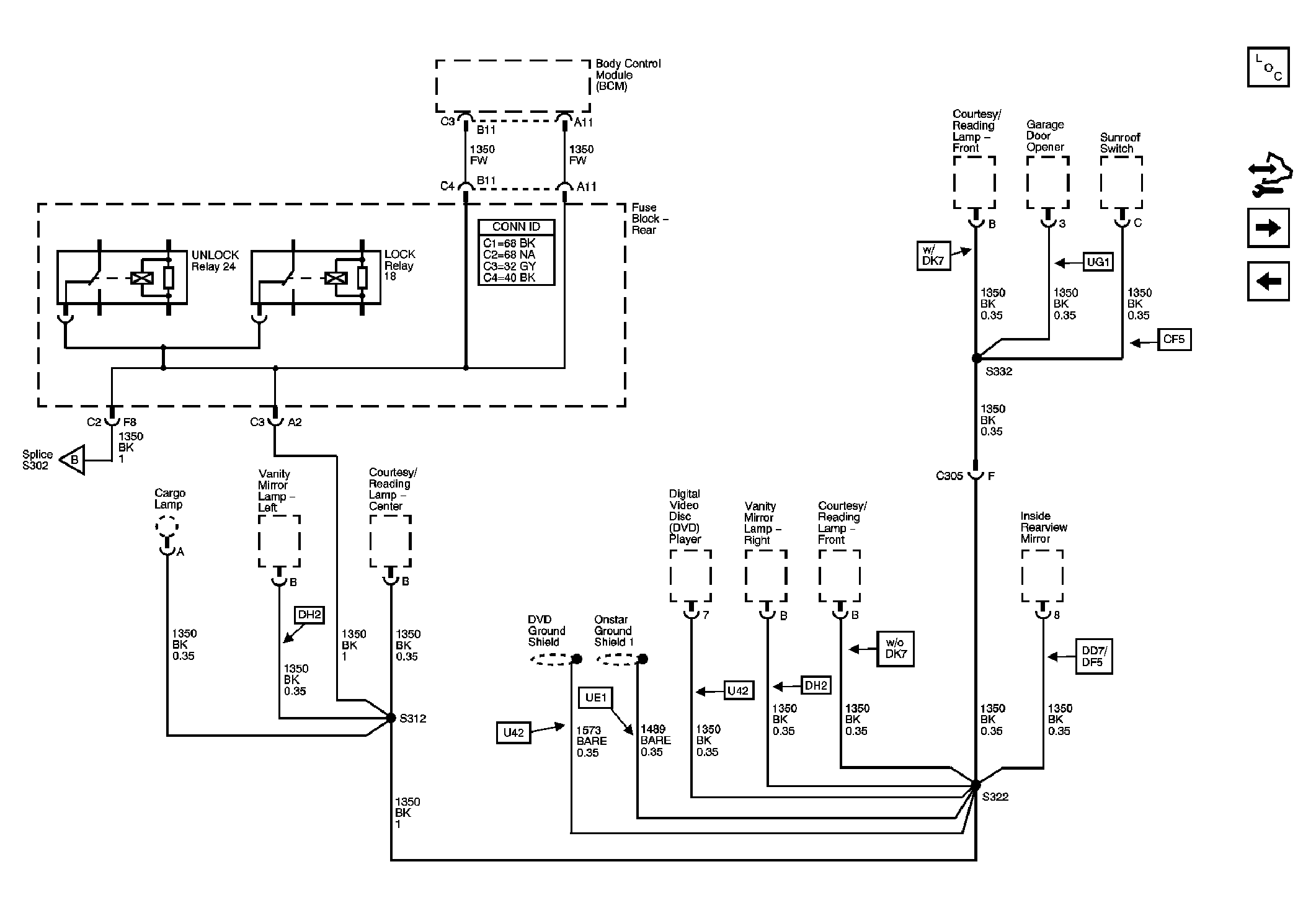

Fig 9: G302 Schematic - 2 of 2

GM1748144

Courtesy of GENERAL MOTORS CORP.

Fig 10: G306 Schematic - CF5

GM1748145

Courtesy of GENERAL MOTORS CORP.

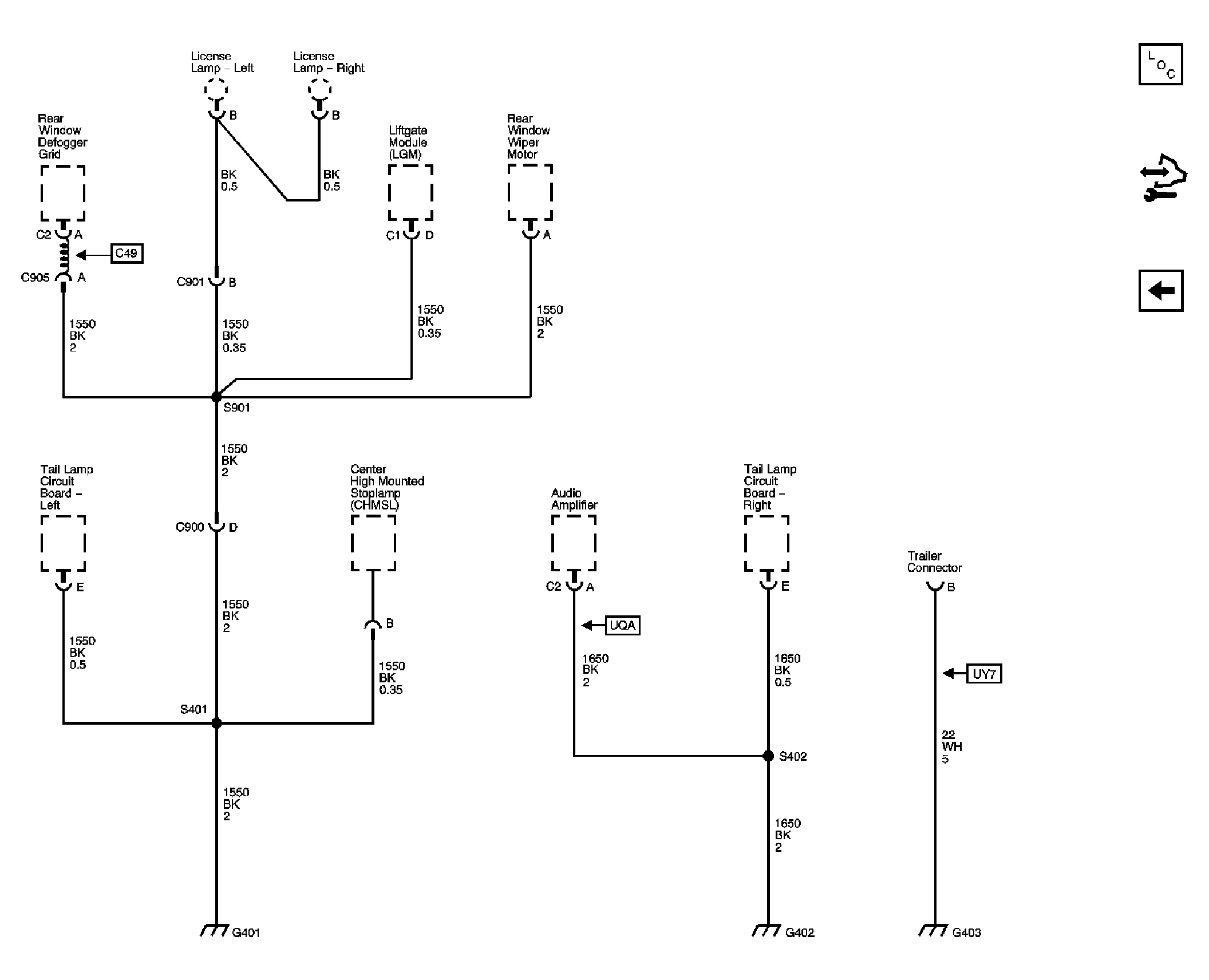

Fig 11: G401, G402 & G403 Schematic

GM1748146

Courtesy of GENERAL MOTORS CORP.
