Instrument Cluster Schematics

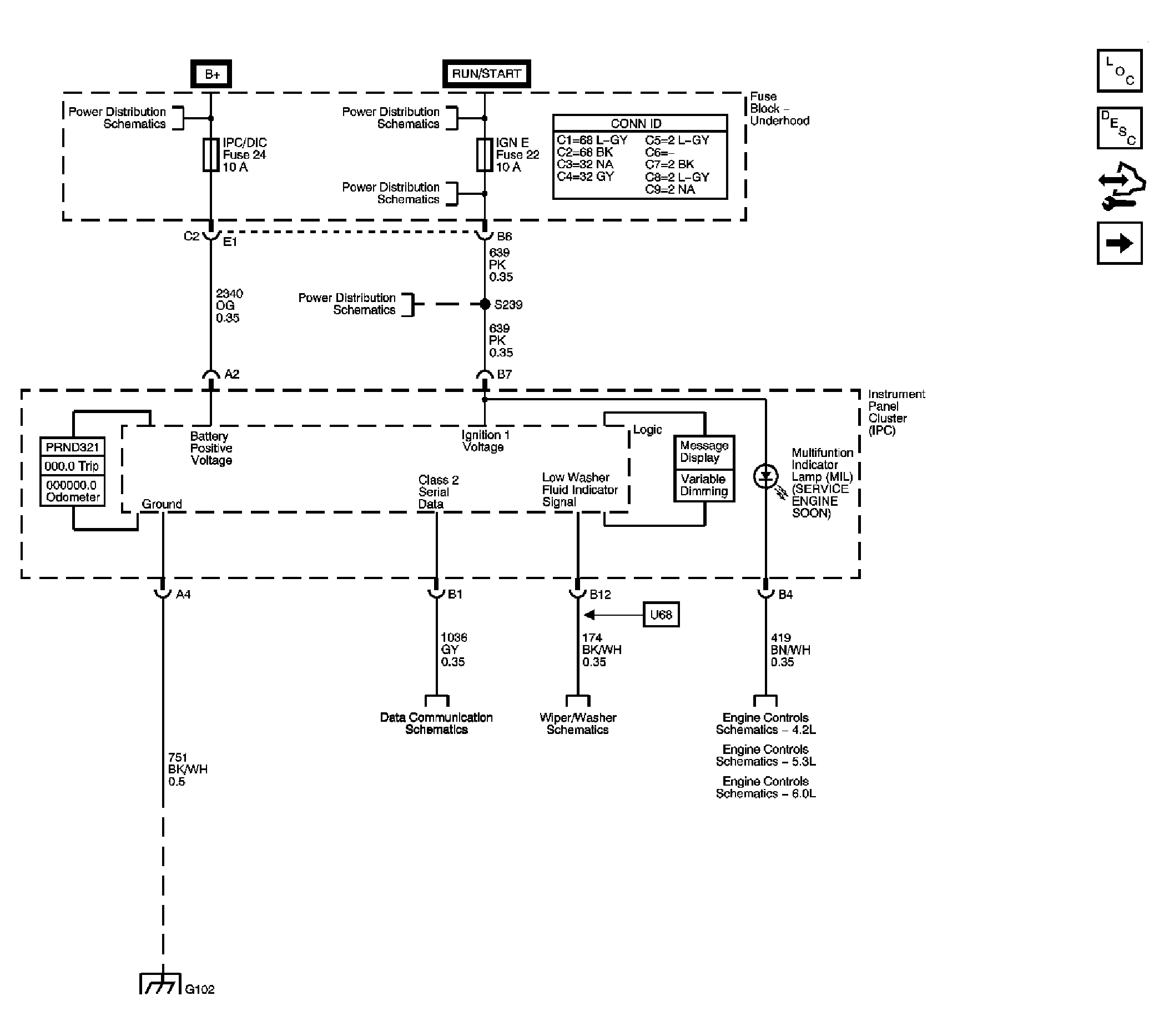

Fig 1: Power, Ground, Serial Data & MIL Schematic
GM1747720Courtesy of GENERAL MOTORS CORP.

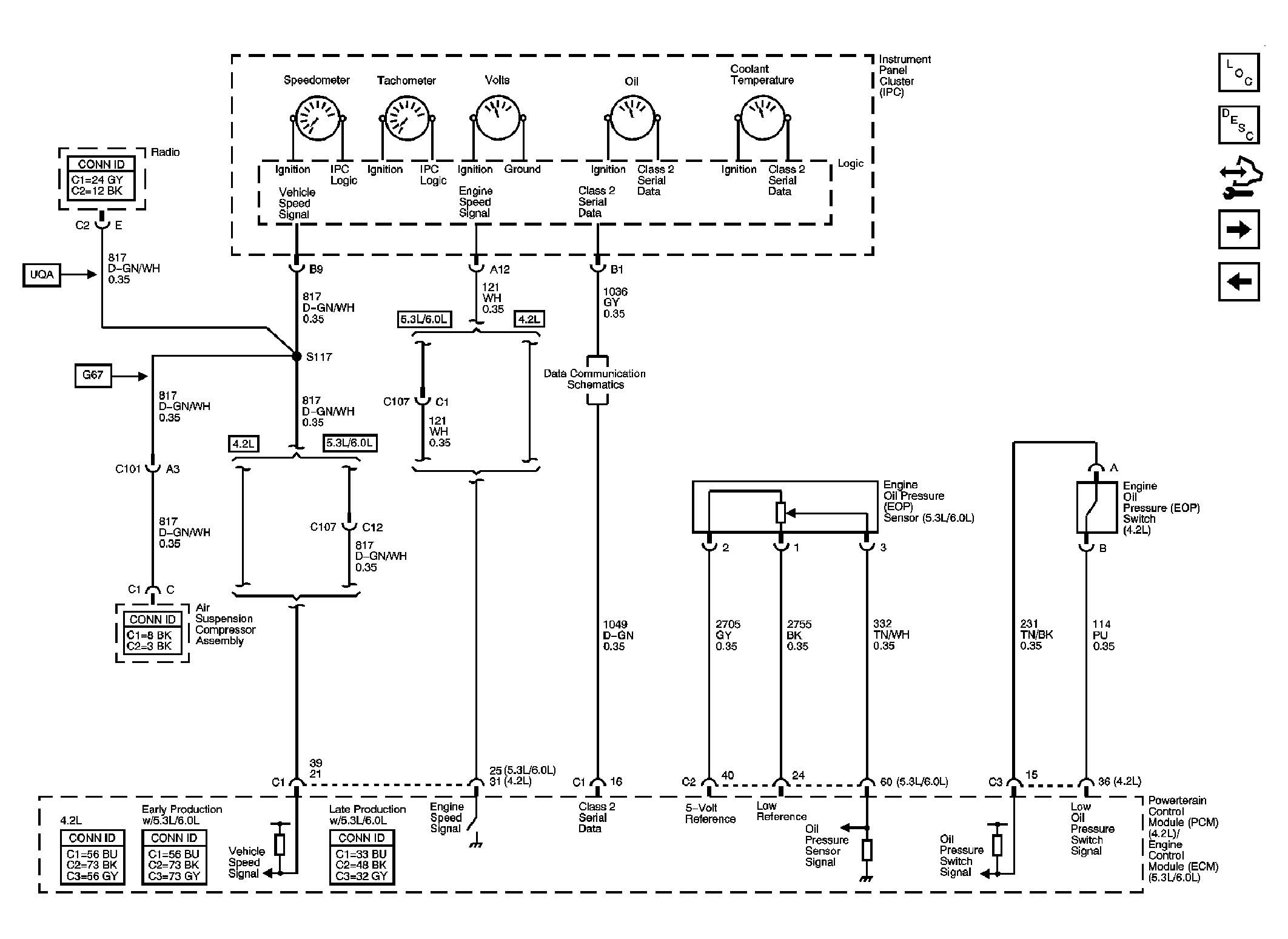

Fig 2: Gages Schematic
GM1747721Courtesy of GENERAL MOTORS CORP.

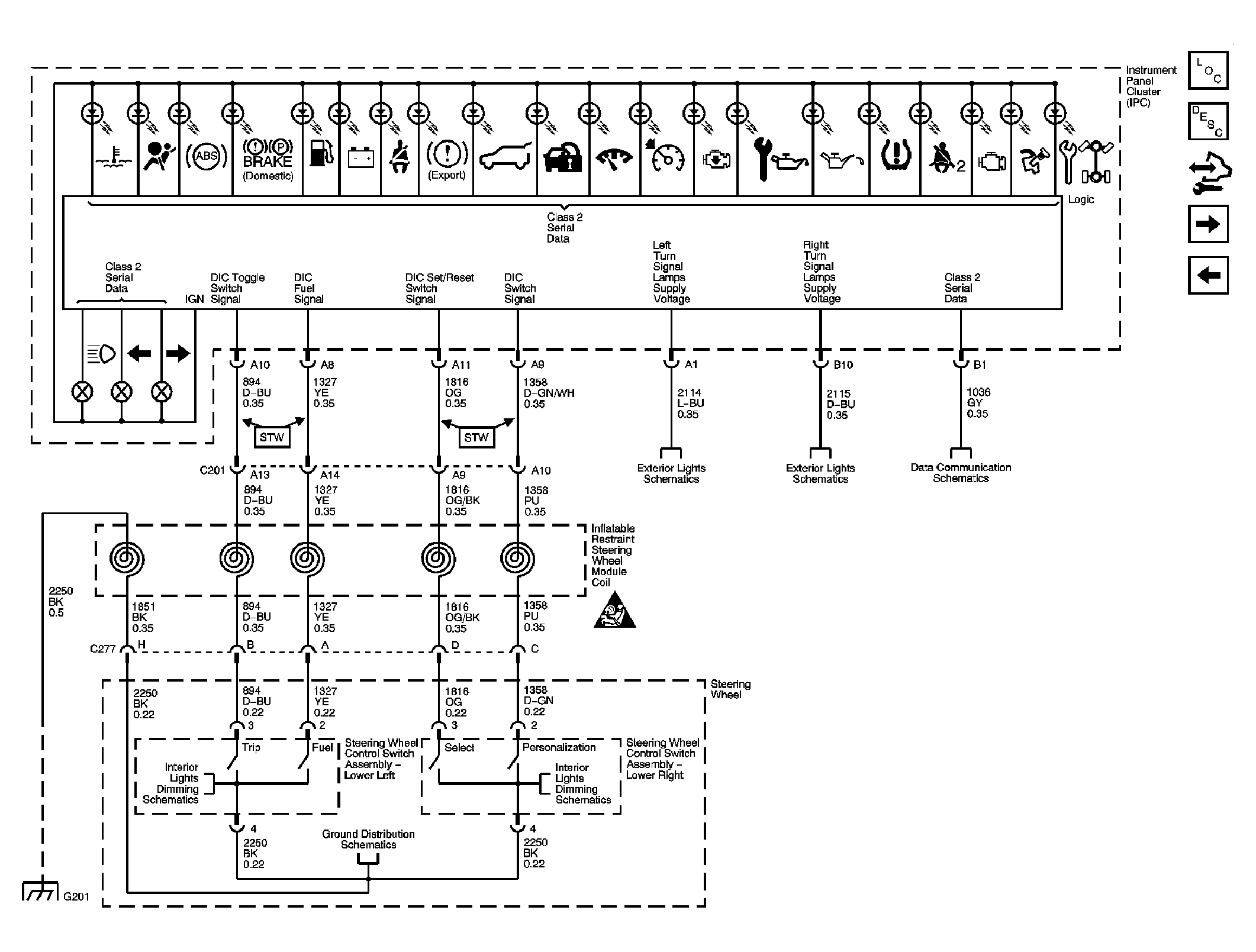

Fig 3: Indicators & DIC Controls Schematic
GM1747722Courtesy of GENERAL MOTORS CORP.

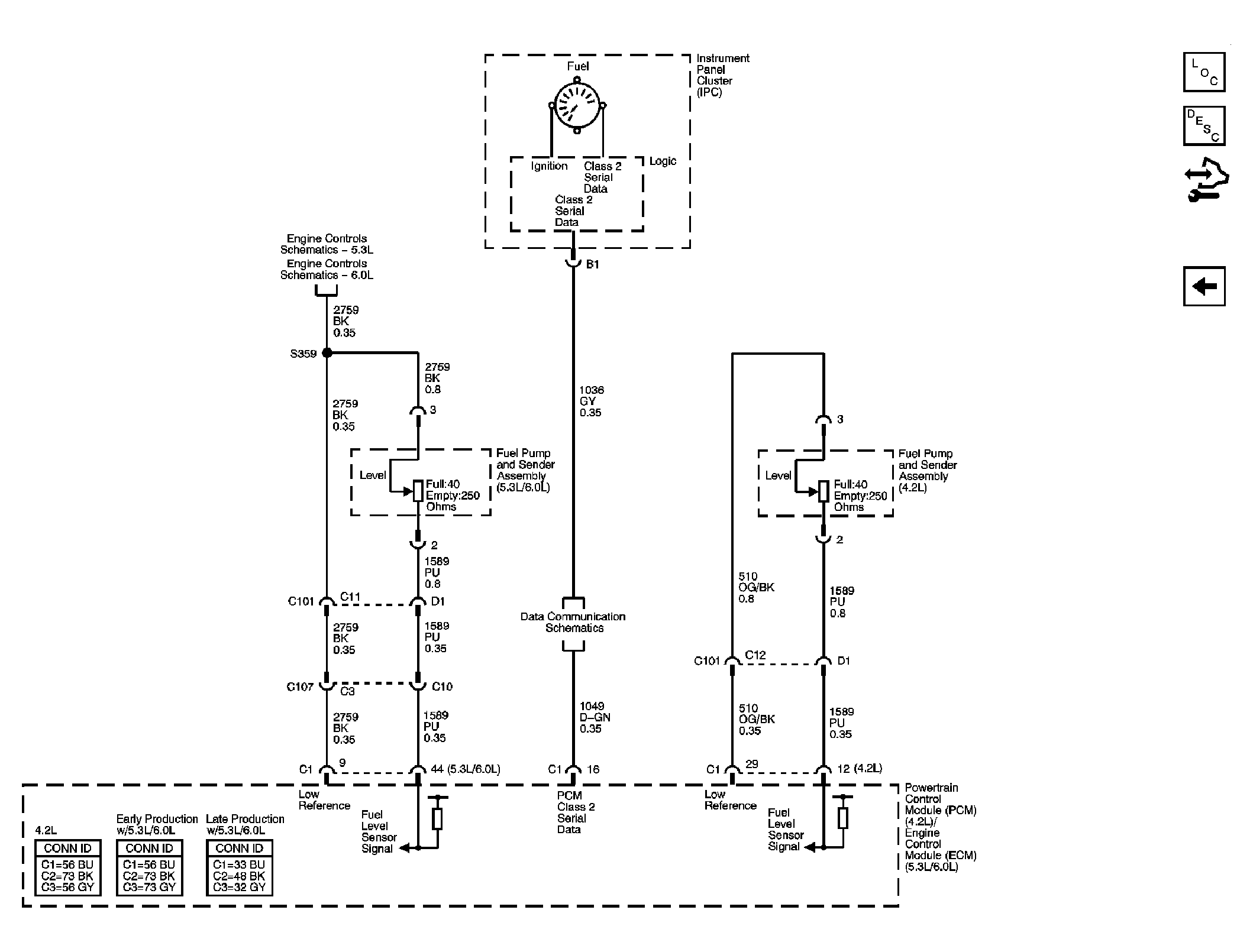

Fig 4: Fuel Gage Schematic
GM1747723Courtesy of GENERAL MOTORS CORP.
