Audible Warnings Schematics

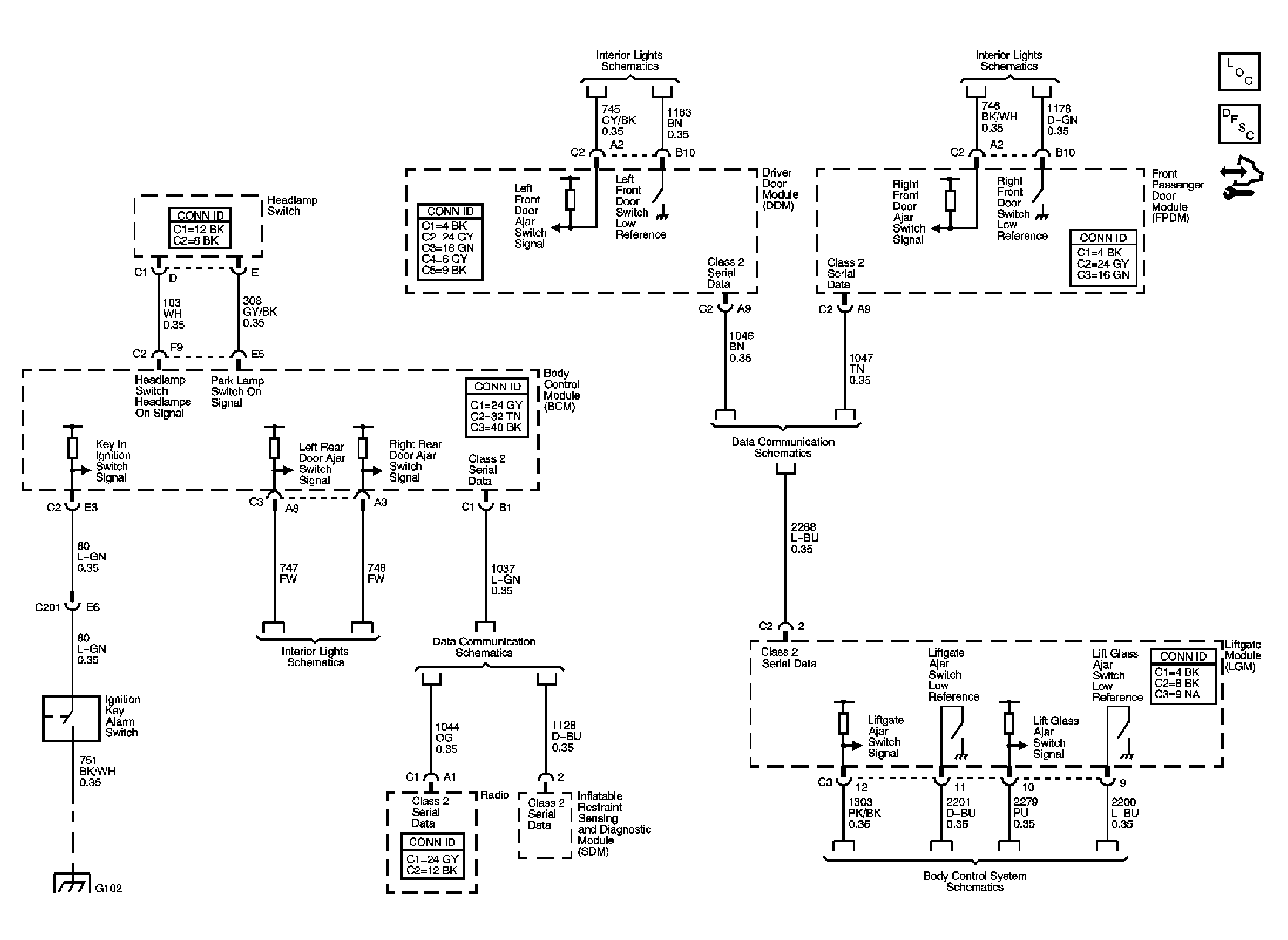

Fig 1: Audible Warnings Schematic

GM1747725

Courtesy of GENERAL MOTORS CORP.
