Moveable Window Schematics

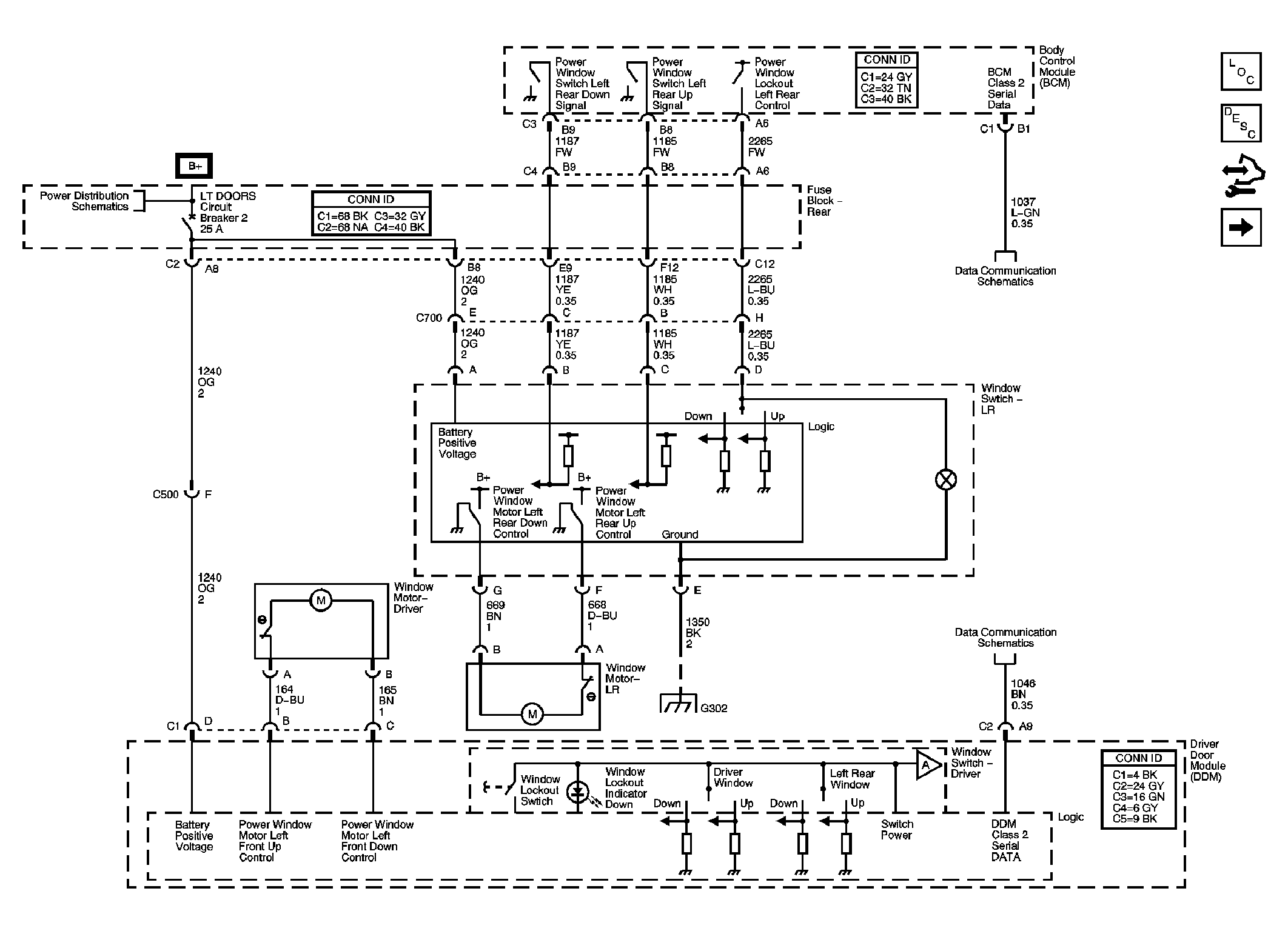

Fig 1: Power Windows - Left Schematic

GM1747612

Courtesy of GENERAL MOTORS CORP.

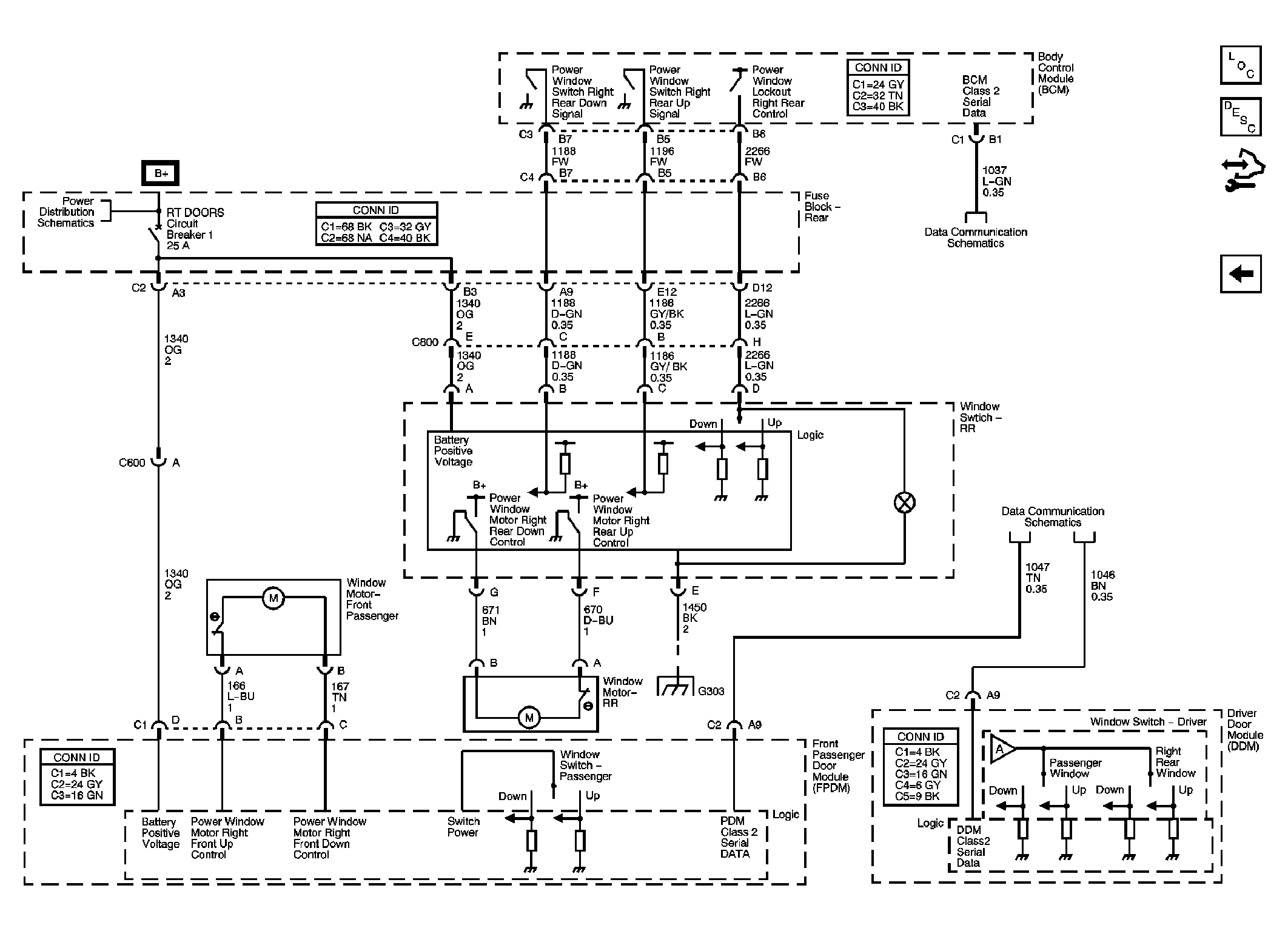

Fig 2: Power Windows - Right Schematic

GM1747614

Courtesy of GENERAL MOTORS CORP.
