Driver Seat Schematics

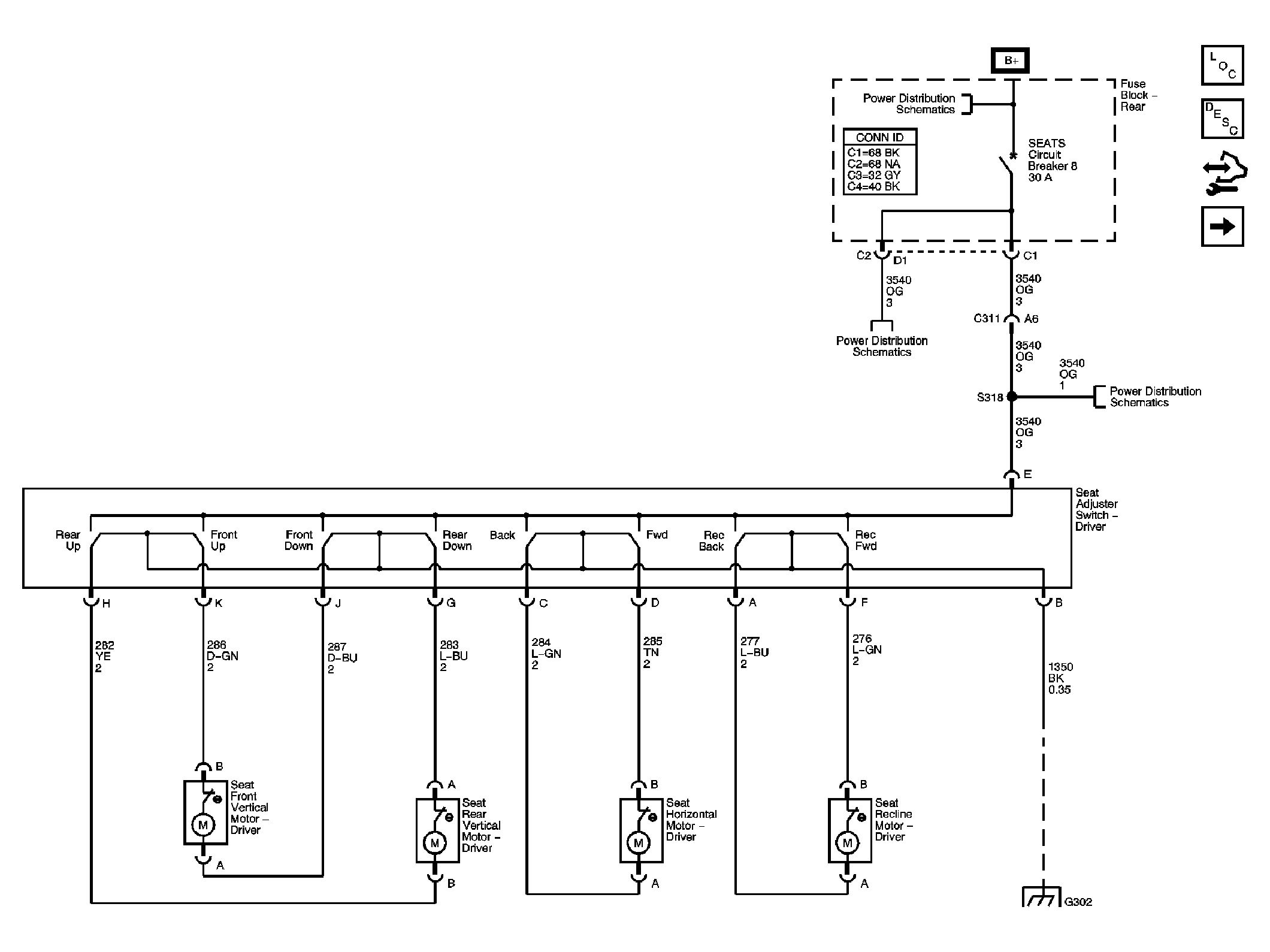

Fig 1: Power Seat Controls w/o Memory Schematic

Courtesy of GENERAL MOTORS CORP.

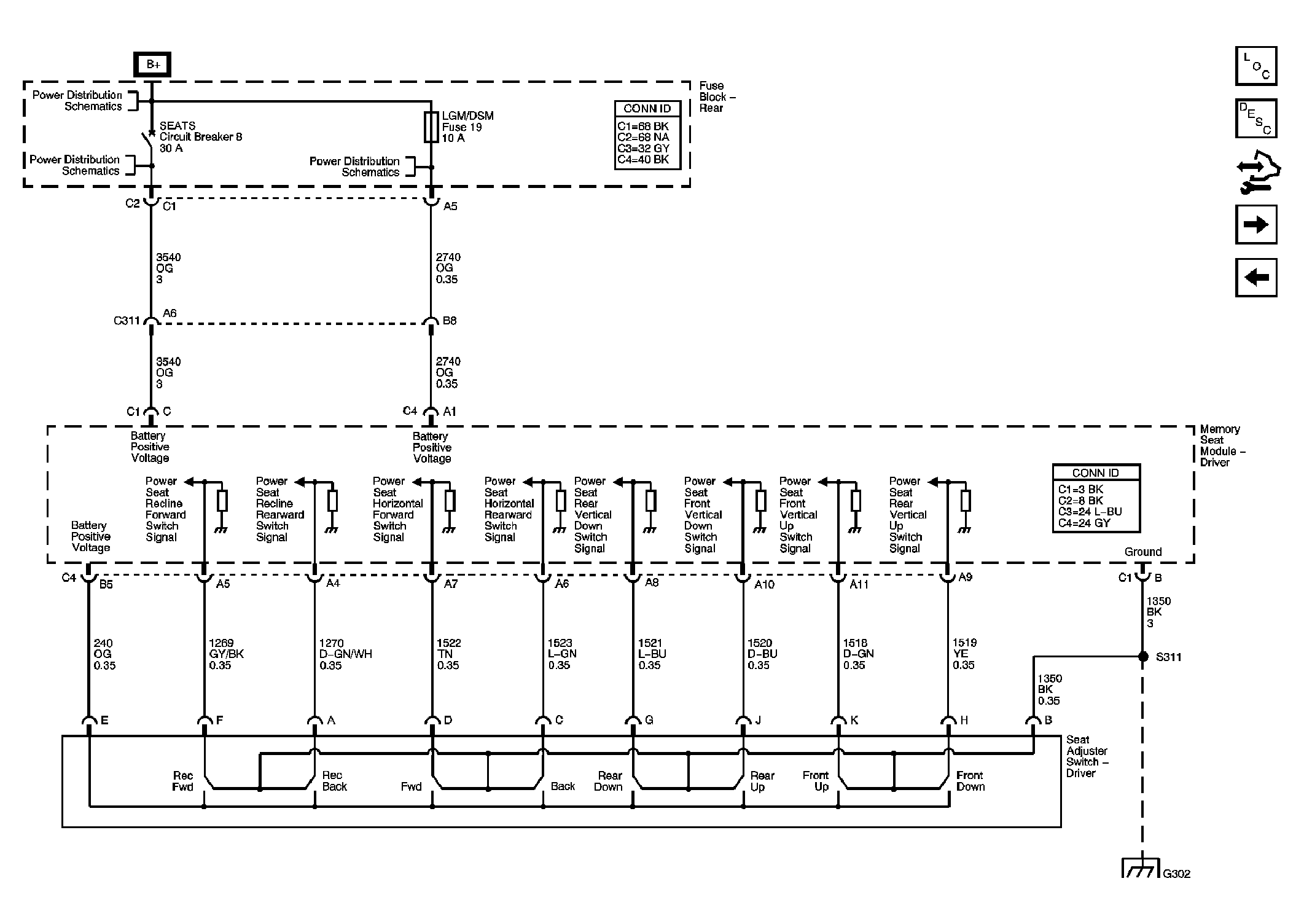

Fig 2: Power Seat Controls w/Memory - Power, Ground & Switch Controls Schematic

Courtesy of GENERAL MOTORS CORP.

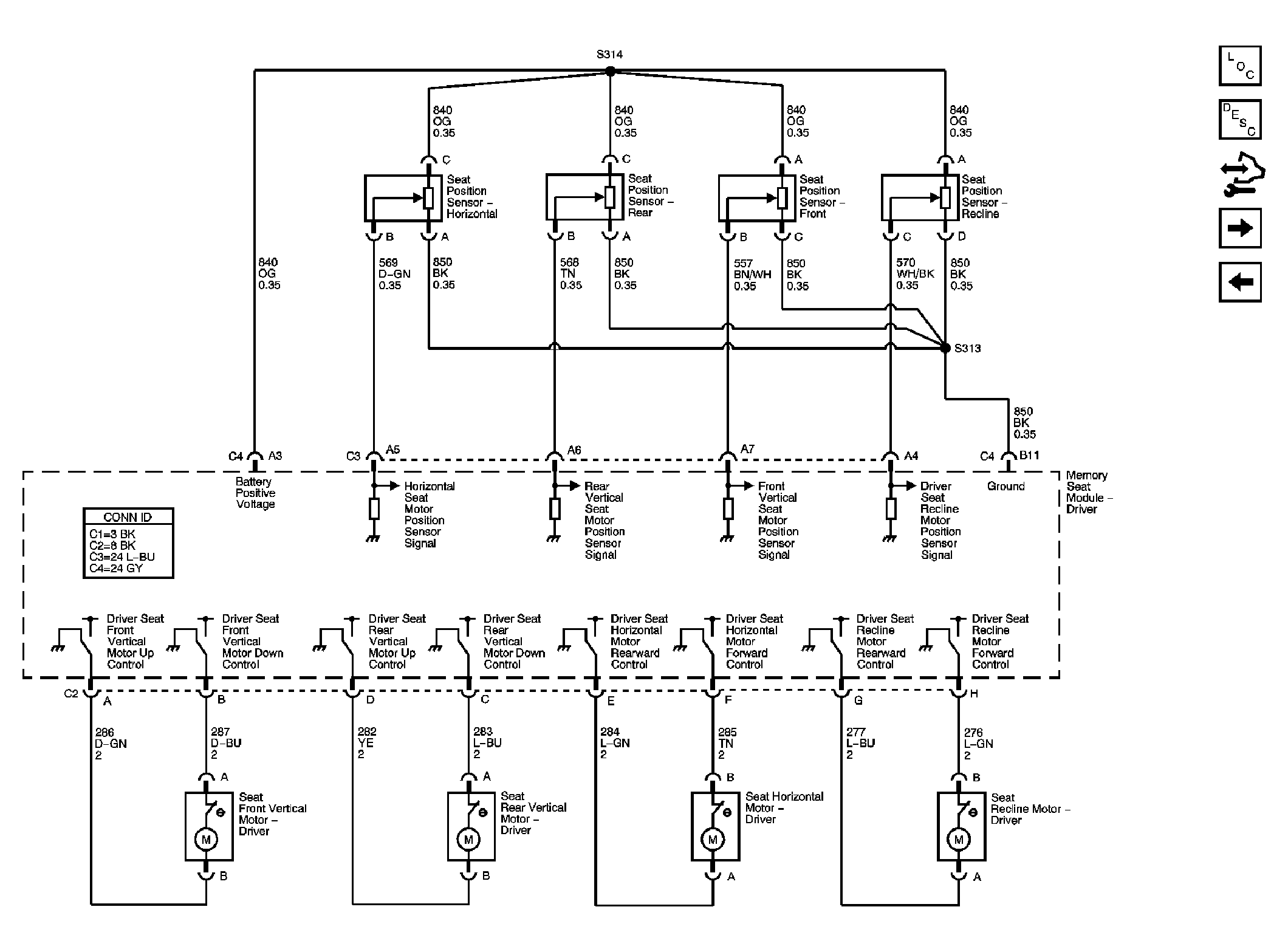

Fig 3: Power Seat Controls w/Memory - Motors & Position Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Lumbar Controls - w/o Memory Schematic

Courtesy of GENERAL MOTORS CORP.

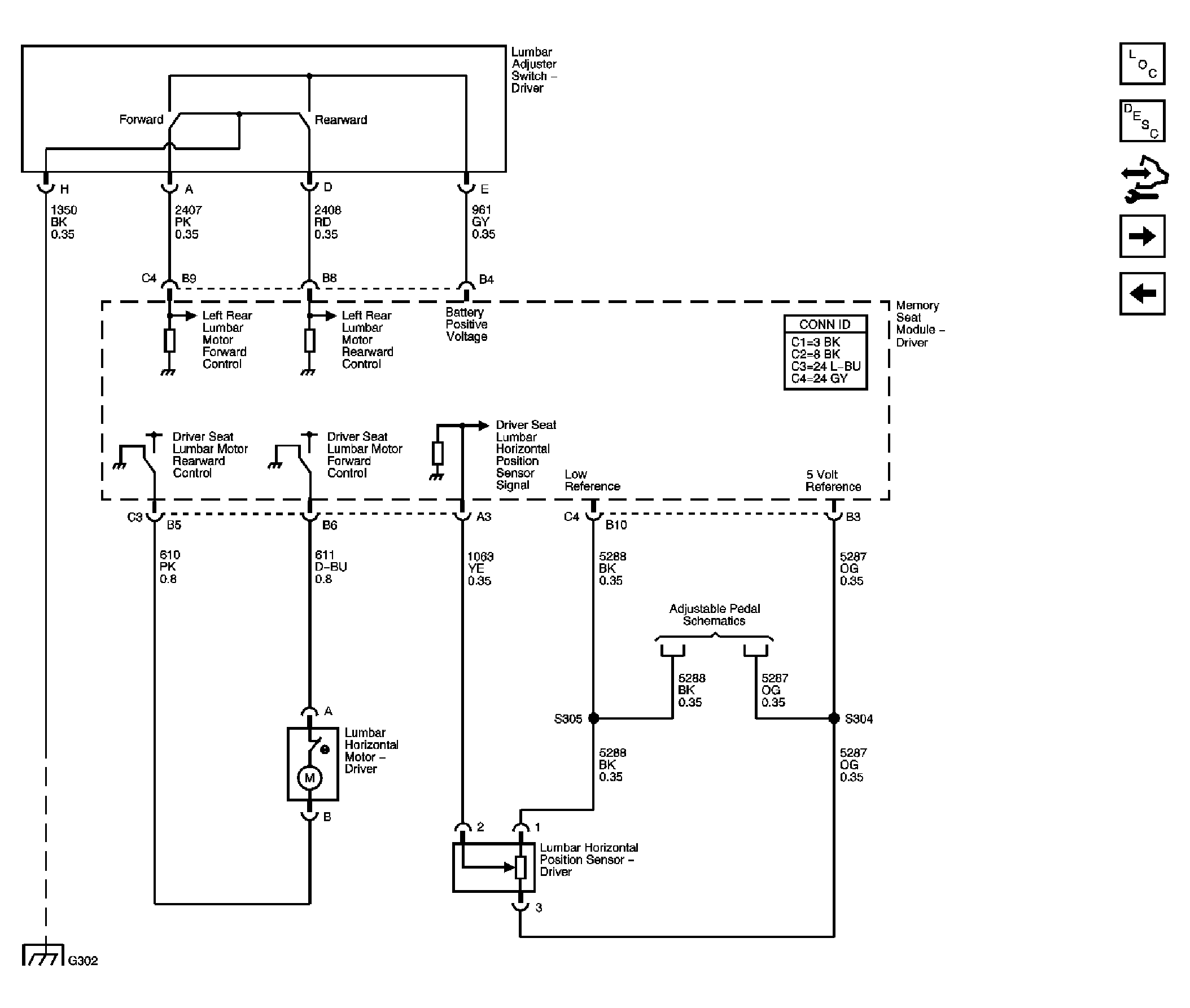

Fig 5: Lumbar Controls - w/Memory Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Memory Controls Schematic

Courtesy of GENERAL MOTORS CORP.
