Door Control Module Schematics

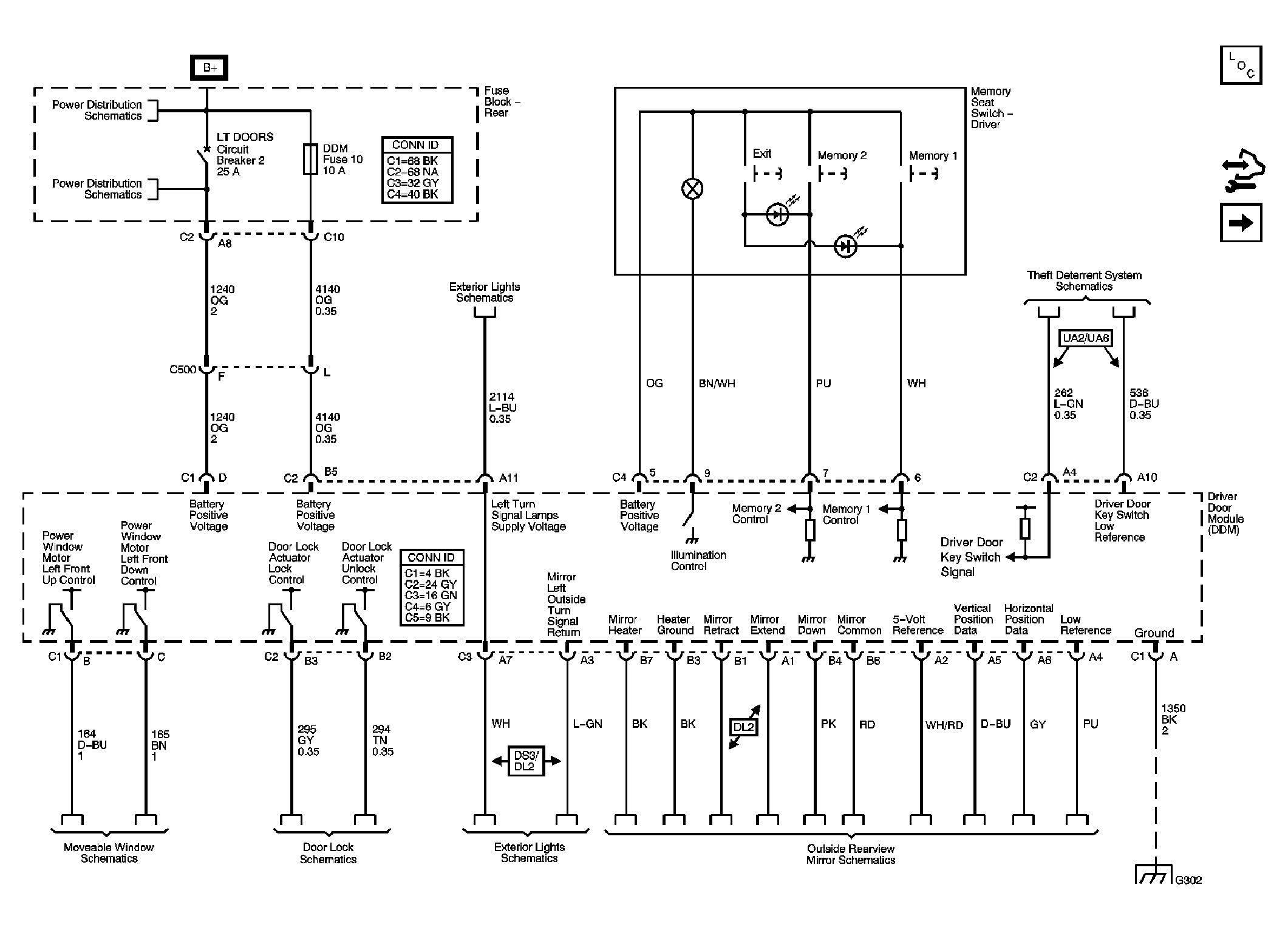

Fig 1: Power, Ground & Subsystem References Schematic
GM1747700Courtesy of GENERAL MOTORS CORP.

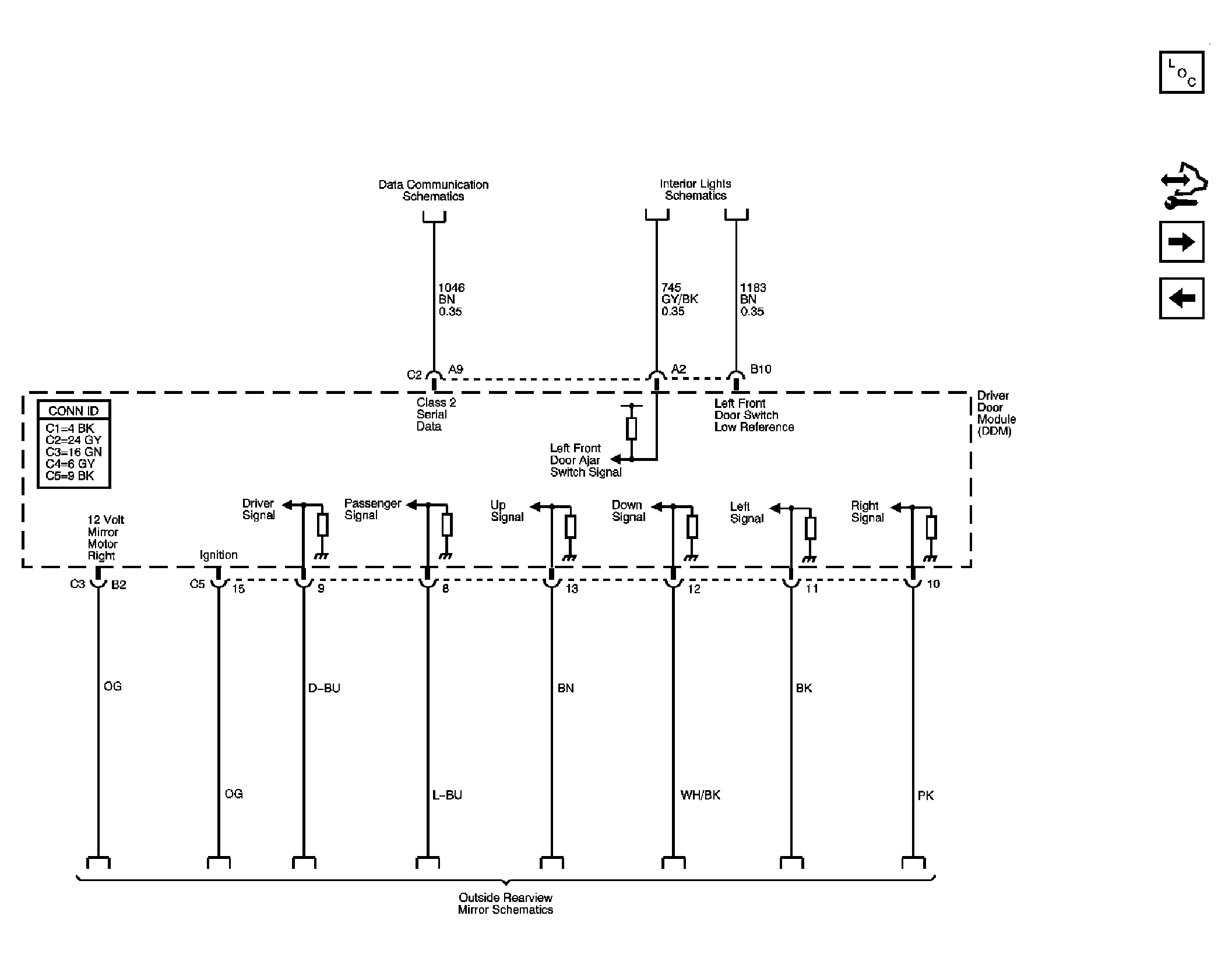

Fig 2: Serial Data & Subsystem References Schematic
GM1747701Courtesy of GENERAL MOTORS CORP.

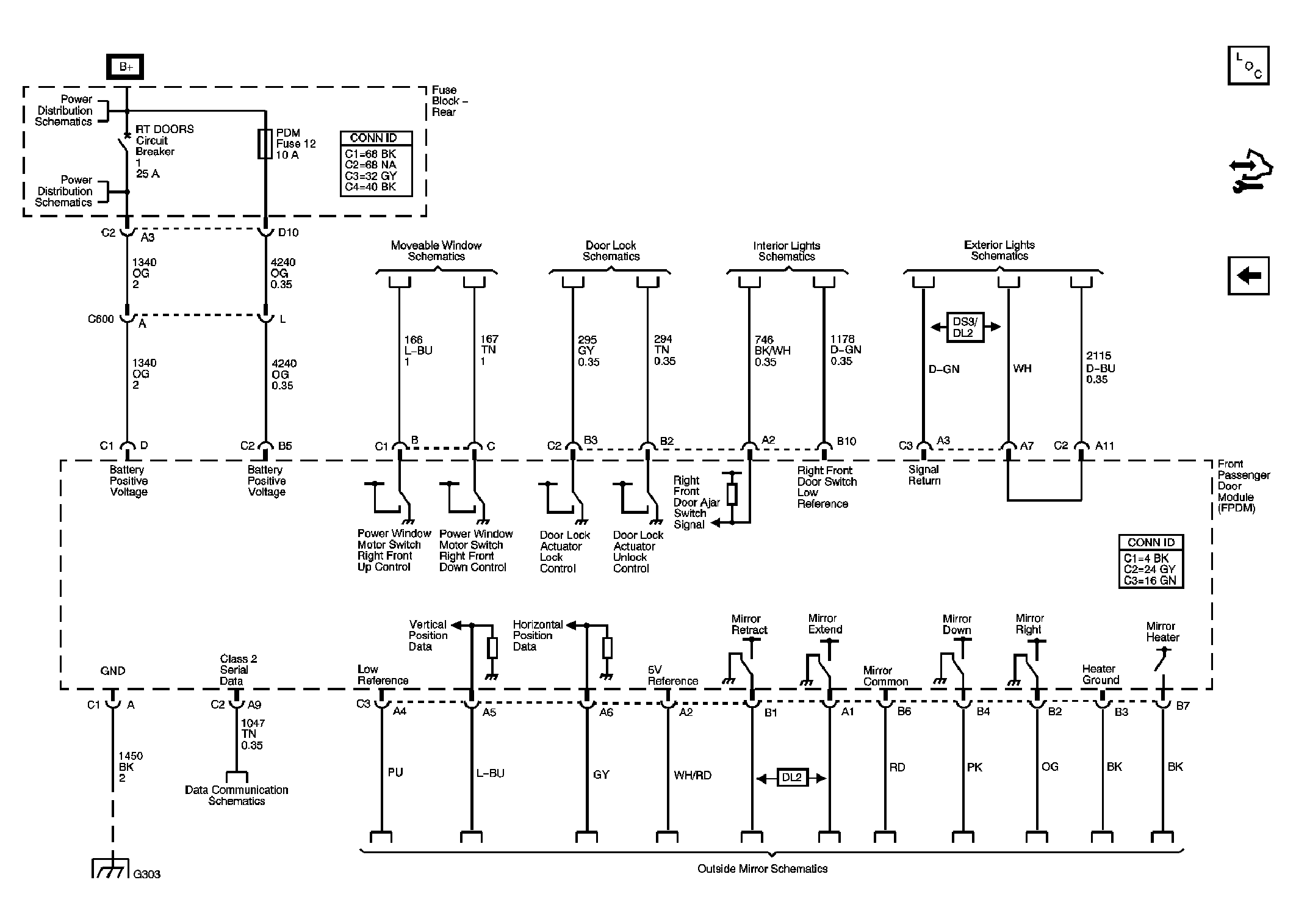

Fig 3: Front Passenger Schematic
GM1747703Courtesy of GENERAL MOTORS CORP.
