Wiper/Washer Schematics

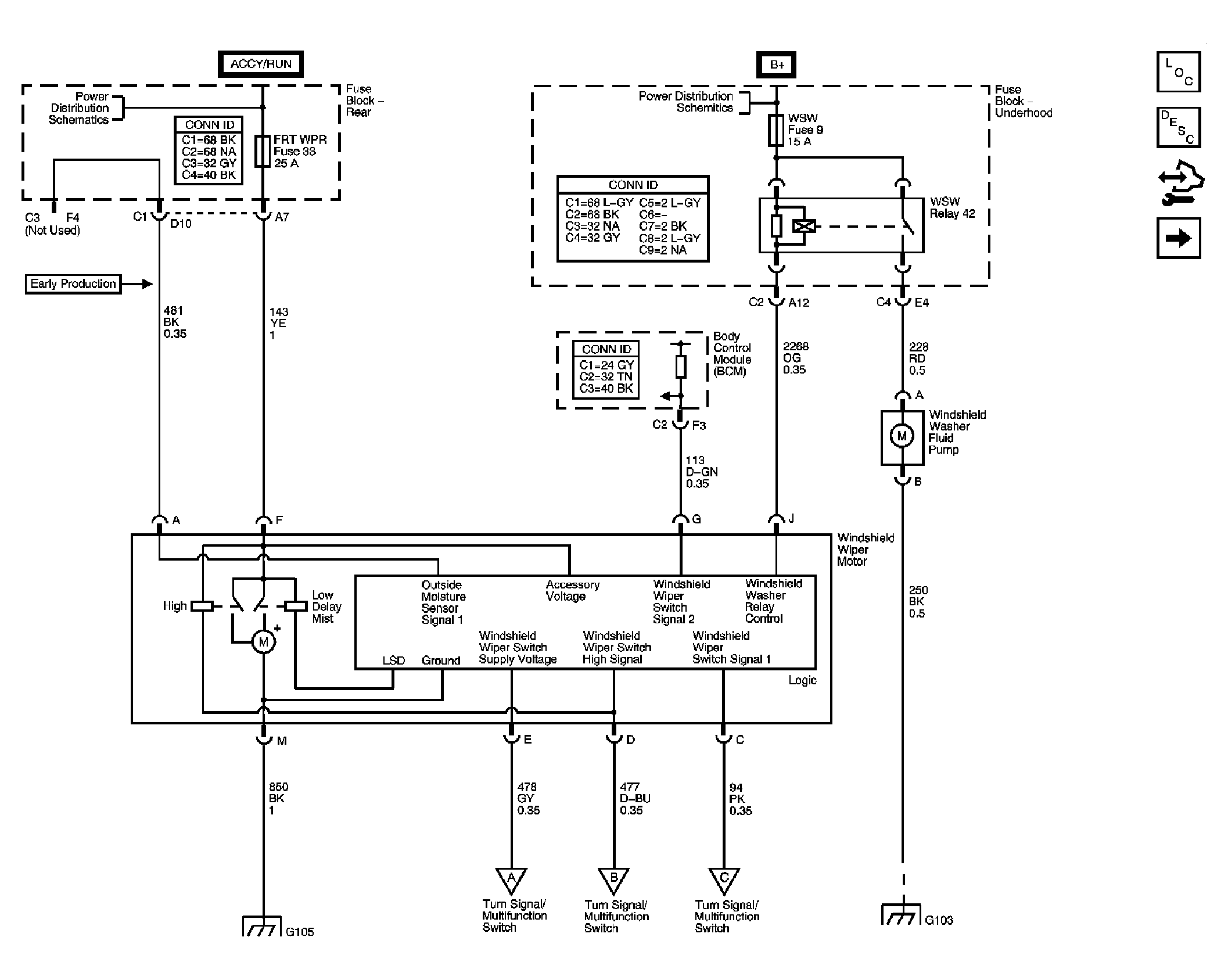

Fig 1: Windshield Wiper/Washer Motors Schematic
GM1747680Courtesy of GENERAL MOTORS CORP.

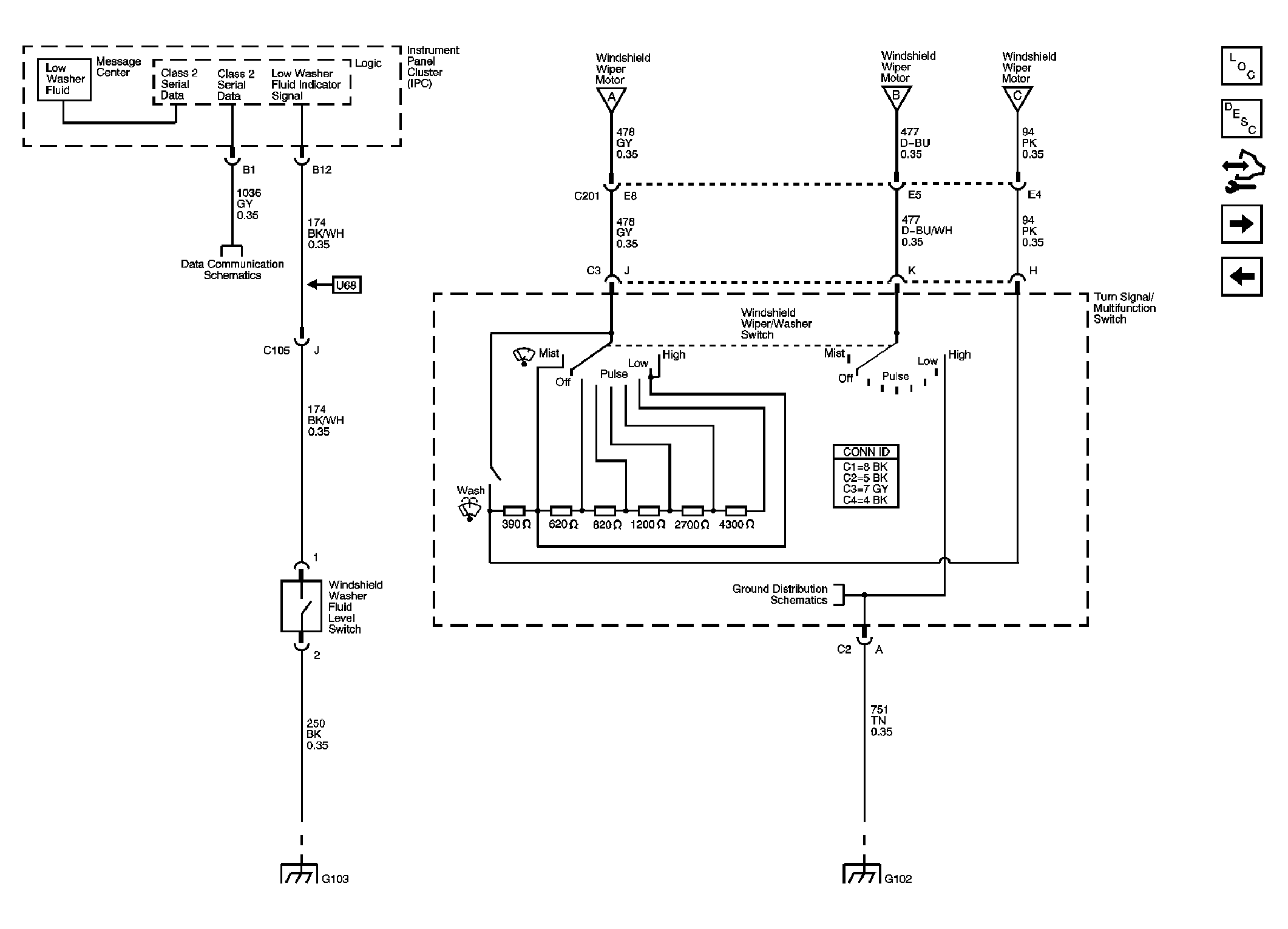

Fig 2: Wiper/Washer Switch & Washer Fluid Level Switch Schematic
GM1747685Courtesy of GENERAL MOTORS CORP.

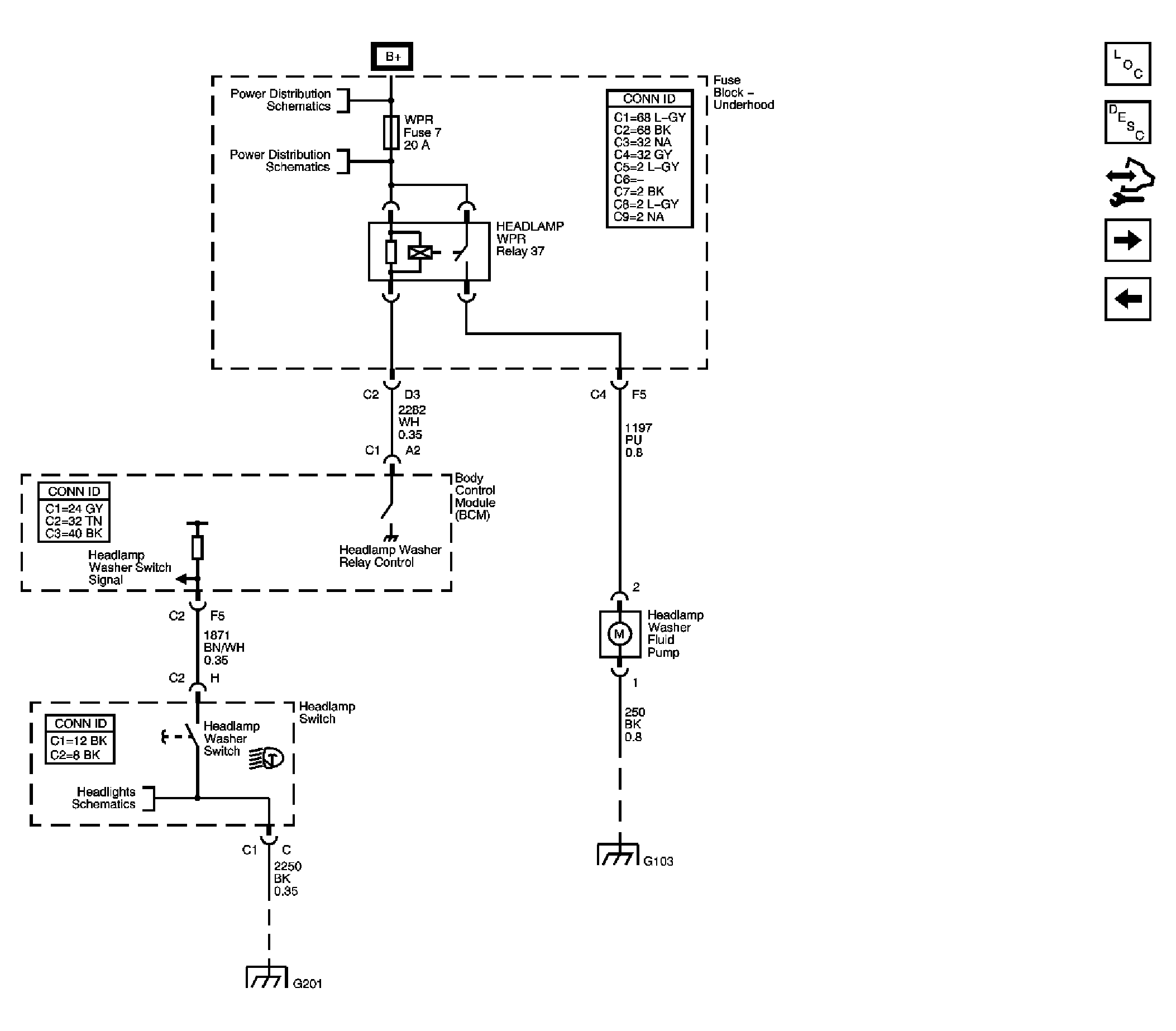

Fig 3: Headlamp Washer - CE4 Schematic
GM1747687Courtesy of GENERAL MOTORS CORP.

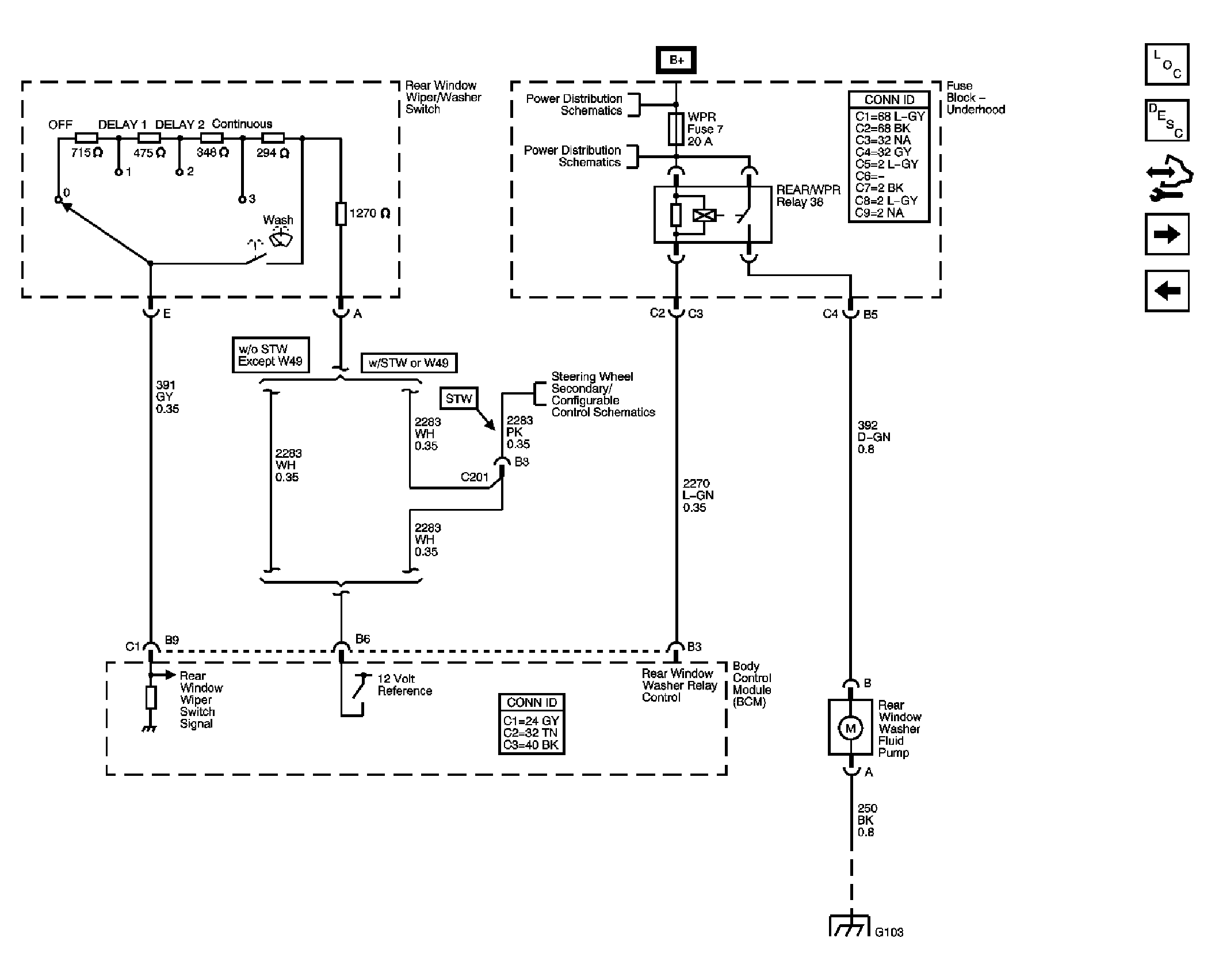

Fig 4: Rear Wiper/Washer Controls Schematic
GM1747689Courtesy of GENERAL MOTORS CORP.

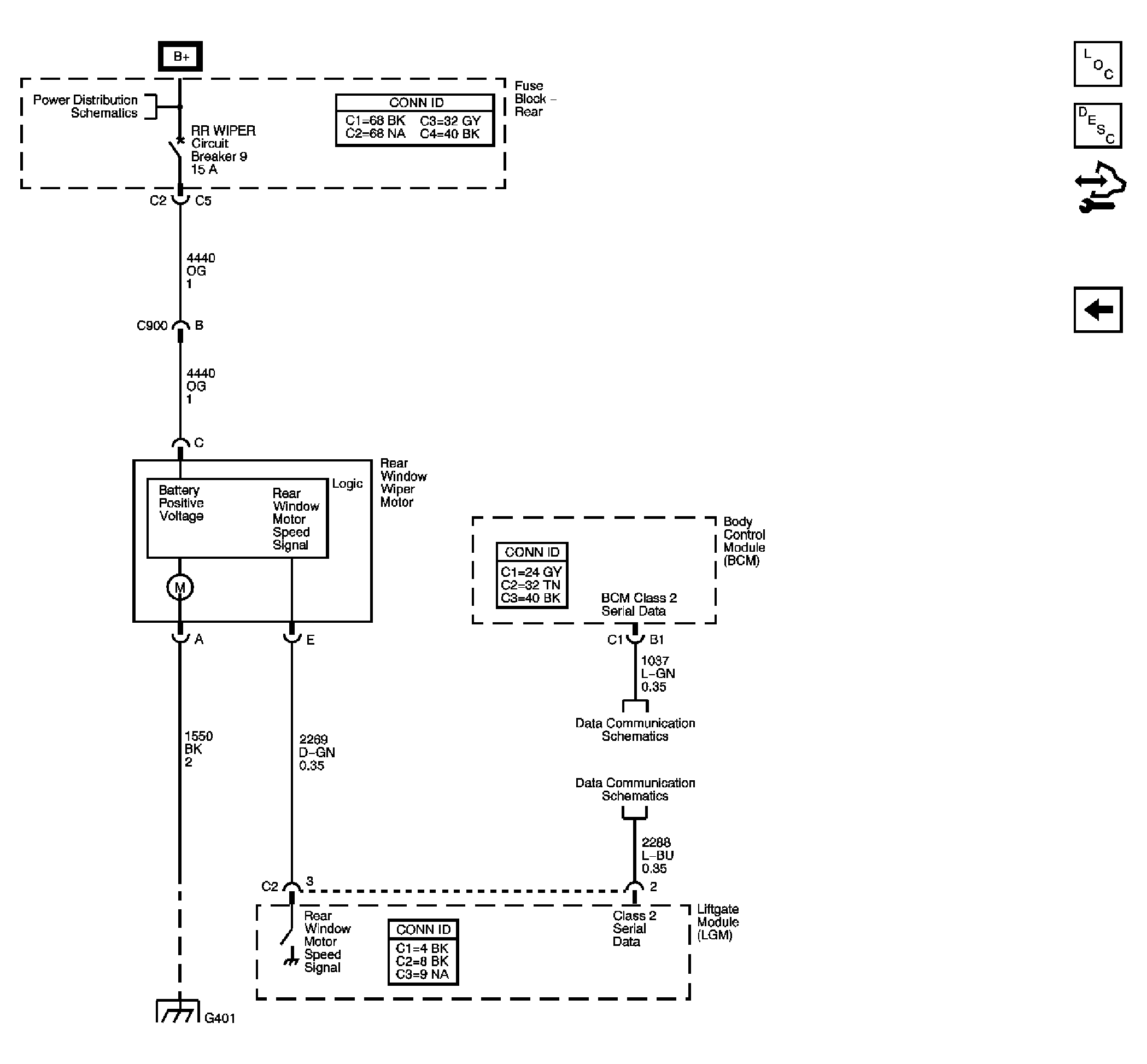

Fig 5: Rear Window Wiper Motor Schematic
GM1747690Courtesy of GENERAL MOTORS CORP.
