Wiper Arm Replacement - Rear (TrailBlazer SS)

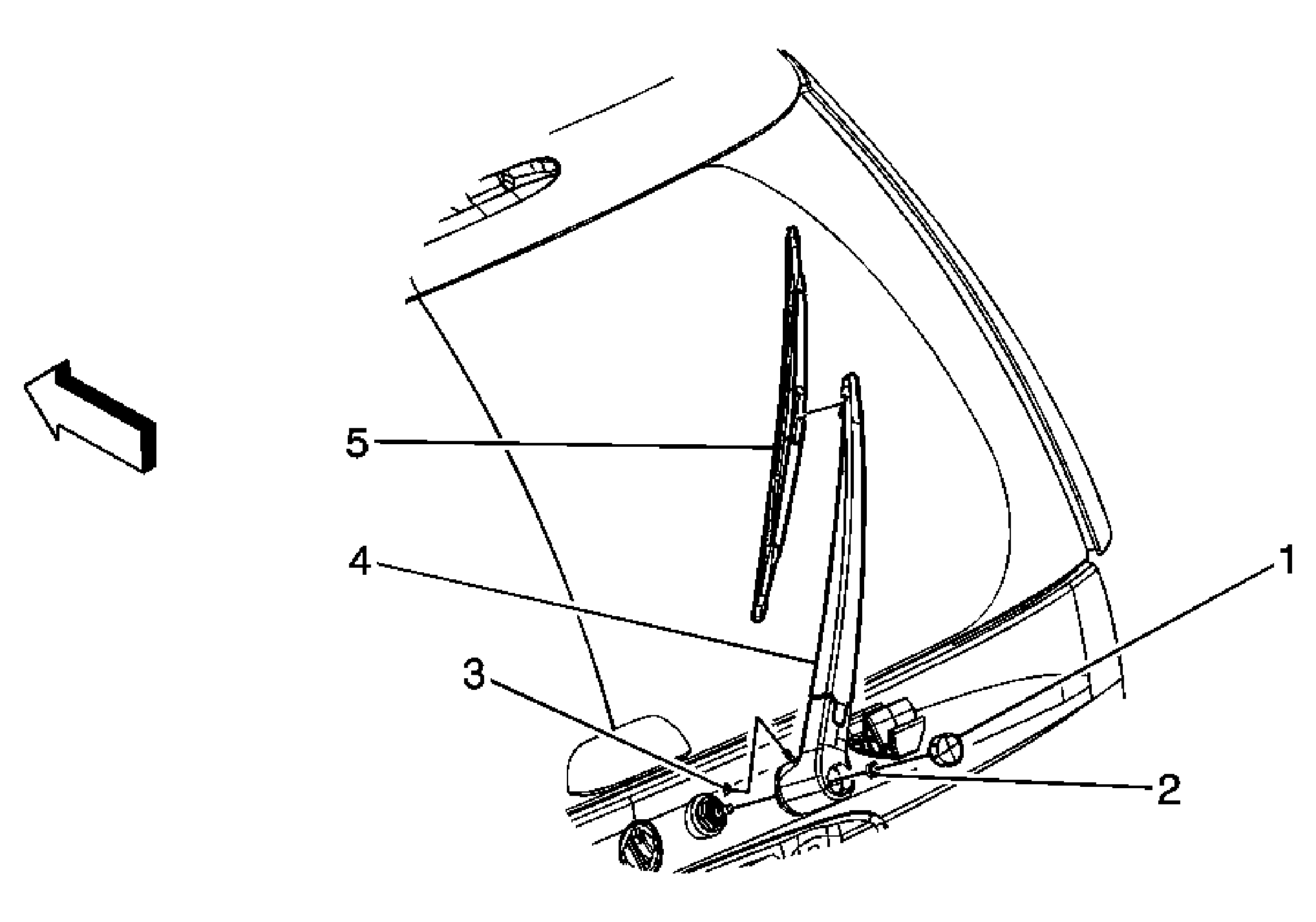

Fig 1: View Of Rear Wiper Arm Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Position the rear wiper arm at the mid-wipe position on the glass and cycle the ignition key to the OFF position.
1	Wiper Arm Nut Finish Cover
2	Rear Wiper Arm Pivot Shaft Nut Tighten: 10 N.m (89 lb in)
3	Rear Wiper Arm Washer Hose
4	Rear Wiper Arm Tip: Cycle the ignition key on and park the wiper motor. Park the rear wiper motor prior to installing the arm to the pivot shaft. Place the wiper arm onto the pivot shaft and in the wiper pocket in the full park position. Hold the arm in the pocket while torquing the wiper arm nut to specification.
5	Rear Wiper Arm Blade
