Wiper Arm Replacement (SS)
Wiper Arm Replacement (SS)

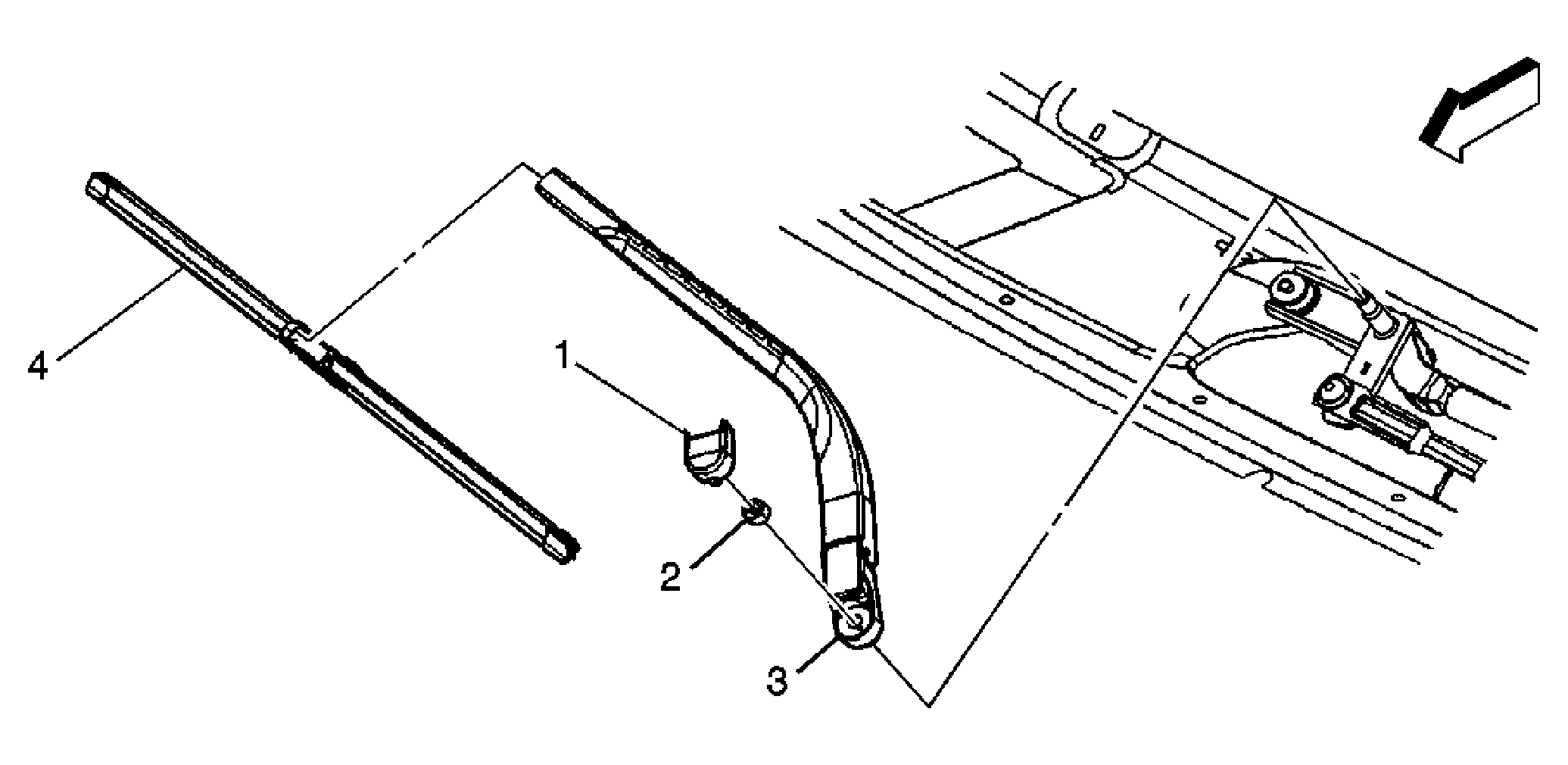

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Windshield Washer Arm Finish Cover Tip: Use a small flat-bladed tool to remove finish cap. |
| 2 | Windshield Washer Arm Nut Tip: Hold wiper arm blade tip to the target marks in the lower blackout area of the windshield while tightening the nut. Tighten: 35 N.m (26 lb ft). |
| 3 | Windshield Washer Arm Tip: Use a J 39637 Wiper Arm Puller or slightly rock the arm on the wiper pivot shaft to remove. |
| 4 | Windshield Wiper Arm Blade Tip: Pinch the wiper blade tabs and rotate the blade away from the arm and gently push outward in order to remove the blade from the arm. |
