Front Fog Lamp Replacement (TrailBlazer SS)

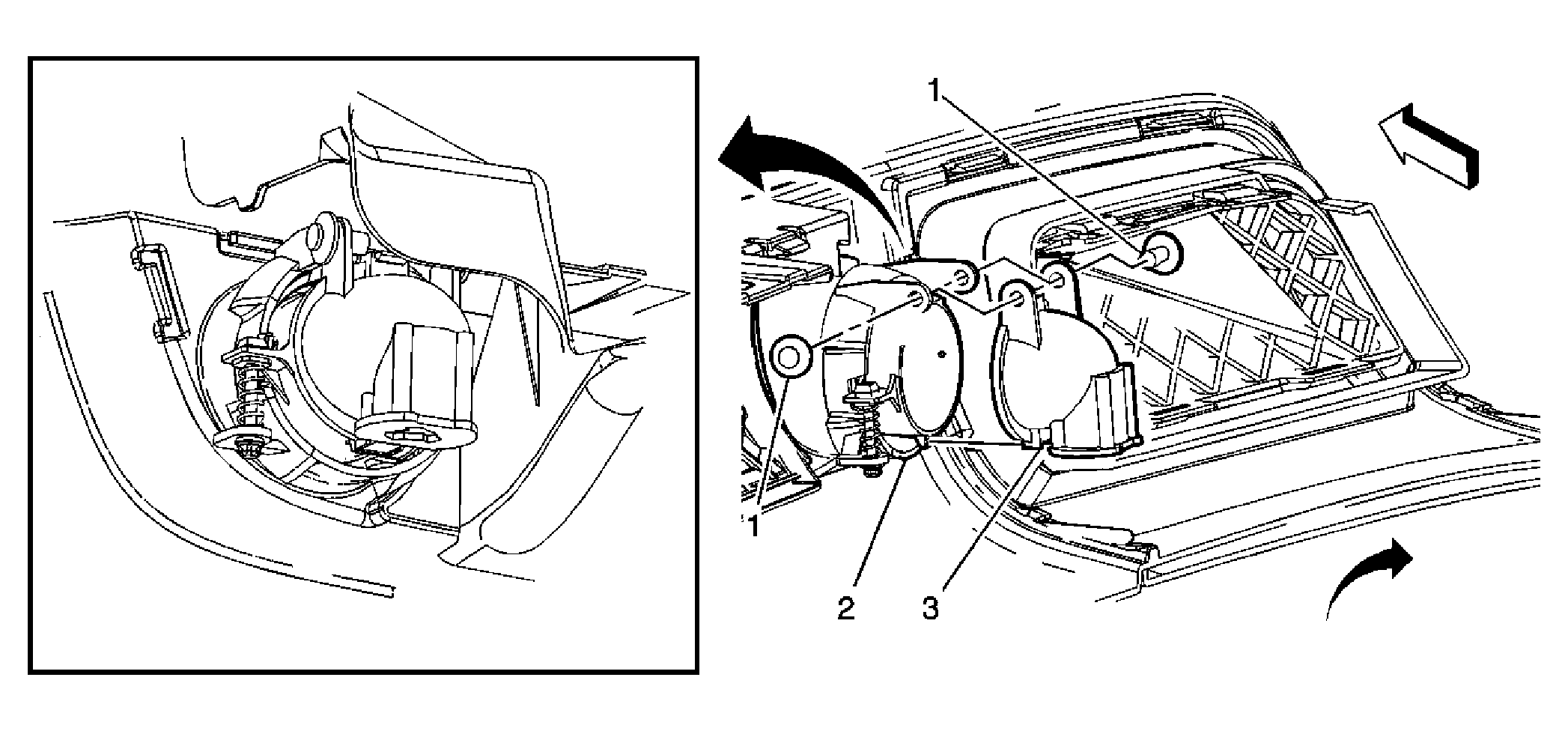

Fig 1: Identifying Fog Lamp - Front (TrailBlazer SS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Reposition the lower radiator air baffle in order to access the fog lamp adjuster bolts. Disconnect the electrical connector from the fog lamp bulb socket.
1	Front Fog Lamp Adjuster Bolts Tip: Remove the 2 horizontal adjusting bolts from the fog lamp bracket assembly. Tighten: 10 N.m (89 lb in)
2	Front Fog Lamp Bracket Retention Clips Tip: Release the clips in order to remove the housing from the bracket.
3	Fog Lamp Housing Tip: Upon reassembly, ensure the housing is secure to the retention clips on the fog lamp bracket. Aim the fog lamps after replacement. Refer to Fog Lamp Aiming .
