Data Communication Schematics

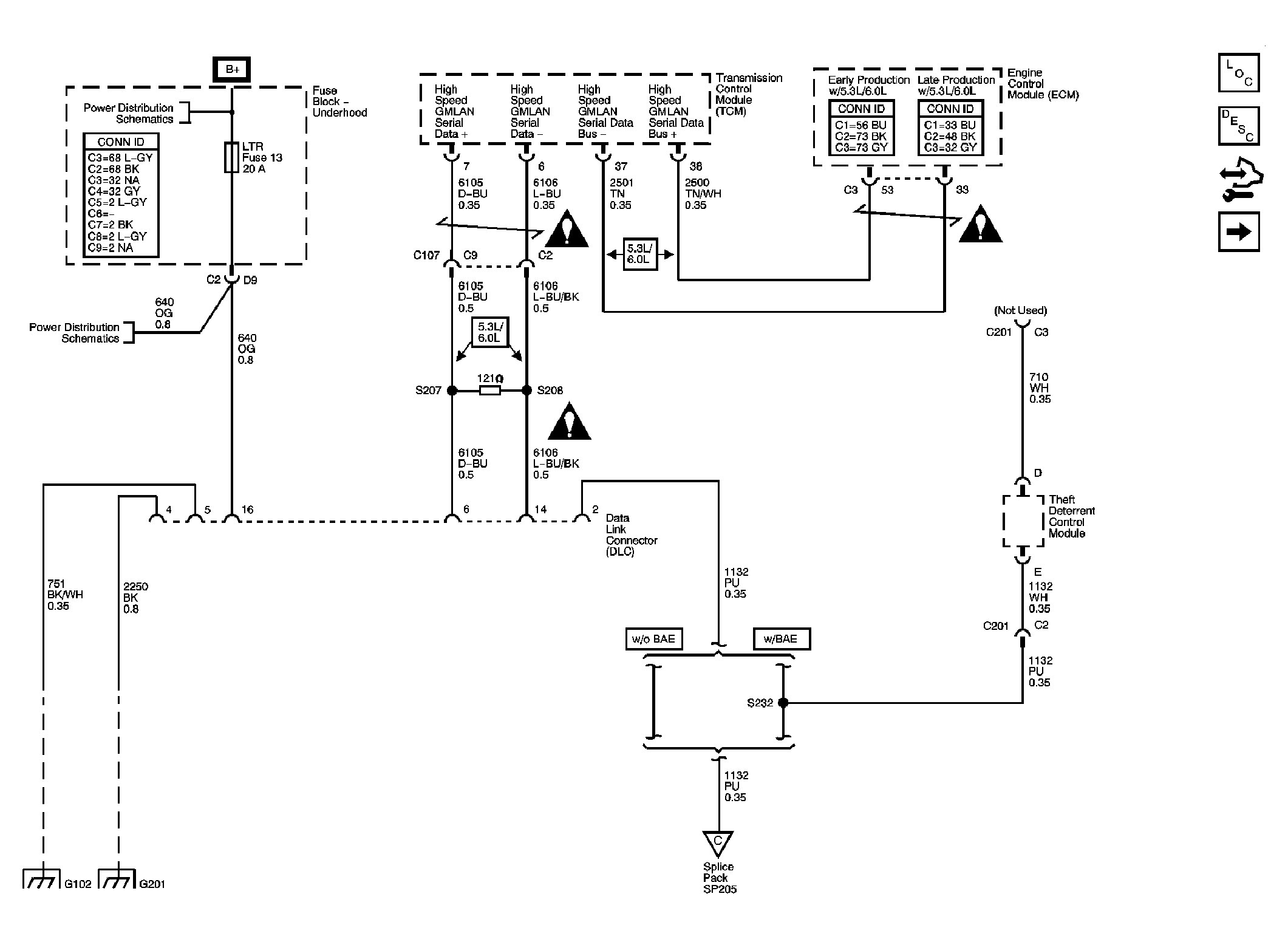

Fig 1: Power, Ground & Data Link Connector Schematic
GM1748029Courtesy of GENERAL MOTORS CORP.
Fig 2: SP205 Schematic
GM1748031Courtesy of GENERAL MOTORS CORP.

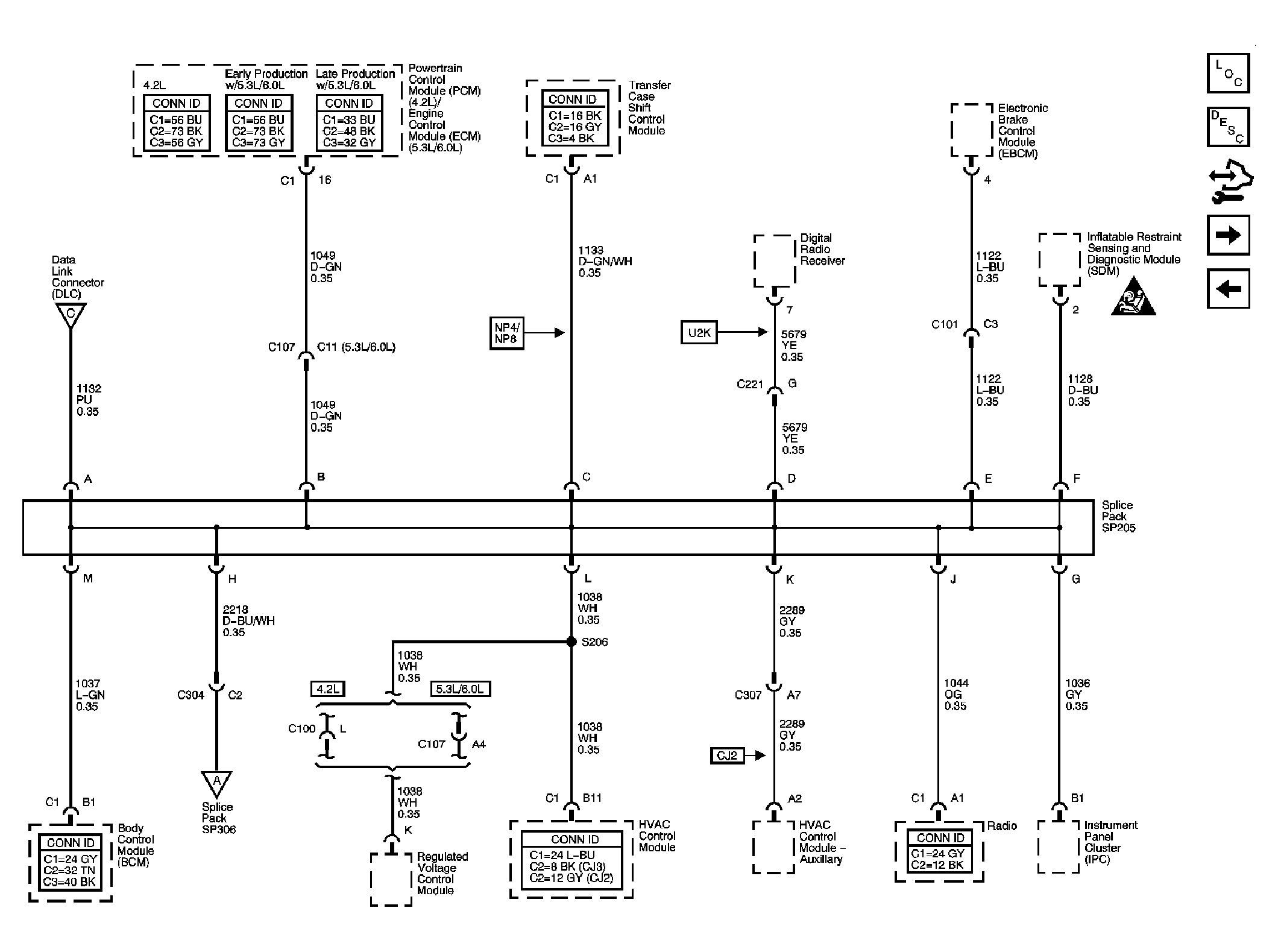

Fig 3: SP306 Schematic
GM1748032Courtesy of GENERAL MOTORS CORP.
