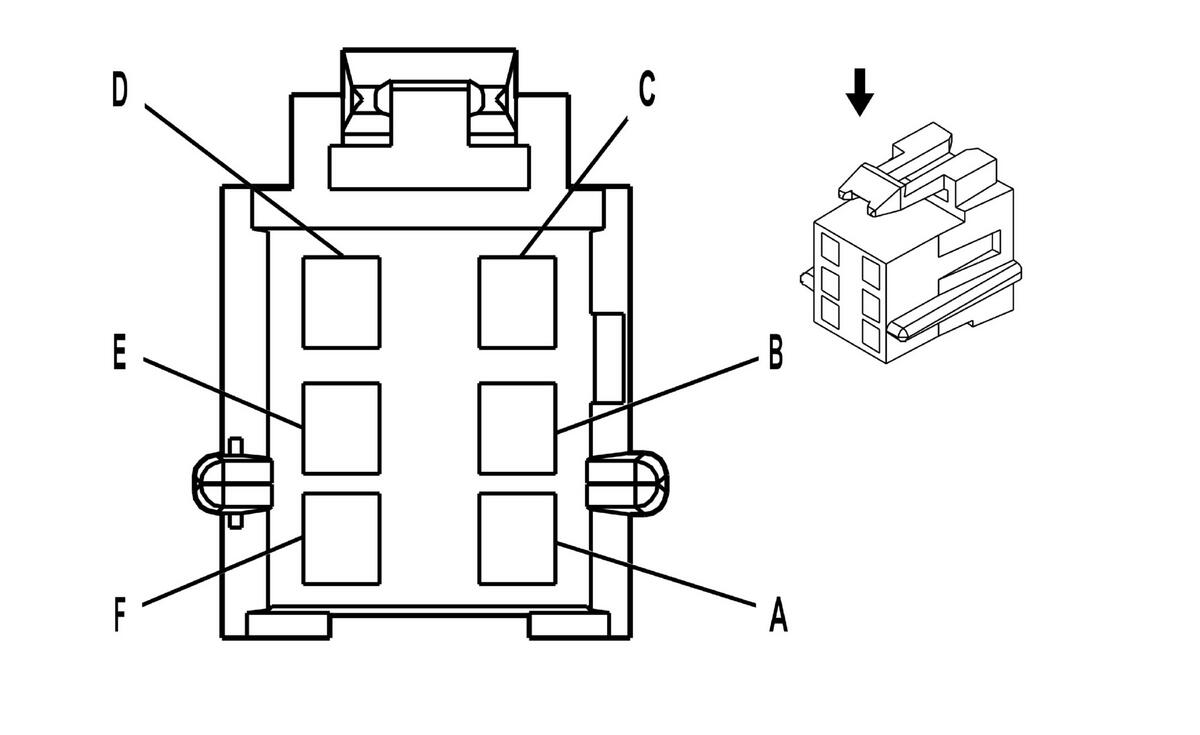

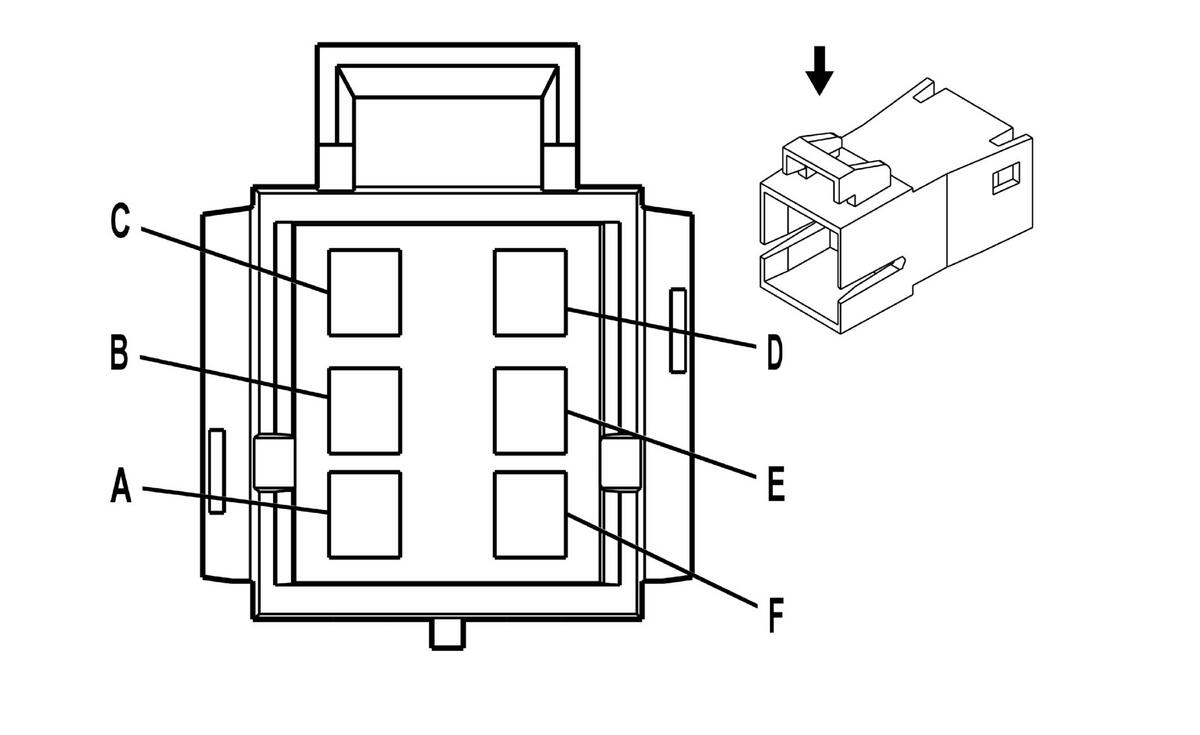

C900 Body Harness to Liftgate Harness Connector End View
C900 Body Harness to Liftgate Harness Connector End Views
 Courtesy of GENERAL MOTORS CORP.
|
 Courtesy of GENERAL MOTORS CORP.
|
C900 Body Harness to Liftgate Harness Connector Parts Information
Connector Part Information
- OEM: 12064752
- Service: 15305888
- Description: 6-Way F Metri-Pack 280 Series Unsealed (BK)
|
Connector Part Information
- OEM: 12064754
- Service: 15305872
- Description: 6-Way M Metri-Pack 280 Series Unsealed (BK)
|
Terminal Part Information
- Pins: A, E-F
- Terminal/Tray: 12034046/2
- Core/Insulation Crimp: E/A
- Release Tool/Test Probe: 12094430/J-35616-4A (PU)
- Pins: B
- Terminal/Tray: 12066214/2
- Core/Insulation Crimp: F/D
- Release Tool/Test Probe: 12094430/J-35616-4A (PU)
- Pins: C-D
- Terminal/Tray: 12015858/4
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: 12094430/J-35616-4A (PU)
|
Terminal Part Information
- Pins: A, E-F
- Terminal/Tray: 12034047/2
- Core/Insulation Crimp: E/A
- Release Tool/Test Probe: 12094430/J-35616-5 (PU)
- Pins: B
- Terminal/Tray: 12034047/2
- Core/Insulation Crimp: C/D
- Release Tool/Test Probe: 12094430/J-35616-5 (PU)
- Pins: C-D
- Terminal/Tray: 12084586/4
- Core/Insulation Crimp: F/G
- Release Tool/Test Probe: 12094430/J-35616-5 (PU)
|
C900 Body Harness to Liftgate Harness Connector Terminal Identification
| Pin |
Wire Color |
Circuit No. |
Function |
Pin |
Wire Color |
Circuit No. |
Function |
| A |
OG |
2740 |
Battery Positive Voltage |
A |
OG |
2740 |
Battery Positive Voltage |
| B |
OG |
4440 |
Battery Positive Voltage |
B |
OG |
4440 |
Battery Positive Voltage |
| C |
OG |
3640 |
Battery Positive Voltage |
C |
OG |
3640 |
Battery Positive Voltage |
| D |
BK |
1550 |
Ground |
D |
BK |
1550 |
Ground |
| E |
L-BU |
2288 |
LGM Class 2 Serial Data |
E |
L-BU |
2288 |
LGM Class 2 Serial Data |
| F |
BN |
2509 |
Left Rear Park Lamps Supply Voltage |
F |
BN |
2509 |
Left Rear Park Lamps Supply Voltage |
