C203 Body Harness to I/P Harness Connector End View

C203 Body Harness to I/P Harness Connector End Views

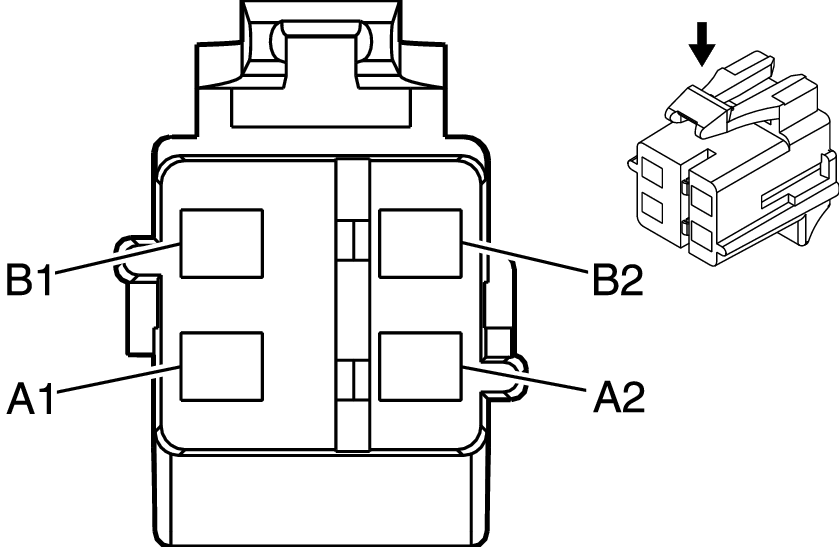

GM594473Courtesy of GENERAL MOTORS CORP.

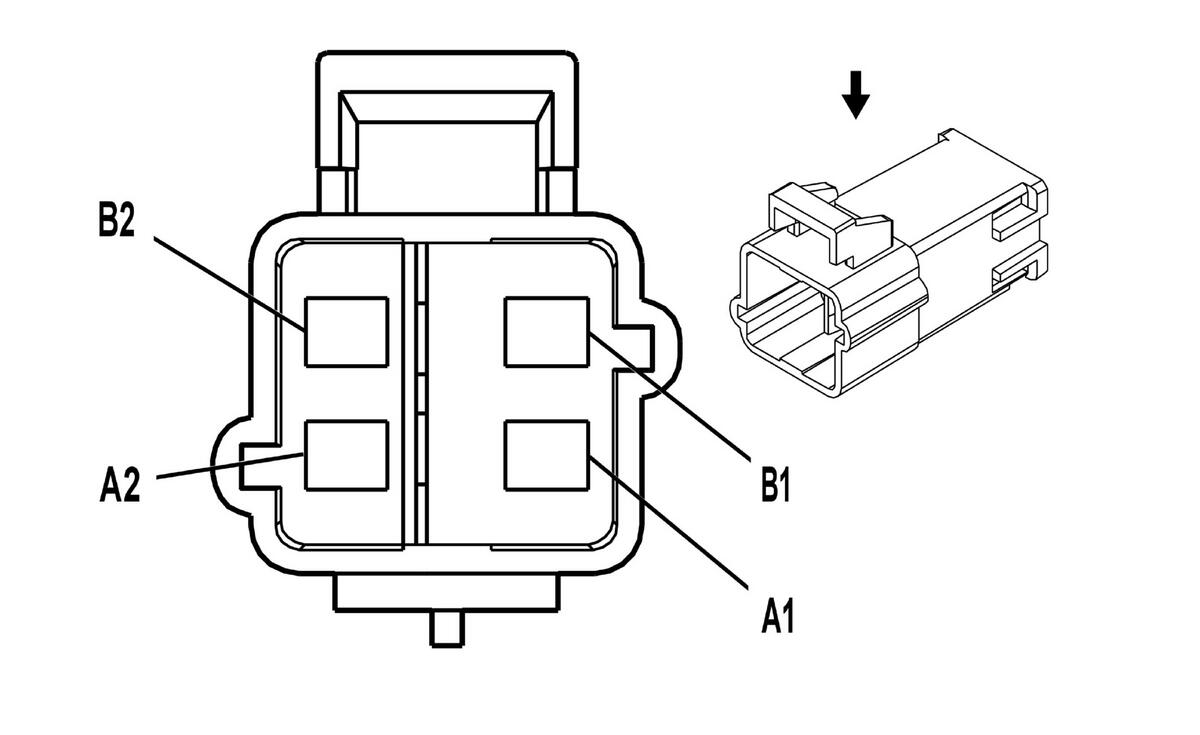

GM684931Courtesy of GENERAL MOTORS CORP.
C203 Body Harness to I/P Harness Connector Parts Information

Connector Part Information
  • OEM: 15336479
  • Service: 15306186
  • Description: 4-Way F Metri-Pack 280 Series Unsealed (YE)
 Connector Part Information
  • OEM: 15336476
  • Service: 15306363
  • Description: 4-Way M Metri-Pack 280 Series Unsealed (YE)
Terminal Part Information
  • Terminal/Tray: 12034046/2
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
 Terminal Part Information
  • Terminal/Tray: 12034047/2
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094430/J-35616-5 (PU)
C203 Body Harness to I/P Harness (ASF) Connector Terminal Identification

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 D-GN 2105 Side Impact Module - Left - High Control (ASF) A1 D-GN 2105 Side Impact Module - Left - High Control
A2 BN 2106 Side Impact Module - Left - Low Control (ASF) A2 BN 2106 Side Impact Module - Left - Low Control
B1 GY 2103 Side Impact Module - Right - High Control (ASF) B1 GY 2103 Side Impact Module - Right - High Control
B2 D-BU 2104 Side Impact Module - Right - Low Control (ASF) B2 D-BU 2104 Side Impact Module - Right - Low Control
