C101 Chassis Harness to I/P Harness Connector End View

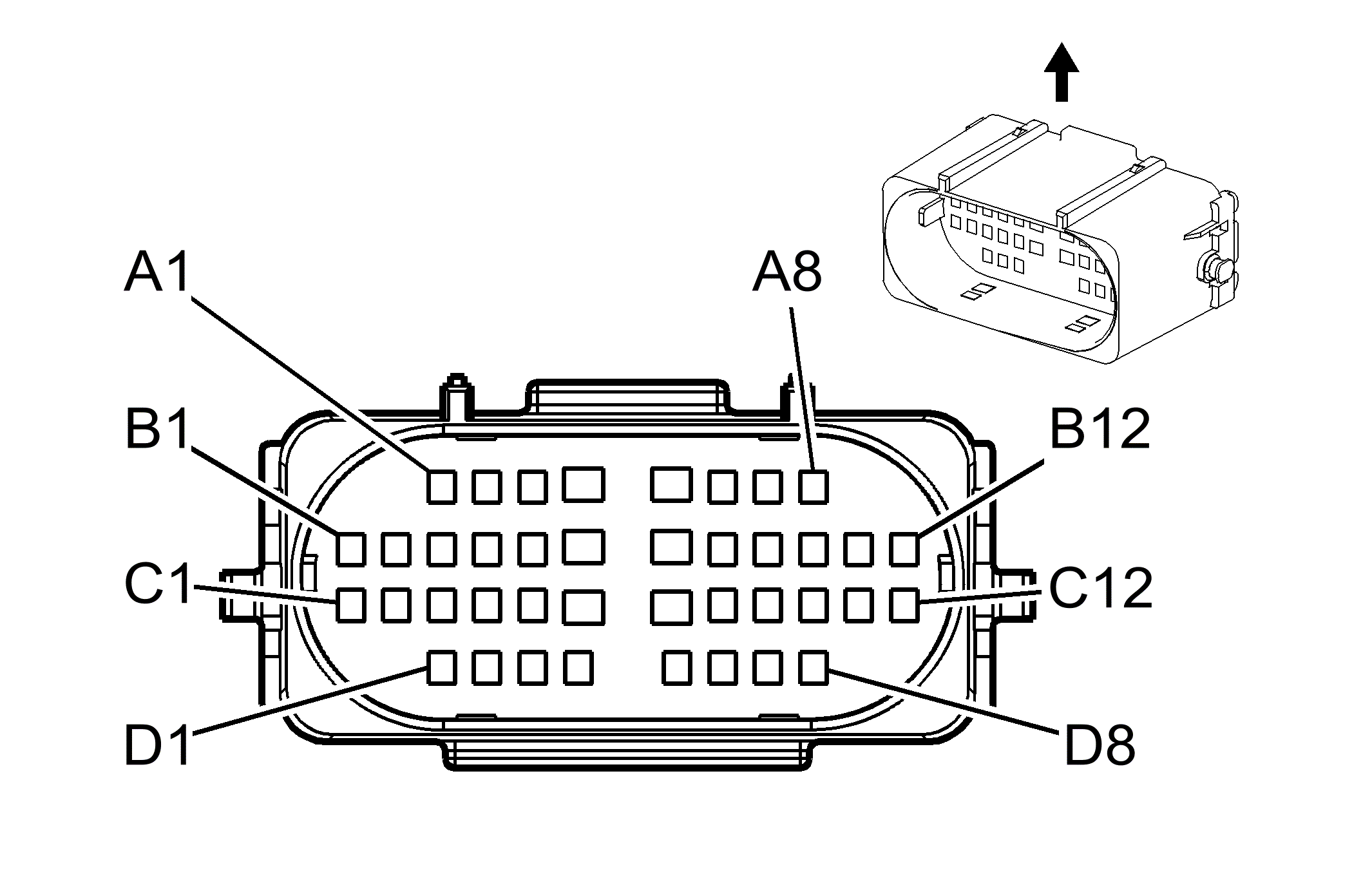

C101 Chassis Harness to I/P Harness Connector End Views

GM646433Courtesy of GENERAL MOTORS CORP.
GM655777Courtesy of GENERAL MOTORS CORP.
C101 Chassis Harness to I/P Harness Connector Parts Information

Connector Part Information
  • OEM: 15443822
  • Service: 88987930
  • Description: 38-Way F GT 150 280 Series Sealed (BK)
 Connector Part Information
  • OEM: 15317380
  • Service: 15317380
  • Description: 38-Way M GT 150 280 Series Sealed (BK)
Terminal Part Information
  • Pins: A1-A3, A7-A8, B2-B5, B8-B11, C1-C3, C8-C11, D2-D3, D8
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: A4
  • Terminal/Tray: 15304717/8
  • Core/Insulation Crimp: A/1
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: A5, B6
  • Terminal/Tray: 15304717/8
  • Core/Insulation Crimp: 4/1
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: A6
  • Terminal/Tray: 12191818/8
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: B1, B12, C4-C5, C12, D1, D6-D7
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: 2/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: B7
  • Terminal/Tray: 15304716/8
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pin: C6
  • Terminal/Tray: 15304715/8
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: C7
  • Terminal/Tray: 15304716/8
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
 Terminal Part Information
  • Pins: A1-A3, A6-A8, B2-B5, B8-B11, C1-C5, C8-C12, D1-D3, D6-D8
  • Terminal/Tray: 15326269/19
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
  • Pins: A4
  • Terminal/Tray: 15304732/8
  • Core/Insulation Crimp: A/5
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
  • Pins: A5, B6
  • Terminal/Tray: 15304729/8
  • Core/Insulation Crimp: C/1
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
  • Pins: C6
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: B1, B12
  • Terminal/Tray: 15326269/19
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
  • Pins: B7
  • Terminal/Tray: 15304728/8
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
  • Pin: C6
  • Terminal/Tray: 15304727/8
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: C7
  • Terminal/Tray: 15304728/8
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
C101 Chassis Harness to I/P Harness Connector Terminal Identification

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 GY 605 5-Volt Reference (NP4/NP8) A1 GY 605 5-Volt Reference (NP4/NP8)
A2 BN/WH 1555 Encoder Signal (NP4/NP8) A2 BN/WH 1555 Encoder Signal (NP4/NP8)
A3 D-GN/WH 817 Vehicle Speed Signal (G67) A3 D-GN/WH 817 Vehicle Speed Signal (G67)
A4 D-BU 47 Trailer Auxiliary Supply Voltage (UY7) A4 D-BU 47 Trailer Auxiliary Supply Voltage (UY7)
A5 BK 1552 Motor Control A (NP4/NP8) A5 BK 1552 Motor Control A (NP4/NP8)
A6 L-BU 2206 Traction Control Preference Switch Signal A6 L-BU 2206 Traction Control Preference Switch Signal
A7 L-GN 24 Backup Lamp Supply Voltage (Z88) A7 L-GN 24 Backup Lamp Supply Voltage (Z88)
A8 BK/WH 1554 Encoder Low Reference (NP4/NP8) A8 BK/WH 1554 Encoder Low Reference (NP4/NP8)
B1 TN 1569 Lock Solenoid Control (NP8) B1 TN 1569 Lock Solenoid Control (NP8)
B2 L-BU 1296 Axle Actuator - Control (NP8) B2 L-BU 1296 Axle Actuator - Control (NP8)
B3 L-BU 2221 Signal High - Rear (NP4/NP8) B3 L-BU 2221 Signal High - Rear (NP4/NP8)
B4 D-GN 2222 Signal Low - Rear (NP4/NP8) B4 D-GN 2222 Signal Low - Rear (NP4/NP8)
B5 L-BU 1059 Steering Wheel Position Sensor Signal B5 L-BU 1059 Steering Wheel Position Sensor Signal
B6 RD 1553 Motor Control B (NP4/NP8) B6 RD 1553 Motor Control B (NP4/NP8)
B7 BN 436 AIR Pump Relay Control (4.2L w/K18) B7 BN 436 AIR Pump Relay Control (4.2L w/K18)
B8 YE 400 Signal High - Front (NP4/NP8) B8 YE 400 Signal High - Front (NP4/NP8)
B9 PU 401 Signal Low - Front (NP4/NP8) B9 PU 401 Signal Low - Front (NP4/NP8)
B10 L-GN 1763 Steering Wheel Position Signal A B10 L-GN 1763 Steering Wheel Position Signal A
B11 L-BU 1764 Steering Wheel Position Signal B B11 L-BU 1764 Steering Wheel Position Signal B (Early Production)
D-BU 6047 Steering Wheel Position Signal B (Late Production)
B12 BN 2109 Trailer Park Lamps Supply Voltage (UY7) B12 BN 2109 Trailer Park Lamps Supply Voltage (UY7)
C1 GY 626 Steering Wheel Position Sensor Feed - 5-Volt Reference C1 GY 626 Steering Wheel Position Sensor Feed - 5-Volt Reference
C2 YE 5353 Yaw Ring Raster Control C2 YE 5353 Yaw Ring Raster Control (Early Production)
D-BU 5370 Yaw Ring Raster Control (Late Production)
C3 L-BU 1122 ABS/TCS Class 2 Serial Data C3 L-BU 1122 ABS/TCS Class 2 Serial Data
C4 GY 349 Discriminating Sensor - Left - Signal C4 GY 349 Discriminating Sensor - Left - Signal
C5 YE 354 Discriminating Sensor - Signal C5 YE 354 Discriminating Sensor - Signal
C6 D-BU 706 Recirculation Mode Valve Solenoid Control C6 D-BU 706 Recirculation Mode Valve Solenoid Control
C7 L-BU 715 Lateral Accelerometer Signal C7 L-BU 715 Lateral Accelerometer Signal
C8 YE 5353 Yaw Ring Raster Control C8 YE 5353 Yaw Ring Raster Control
C9 D-GN 890 Fuel Tank Pressure Sensor Signal C9 D-GN 890 Fuel Tank Pressure Sensor Signal
C10 GY 2709 5-Volt Reference C10 GY 2709 5-Volt Reference
C11 BK 2759 Low Reference C11 BK 2759 Low Reference
C12 OG/BK 510 Low Reference (4.2L) C12 OG/BK 510 Low Reference (4.2L)
D1 PU 1589 Fuel Level Sensor Signal D1 PU 1589 Fuel Level Sensor Signal
D2 D-GN 2087 5-Volt Reference D2 D-GN 2087 5-Volt Reference
D3 L-BU 2088 Low Reference D3 L-BU 2088 Low Reference (Early Production)
L-BU/BK 2088 Low Reference (Late Production)
D4-D5 - - Not Used D4-D5 - - Not Used
D6 YE 1834 Forward Discriminating Sensor Signal D6 YE 1834 Forward Discriminating Sensor Signal
D7 D-GN 1409 Discriminating Sensor - Right - Signal D7 D-GN 1409 Discriminating Sensor - Right - Signal
D8 OG/BK 556 Steering Wheel Position Sensor Signal Low Reference D8 OG/BK 556 Steering Wheel Position Sensor Signal Low Reference
