Speaker Connector End View - RR Door (w/UQA)

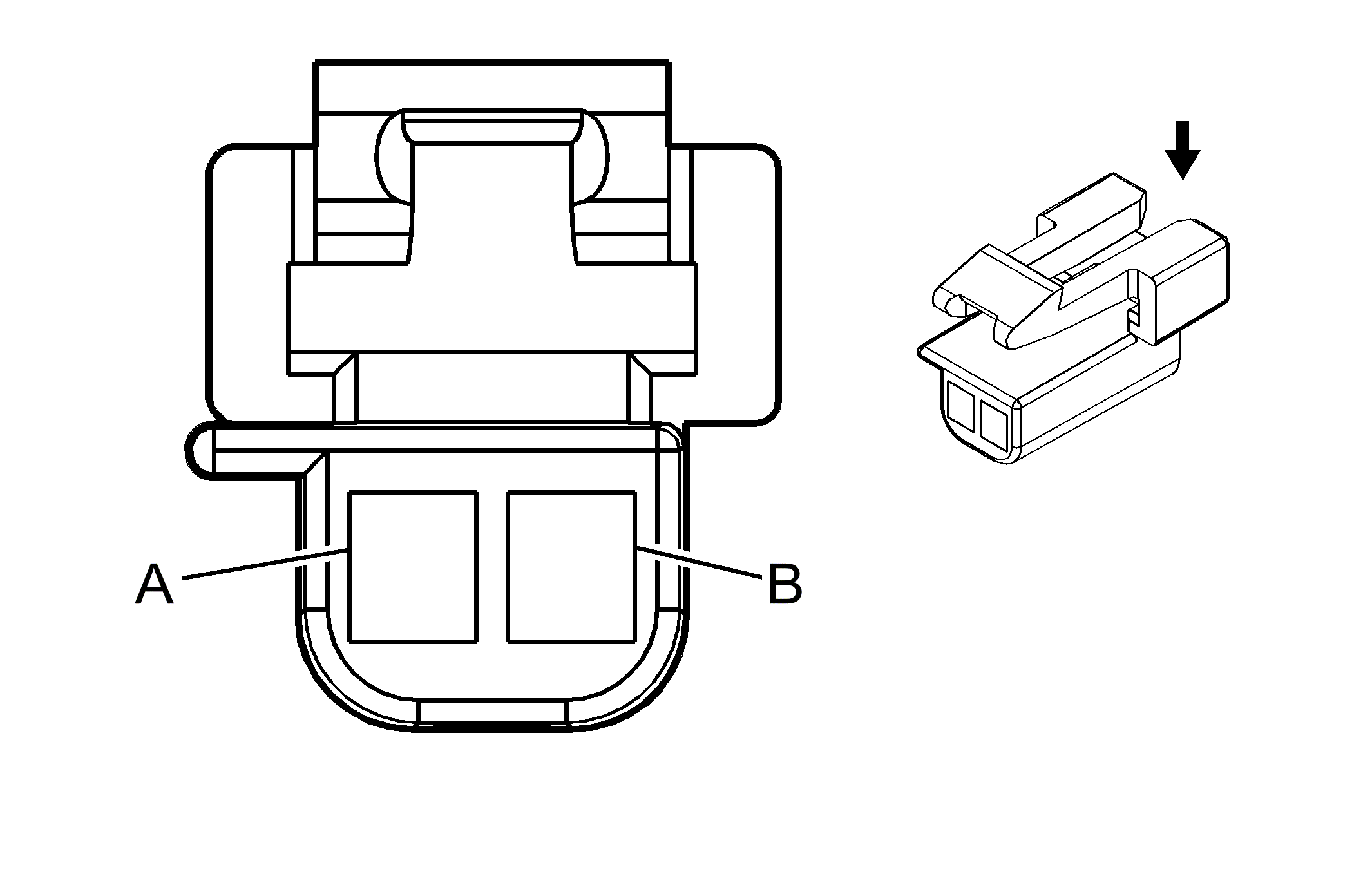

Fig 1: Speaker - RR Door (w/UQA) Connector End View
GM130724Courtesy of GENERAL MOTORS CORP.
Speaker - RR Door (w/UQA) Connector Parts Information

Connector Part Information
  • OEM: 12064869
  • Service: 12117323
  • Description: 2-Way F Metri-Pack 150 Series (BU)
Terminal Part Information
  • Terminal/Tray: 12047767/2
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
Speaker - RR Door (w/UQA) Connector Terminal Identification

Pin Wire Color Circuit No. Function
A L-BU 115 Right Rear Speaker Output (-)
B D-BU 46 Right Rear Speaker Output (+)
