Lower Grille Replacement (SS Outer Lower Grille)

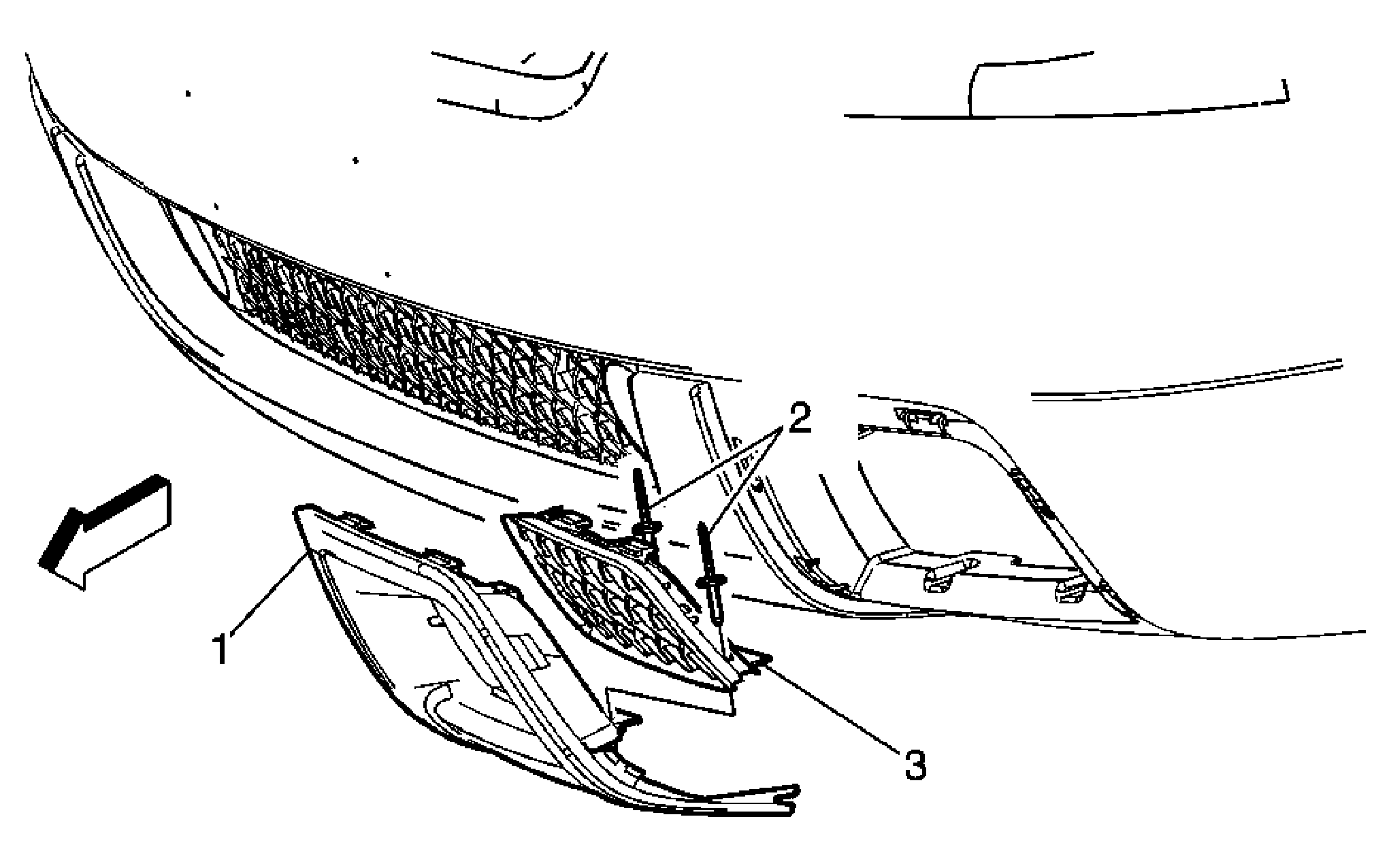

Fig 1: View Of Grille - Lower (SS Outer Lower Grille)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Center Lower Outer Grille Bezel Assembly Tip: From the exterior, using a flat-bladed tool, release the inner clips securing the center lower grille to the front bumper fascia. Pull the grille outward in order to release from the bumper fascia.
2	Center Lower Outer Grille Rivets Tip: Drill the rivets securing the grille to the outer grille bezel.
3	Center Lower Outer Grille
