Lower Grille Replacement (SS Center Lower Grille)

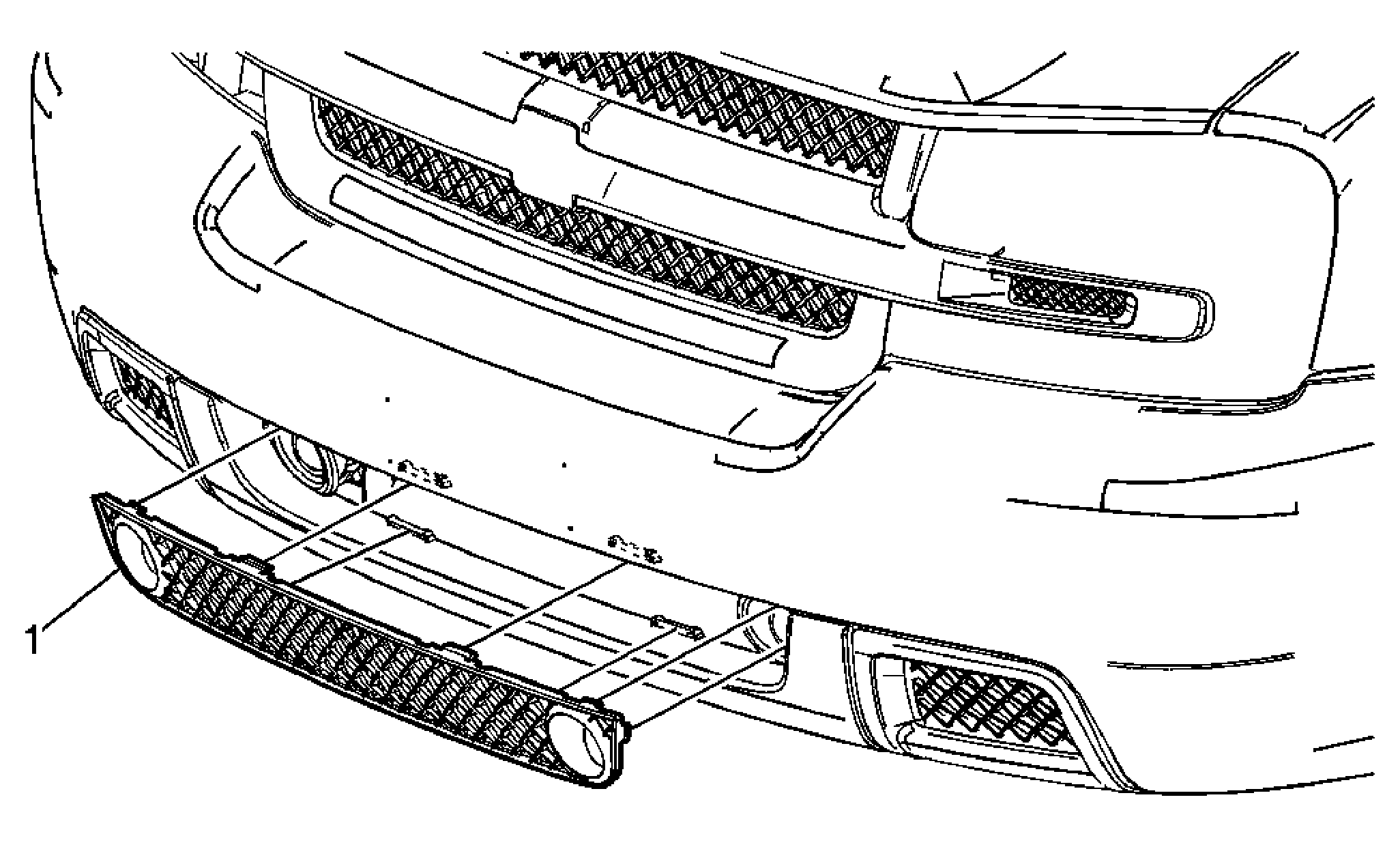

Fig 1: Identifying Grille - Lower (SS Center Lower Grille)

Courtesy of GENERAL MOTORS CORP.

Lower Grille Replacement (SS Center Lower Grille)

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Center Lower Grille Assembly Tip:  From the exterior, using a flat-bladed tool, release the inner clips securing the center lower grille to the front bumper fascia. Pull the grille outward in order to release from the bumper fascia.
