Door Emblem and Nameplate Replacement (TrailBlazer SS)

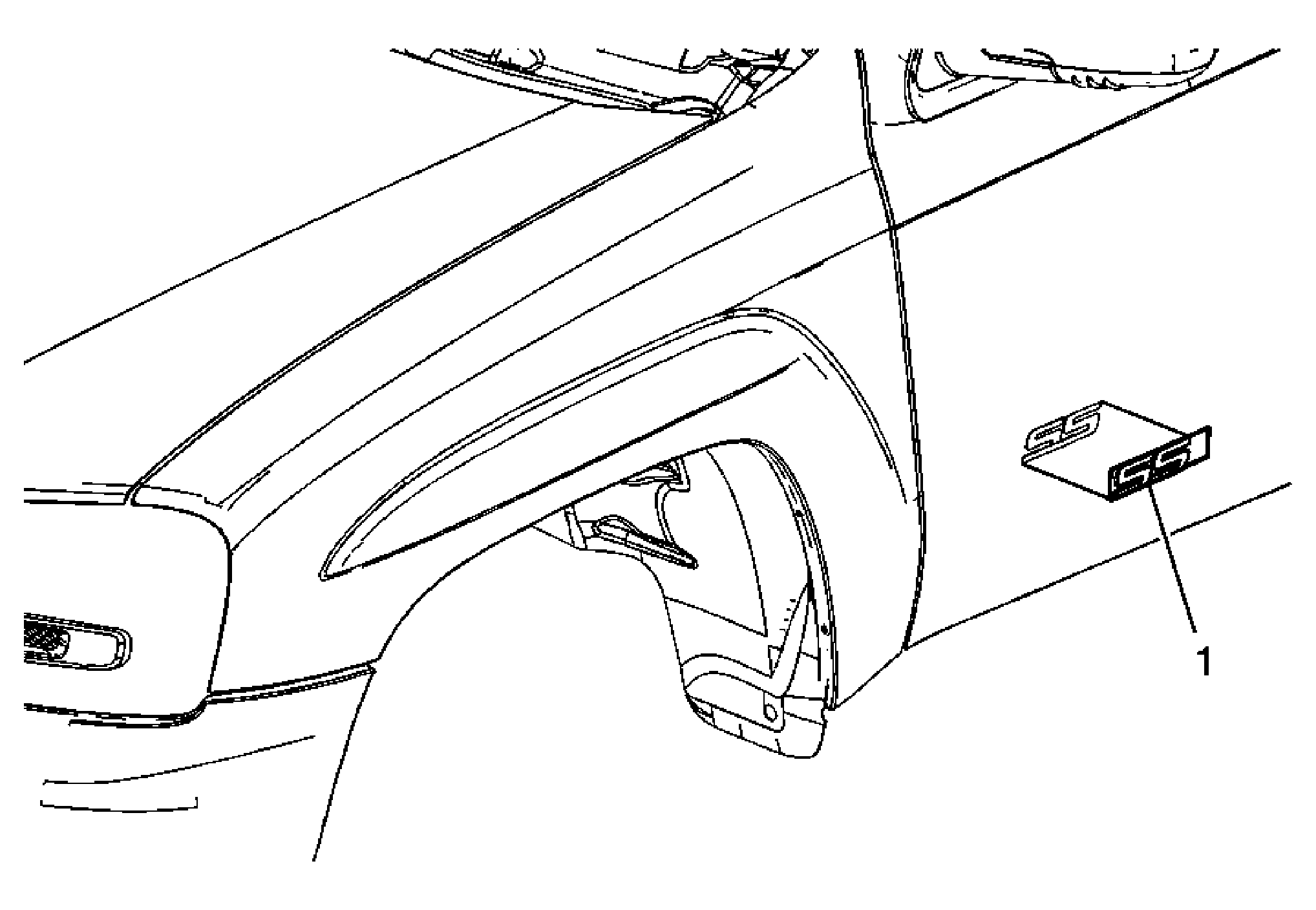

Fig 1: View Of Emblem/Nameplate - Door (TrailBlazer SS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Door Nameplate/Emblem Tip: When removing protective liners from adhesive backed nameplates, be careful not to touch the tape with hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 Heat Gun-500-750F or equivalent to remove the old nameplate. Clean all the adhesive residue from the fender, wipe the surface dry with a clean lint-free towel prior to installing new nameplate. Close the door prior to installing the new nameplate/emblem to the door. Remove the protective liner from the back side of the adhesive tape. Align the nameplate/emblem to the door and press to ensure full adhesion to the door.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Front Door Nameplate/Emblem
Tip:

When removing protective liners from adhesive backed nameplates, be careful not to touch the tape with hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion.
Use a J 25070 Heat Gun-500-750F or equivalent to remove the old nameplate. Clean all the adhesive residue from the fender, wipe the surface dry with a clean lint-free towel prior to installing new nameplate.
Close the door prior to installing the new nameplate/emblem to the door.
Remove the protective liner from the back side of the adhesive tape.
Align the nameplate/emblem to the door and press to ensure full adhesion to the door.
