Door Emblem and Nameplate Replacement (Ascender)

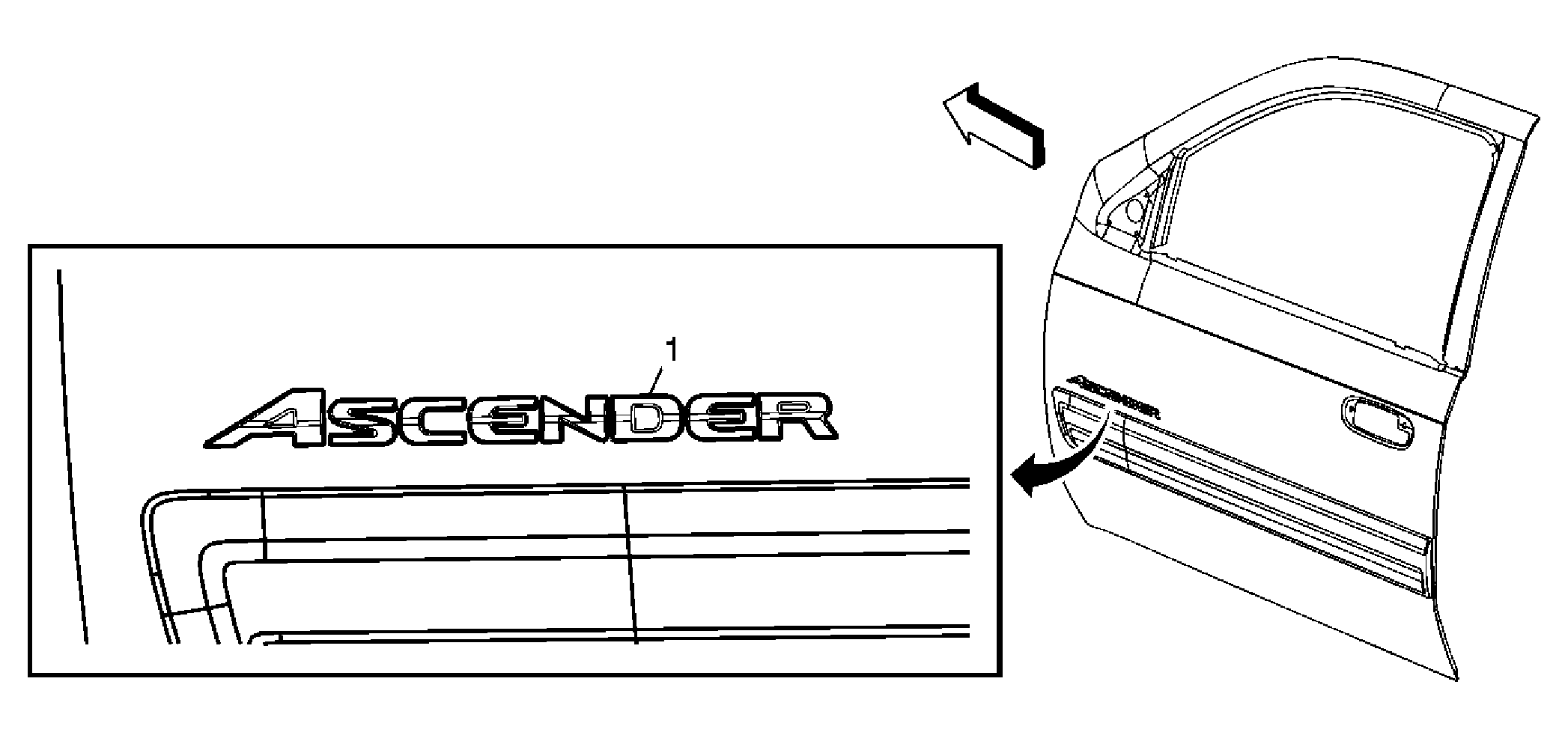

Fig 1: View Of Emblem/Nameplate - Door (Ascender)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Side Door Nameplate (ASCENDER) Tip: Use a J 25070 Heat Gun-500-750F or equivalent to remove the old nameplate. Clean all adhesive from front door, wipe the surface dry with a clean lint-free towel prior to installing new nameplate. When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Ensure full adhesion is made after installing the new nameplate to the front door.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Front Side Door Nameplate (ASCENDER)
Tip:

Use a J 25070 Heat Gun-500-750F or equivalent to remove the old nameplate. Clean all adhesive from front door, wipe the surface dry with a clean lint-free towel prior to installing new nameplate.
When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Ensure full adhesion is made after installing the new nameplate to the front door.
