Opening the Liftgate When There Is an Electrical Failure
Courtesy of GENERAL MOTORS CORP. Opening the Liftgate When There Is an Electrical Failure

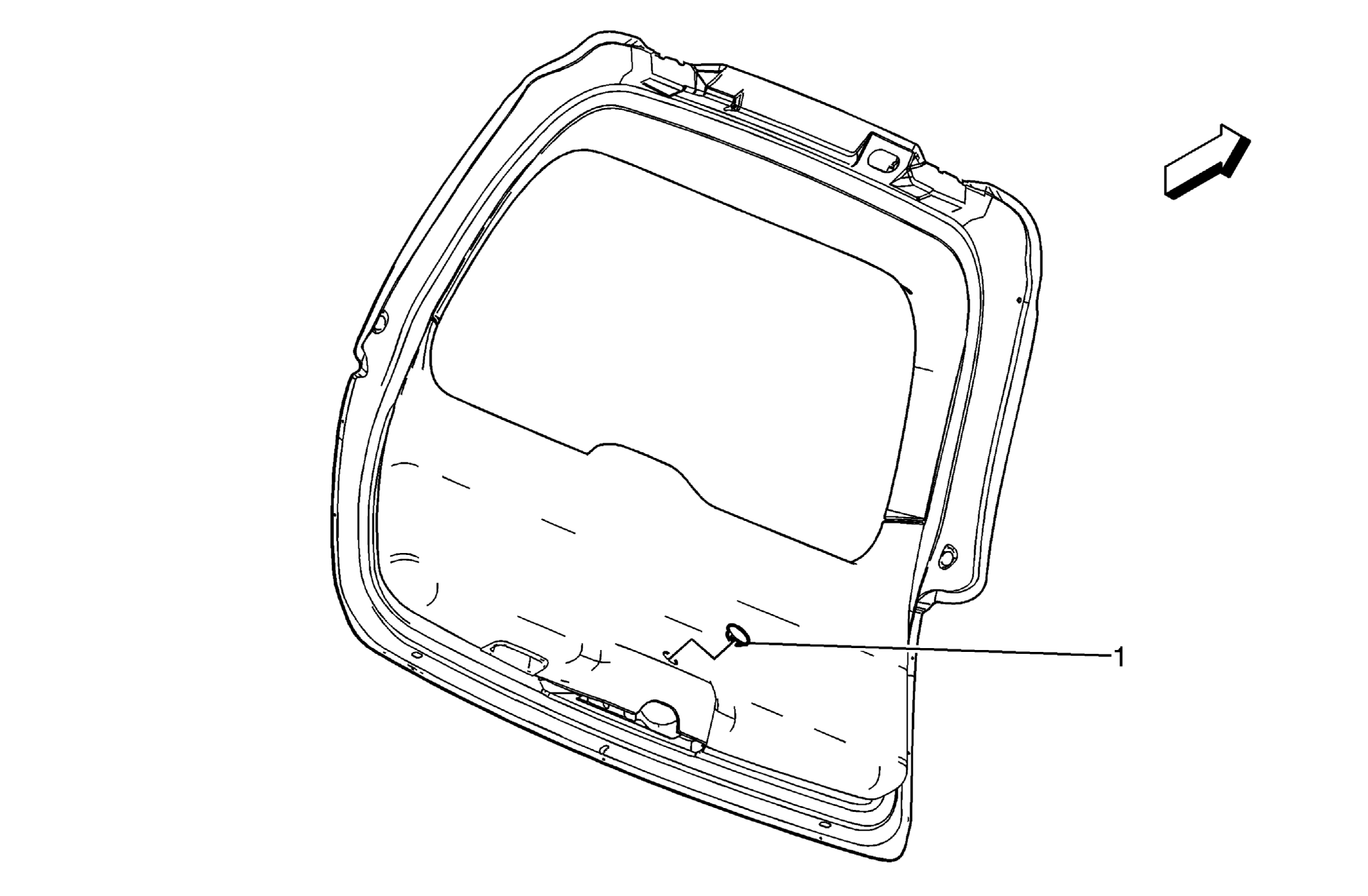

| Callout |
Component Name |
| 1 |
Liftgate Trim Panel Plug
Tip:
- From inside the vehicle lower the second and third, if applicable, row seats.
- Use a small flat-bladed tool to remove the access plug from the liftgate lower interior trim panel.
- Pull on the black bellcrank lever located on the right just through the access hole to unlock the liftgate.
- Open the liftgate from the outside of the vehicle using the exterior handle.
|
