Seat Recline Motor - Driver (AR9)

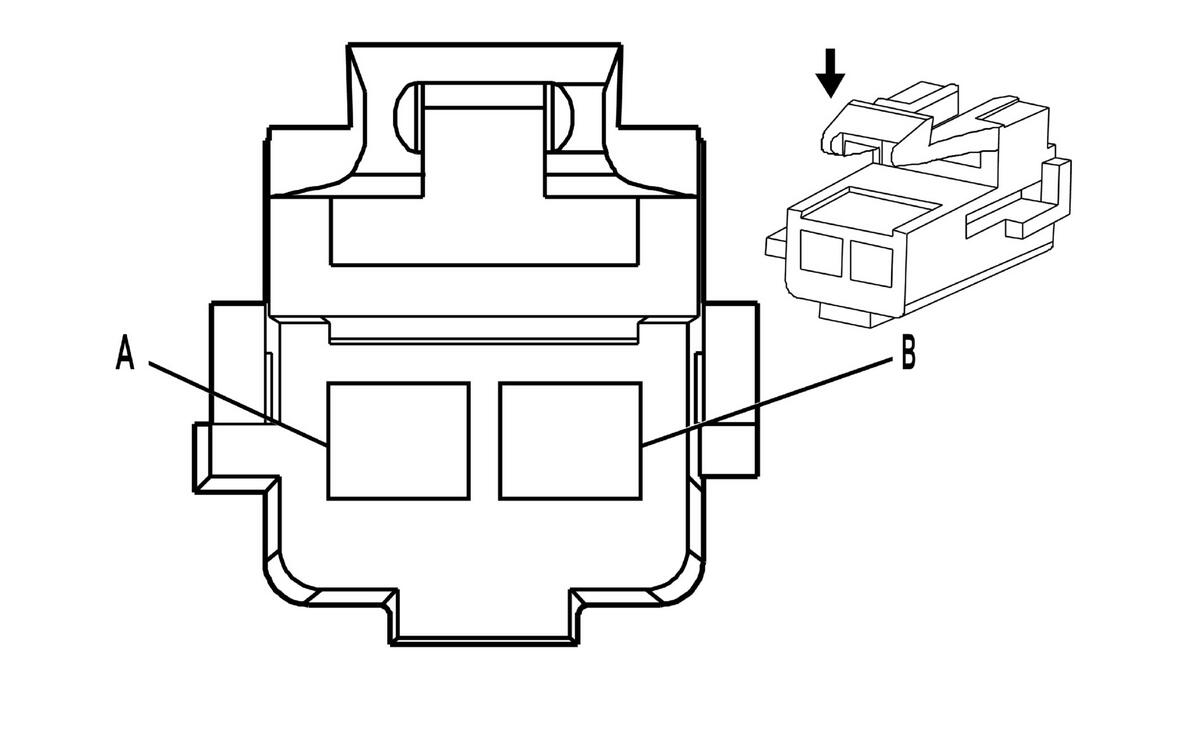

Fig 1: Seat Recline Motor - Driver (AR9) Connector End View
GM1542255Courtesy of GENERAL MOTORS CORP.
Seat Recline Motor - Driver (AR9) Connector Parts Information

Connector Part Information
  • OEM: 12129082
  • Service: 15305896
  • Description: 2-Way F Metri-Pack 280 Series Unsealed (GY)
Terminal Part Information
  • Terminal/Tray: 12110842/4
  • Core/Insulation Crimp: A/B
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Seat Recline Motor - Driver (AR9) Connector Terminal Identification

Pin Wire Color Circuit No. Function
A L-BU 277 Driver Seat Recline Motor Rearward Control
B L-GN 276 Driver Seat Recline Motor Forward Control
