Seat Front Vertical Motor - Driver (AR9)

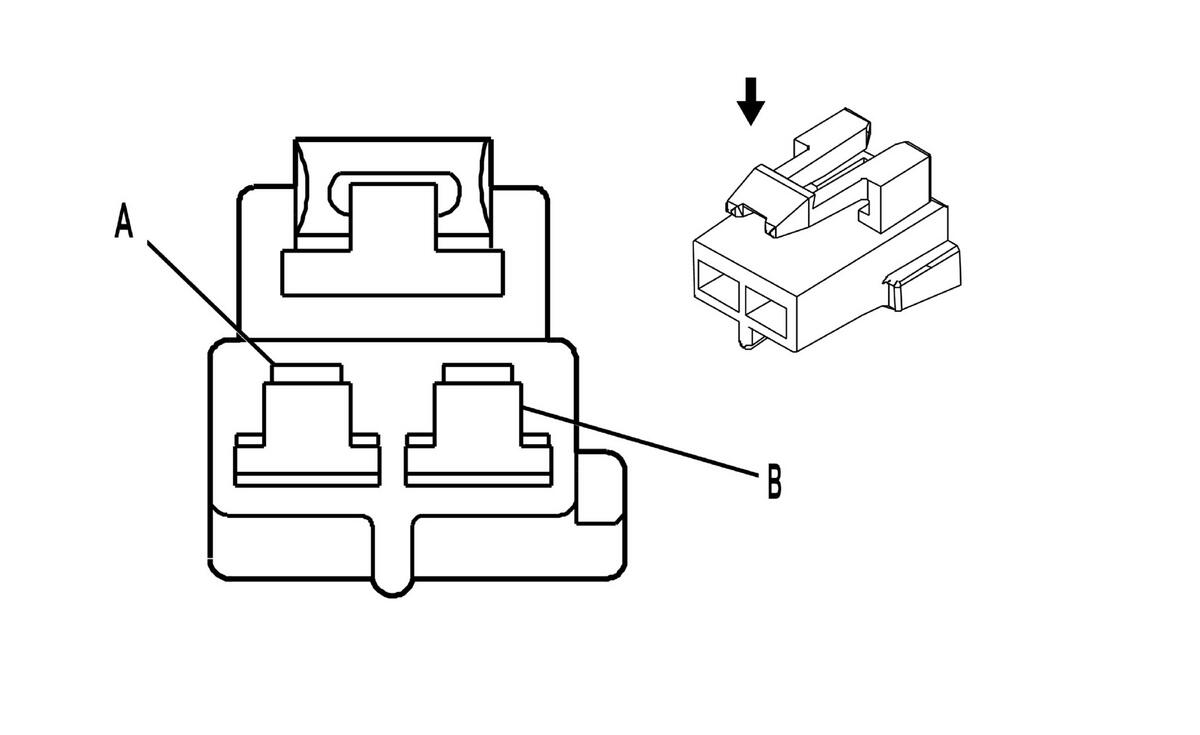

Fig 1: Seat Front Vertical Motor - Driver (AR9) Connector End View
GM808706Courtesy of GENERAL MOTORS CORP.
Seat Front Vertical Motor - Driver (AR9) Connector Parts Information

Connector Part Information
  • OEM: 12064749
  • Service: 12101888
  • Description: 2-Way F Metri-Pack 480 Series Unsealed (BK)
Terminal Part Information
  • Terminal/Tray: 12124304/2
  • Core/Insulation Crimp: A/B
  • Release Tool/Test Probe: 12094430/J-35616-40 (BU)
Seat Front Vertical Motor - Driver (AR9) Connector Terminal Identification

Pin Wire Color Circuit No. Function
A D-BU 287 Driver Seat Front Vertical Motor Down Control
B D-GN 286 Driver Seat Front Vertical Motor Up Control
