Headlights/Daytime Running Lights (DRL) Schematics

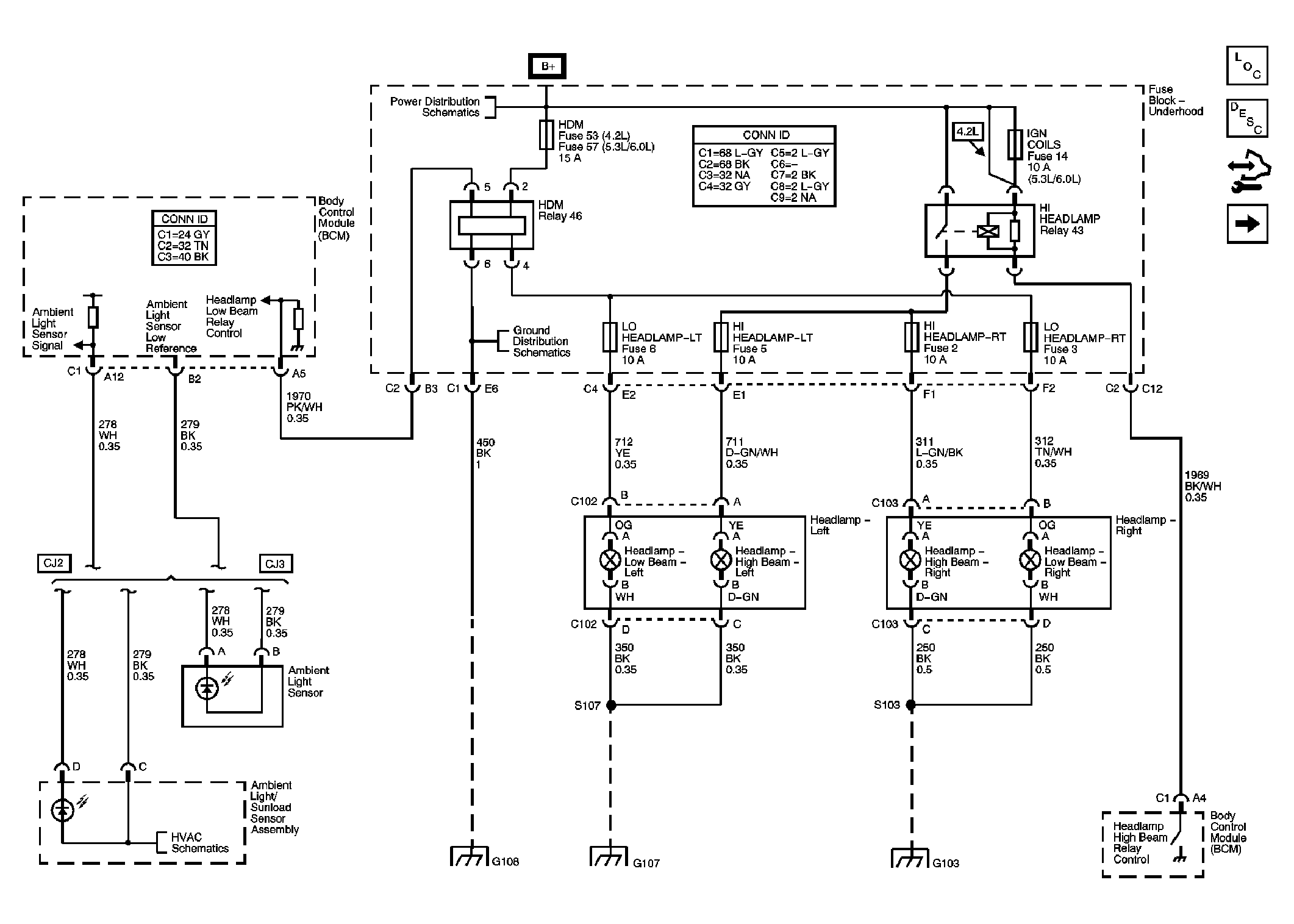

Fig 1: Headlamps (DRL) Schematic

GM1747624

Courtesy of GENERAL MOTORS CORP.

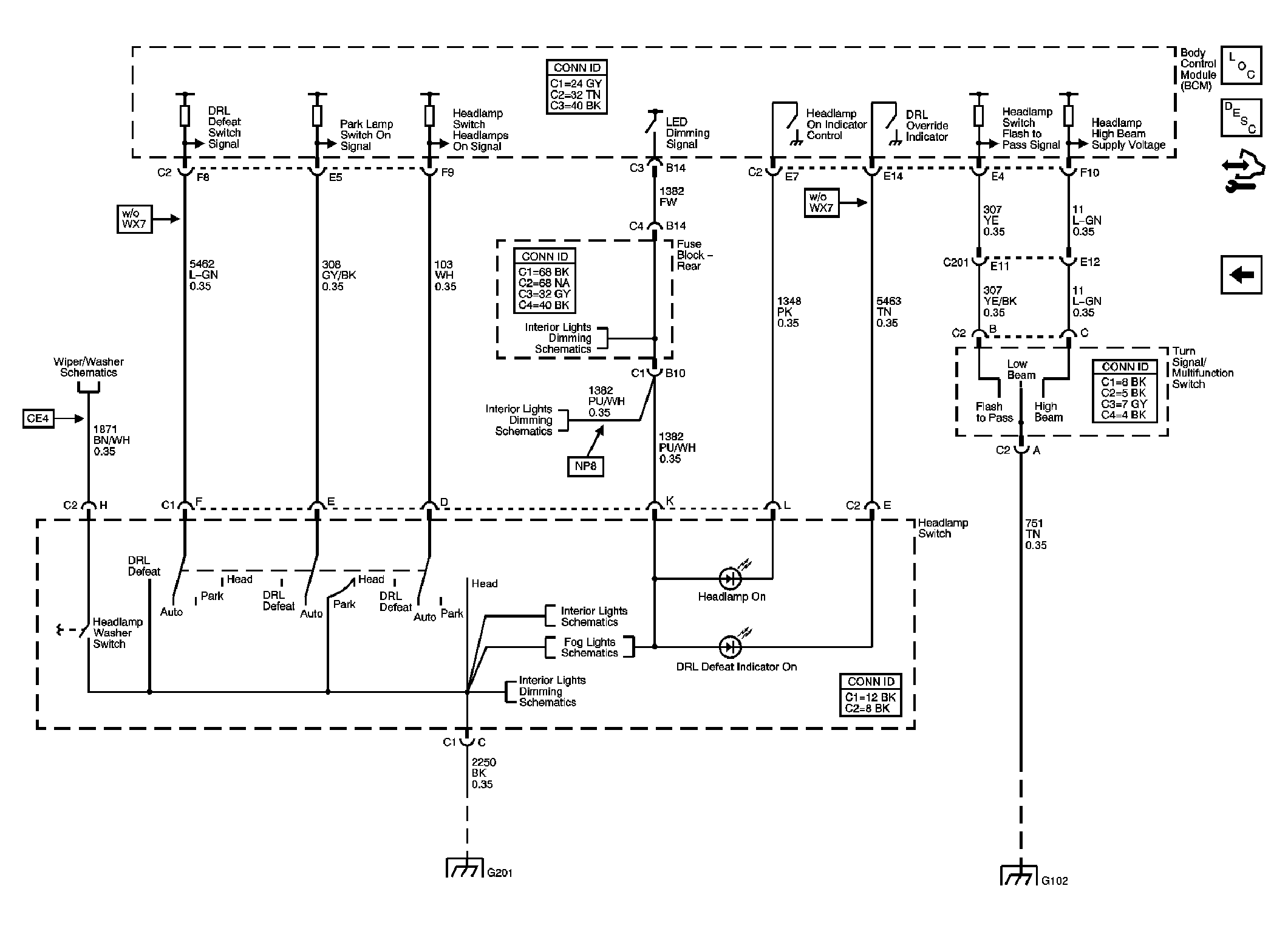

Fig 2: Headlamp Switch Schematic

GM1747626

Courtesy of GENERAL MOTORS CORP.
