Headlamp - High Beam - Left

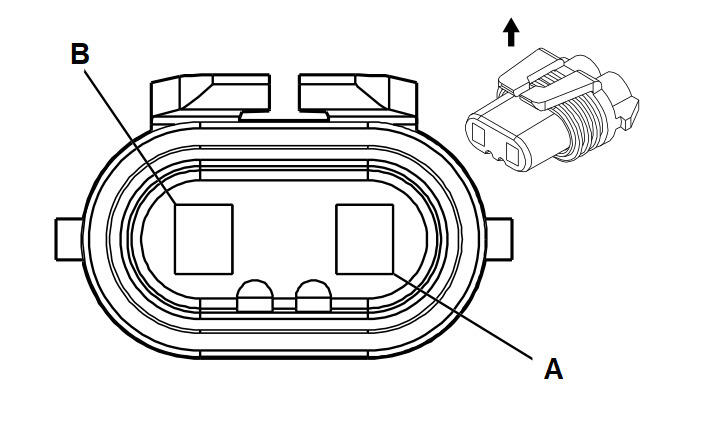

Fig 1: Headlamp - High Beam - Left Connector End View
GM684797Courtesy of GENERAL MOTORS CORP.
Headlamp - High Beam - Left Connector Parts Information

Connector Part Information
  • OEM: 12059183
  • Service: 12101898
  • Description: 2-Way F Metri-Pack 280 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Headlamp - High Beam - Left Connector Terminal Identification

Pin Wire Color Circuit No. Function
A YE - Left Headlamp High Beam Supply Voltage
B D-GN - Ground
