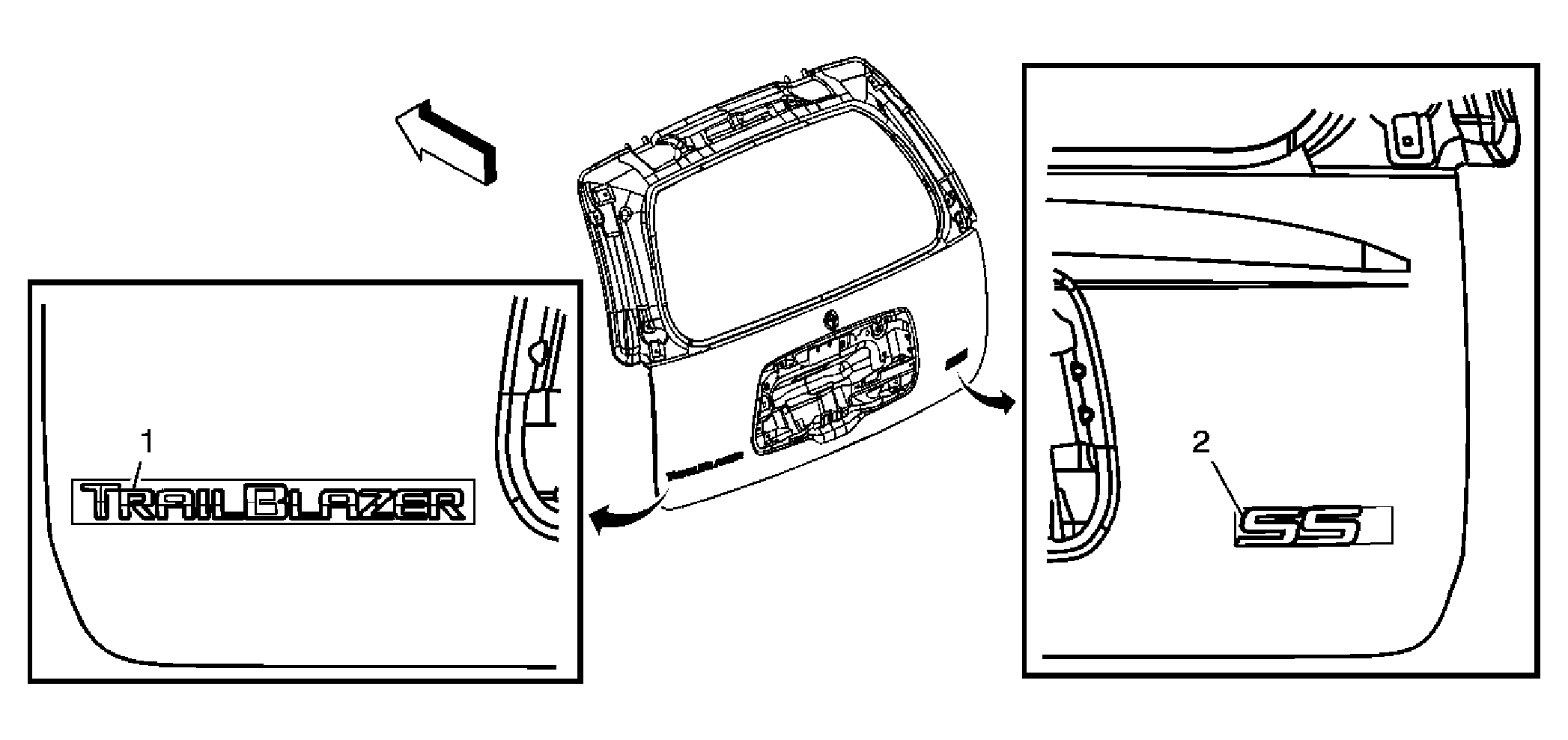

Liftgate Emblem/Nameplate Replacement (TrailBlazer SS)
Courtesy of GENERAL MOTORS CORP. Liftgate Emblem/Nameplate Replacement (TrailBlazer SS)
| Callout |
Component Name |
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
| 1 |
Rear Compartment Lid Name Plate (TrailBlazer)
Tip:
- Use heat gun to remove old nameplate. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing new nameplate.
- When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
- Close the rear compartment lid prior to installing the new nameplate.
- Ensure full adhesion of the nameplate is made to the liftgate.
|
| 2 |
Rear Compartment Lid Emblem (SS)
Tip:
- Use heat gun to remove the old emblem. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing new emblem.
- When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
- Close the rear compartment lid prior to installing the new nameplate.
- Ensure full adhesion of the emblem is made to the liftgate.
|
