Liftgate Emblem/Nameplate Replacement (GMC)

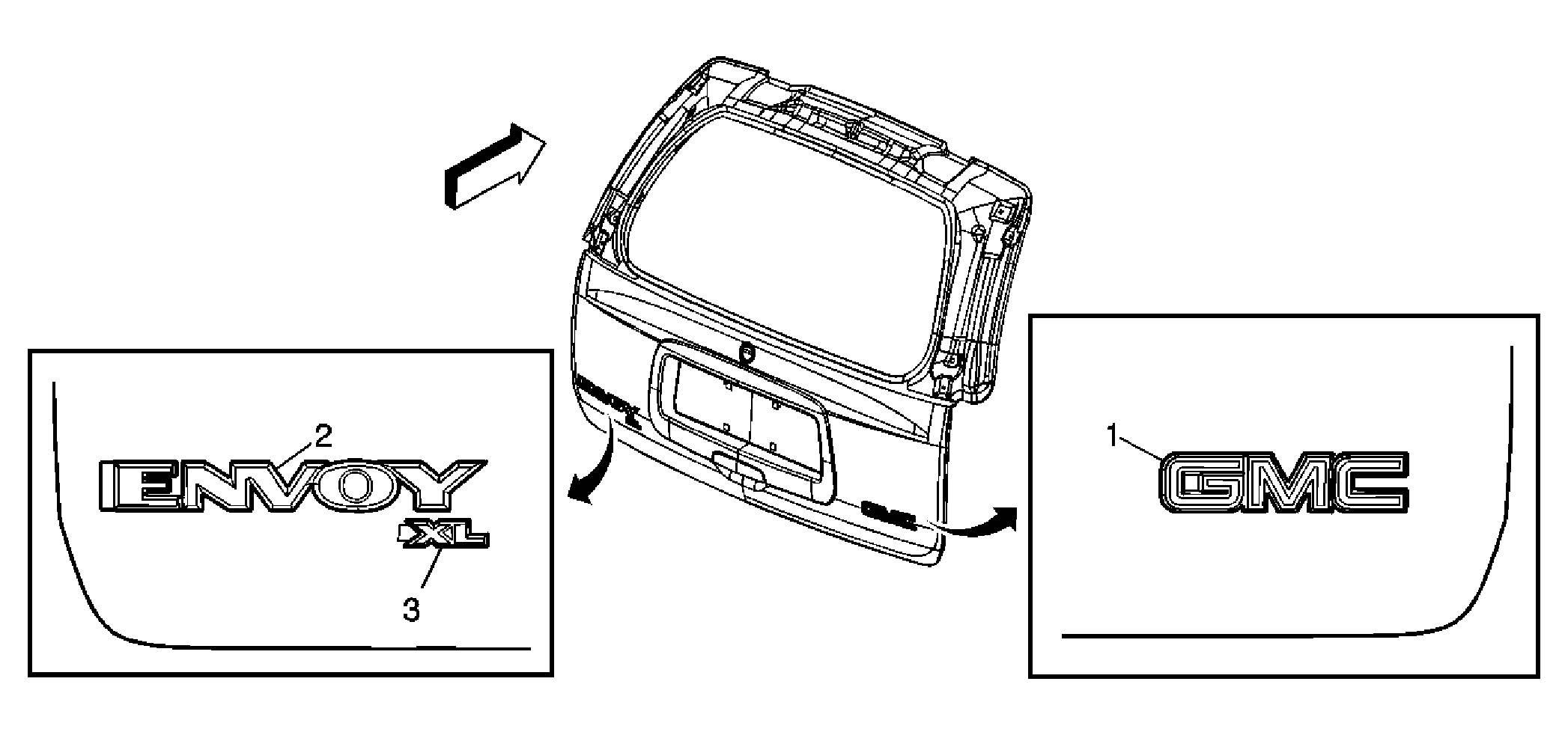

Fig 1: View Of Emblem/Nameplate - Liftgate (GMC)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear Liftgate Name Plate Assembly (GMC) Tip: Use a J 25070 Heat Gun-500-750F or equivalent to remove the old nameplate. Clean all adhesive from rear liftgate, wipe surface dry with a clean lint-free towel prior to installing new nameplate. When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Close the liftgate lid. Ensure full adhesion of the nameplate to the liftgate is made.
2	Rear Liftgate Name Plate Assembly (ENVOY) Tip: Use a J 25070 or equivalent to remove the old nameplate. Clean all adhesive from rear liftgate, wipe surface dry with a clean lint-free towel prior to installing new nameplate. When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Close the rear liftgate. Ensure full adhesion of the nameplate to the liftgate is made.
3	Rear Liftgate Emblem (XL) Tip: Use a J 25070 or equivalent to remove the old emblem. Clean all adhesive from rear liftgate, wipe surface dry with a clean lint-free towel prior to installing new emblem. When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Close the liftgate lid. Ensure full adhesion of the emblem to the liftgate is made.
