Installation Procedure

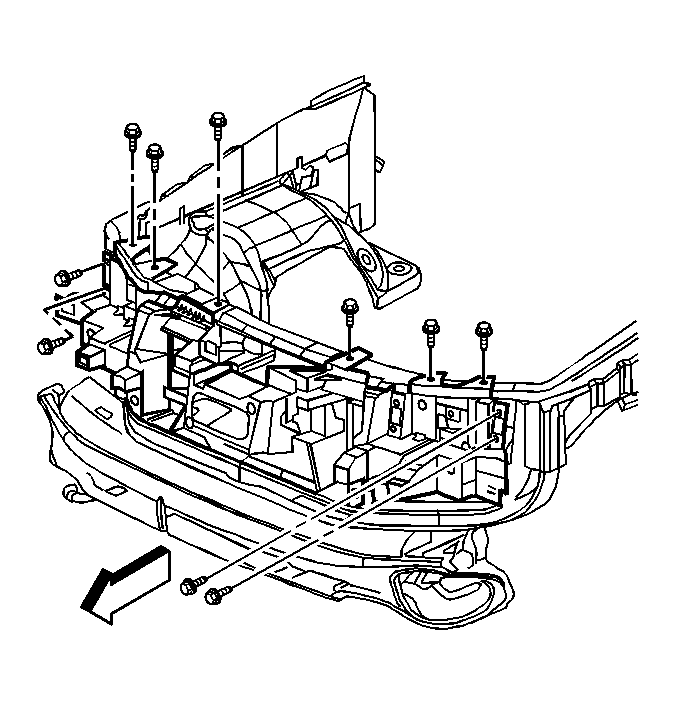

    Fig 1: Identifying Headlamp Housing Panel-To-Core Support Bolts
    GM755562Courtesy of GENERAL MOTORS CORP.
  1. Position the headlamp housing panel to the vehicle.
  2. Route the wiring harness through the headlamp housing panel as noted during removal.
    3. NOTE: Refer to Fastener Notice .
  3. Install the bolts that retain the headlamp housing panel to the core support.

    Tighten:  Tighten the bolts to 8 N.m (71 lb in).

  4. Install the ambient temperature sensor to the headlamp housing panel, ensure the retaining tabs are fully seated.
  5. Install the grille. Refer to Grille Replacement (Envoy) , Grille Replacement (Rainier) or Grille Replacement (TrailBlazer) .
  6. Install the headlamp assemblies. Refer to Headlamp Replacement (Envoy) , Headlamp Replacement (Rainier)  or Headlamp Replacement (TrailBlazer) .
