Engine Controls Schematics

WARNING: This page is about a different car, the 2008 GMC Envoy and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

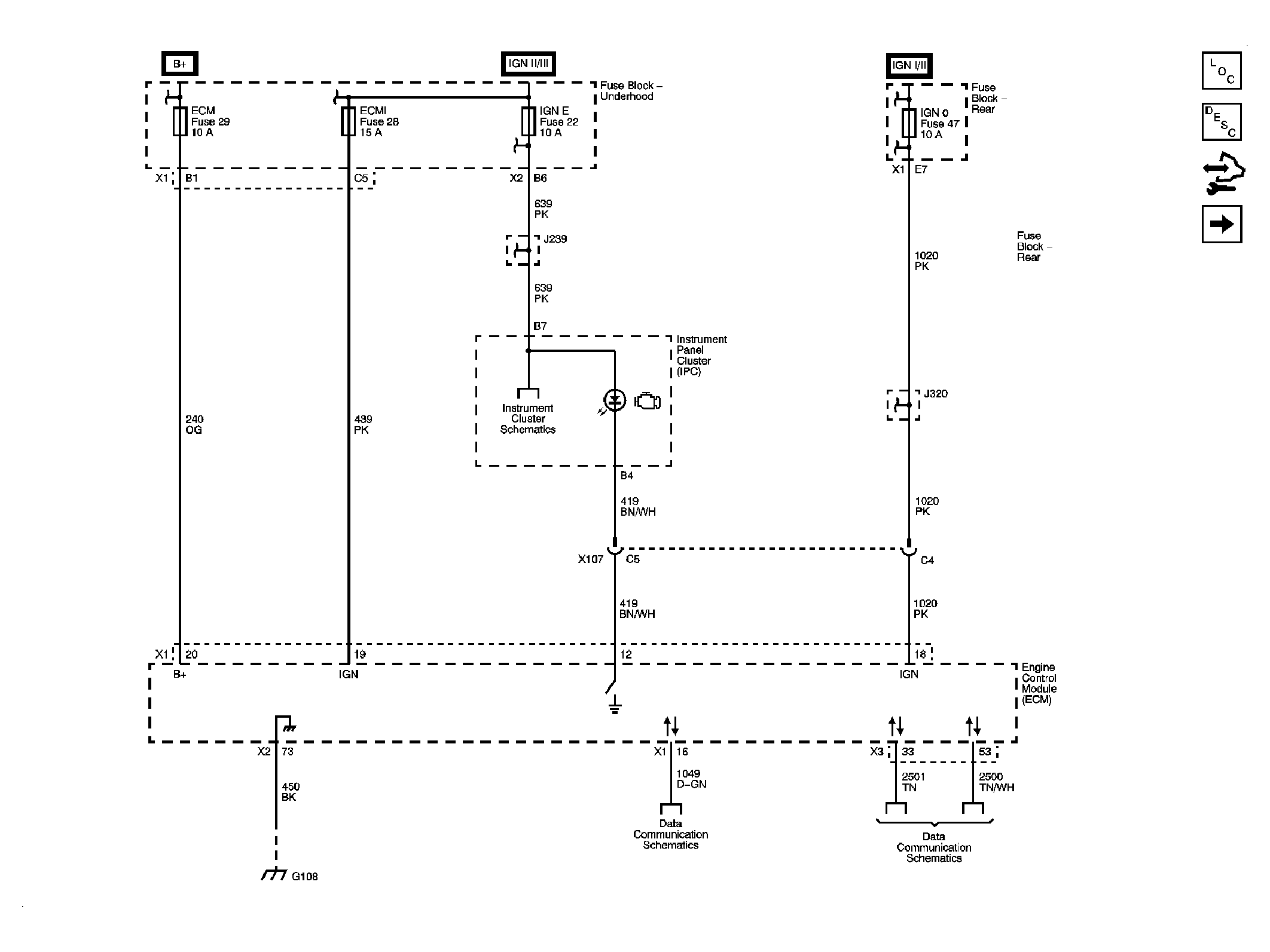

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

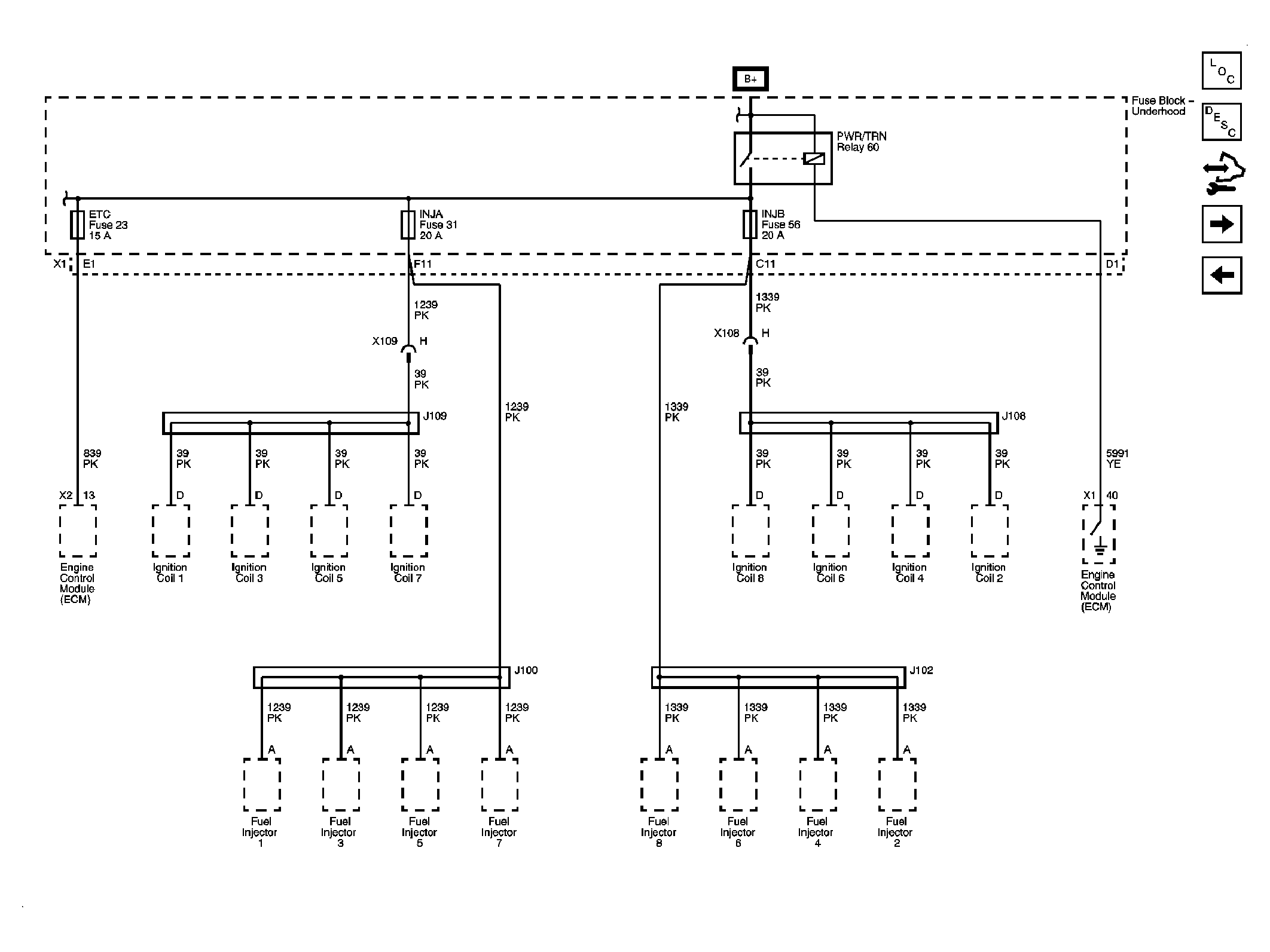

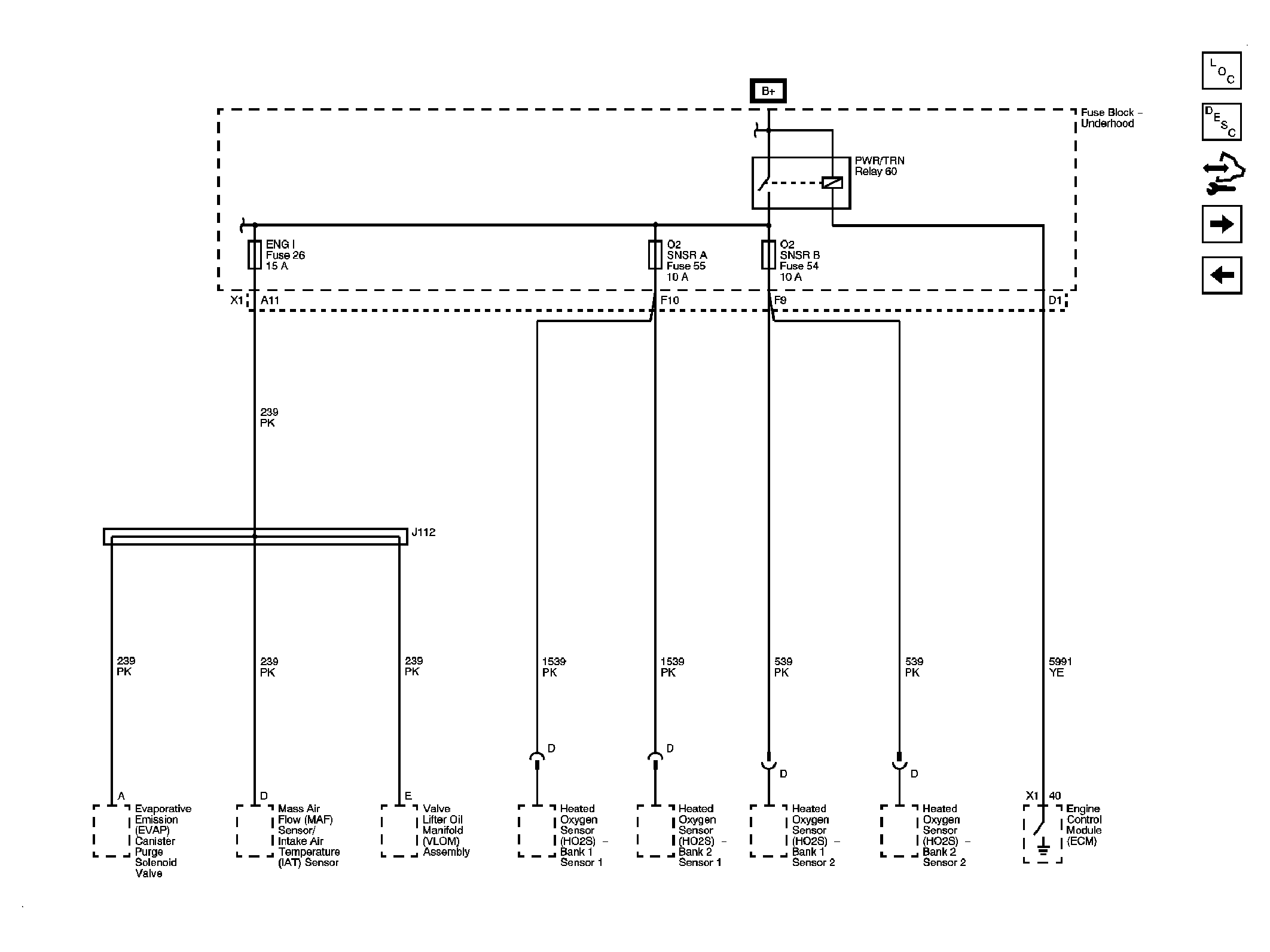

Fig 2: Underhood Fuse Block - PWR/TRN Relay Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 3: Underhood Fuse Block - PWR/TRN Relay Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.

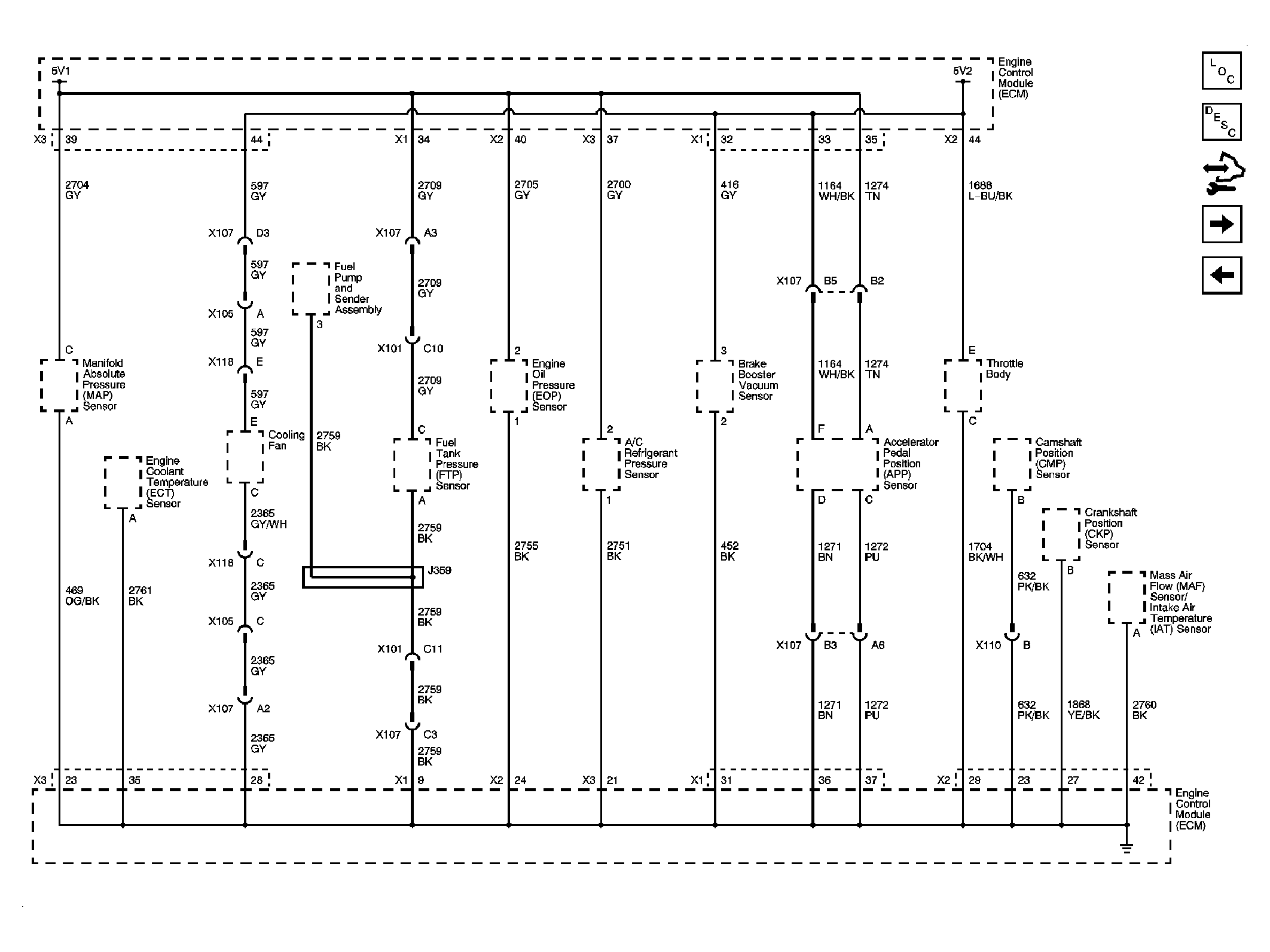

Fig 4: Engine Data Sensors - 5-Volt & Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - MAF, Pressure, Temperature & VSS Schematic

Courtesy of GENERAL MOTORS CORP.

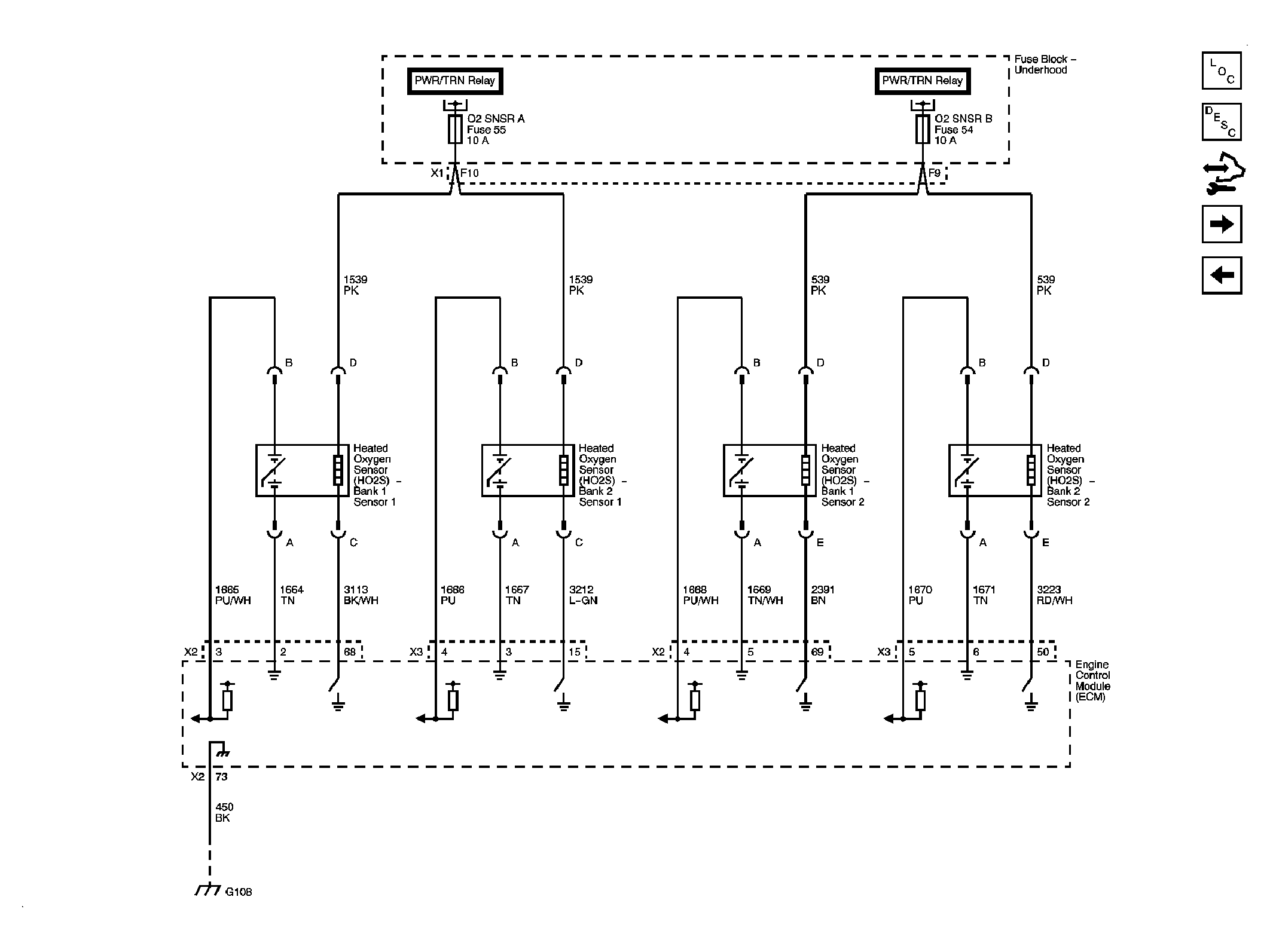

Fig 6: Engine Data Sensors - Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

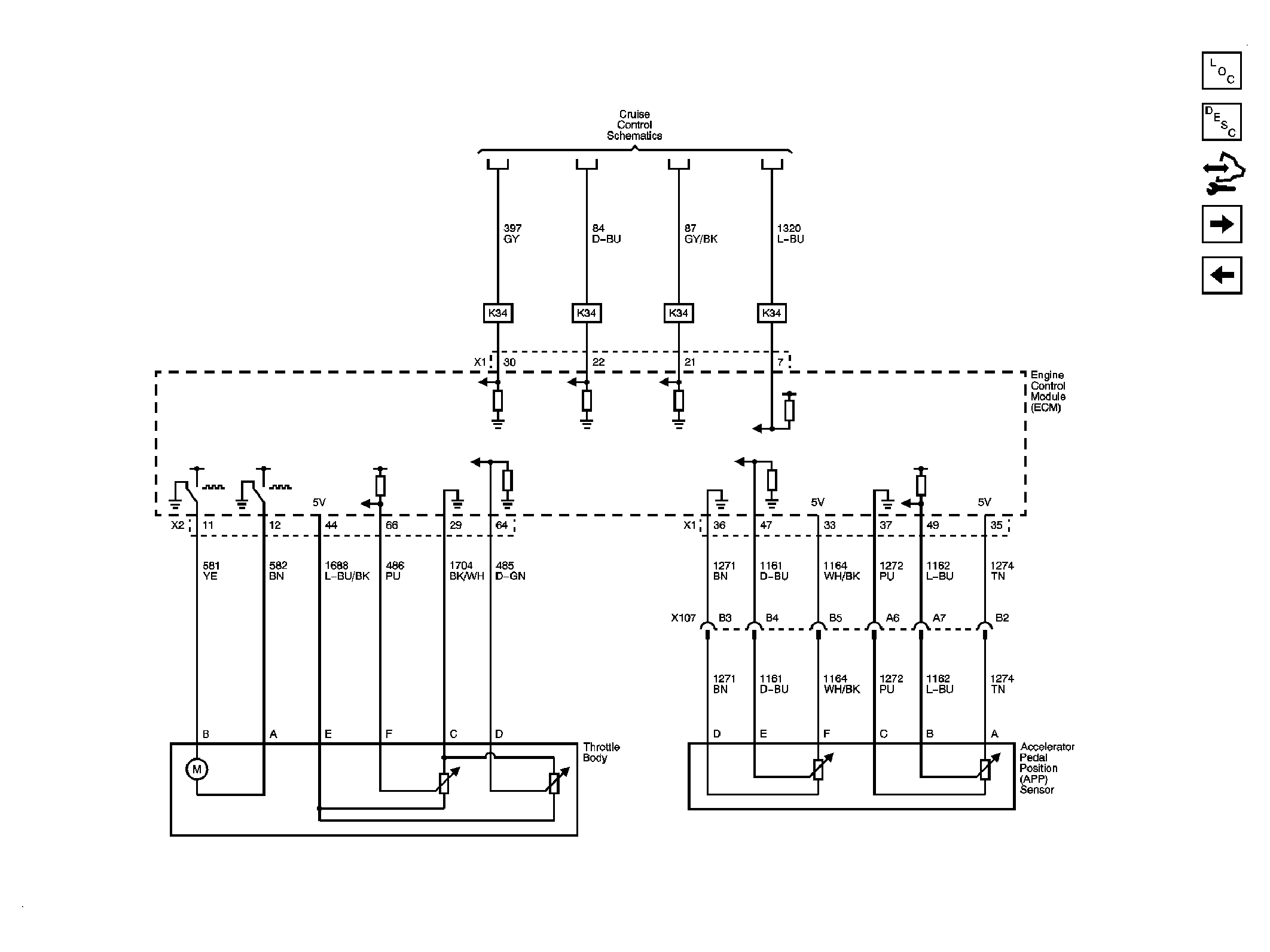

Fig 7: Engine Data Sensors - Throttle Actuator Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls Schematic - Ignition Coils 1, 3, 5 & 7

Courtesy of GENERAL MOTORS CORP.

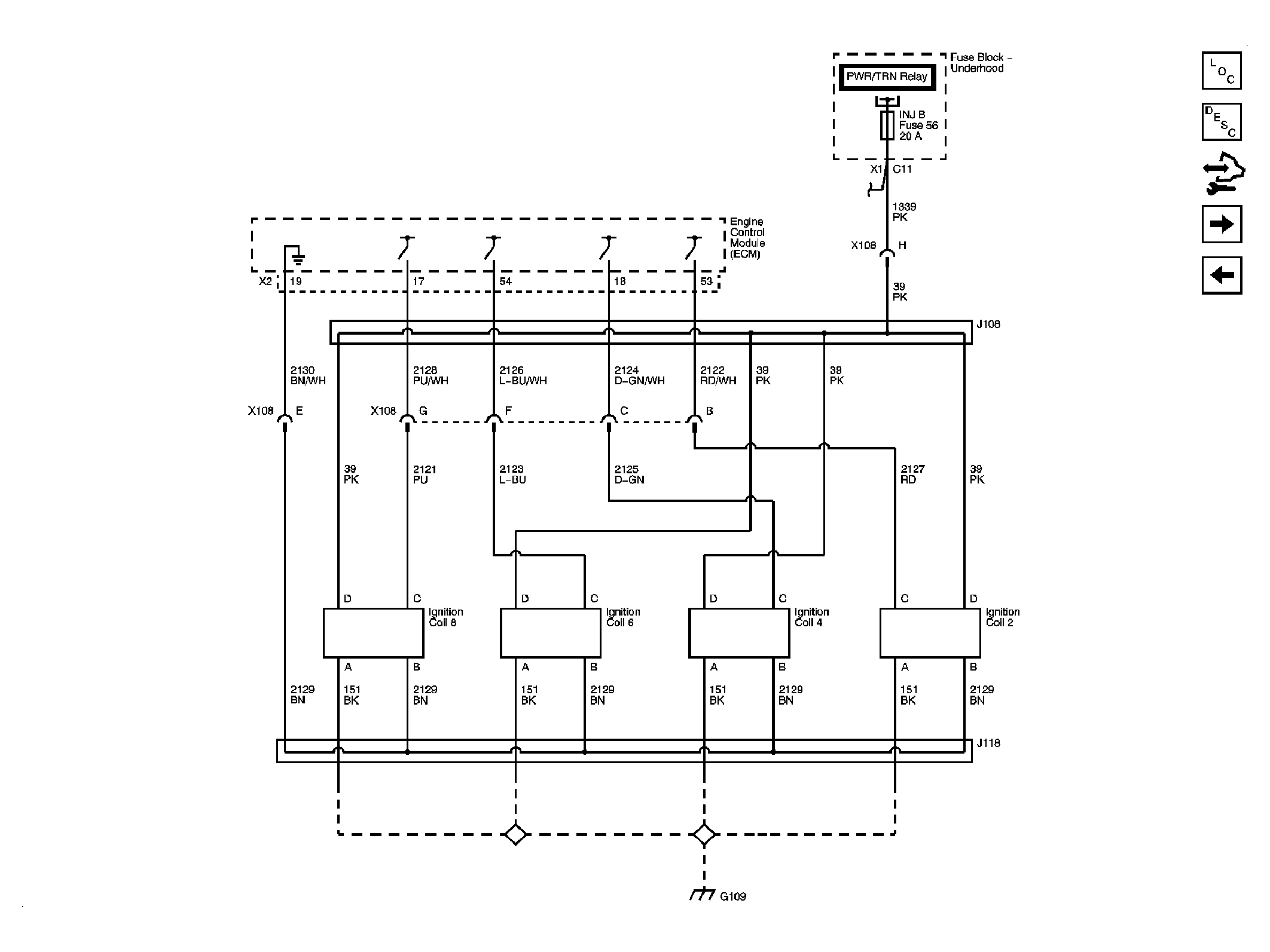

Fig 9: Ignition Controls Schematic - Ignition Coils 2, 4, 6 & 8

Courtesy of GENERAL MOTORS CORP.

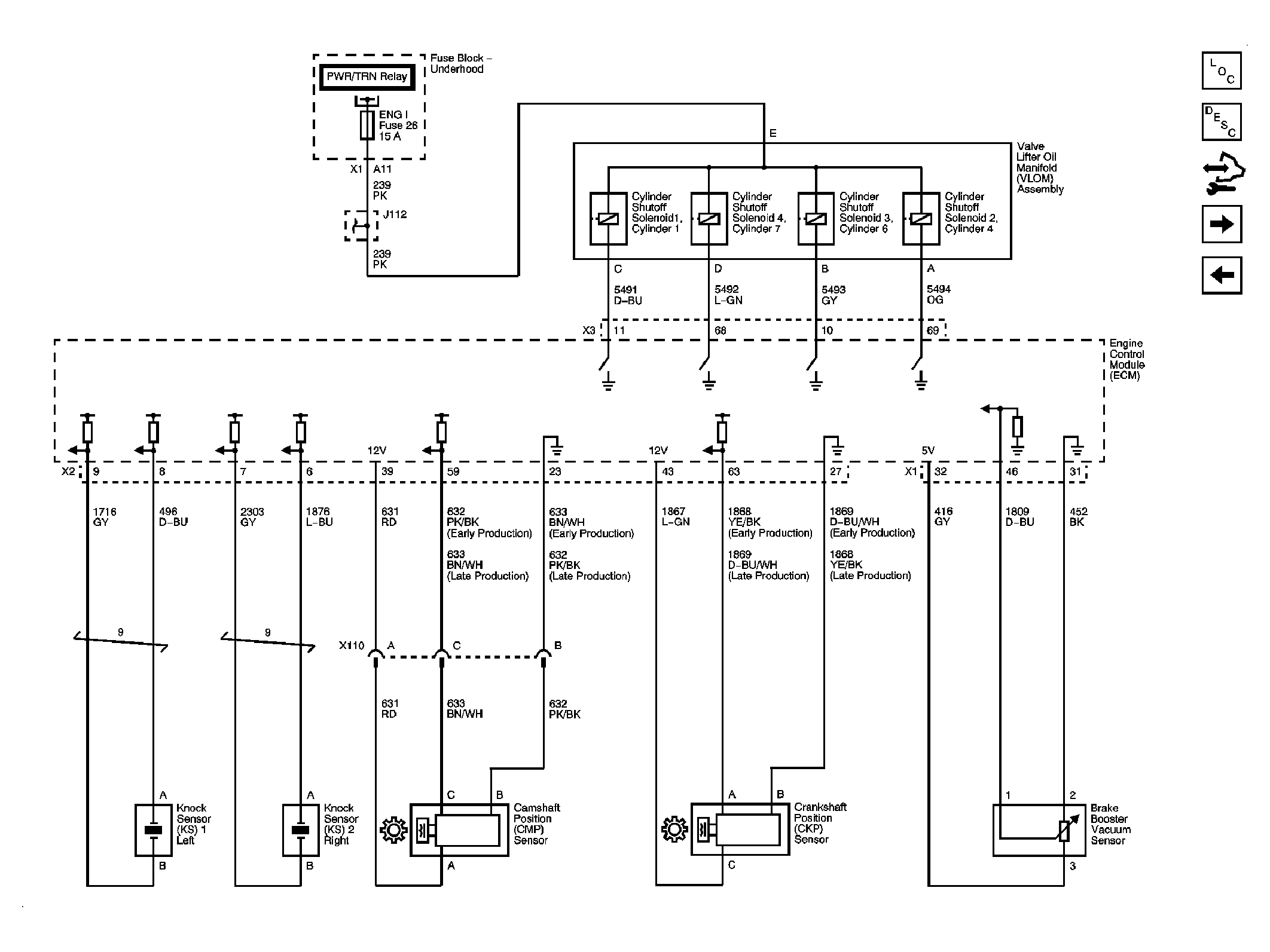

Fig 10: Ignition Controls Schematic - Sensors & DOD Controls

Courtesy of GENERAL MOTORS CORP.

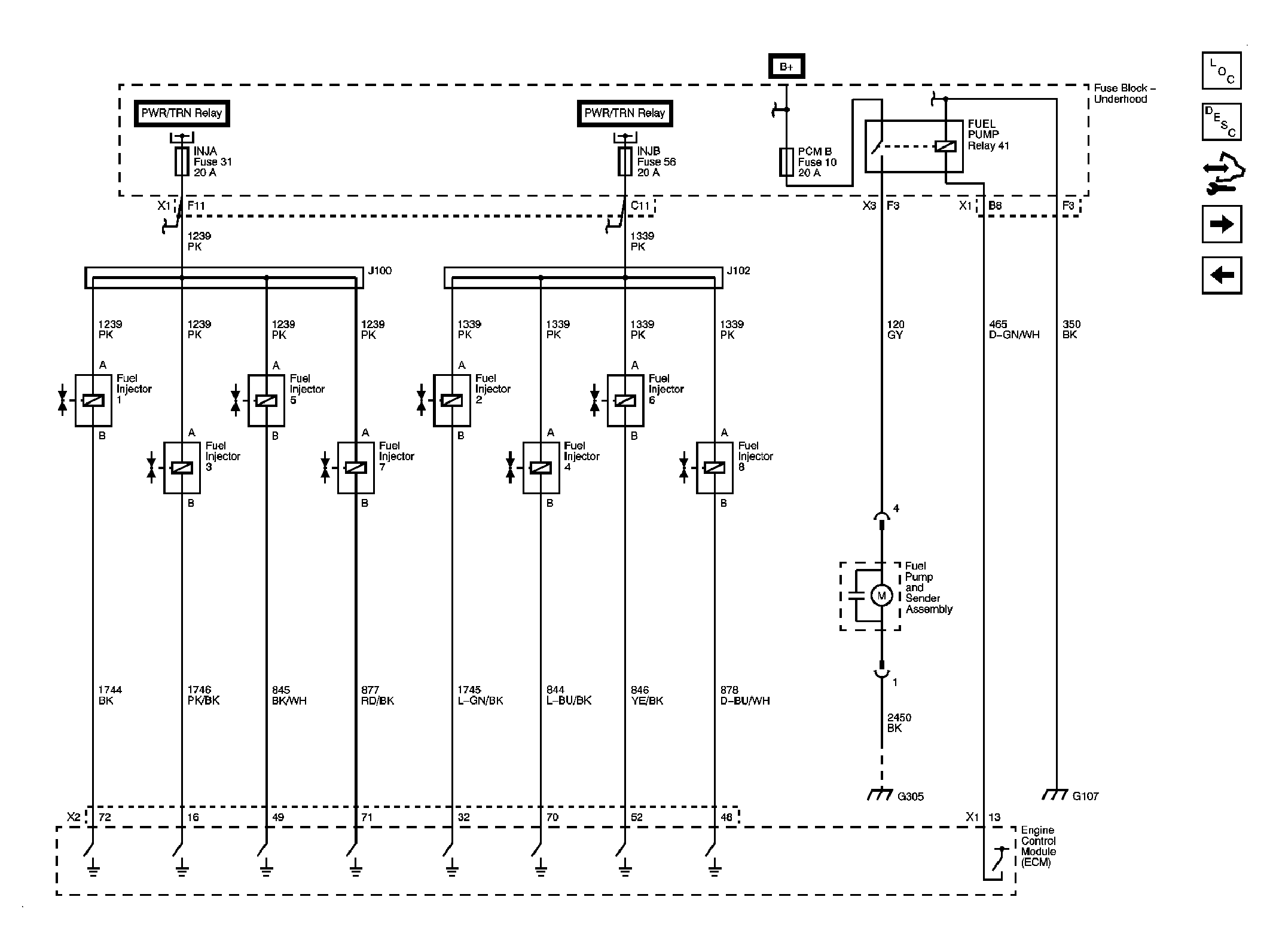

Fig 11: Fuel Controls - Fuel Pump & Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

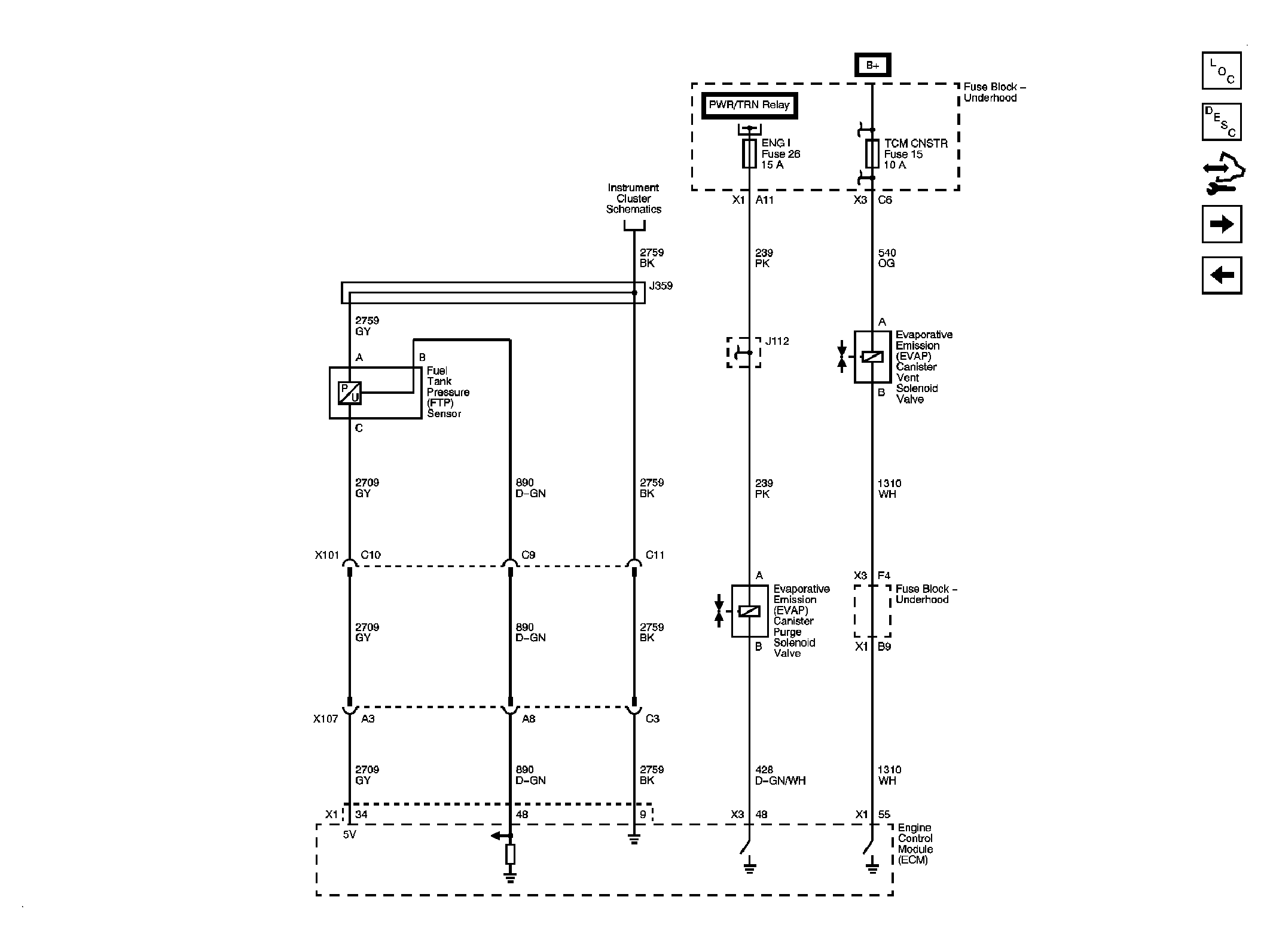

Fig 12: Fuel Controls - EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

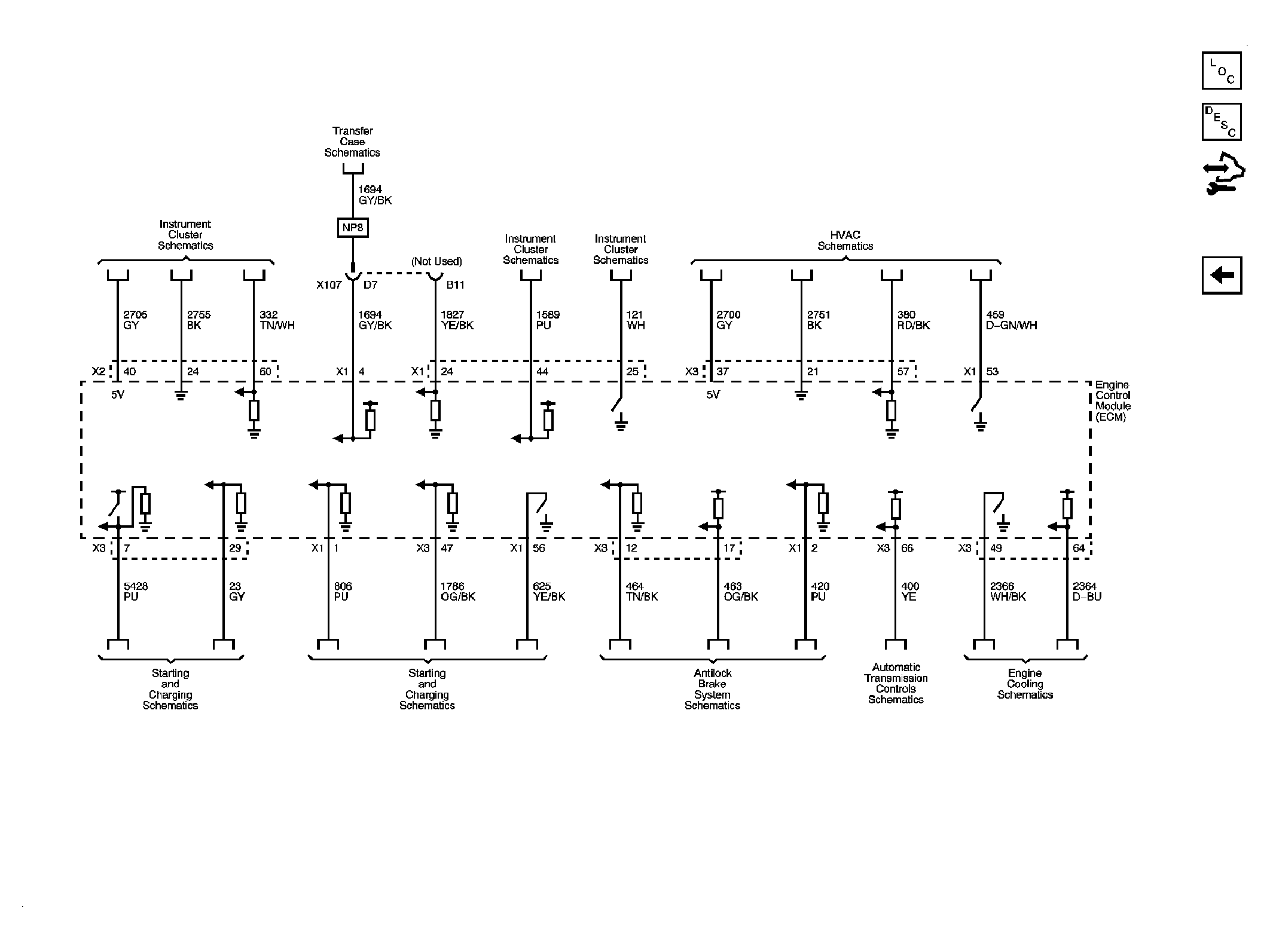

Fig 13: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
