Instrument Cluster Schematics

WARNING: This page is about a different car, the 2008 Isuzu Ascender, 2008 GMC Envoy, and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

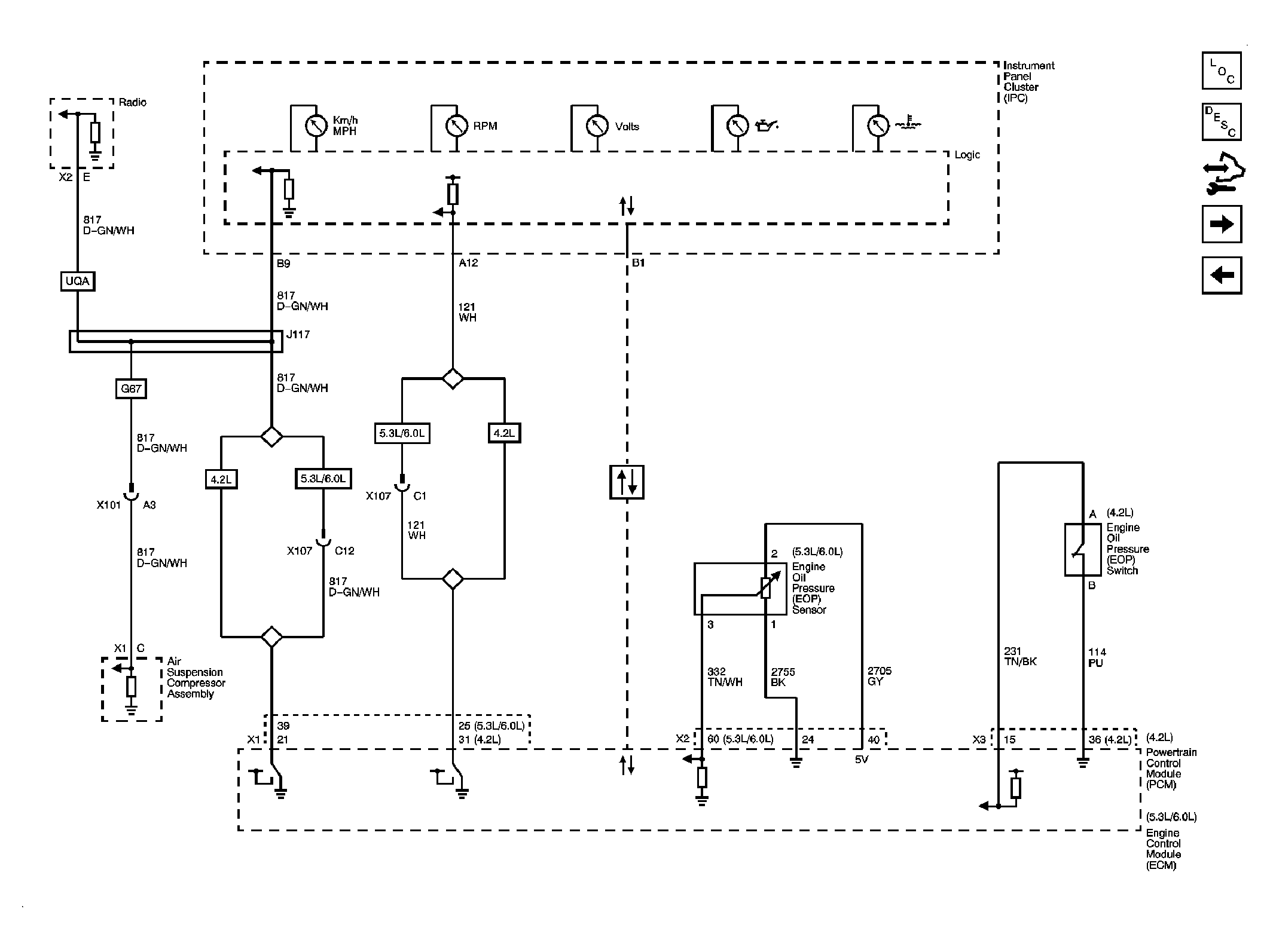

Fig 2: Gages Schematic

Courtesy of GENERAL MOTORS CORP.

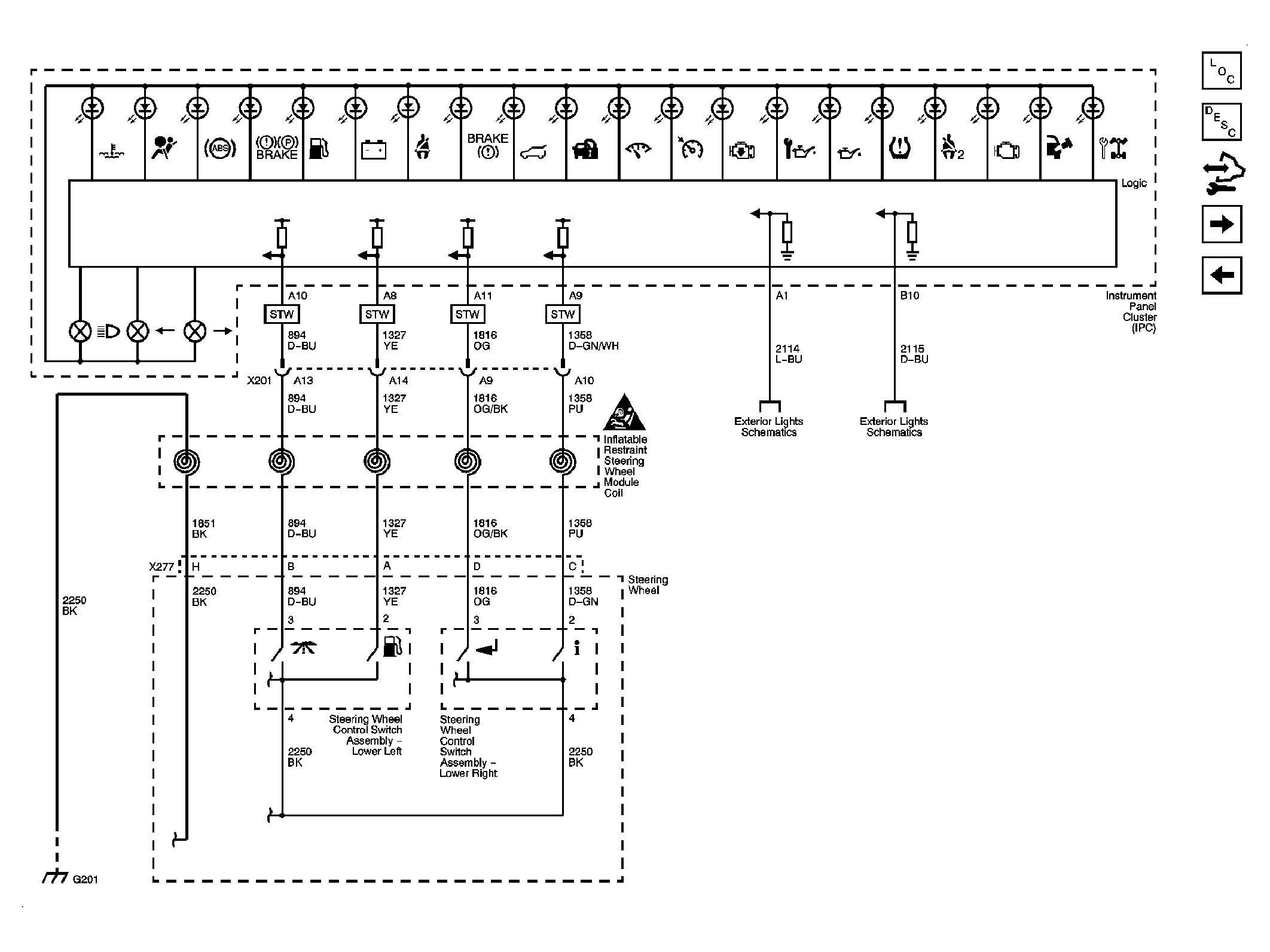

Fig 3: Indicators & DIC Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Fuel Gage Schematic

Courtesy of GENERAL MOTORS CORP.
