Ground Distribution Schematics

WARNING: This page is about a different car, the 2008 Isuzu Ascender, 2008 GMC Envoy, and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

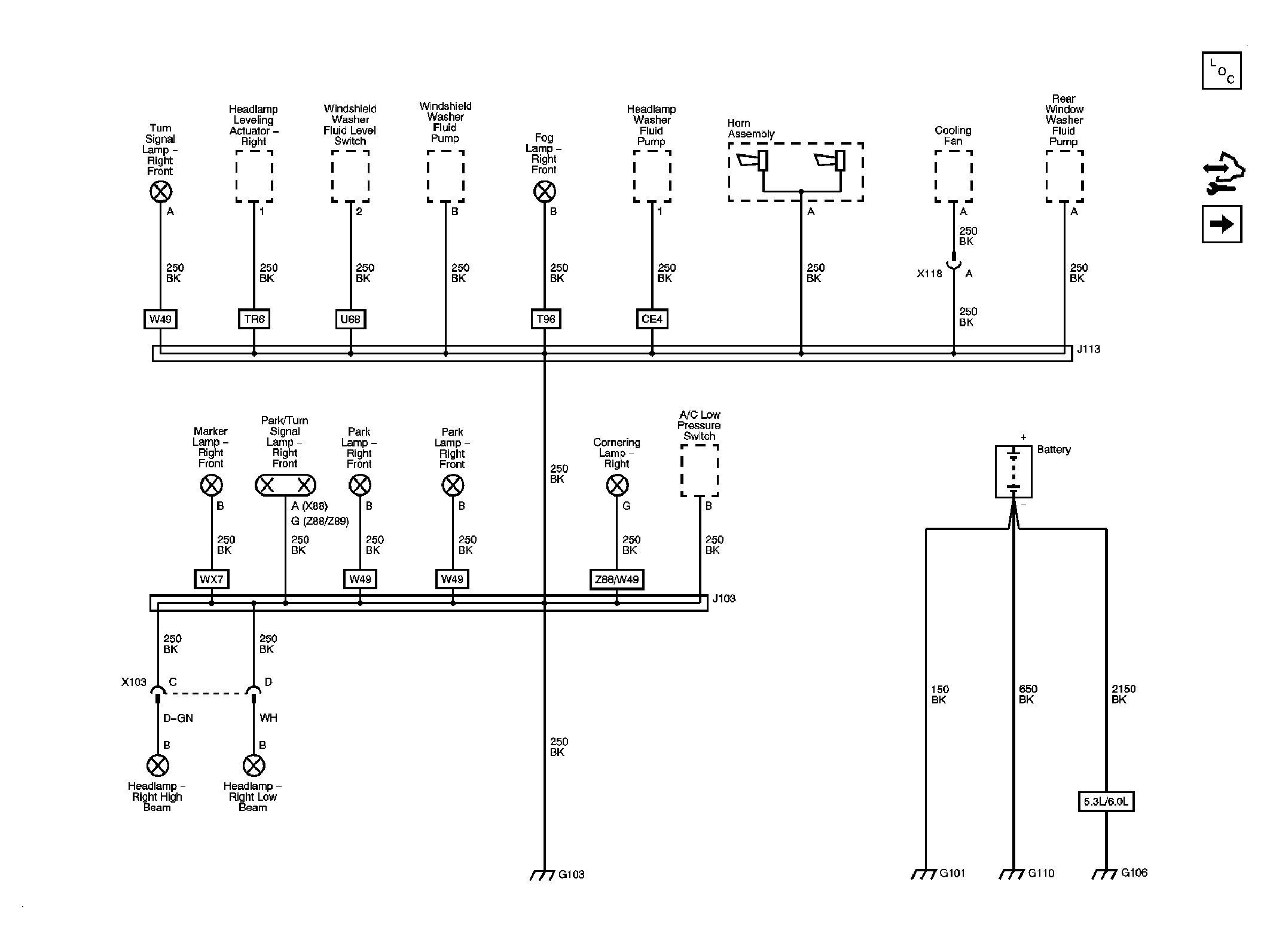

Fig 1: G101, G103, G106 & G110 Schematic

Courtesy of GENERAL MOTORS CORP.

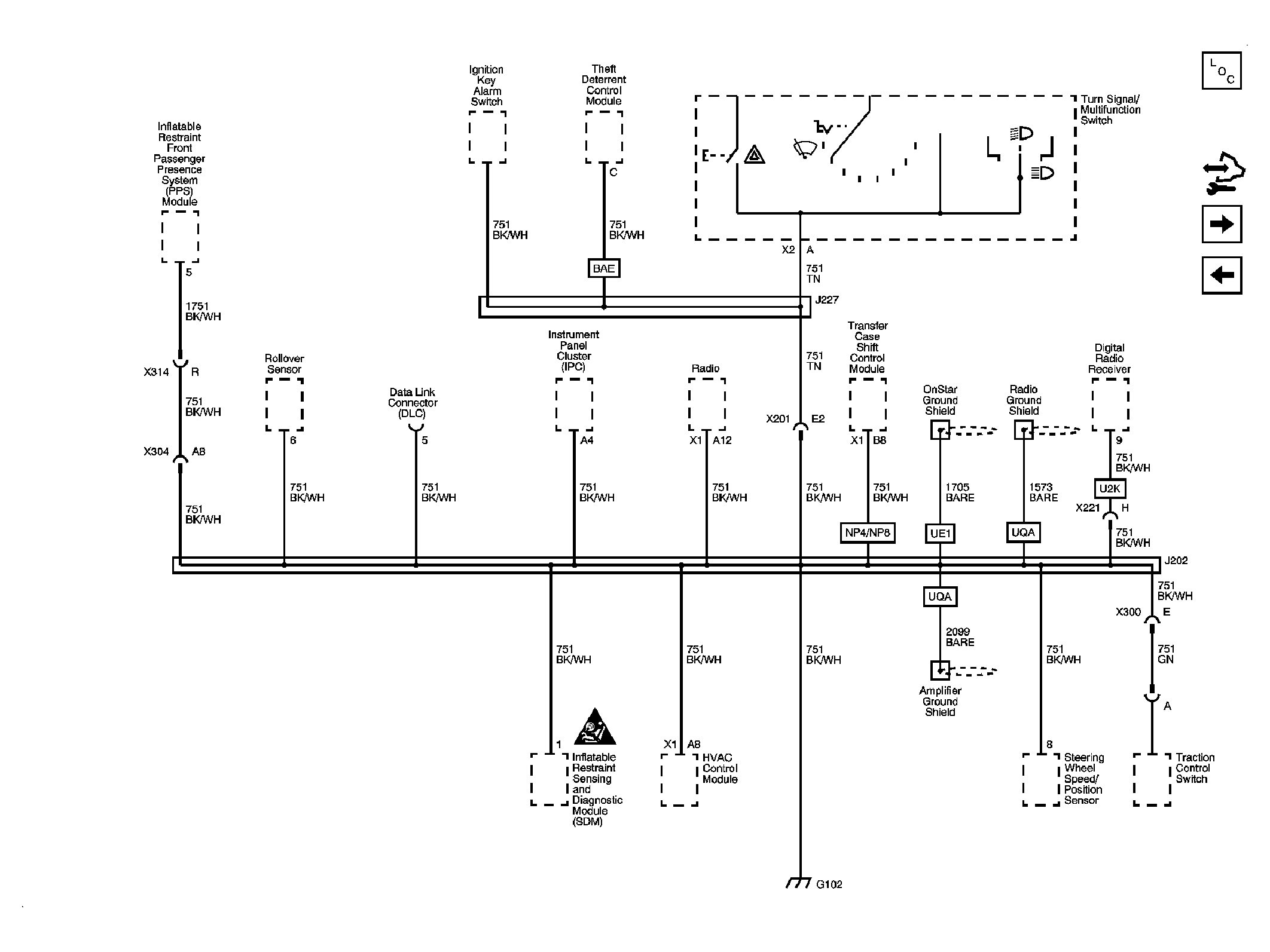

Fig 2: G102 Schematic

Courtesy of GENERAL MOTORS CORP.

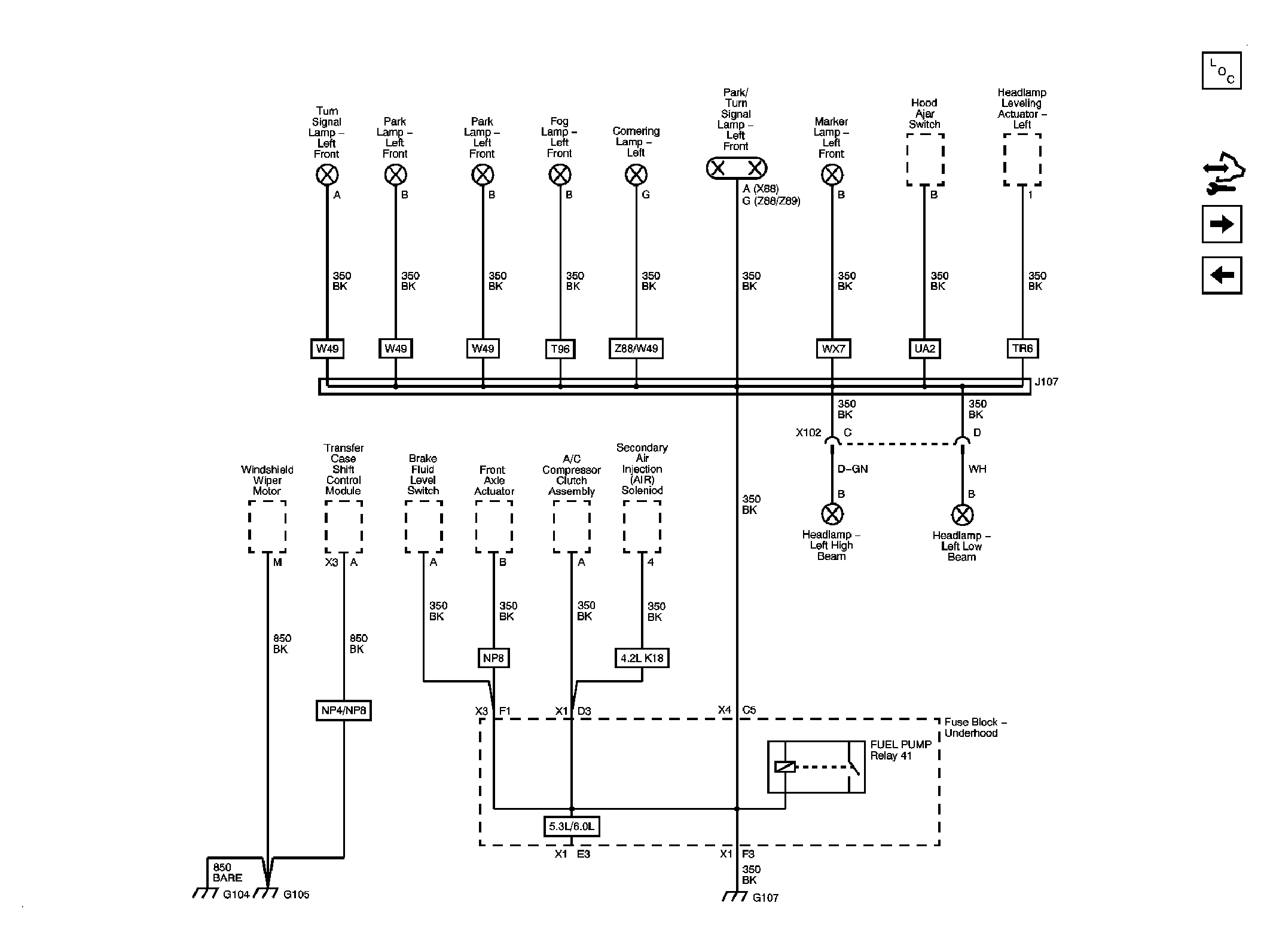

Fig 3: G104, G105 & G107 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: G108 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: G109 Schematic

Courtesy of GENERAL MOTORS CORP.

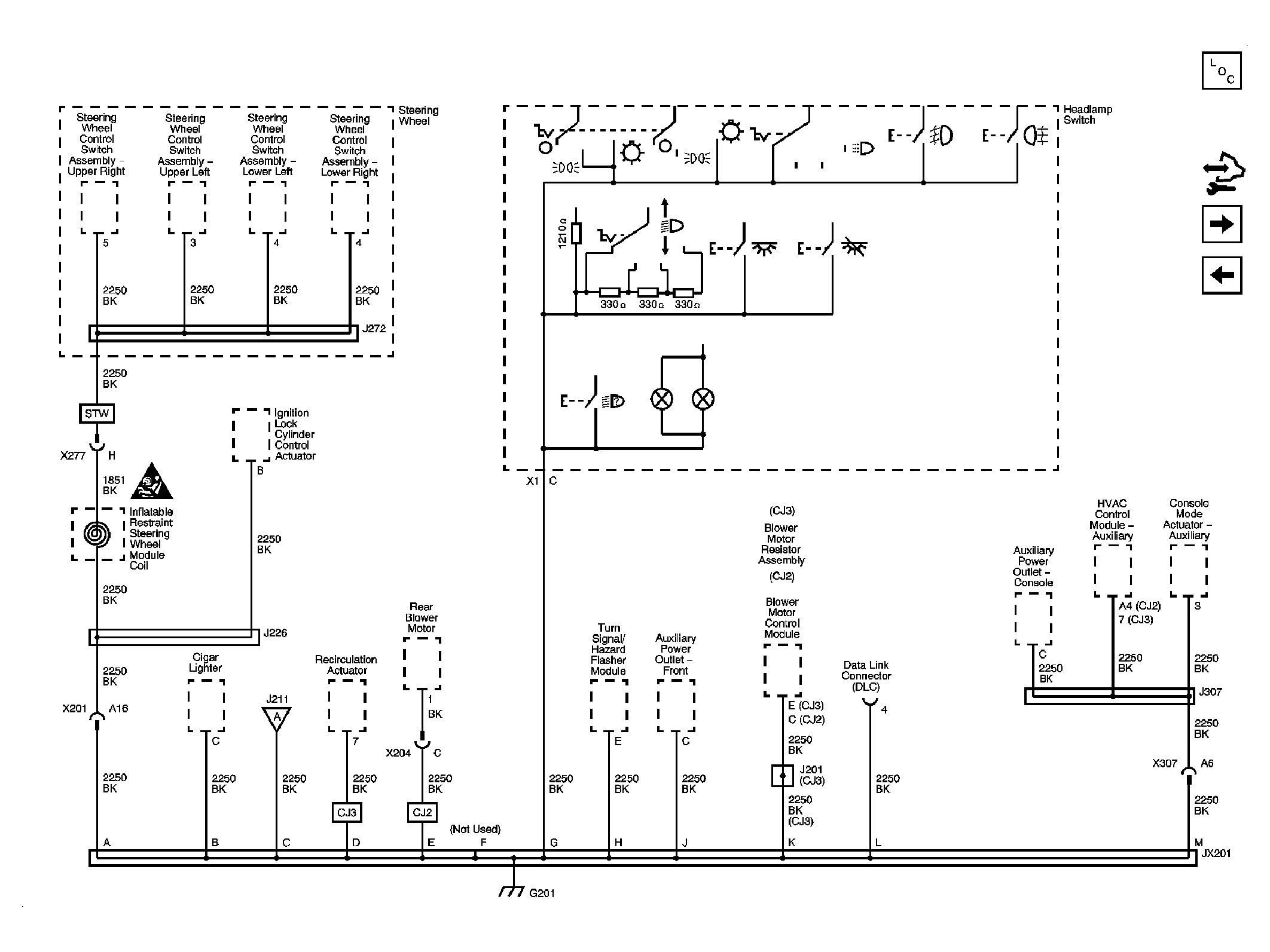

Fig 6: G201 Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

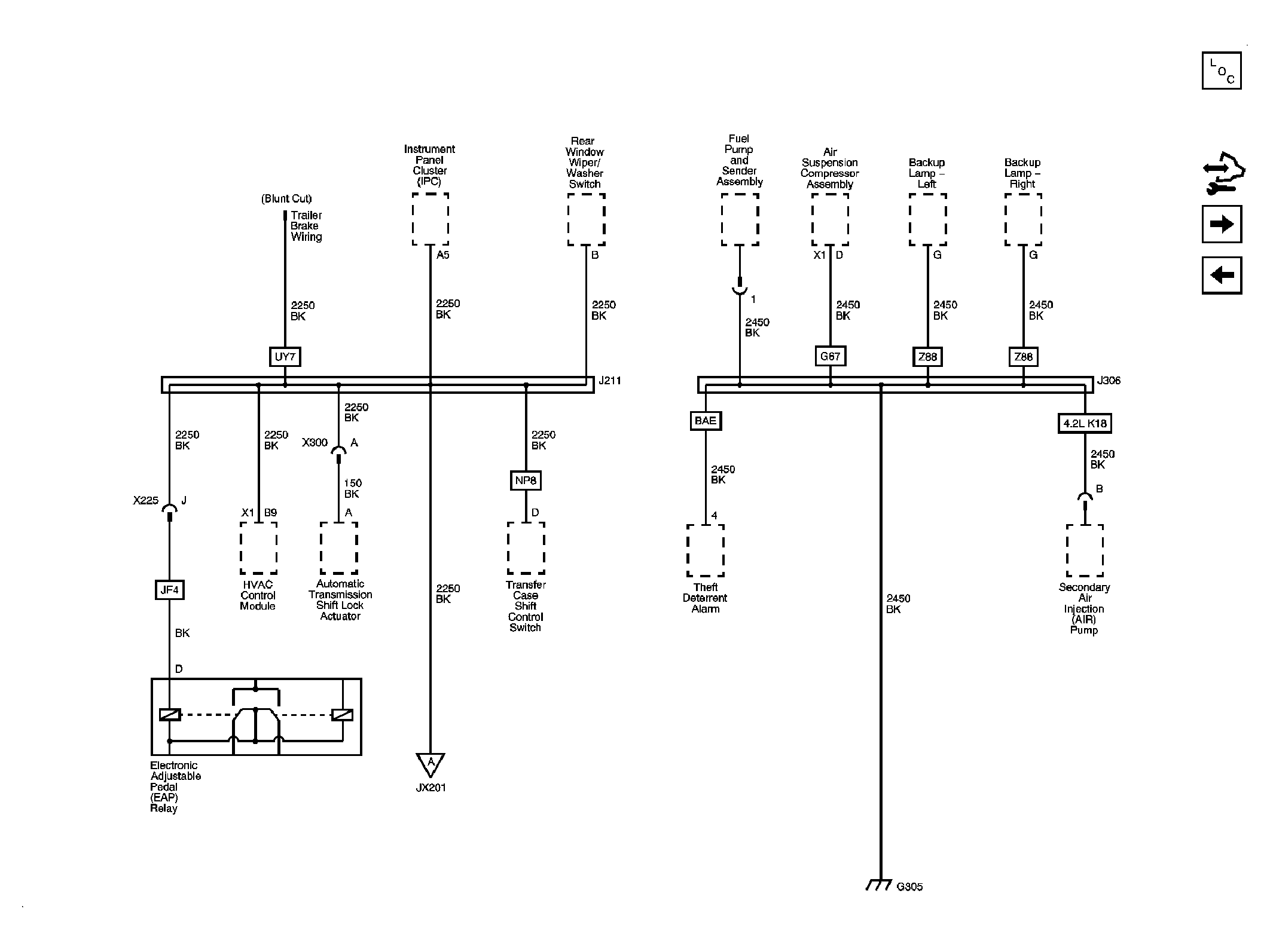

Fig 7: G201 - 2 of 2 & G305 Schematic

Courtesy of GENERAL MOTORS CORP.

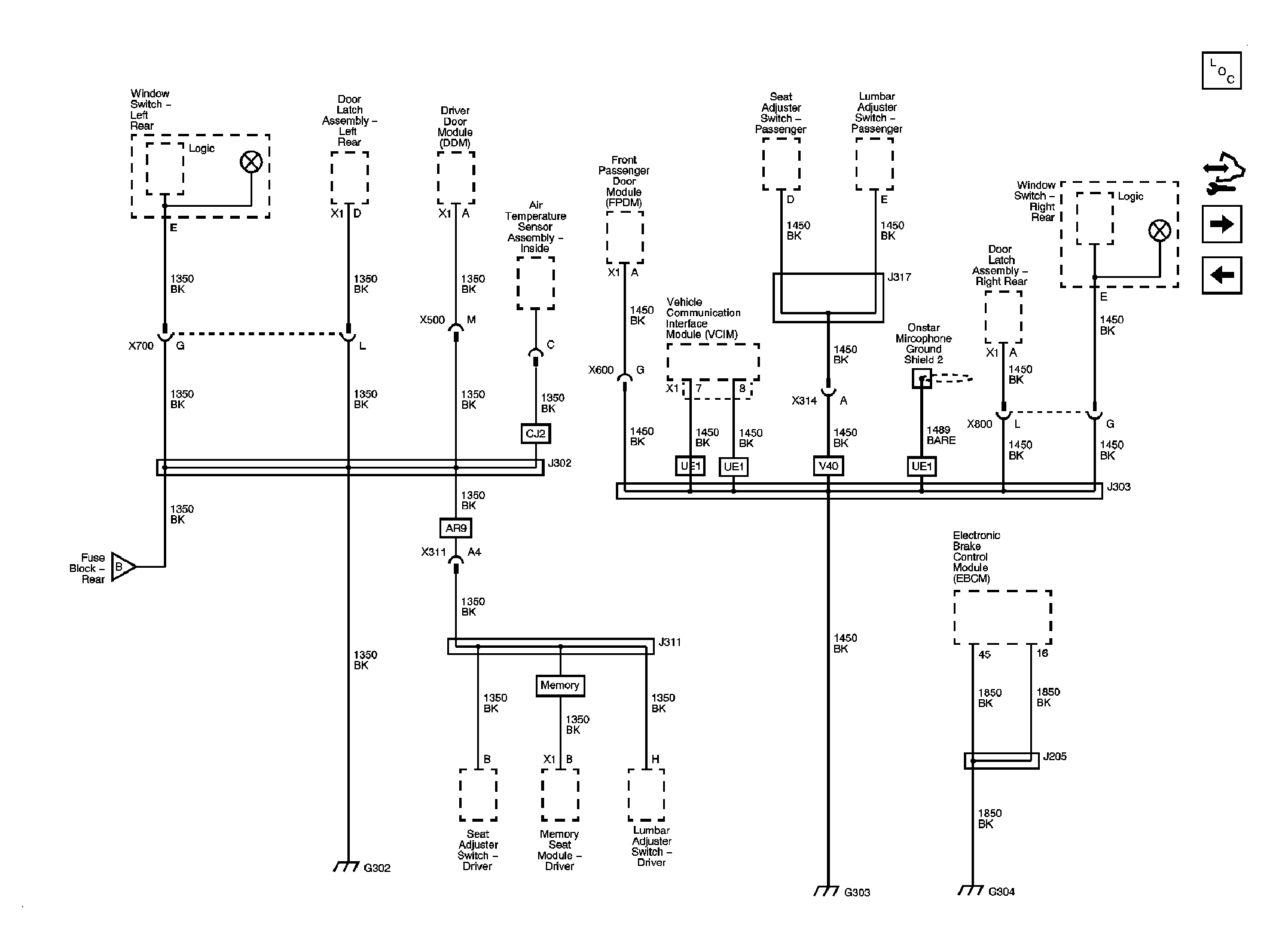

Fig 8: G302 - 1 of 2, G303 & G304 Schematic

Courtesy of GENERAL MOTORS CORP.

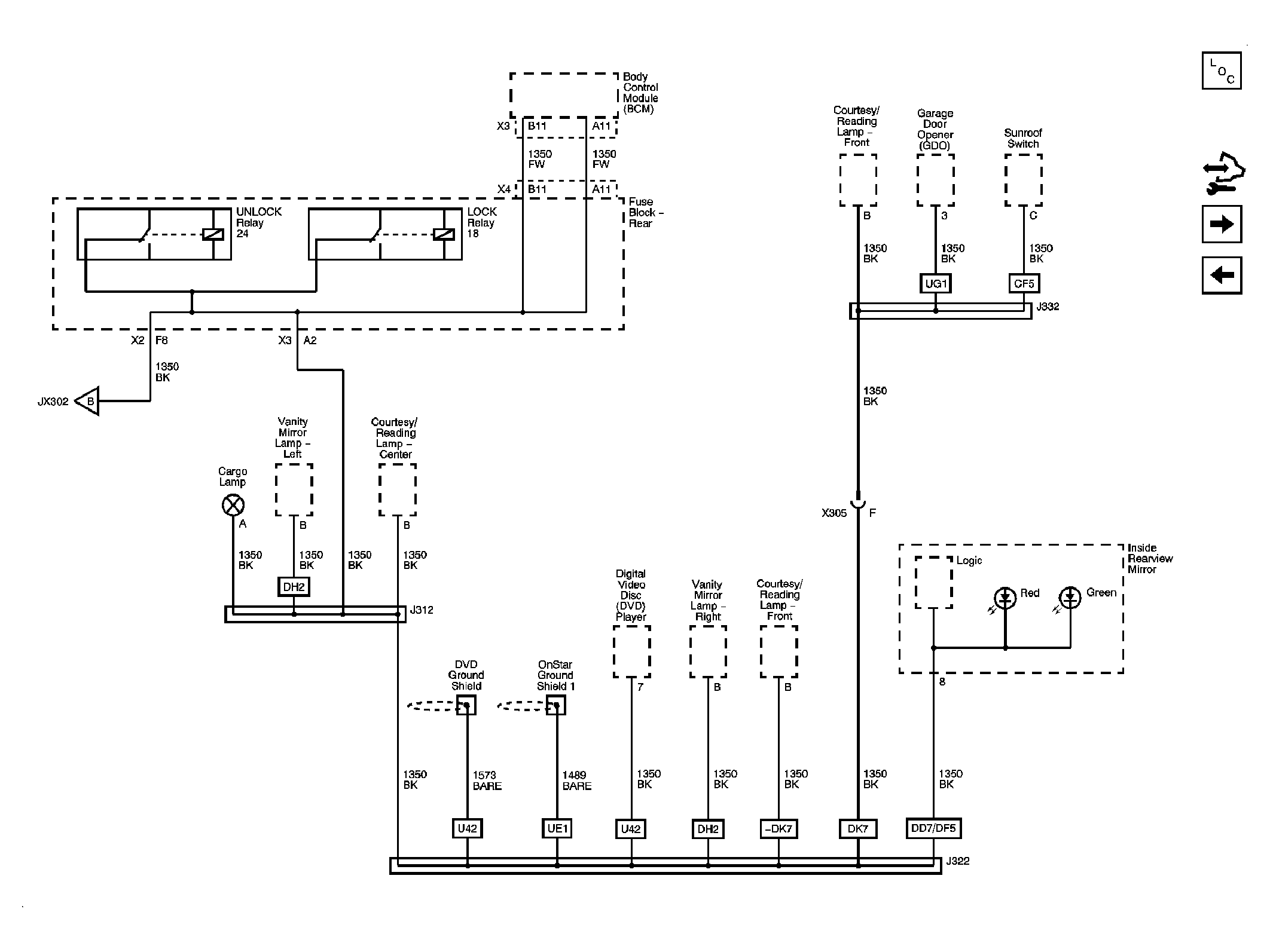

Fig 9: G302 Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 10: G306 Schematic - CF5

Courtesy of GENERAL MOTORS CORP.

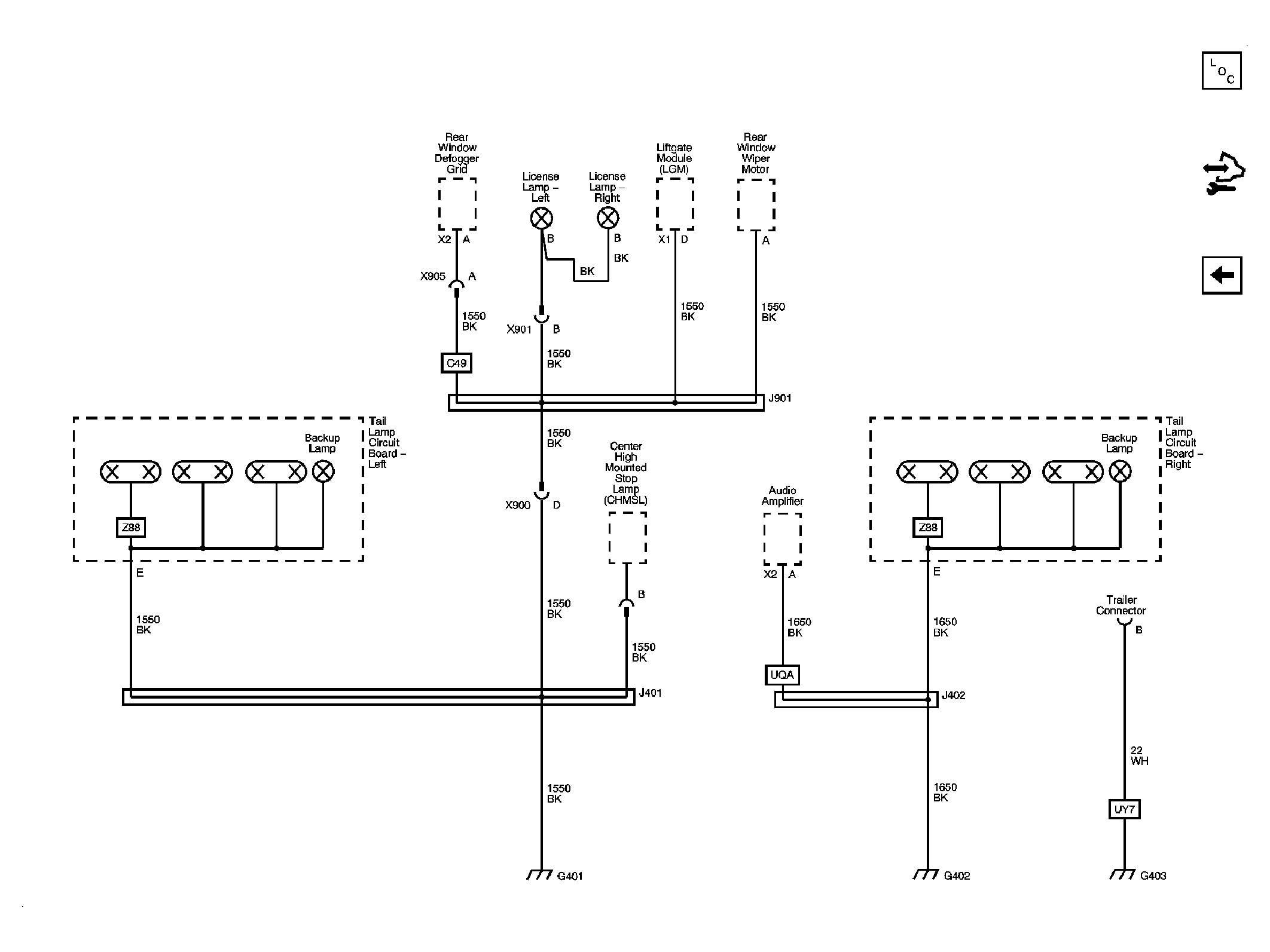

Fig 11: G401, G402 & G403 Schematic

Courtesy of GENERAL MOTORS CORP.
