Four Wheel Drive Selector Switch: Locations

Transfer Case Control Component Views

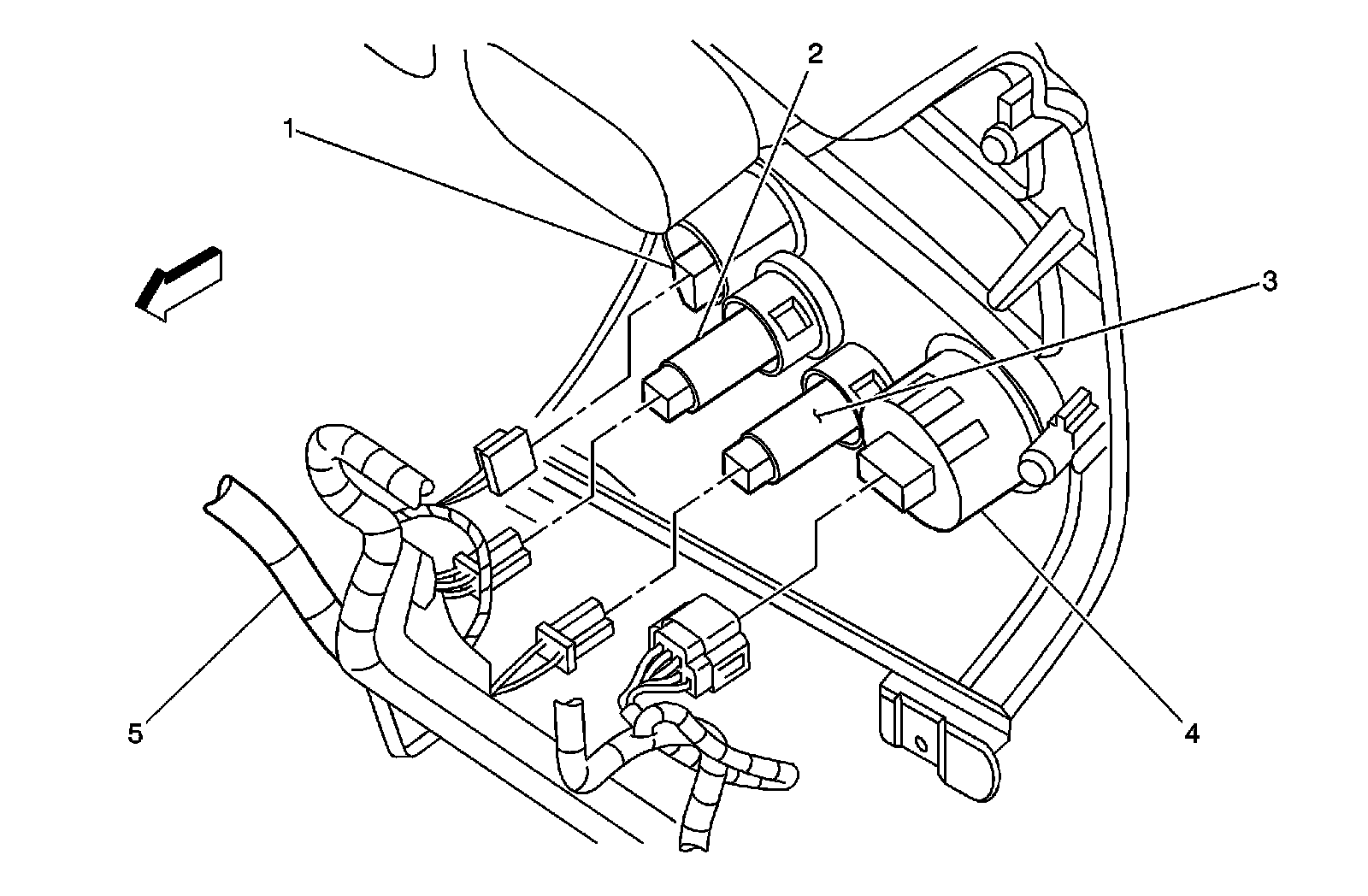

Behind the Center of the I/P (X88):

1 - Rear Window Wiper/Washer Switch
2 - Transfer Case Shift Control Switch (NP8)
3 - Instrument Panel Harness
4 - Auxiliary Power Outlet - Front
5 - Cigar Lighter

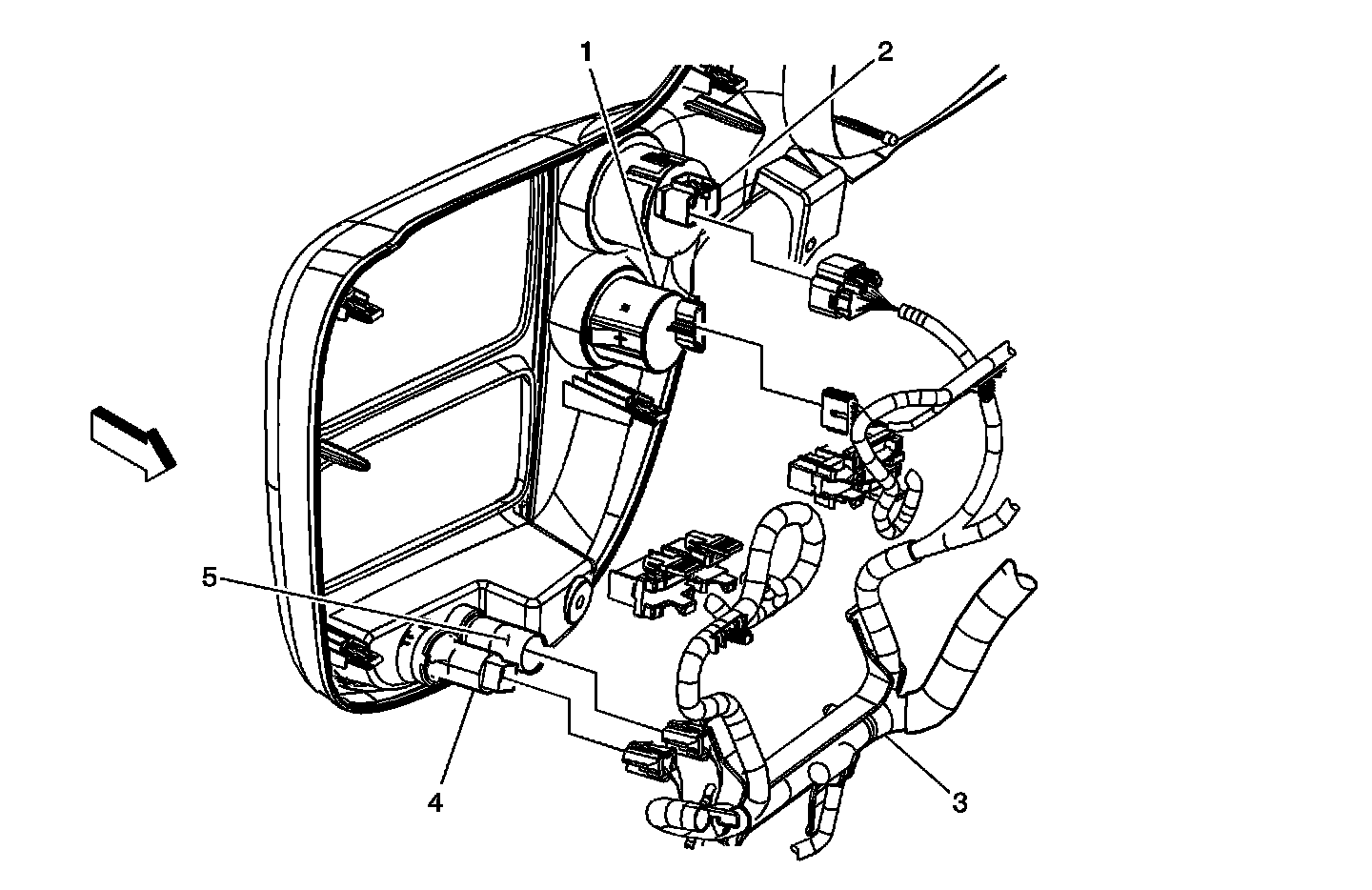

Behind the Center of the I/P (Z88/Z89):

1 - Rear Window Wiper/Washer Switch
2 - Auxiliary Power Outlet - Front
3 - Cigar Lighter
4 - Transfer Case Shift Control Switch (NP8)
5 - Instrument Panel Harness
