Component Tests and General Diagnostics

The content of this article reflects the changes identified in TSB- 05-03-99-002 Dated: December 15, 2005

Automatic Level Control System Leak Test

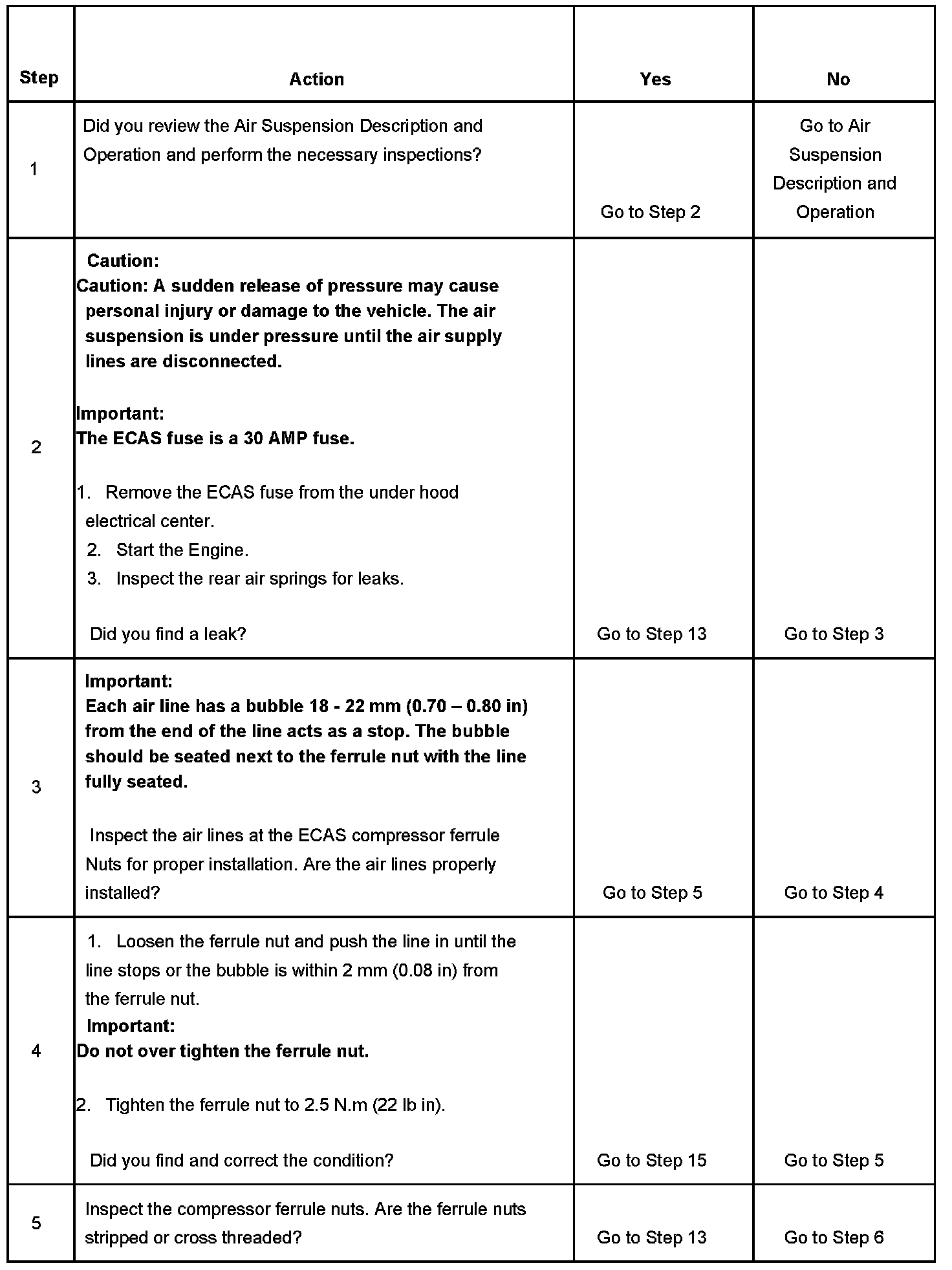

Steps 1-5:






Steps 6-8:

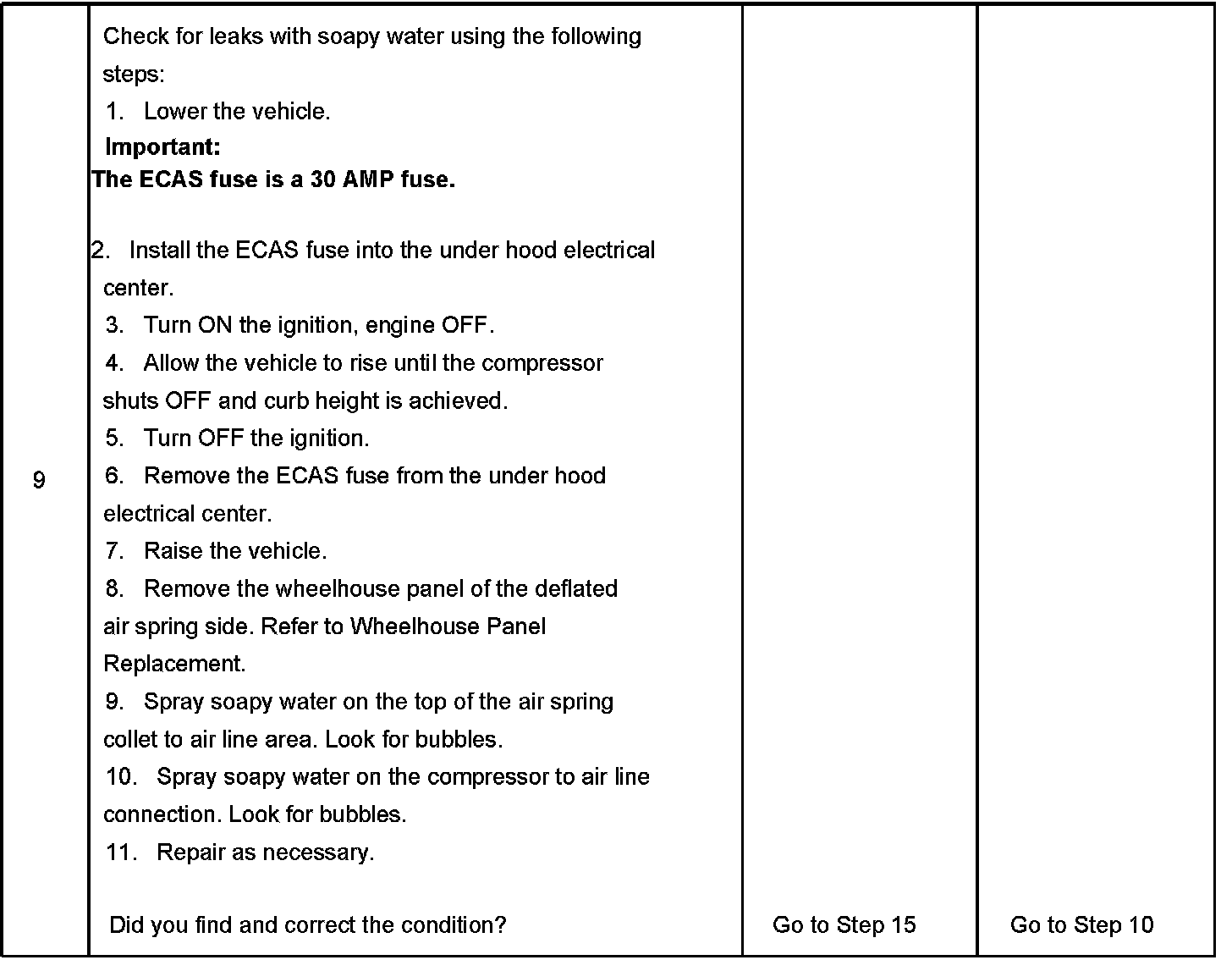

Step 9:

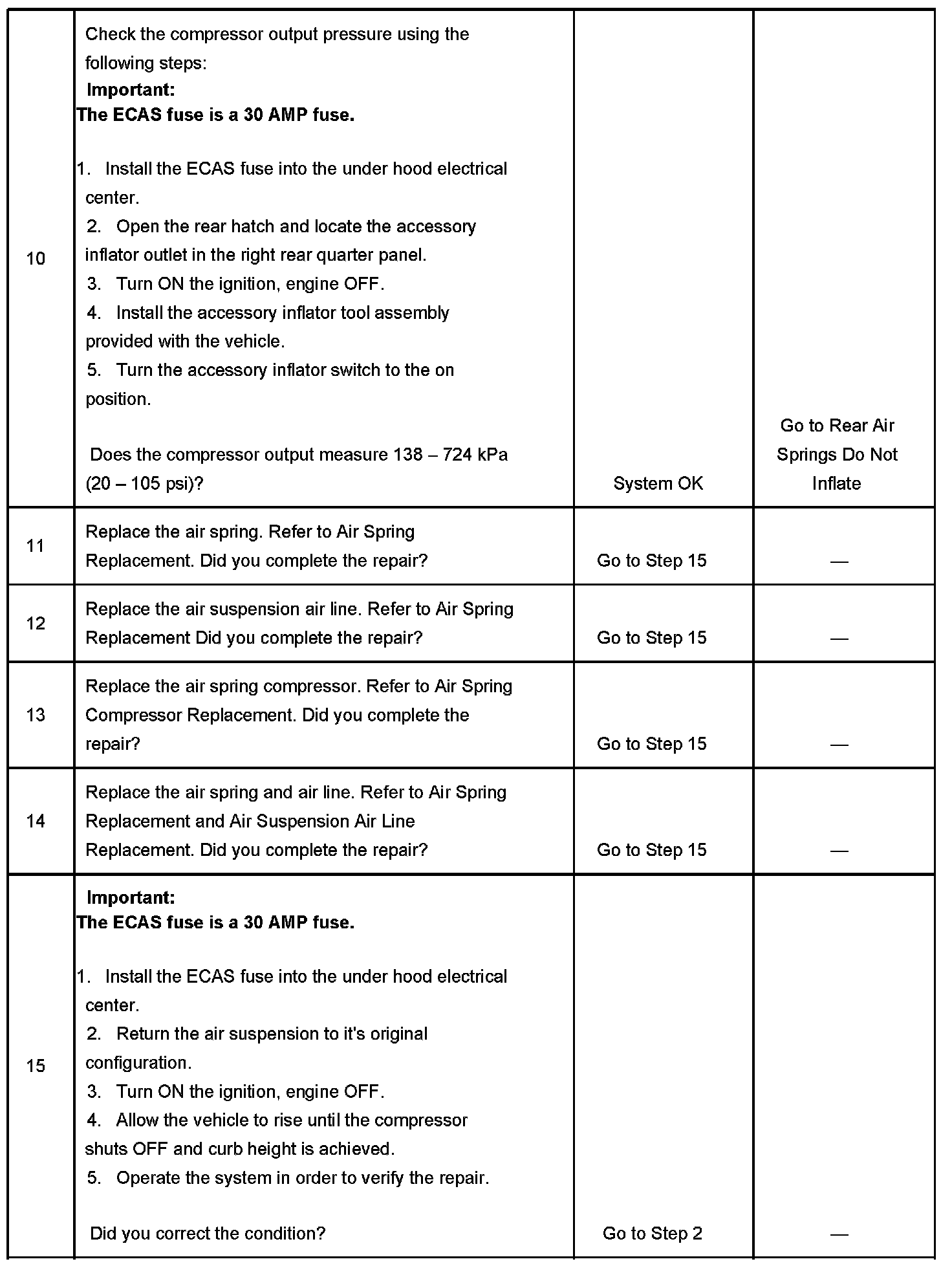

Steps 10-15:
