Power Steering Pump Bracket Replacement

Power Steering Pump Bracket Replacement

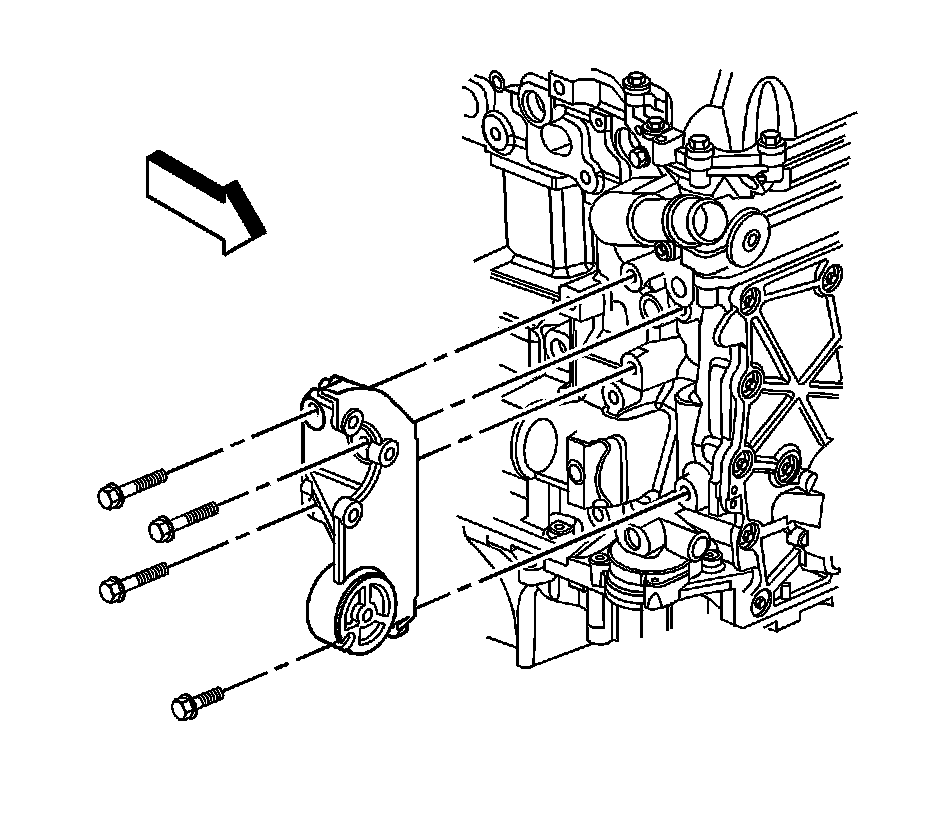

Removal Procedure





1. Remove the power steering pump.
2. Remove the drive belt tensioner.
3. Remove the power steering pump bracket mounting bolts.
4. Remove the power steering pump bracket.

Installation Procedure





1. Install the power steering pump bracket.

2. Install the power steering pump bracket mounting bolts.
Tighten the power steering pump mounting bolts to 50 Nm (37 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the drive belt tensioner.
4. Install the power steering pump.
