Home >> Isuzu >> 2006 >> Ascender 2WD V8-5.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Sensor/Switch >> Locations

Seat Sensor/Switch: Locations

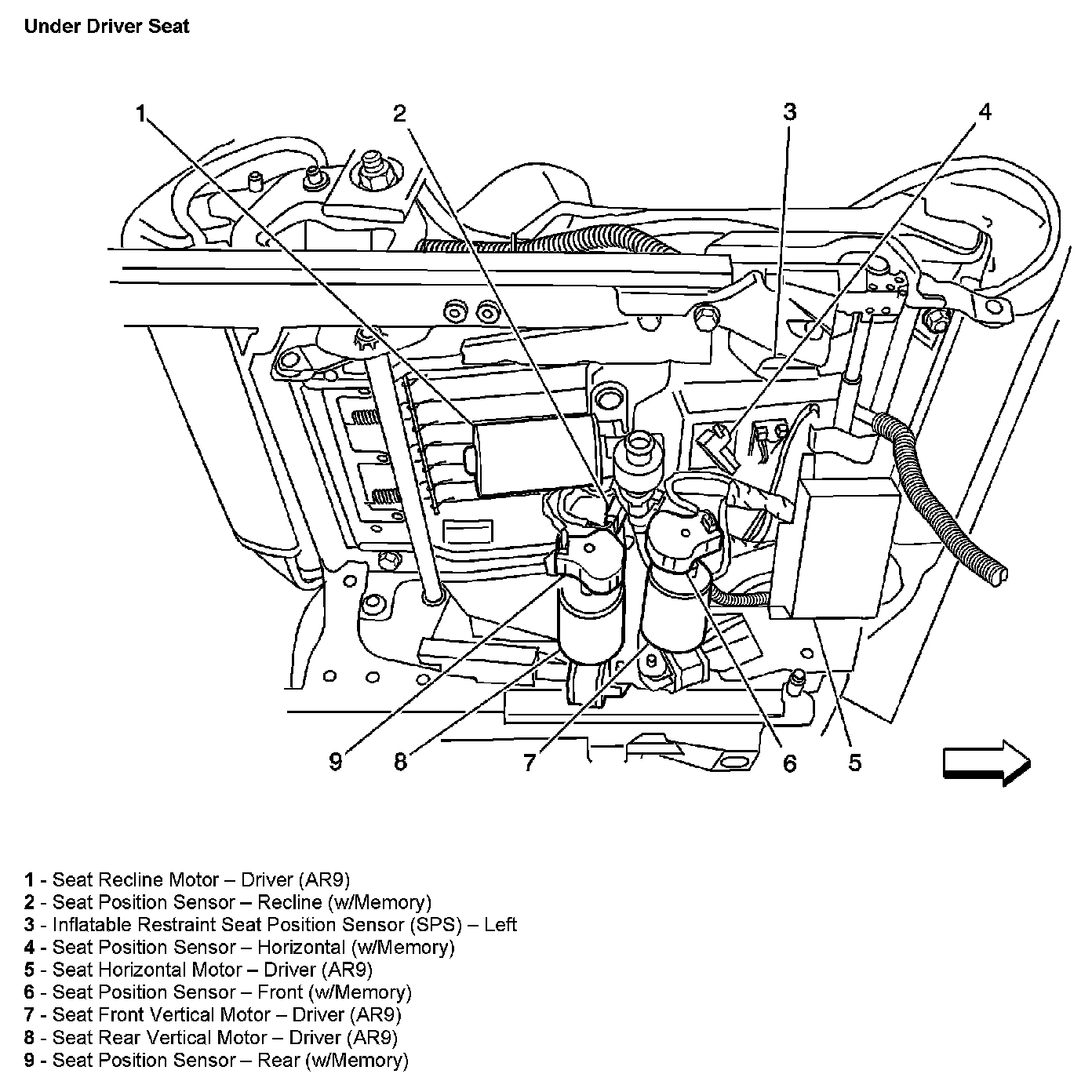

Under Driver Seat:

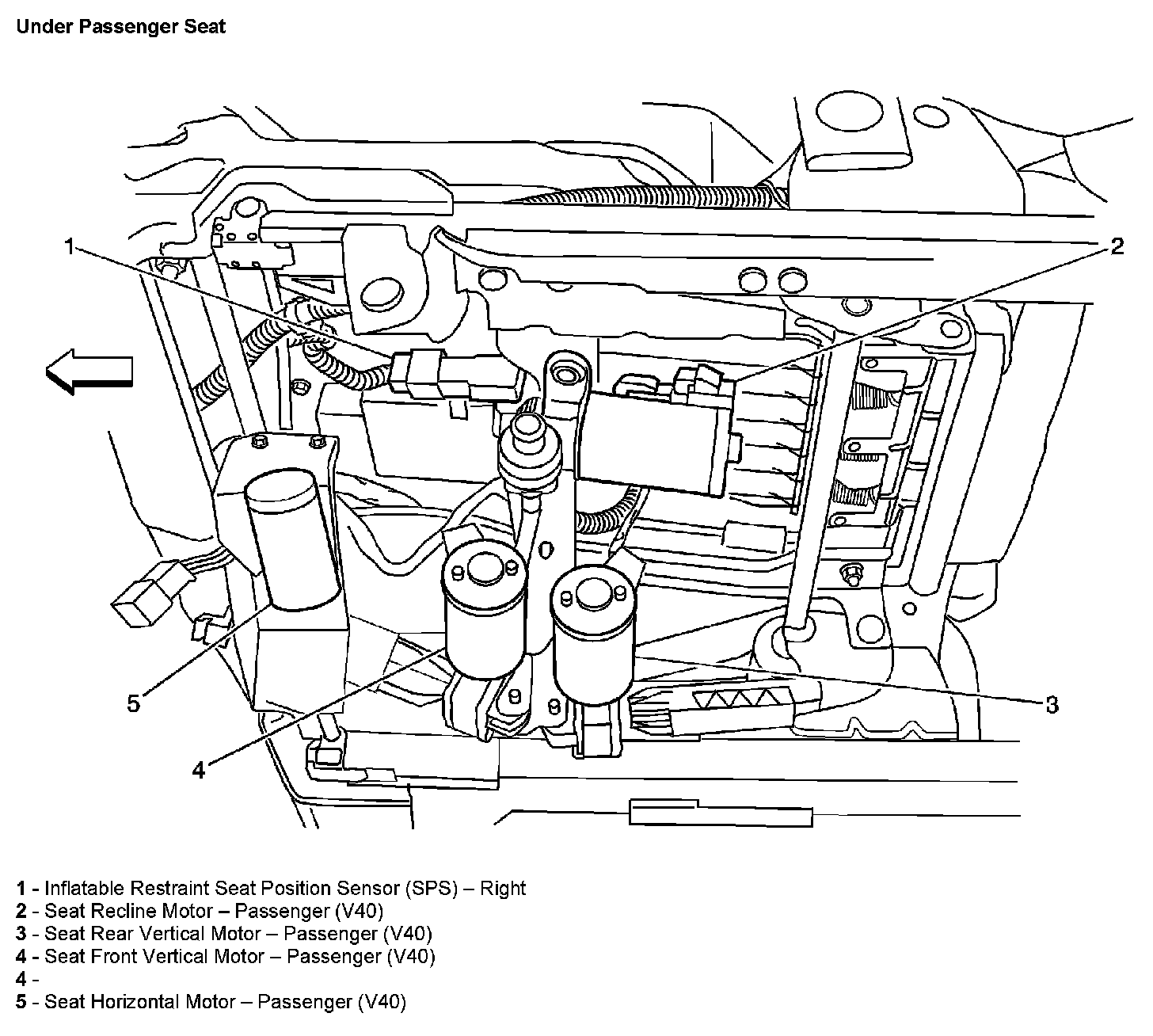

Under Passenger Seat:
