Impact Sensor: Locations

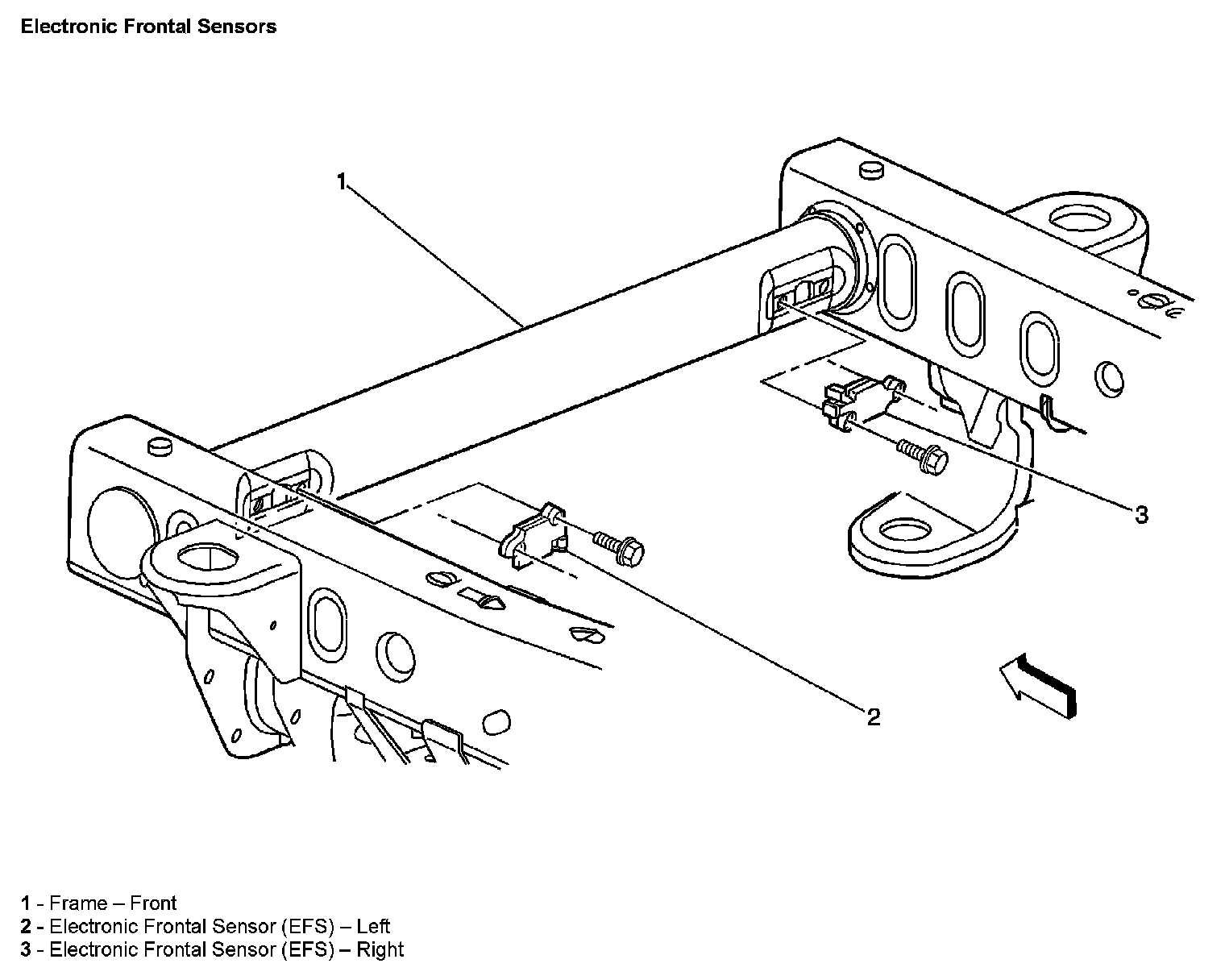

Electronic Frontal Sensors:

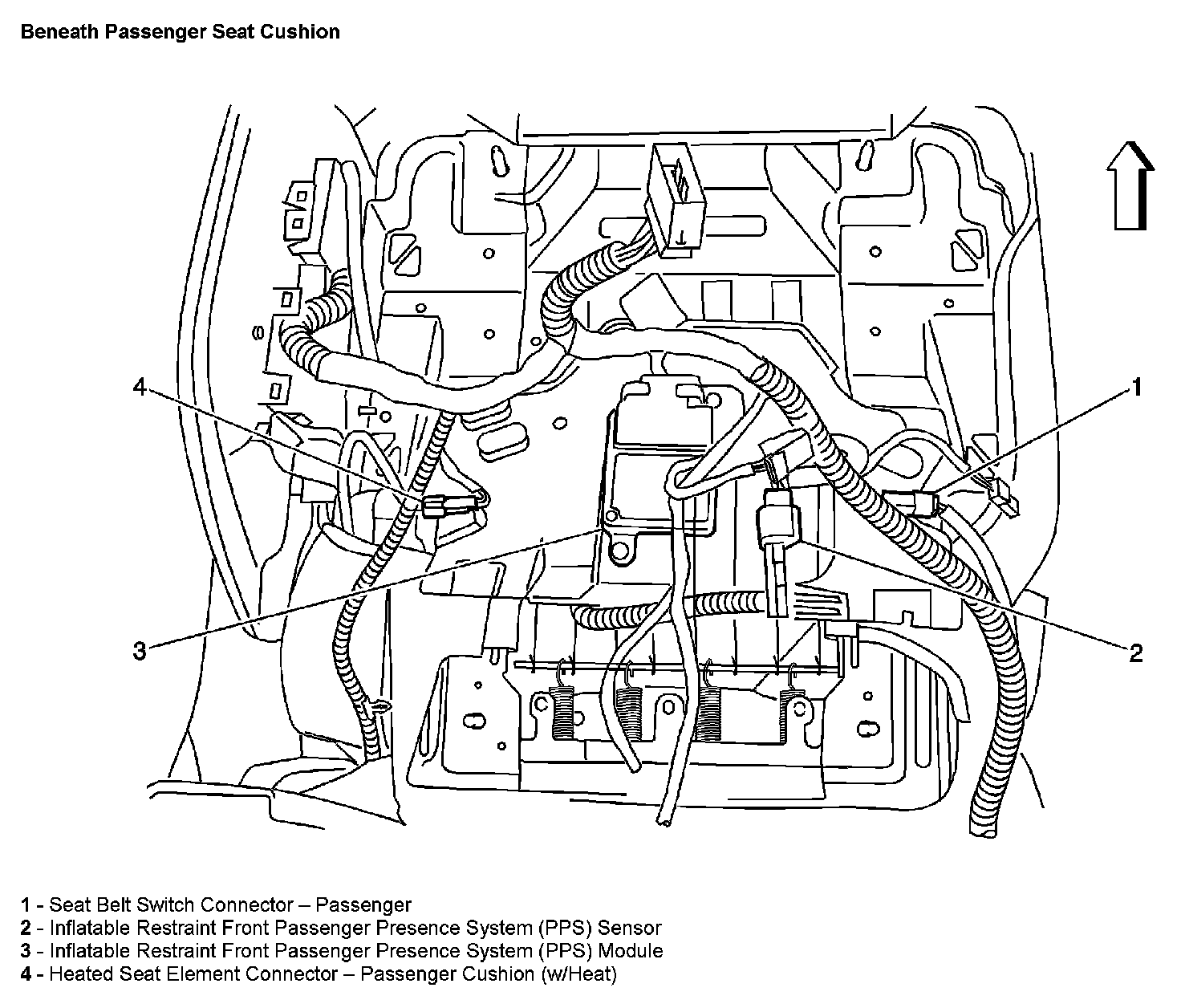

Beneath Passenger Seat Cushion:

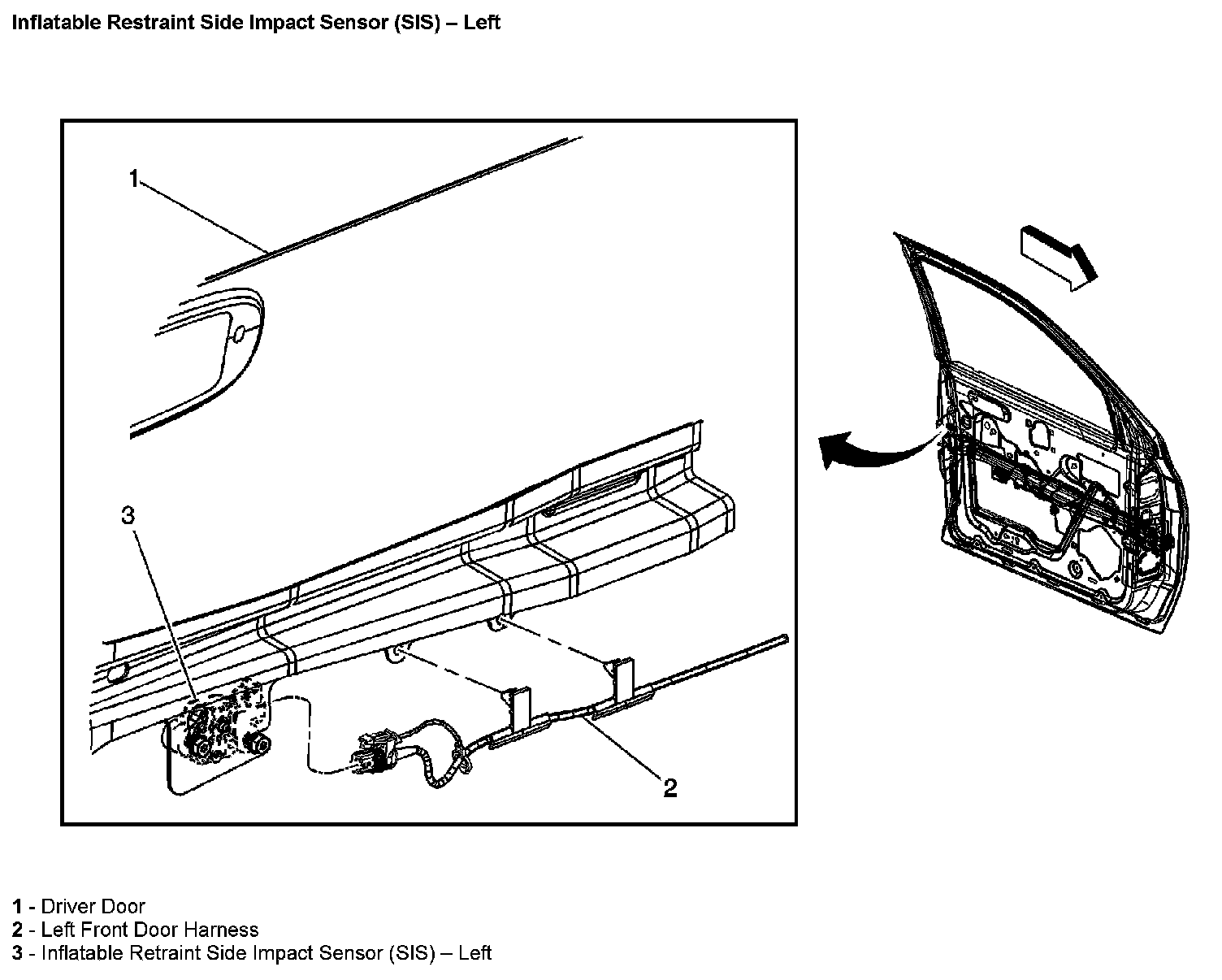

Inflatable Restraint Side Impact Sensor (SIS) - Left:

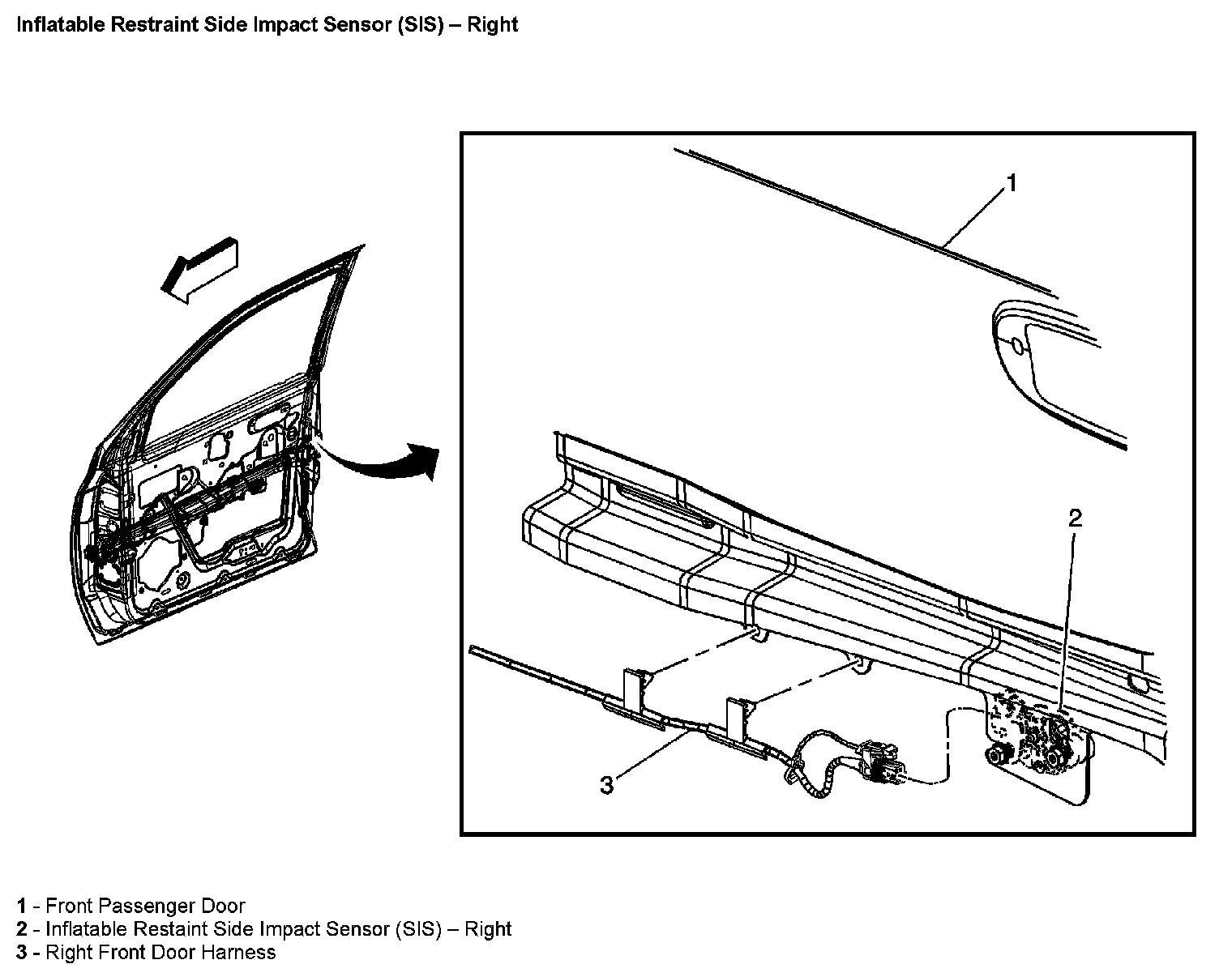

Inflatable Restraint Side Impact Sensor (SIS) - Right:

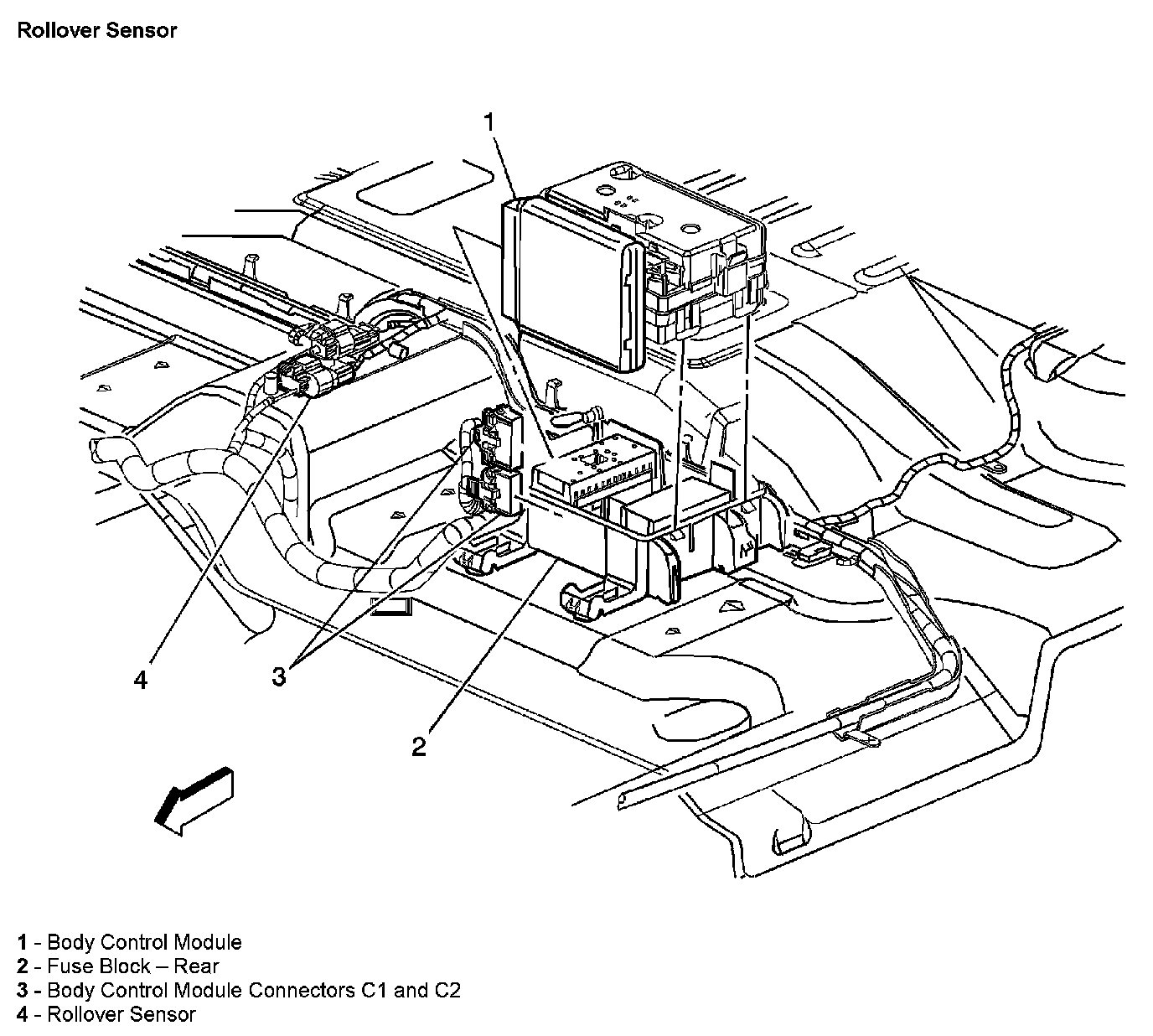

Rollover Sensor:
