NVG 226-NP8 - Transfer Case

Transfer Case Control Component Views

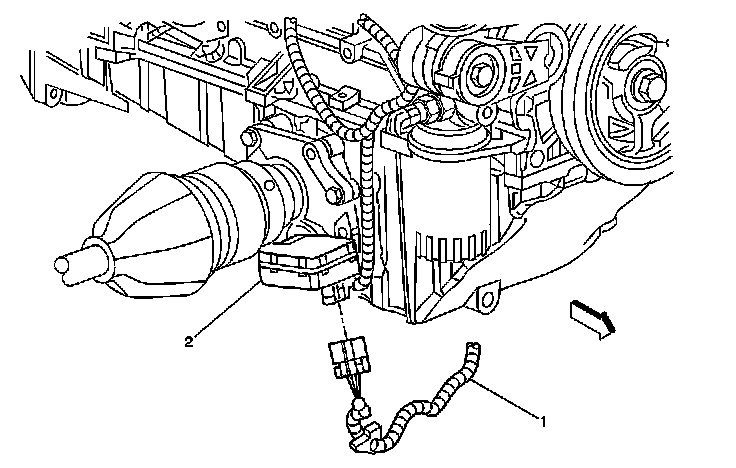

Engine, Lower Right:

1 - Chassis Harness
2 - Front Axle Actuator

Left Side Of The Transfer Case - Rear:

1 - Transfer Case Encoder Motor Connector
2 - Propshaft Speed Sensor - Rear
3 - Vehicle Speed Sensor (VSS)
4 - Propshaft Speed Sensor - Front
5 - C310
